Konsentrator Sentrifugal Emas
【Kapasitas】 0-60 T / H
【Ukuran pemberian makan】 0- 6 mm
【Bahan yang Dapat DiprosesEmas aluvial, emas batu setelah digiling, dan logam mulia lainnya
【Jenis】Vertical auto-discharging centrifuge and vertical-type manual-discharging centrifuge
Mengobrol Online di WhatsApp
Keuntungan
High-Efficiency Gravity Separation Equipment for Fine Gold Recovery: The konsentrator sentrifugal emas is a brilliant mesin pemisah gravitasi designed to recover free gold, fine gold, and other high-density valuable minerals from mineral slurries.
By generating high-intensity centrifugal force through high-speed rotation, the concentrator improves the separation of heavy minerals from lighter gangue materials. Gold particles are concentrated in the recovery zone, while lighter materials are discharged with the tailings.
【Gold Centrifugal Concentrator Models】
1. Timed automatic discharge centrifuge: Customizable, higher efficiency, higher price.
2. Non-automatic discharge centrifuge: Common use, in stock, manually stop working and remove the gold concentrate after a few hours of operation. We offer both industrial and laboratory-type small centrifuges.
3. Customized fixed centrifugal and mobile concentrators (mobile gold wash plant usually equipped with portable trommel screen, portable gold centrifuge, portable gold shaker table, etc.)
【Brands of Gold Centrifugal Concentrators】
Knelson dan Falcon are widely recognized and well-known brands in the mineral processing industry. As an experienced produsen peralatan pertambangan, JXSC offers cost-effective alternatives; its centrifugal concentrators are not only affordable but also come in a full range of models with a wide range of processing capacities.
【Our Gold Centrifugal Concentrator Features】
- JXSC Gold centrifugal concentrator has a high recovery and concentration ratio.
- Center discharge design that enables fast and secure concentrate removal.
- Eco-friendly ( needs no reagents or chemical additives).
- Low energy and low water consumption.
- Durable wear parts with easy maintenance.
- Fast returns on investment, usually less than 6 months.
The centrifugal concentrator is widely used in placer gold, hard-rock gold, gold tailings, and gravity concentration circuits. It can be operated as a standalone unit or integrated with crushers, ball mills, classifiers, meja gemetar, kotak pintu air, gold wash plants, and other mineral processing equipment to increase the fine-gold recovery rate.

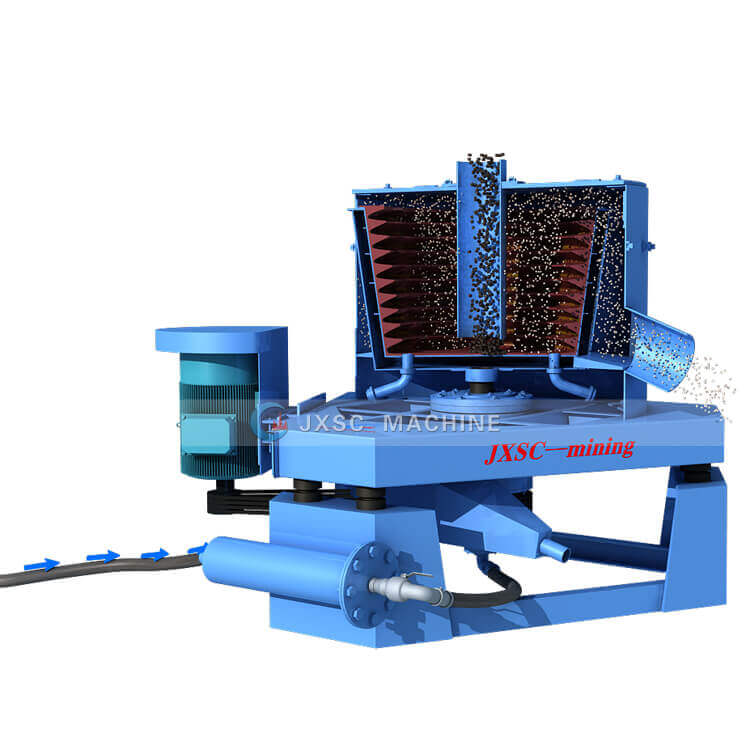

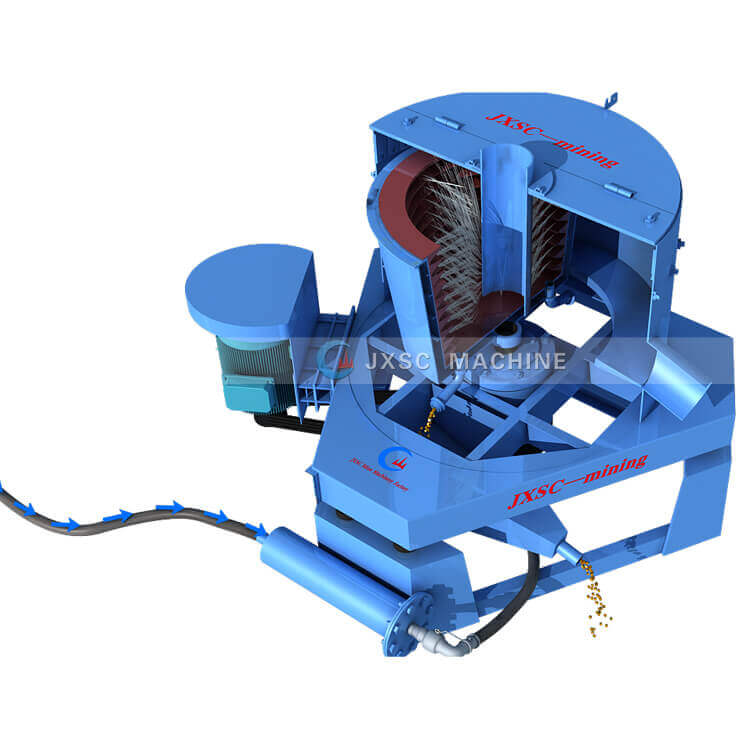

Struktur Produk
【Main Parts of Centrifugal Concentrator】Feeding, rotor, groove, motor, backwash water, PU lining plate, bearing, frame, tailings and concentrate discharge, etc.

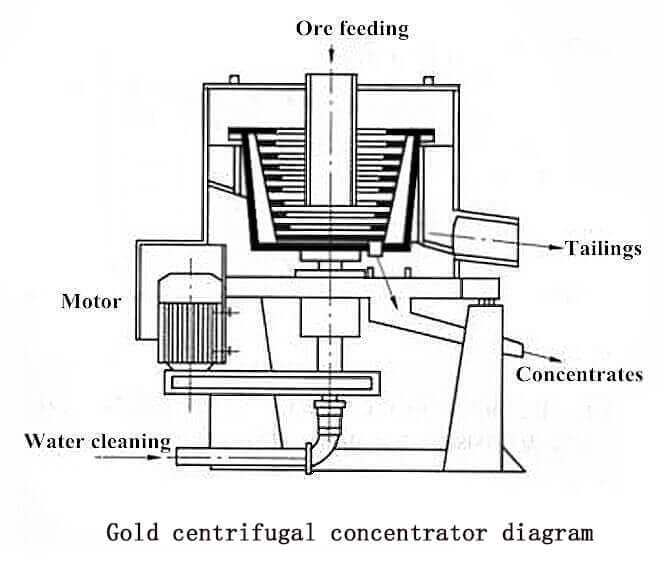

【Working Principle of Centrifugal Concentrator】
Rotor centrifuge berputar dengan kecepatan tinggi. Di bawah aksi gaya sentrifugal, mineral berat menumpuk di alur pelat bagian dalam inti rotor, dan partikel bijih ringan secara bertahap dibuang. Setelah sekitar 4-6 jam operasi, hentikan pengumpanan, dan nyalakan air belakang untuk mencuci konsentrat emas.
Konsentrator sentrifugal emas berguna dalam pemulihan emas di semua rentang ukuran partikel. Alat ini sangat berguna untuk mendapatkan kembali emas halus yang hilang selama pengoperasian konsentrator gravitasi. Aplikasi ini telah menunjukkan bahwa pemulihan emas bisa sangat tinggi, sebanyak 99% dan rasio konsentrasi hingga 1.000 kali. Dalam pemulihan emas alami dalam bijih lode yang memiliki ukuran partikel -0,074mm, emas yang diperoleh sekitar 98%, untuk pemulihan emas dalam ukuran partikel 0,004mm, hingga 97%.
Parameter Teknis
| Model | Kapasitas (T/H) | Ukuran Makan (mm) | Kepadatan Makan (%) | Daya (kW) | Kecepatan Putar Kerucut (RPM) | Diperlukan Air Punggung(m3/h) | Dimensi (mm) |
| STLB20 | 0.5-1 | 0-2.5 | 20-50 | 1.1 | 800 | 15 | 800*560*710 |
| STLB30 | 2-3 | 0-4 | 20-50 | 2.2 | 600 | 20 | 1280*1030*1135 |
| STLB60 | 8-12 | 0-6 | 20-50 | 7.5 | 460 | 50 | 1850*1550*1600 |
| STLB80 | 10-20 | 0-6 | 20-50 | 15 | 400 | 80 | 2300*1800*2200 |
| STLB100 | 40-60 | 0-6 | 20-50 | 18.5 | 360 | 100 | 2400*2400*2250 |
【Gold Centrifugal Concentrator Manufacturer】
With more than 40 years of experience in peralatan pertambangan emas, we help customers select and configure suitable gravity separation equipment for different ore characteristics and processing requirements. In addition to gold centrifugal concentrators, we provide shaking tables, spiral separators, jig concentrators, and related equipment, along with customized configurations, mineral processing solutions, dan technical support. This helps customers choose the right equipment for their target capacity and gold recovery requirements rather than simply purchasing a standalone machine.
Contact JXSC to discuss your ore characteristics and processing requirements and get a suitable equipment recommendation and quotation.
Kasus-kasus yang Berhasil
