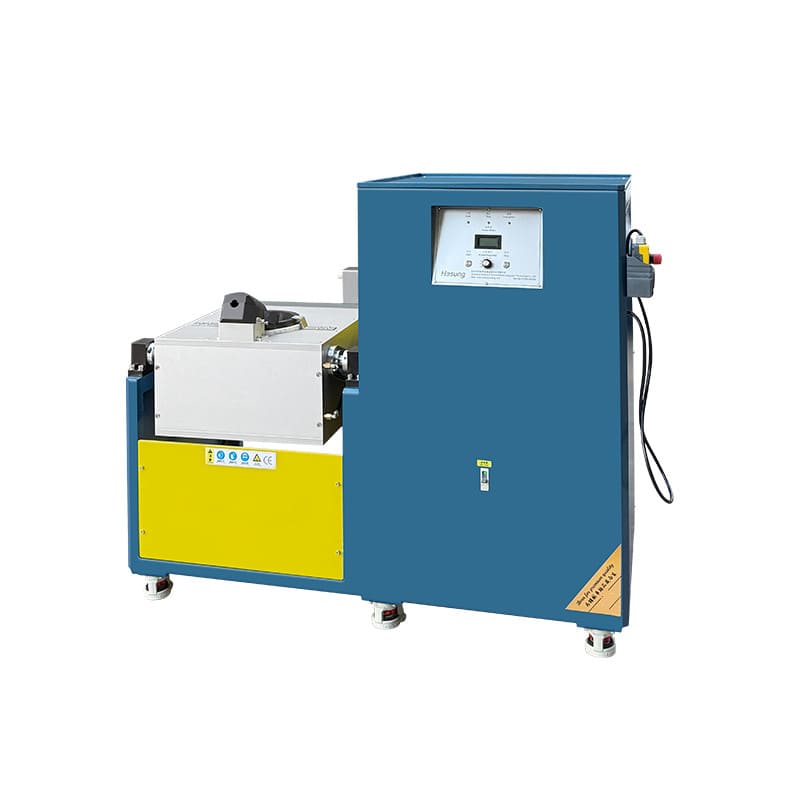

1-100kg Automatic Tilting Melting Furnace
【Kapasitas】1-100 kg
【Max Temperature】1600℃
【Daya】30-50 kW
【Melting Waktu】10-25 min
【Applicable Metalsl】Gold, karat gold, silver, copper, karat gold and their alloys, etc.
【Applicable Industries】 Refineries, precious metal smelting, small and medium-sized jewelry factories, industrial smelting, etc.
Mengobrol Online di WhatsApp
Keuntungan
Ini automatic tilting melting furnace is a high-efficiency equipment designed specifically for melting precious and non-ferrous metals, including gold, karat gold, silver, copper, and their alloys. It is widely used in refineries, precious metal smelting, jewelry manufacturing plants, and industrial melting applications, making it an ideal solution for small and medium-sized enterprises aiming to enhance production efficiency.
【Key Features & Advantages】
- Automatic pouring/tilting/discharge.
- German IGBT heating technology.
- PID temperature control with ±1°C accuracy, max temperature of 1600°
- The melting furnace ensures safe, efficient melting for gold, silver, copper, and other alloys.
- The modular design allows easy maintenance, while multiple protections and fool-proof controls ensure stable, durable performance.
With an ultra-high working temperature of 1600°C (2912°F), this furnace can melt 50kg of material in just 15 minutes and 100kg in 25 minutes. Featuring an intelligent control panel, operation is simplified to a one-touch start, while continuous 24-hour stable operation significantly boosts productivity. The electrically powered tilting system ensures smooth and safe material pouring, complemented by multiple safety protections for reliability and peace of mind—making it the perfect choice for improving both efficiency and safety in melting operations.
Struktur Produk
【Automatic Tilting Melting Furnace Structure】
The automatic tilting melting furnace primarily consists of the furnace body, tilting mechanism, temperature control system, and safety protection devices. The furnace body features a high-temperature refractory lining and is equipped with high-efficiency heating elements. An electrically driven tilting mechanism enables precise and smooth pouring of molten metal. An intelligent PID temperature control system accurately regulates melting temperatures. Multiple safety protections—including emergency power cutoff, cooling systems, and overload protection—are integrated to ensure safe, efficient, and automated operation throughout the high-temperature melting process.
【Automatic Tilting Melting Furnace Work Principle】
The metal material is melted into a liquid state by a high-temperature heating element, and the melting temperature is precisely maintained by a PID intelligent temperature control system. After the metal is completely melted, the furnace body is tilted smoothly by an electric drive device, so that the molten metal is accurately poured into the mold or casting equipment along a specific flow channel. After casting is completed, the furnace is automatically reset. The whole process is automated, reducing manual intervention and improving production safety and efficiency.
Parameter Teknis
| Model | JXSC-ATF30 | JXSC-ATF50 | JXSC-ATF100 |
| Tegangan | 380V, 50/60 Hz, 3 Phase | ||
| Daya | 30 kW | 30 kW | 50 kW |
| Kapasitas | 30 kg | 50 kg | 100 kg |
| Waktu Peleburan | 10-15 min | 15-20 min | 20-25 min |
| Maximum Temperature | 1600 ℃ | 1600 ℃ | 1600 ℃ |
| Heating Method | IGBT induction heating | ||
| Akurasi Suhu | ±1°C (optional) | ||
| Temperature Detector | PID Temperature Control (Optional) | ||
| Metode Pendinginan | Water chiller or Running water | ||
| Dimensi | 135x66x135 cm | 140x70x135 cm | 162x136x133 cm |
| Berat | 250 kg | 320 kg | 450 kg |
