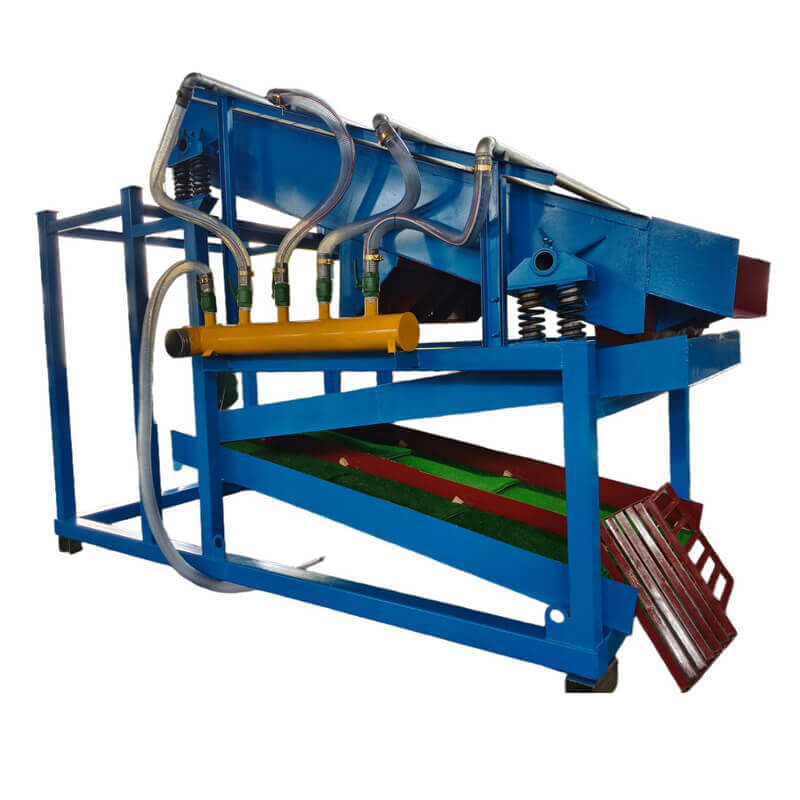

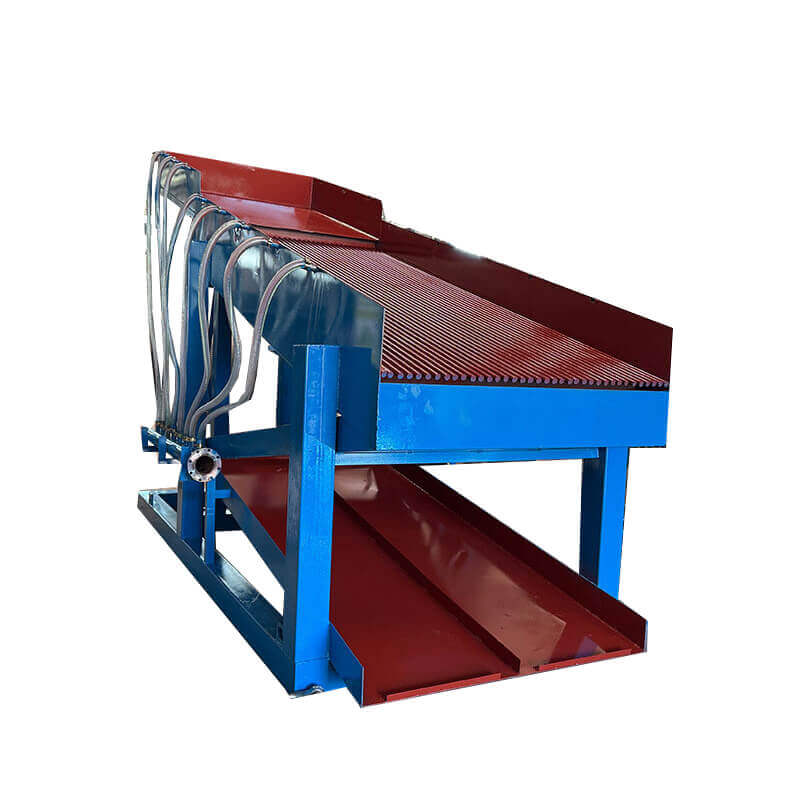

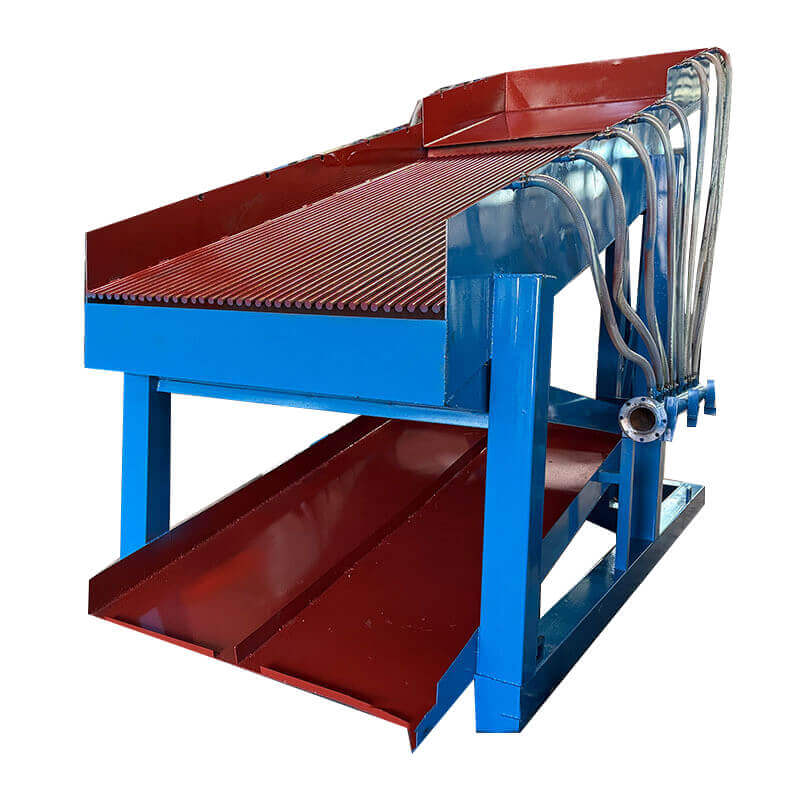

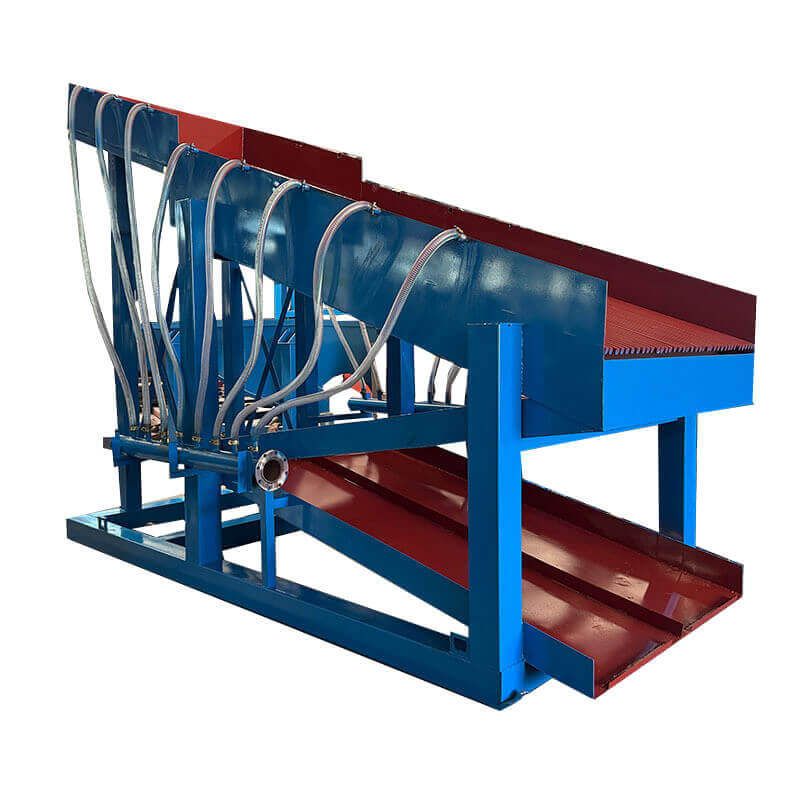

Inclined Vibrating Screen
【Capacity】80-450 T/H
【Mesh Aperture】0-30 mm
【Max Feed Size】30 mm
【Motor Power】5.5-37 kW
【Applicable Materials】Placer/alluvial gold, river sand, and other heavy minerals (such as tungsten, tin, and diamonds)
Conversar online no WhatsApp
Vantagens
O inclined vibrating screen is a simple and efficient máquina de separação por gravidade designed for the washing, screening, desliming, and preliminary recovery of placer gold.
The vibrating inclined-flow gold washing machine is a powered processing unit upgraded from the purely gravity-fed (non-powered) inclined-flow screen by the addition of a vibrating motor. By utilizing the synergistic action of high-frequency vibration, gravity, and water flow, it achieves screening efficiency and processing capacity far superior to traditional non-powered models, making it the mainstream gold recovery equipment for large-scale alluvial gold mines with access to a power supply.
【Key Features & Characteristics】
- Superior Anti-Clogging Capability: High-frequency vibration continuously dislodges sand and gravel stuck in the screen apertures, effectively solving the clogging issues common in high-clay-content mining sites; screening efficiency is over 30% higher than that of purely gravity-fed inclined screens.
- Flexible Parameter Adjustment: Vibration modes can be switched based on ore characteristics; high-frequency, low-amplitude settings improve screening rates for fine-grained gold, while low-frequency, high-amplitude settings enhance material throwing force for coarse-grained ore, offering significantly improved adaptability.
- High processing capacity: Mainstream equipment can process 100–500 tons per hour, with some large-scale mobile units offering even higher efficiency, making them suitable for large-scale mining operations.
- High recovery rate: Through multi-stage screening and precise water flow control, the system effectively recovers fine gold particles and minimizes gold loss.
- Lower Operation and Maintenance Costs: Features a bearing isolation design that minimizes wear on consumable parts and ensures smooth operation; the failure rate during long-term, continuous use is far lower than that of standard trommel-based gold screening equipment.
Estrutura do produto

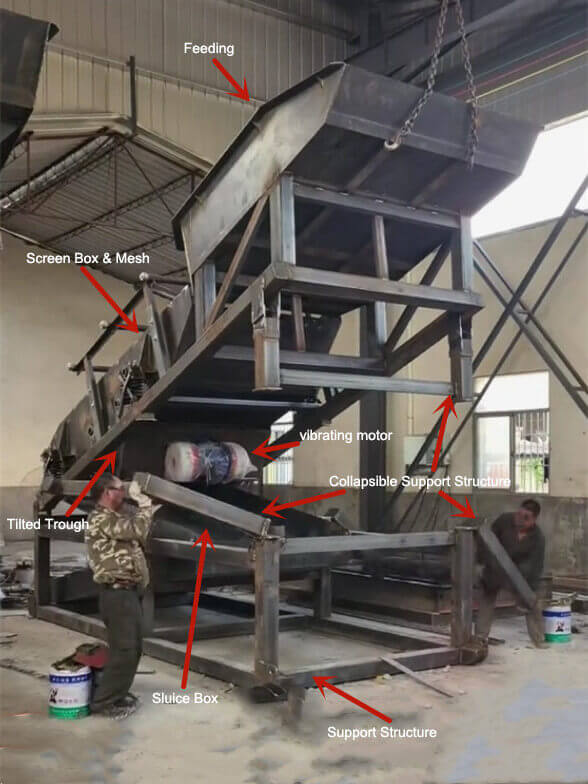

【Inclined Vibrating Screen Structure】
The inclined vibarting screen primarily consists of an inclined screen box, wear-resistant screen mesh, a vibrating motor, shock-absorbing springs, a high-pressure spray system, and a gold-trapping sluice at the bottom.
【Inclined Vibrating Screen Working Structure】
The core of this equipment relies on two physical principles: "vibratory screening" and "gravity separation."
- High-frequency vibration screening:Upon startup, the vibrating motor drives the eccentric blocks to rotate at high speed, generating a periodic exciting force that causes the screen mesh to vibrate at high frequency; this induces a "throwing" motion in the ore-sand mixture, effectively breaking up clay clumps that encapsulate gold particles.
- Cross-flow gravity separation: Large waste rock slides rapidly forward along the inclined screen surface and is discharged, while the fine-grained, gold-bearing slurry passes through the screen into the gold-trapping sluice at the bottom; driven by gravity and water flow, gold particles settle quickly and are captured by the trapping medium, while lightweight tailings are washed away, thereby achieving efficient screening and enrichment of placer gold in a single step.
Parâmetros técnicos
| Modelo | Mesh Size (mm) | Mesh Aperture (mm) | Maximum Feed Particle Size (mm) | Potência do motor (kW) | Processamento Capacidade (T/H) | Peso (T) | Dimensões totais (mm) |
| JXSC-IVC1230 | 1200×3000 | 0-30 | 0-30 | 5.5 | 80-100 | 4.2 | 4500×1500×2600 |
| JXSC-IVC1540 | 1500×4000 | 0-30 | 0-30 | 7.5 | 100-150 | 6.5 | 5500×1800×2900 |
| JXSC-IVC1645 | 1600×4500 | 0-30 | 0-30 | 9 | 150-200 | 7.6 | 6000×1900×3100 |
| JXSC-IVC1855 | 1800×5500 | 0-30 | 0-30 | 11 | 250-300 | 8.6 | 7000×2100×3200 |
| JXSC-IVC2060 | 2000×6000 | 0-30 | 0-30 | 13 | 300-350 | 10.5 | 8000×2400×3500 |
| JXSC-IVC2470 | 2400×7000 | 0-30 | 0-30 | 37 | 400-450 | 13.5 | 9000x2800x3900 |
