Planta de flotación

Contacto +86-13879771862
Tiempo de publicación：20 diciembre 2018

Efficient Mineral Processing for Various Ores

Our advanced flotation plant delivers exceptional performance in processing:

  • Metales no ferrosos: Gold, copper, lead, zinc, nickel, molybdenum
  • Ferrous metals: Iron and other metallic ores
  • Nonmetallic minerals: Various industrial minerals



How Our Flotation Plant Works?

Innovative Working Principle

The impeller is driven by V-belts, which generate centrifugal force to create negative pressure. On the one hand, to inhale sufficient air to mix with ore pulp; on the other hand, to stir ore pulp and mix with medication to form the mineralized froth. To adjust the height of the flashboard to control the liquid level and make the useful froth scraped by the loam board.



Superior Flotation Plant Features

  • Excellent blade motor, rotor, scraping plate, and scraping plate motor;
  • Gran capacidad de producción de flotación de mineral;
  • Ahorra energía;
  • High efficiency in the froth flotation process.
  • Easy to set up, operate, and maintain the froth floatation process;
  • Separación por flotación de larga vida útil.
  • Our engineer guides the installation and connection, teaches operation, and designs according to your mine information, such as gold flotation, zinc flotation, and copper flotation.



High-Efficiency Flotation Plant

The flotation plant is always applied with SF series flotation machines to form a joint unit; the SF flotation machine is used for the inhalation slot of pulp self-absorption, while the JJF series flotation machine is used for the DC slot. And then, the operation space is a level configuration without a foam pump to get high sorting indicators. The JJF series and the SF series also have their respective advantages. It is mainly used for copper, lead, zinc, nickel, molybdenum, gold, and other non-ferrous metals, ferrous metals, and non-metallic minerals roughing, selection, and flotation operations.



Máquina de flotación de alta eficiencia para minería de oro

Modelo Volumen Tamaño de la célula Diámetro del impulsor Velocidad del impulsor Capacidad Potencia Peso de una célula
m3 mm mm r/min m3/min kw kg
XJ-3 0.35 700× 700× 700 300 483 0.18-0.4 2.2/0.55 430
XJ-6 0.62 820× 900× 850 350 400 0.3-0.9 3/1.1 755
XJ-11 1.1 1100× 1100× 1000 500 330 0.6-1.6 5.5/1.1 1416
XJ-28 2.8 1750× 1600× 1100 600 280 1.5-3.5 11/1.1 2113
XJ-58 5.8 2200× 2200× 1200 750 240 3–7 22/1.5 3400
SF-0,37 0.37 700× 700× 750 296 386 0.2-0.4 1.5/0.55 468
SF-0,7 0.7 820× 900× 950 350 400 0.3-0.9 3/1.1 805
SF-1.2 1.2 1100× 1100× 1100 450 312 0.6-1.2 5.5/1.1 1373
SF-2.8 2.8 1700× 1600× 1150 550 268 1.5-3.5 11/1.5 2138
SF-4 4 1850× 2050× 1200 650 220 2–4 15/1.5 2582
SF-8 8 2200× 2900× 1400 760 191 4–8 30/1.5 4129
SF-10 10 2200× 2900× 1700 760 191 5–10 30/1.5 4486
SF-16 16 2850× 3800× 1700 760 191 5–16 30× 2/1.5 8320
SF-20 20 2850× 3800× 2000 760 191 5–20 30× 2/1.5 9828

Flotation Plant After-sales Service

  • Instalación profesional
    JXSC has a professional installation team, who are hardworking, industriously studying, and brave in innovating. So far, they have successfully finished the installation and commissioning tasks for thousands of large and small projects. Besides, the JXSC installation team also helps our customers train the operations staff until they can operate the machinery independently.
  • Recepción de empresas
    Los lujosos vehículos comerciales le atienden durante todo el trayecto, solucionando por completo los problemas de viaje después de llegar a Ganzhou; una elegante cafetería le mantiene cómodo cuando negocia con nosotros.
  • A skilled after-sales service team
    JXSC can offer an online engineering service and solve the problems for you ASAP. JXSC’s after-sales service team is spread all over the world, and they will deliver prompt and complete service to keep your job moving forward. The technicians of our team offer super service ranging from routine maintenance and accident repairs to customization and reconditioning.
  • Suministro preferente de piezas de desgaste para plantas de flotación
    Original spare parts are the heart of the crushing and screening plant. JXSC supplies quality original parts to protect your investment, and our experienced product specialists can ensure you receive exactly what you need to get your equipment back on working ASAP.

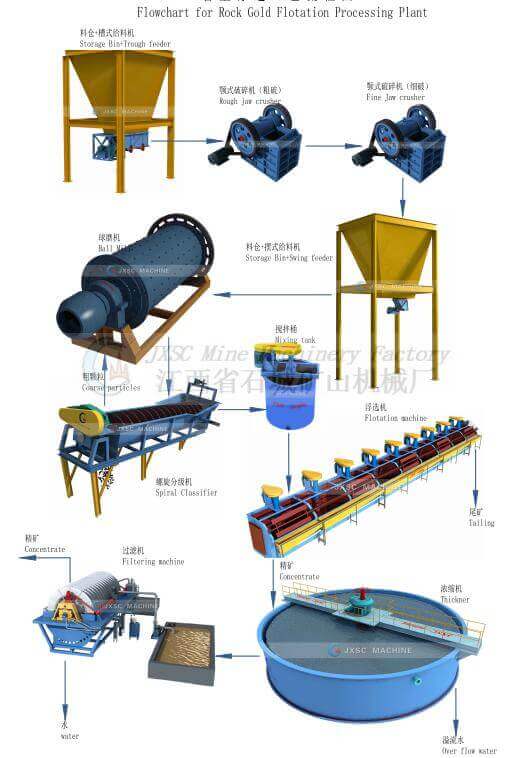

  • Our professional engineers design the total line of gold ore beneficiation flow diagrams. Below is a general flotation flow for reference. We will design the complete ore flotation plant according to your mine info and your working site area. Welcome to our working site to see the machines in working condition.



Flotación para minería de oro JXSC



About JXSC Mineral Processing

Jiangxi Shicheng Mine Machinery Factory is a leading Chinese mineral separator machinery manufacturer and supplier. As a professional mineral separator machinery company, we have a well-run mineral separator machinery factory.

Póngase en contacto con nosotros
En maquinaria de tratamiento de minerales includes gravity concentrate machines, shaking tables, jigging machines, jig separators, spiral chutes, spiral separators, gold centrifuge concentrators, gold concentrate shaking tables, gold jig separators, gold concentrate machine, gold separate machine, gold recovery equipment, etc.

Gracias por tomarse el tiempo para revisar nuestra planta de flotación de alta eficiencia para minería de oro. Ofrecemos un servicio completo de línea de producción de separación por flotación. Si usted tiene alguna pregunta, comentario, o cualquier cosa que podamos hacer por usted, por favor no dude en contactar con nosotros en cualquier momento.
