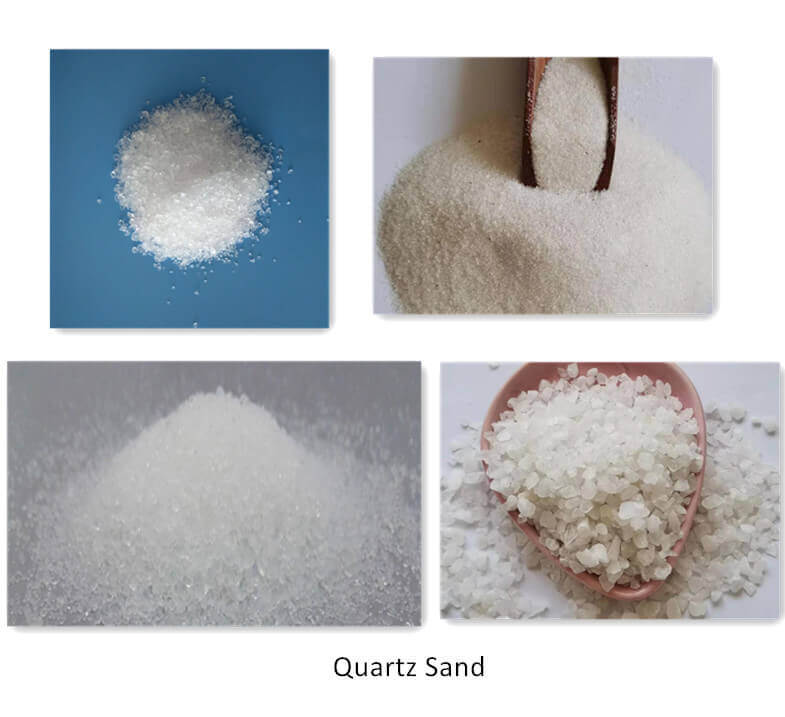

Quartz sand is an important industrial mineral. According to different product qualities, it can be divided into ordinary, refined, high-purity, and fused quartz sand. High-purity quartz sand is currently the product with the highest demand in the quartz sand market. With its superior performance, it has become a key raw material in photovoltaics, semiconductors, and other fields. It is mainly used to produce quartz crucibles and quartz boats.
At present, there are three main production methods for quartz sand, which are deeply purified from quartz minerals (purification method), processed from natural crystals as raw materials (natural crystal processing method), e produced from silicon-containing compounds as raw materials (synthetic method). Among them, the purification method is currently the mainstream production method of quartz sand in China. To produce high-purity quartz sand through this method, high-purity quartz sand raw ore is required as raw material. The synthesis method is an emerging method for preparing high-purity quartz sand in China. It refers to the quartz sand products produced from silicon-containing compounds such as sodium silicate and aluminum silicate as raw materials through mixing, heating, crystallization, crushing, washing, drying, etc, collectively called areia de quartzo sintética ou areia de quartzo artificial. Synthetic quartz sand has the vantagens of high strength, high purity, strong corrosion resistance, and good chemical stability, and it can be used in industry, electronics, optics, semiconductors, machinery, aviation, and other fields.
This guide explores how artificial quartz sand is made, its unique properties, and where it’s used in industries from construction to semiconductors.
Artificial Synthetic Quartz Sand Overview
A areia artificial sintética de quartzo é um material artificial. Trata-se de um material inorgânico não metálico fabricado a partir de areia de quartzo, caulinoO pó de alumínio e outras matérias-primas através de trituração, crivagem, mistura, moldagem, secagem, sinterização e outros processos.
Areia sintética artificial de quartzo Propriedades físicas
As propriedades físicas da areia artificial sintética de quartzo são semelhantes às da areia natural de quartzo, e tem as vantagens de boa resistência a altas temperaturas, resistência ao desgaste, resistência à corrosão, elevada resistência à compressão e boas propriedades de isolamento. No entanto, devido à sua elevada dureza, dificuldade de processamento e facilidade de fragilização, a gama de aplicações da areia de quartzo sintética artificial é relativamente estreita.
Key Differences from Natural Quartz:
| Característica | Natural Quartz Sand | Artificial Quartz Sand |
|---|---|---|
| Purity | 90-99% SiO₂ | 99-99.99% SiO₂ |
| Impurities | Contains iron, alumina, etc. | Chemically refined for minimal contamination |
| Grain Shape | Irregular, angular | Controlled (spherical, uniform) |
| Cor | Often yellowish due to iron | Pure white or custom-tinted |
Artificial Synthetic Quartz Sand Application
Os principais domínios de aplicação da areia artificial sintética de quartzo são materiais resistentes ao desgaste, materiais para equipamentos de alta temperatura, indústria química, metalurgia e outras indústrias de fabrico de equipamentos, materiais de alta resistência, materiais de isolamento, etc,
- Em termos de materiais resistentes ao desgaste, a areia artificial sintética de quartzo pode ser utilizada para fabricar mós, abrasivos, lixas, etc.
- Em termos de materiais para equipamentos de alta temperatura, a areia artificial de quartzo sintético pode ser utilizada para fabricar termopares, tubos de termopar, mangas de termopar, etc.
- In terms of manufacturing equipment in the chemical industry, metallurgy, and other industries, artificial synthetic quartz sand can be used to make acid- and alkali-resistant pipes, acid and alkali-resistant containers, acid and alkali-resistant pumps, etc.
- Em termos de materiais de alta resistência, a areia artificial sintética de quartzo pode ser utilizada para fabricar betão de alta resistência, vidro de alta resistência, cerâmica de alta resistência, etc.
- Em termos de materiais de isolamento, a areia artificial sintética de quartzo pode ser utilizada para fabricar cerâmicas isolantes, placas isolantes, tubos isolantes, etc.

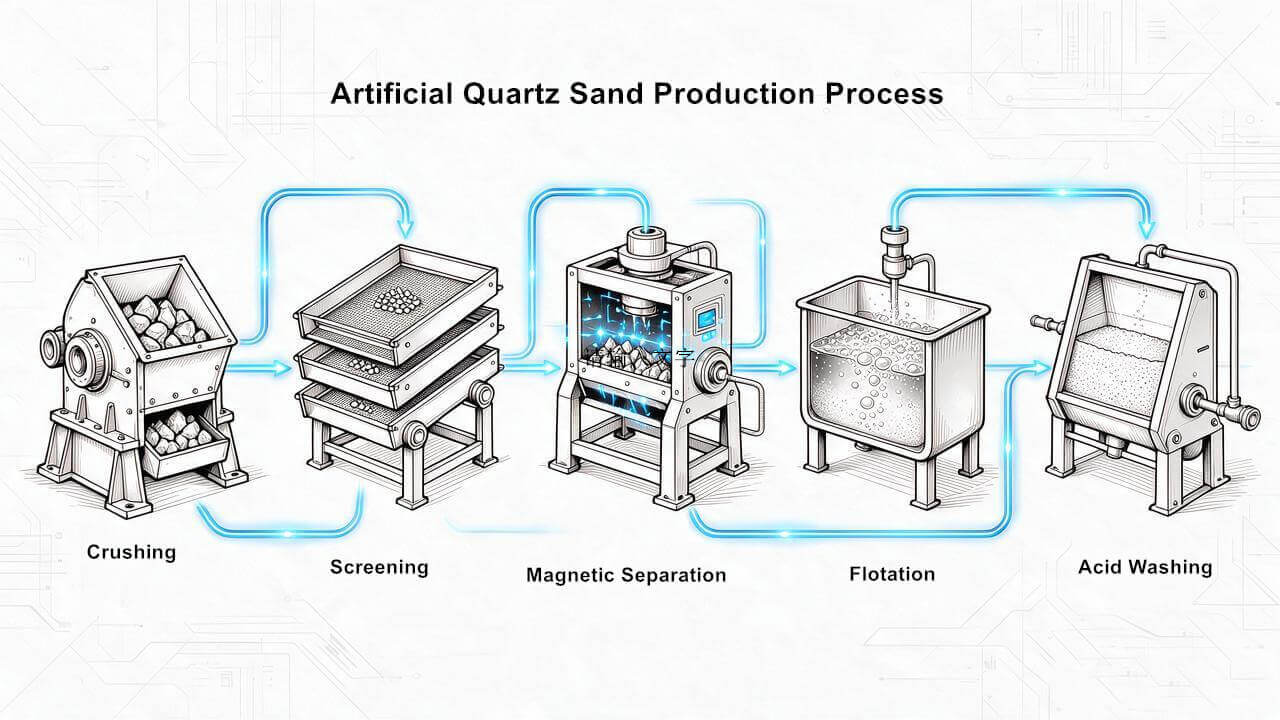

Artificial Synthetic Quartz Sand Manufacturing Process
O processo de fabrico da areia artificial sintética de quartzo inclui principalmente trituração, crivagem, mistura, moldagem, secagem, sinterizaçãoe outros processos.
- Trituração: Em primeiro lugar, o minério de quartzo natural ou areia de quartzo é triturado em partículas de tamanho adequado para processamento posterior.
- Rastreio: As partículas de quartzo triturado são peneiradas para remover as impurezas e as partículas que não cumprem as especificações, garantindo a qualidade do produto.
- Mistura: As partículas de quartzo crivado são misturadas com resinas, pigmentos e outros aditivos. O processo de mistura requer um controlo rigoroso das proporções dos ingredientes para garantir o desempenho e o aspeto do produto final.
- Moldagem: Os materiais misturados são colocados em moldes e depois compactados para encher os moldes e obter as formas e tamanhos desejados através de métodos como a vibração ou a compressão.
- Secagem: Os moldes preenchidos são normalmente submetidos a um processo de secagem para remover a humidade e promover a cura do material. A secagem pode ser efectuada através de secagem natural ao ar ou utilizando equipamento de secagem.
- Sinterização: Os moldes preenchidos e secos são submetidos a um processo de sinterização, onde são sujeitos a altas temperaturas para curar a resina, unir firmemente as partículas de quartzo e formar areia de quartzo sintético artificial sólido
Artificial Synthetic Quartz Sand: Current Challenges & Future Potential
Artificial synthetic quartz sand presents a promising alternative to natural quartz sand, boasting superior properties such as high-temperature resistance, wear resistance, corrosion resistance, high compressive strength, and excellent insulation performance. While its physical properties closely resemble natural quartz sand, synthetic quartz offers greater purity and consistency, making it a preferred choice for high-tech industries like semiconductors and advanced materials.
However, despite its advantages, widespread adoption remains in the pilot stage, with key challenges impeding full-scale industry integration.
Key Challenges in Artificial Quartz Sand Adoption
Limited Industrial Maturity
- Synthetic quartz sand is still in the early phases of testing and application, with uncertainties around its performance in downstream processes (e.g., crucible inner layers).
- Os seus brittleness and processing difficulties must be improved to broaden usability.
Balancing Purity & Performance
- While synthetic sand offers higher purity, excessive purity can reduce temperature resistance, creating trade-offs in industrial applications.
- Not all industries require ultra-high purity, meaning natural sand remains preferable for cost-sensitive uses.
High Production Costs
- Current synthetic sand costs are several times higher than natural quartz, making it economically viable only in high-value applications like semiconductor crucibles.
- Expanding production efficiency is crucial to making it viable for broader industries like photovoltaics.
Future Outlook & Industry Evolution
Despite current limitations, synthetic quartz sand is on an inevitable path toward replacing natural sand in critical sectors, driven by:
- Sustainability & Resource Security – Reducing reliance on finite natural quartz deposits.
- Technological Advancements – Enhancing processing methods to improve hardness and reduce brittleness.
- Cost Optimization – Scaling production to make synthetic sand competitive across more industries.
As R & D progresses, synthetic quartz is expected to unlock new applications in quantum computing, advanced electronics, and high-performance construction materials. However, achieving full-scale commercialization will require overcoming technical and economic barriers.
Conclusion: A Gradual but Inevitable Shift
While synthetic quartz sand cannot yet fully replace natural sand, its superior properties and long-term potential position it as the future standard for high-precision industries. The technology must evolve to enhance durability, reduce costs, and improve manufacturability before achieving widespread adoption.
Looking for tailored synthetic quartz solutions? Contact our experts for advanced material specifications.
