JXSC ha diseñado un diagrama de flujo completo y proporciona un conjunto completo de máquinas de planta de procesamiento y todos los accesorios para alluvial chrome processing in Zimbabwe. We offer a detailed layout design with base construction drawings accordingly.
40 TPH Alluvial Chrome Processing in Zimbabwe
Published Date:22 mayo 2025Situación de la mina del cliente
- La capacidad de procesamiento necesaria es de 40TPH.
- The raw material is alluvial chome.
40 TPH Alluvial Chrome Ore Process Plant Flowchart
Chrome Processing Plant Equipment
- Criba trómel
- Canaleta en espiral
- Bomba de lodo
- Separador magnético
Descripción de Flowchat
Step 1: Raw Material Feeding
The raw alluvial chrome ore is fed into the processing plant system through a feeding hopper or conveyor.
Step 2: Washing and Screening
The raw ore enters a trómel de cribado where washing takes place. This equipment:
- Washes the ore material to remove clay and other impurities.
- Screens out waste material and oversized particles.
- Allows properly sized material to pass through as an underscreen product.
Step 3: Slurry Pumping
The underscreen material (washed and properly sized ore) is pumped as slurry to the gravity separation circuit using bombas para lodo.
Step 4: Gravity Separation
The slurry is processed through toboganes espirales for gravity concentration:
- Heavy chrome minerals are separated from lighter gangue minerals.
- The spiral chute provides high-capacity processing with effective separation.
- In this setup, a single-stage spiral system is utilized due to the high-grade nature of the raw ore.
Step 5: Magnetic Separation
The concentrate from the spiral chutes is directed to wet magnetic separators:
- This customized step removes iron contaminants from the chrome concentrate.
- Improves the quality and purity of the final chrome product.
Step 6: Tailings Management
The tailings (rejected material) from the spiral separation process are pumped to a tailings pond for proper disposal and water recovery.
Step 7: Product Collection
The final chrome concentrate (after magnetic separation) is collected as the finished product, ready for further processing or market.
Notas:
For lower-grade raw ore, a two-stage spiral configuration is recommended:
- The first stage separates the initial concentrate.
- Middling materials from the first stage are pumped to the second-stage spirals.
- This configuration achieves a higher overall recovery ratio.

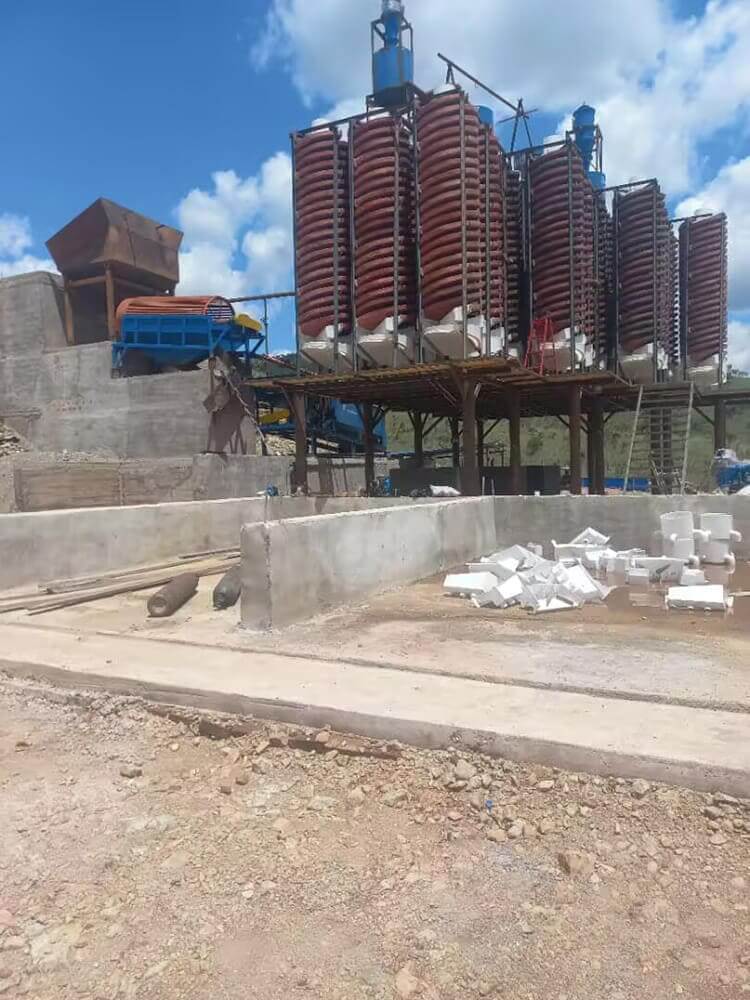

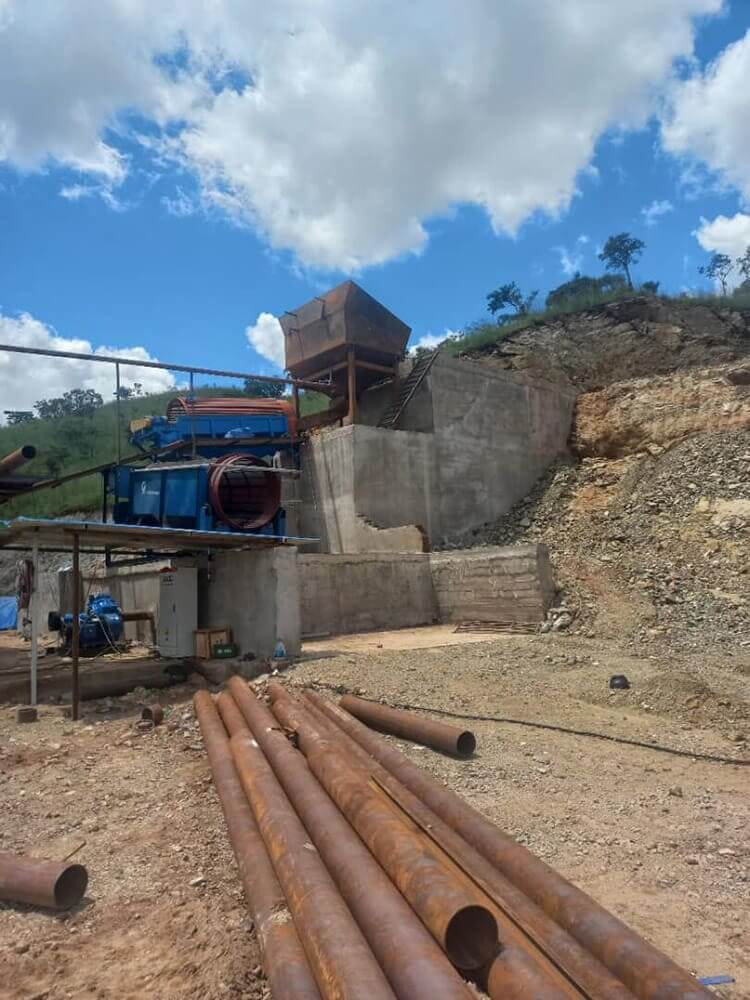

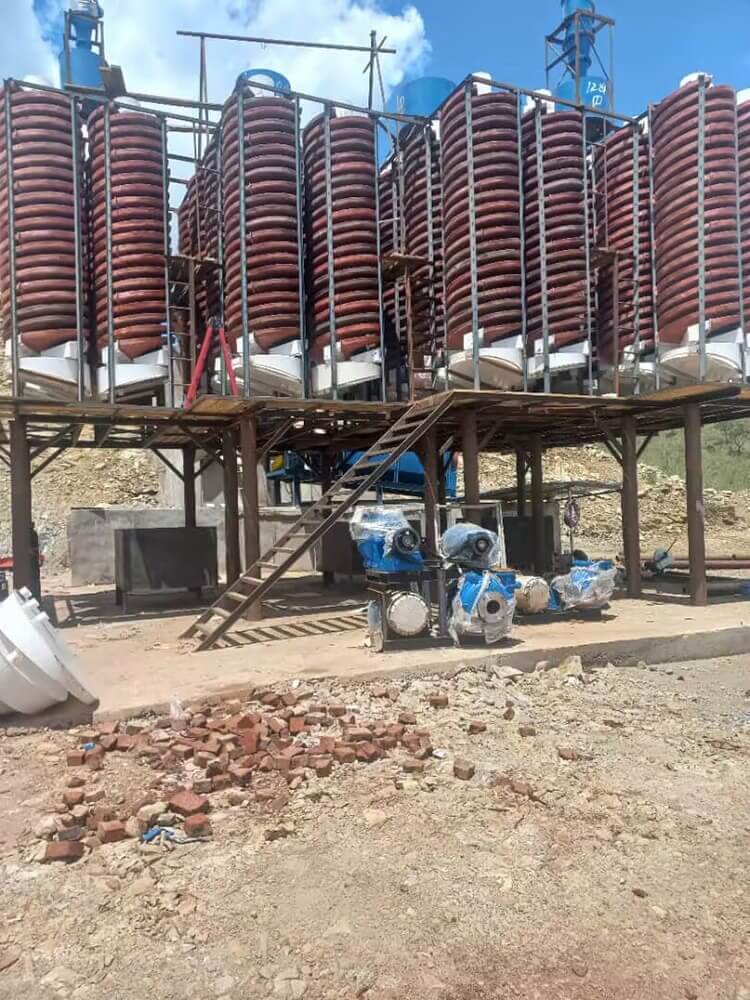

Producción y envío
