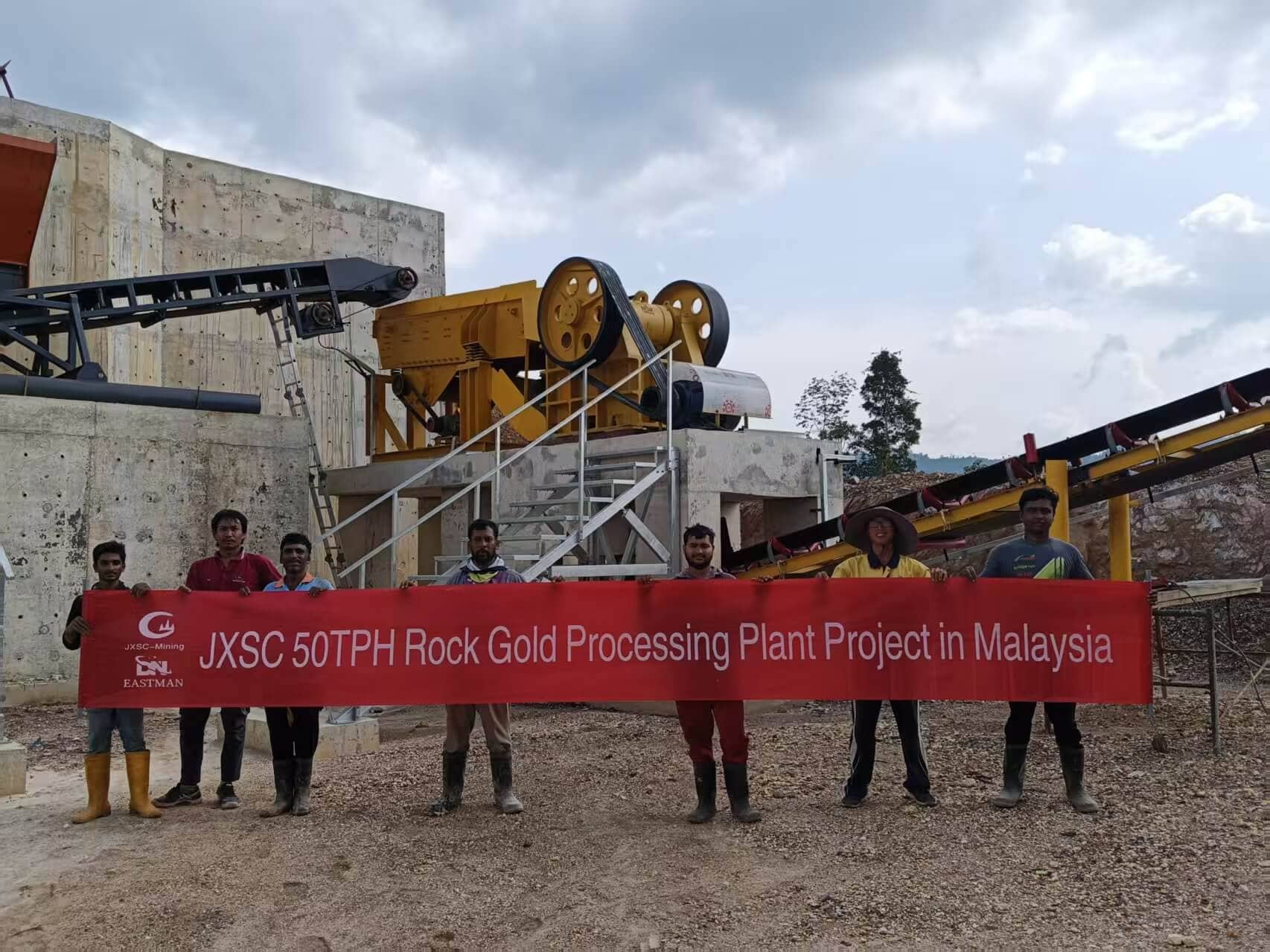

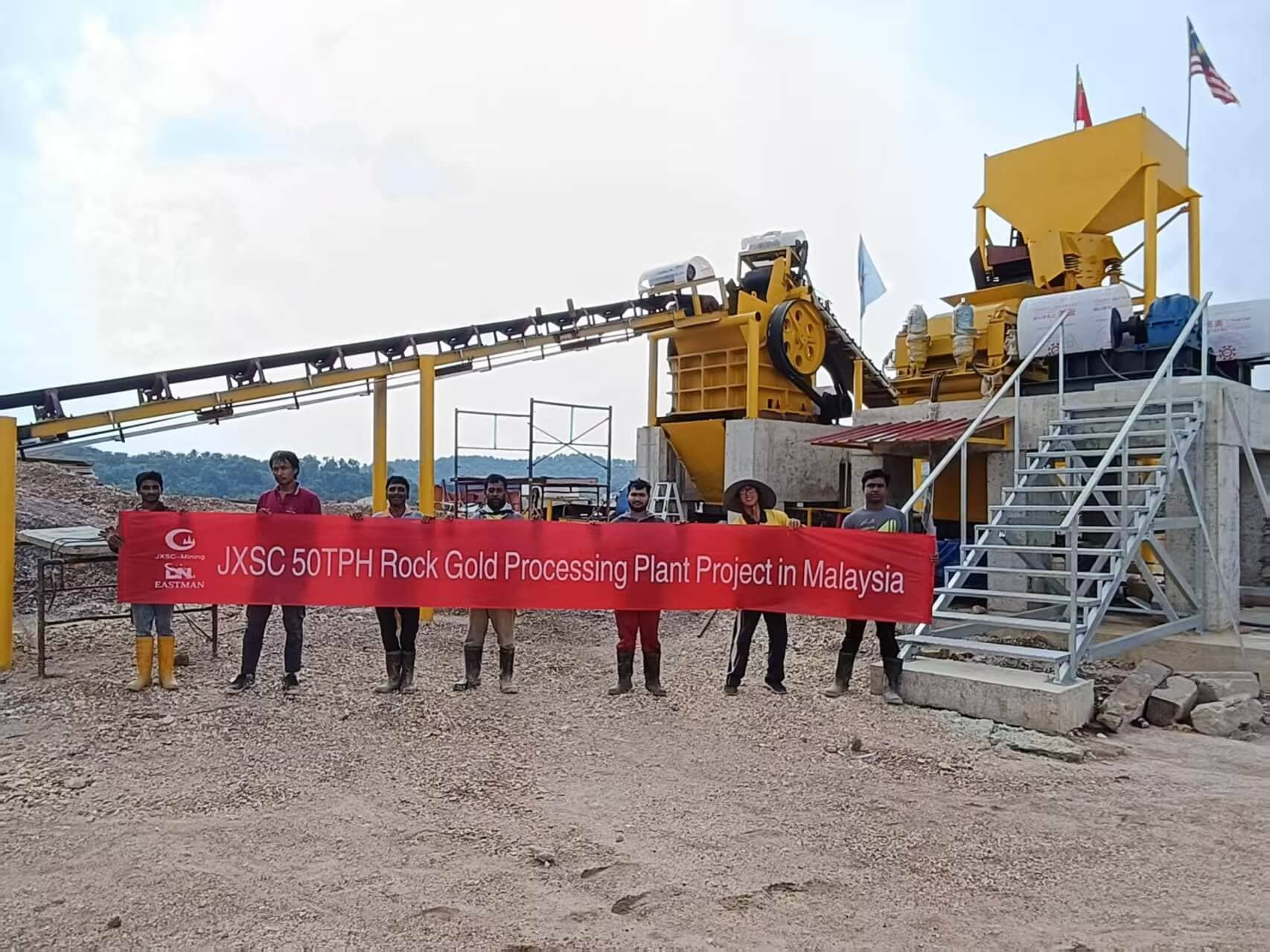

50 TPH Rock Gold Processing Plant in Malaysia

JXSC has designed a complete Flowchart and provides a full set of processing plant machines & all accessories for the rock gold processing plant in Malaysia. We offer a detailed layout design with base construction drawings accordingly.

1. The processing capacity required is 50TPH.
2. Maximum feeding size: <250 mm.

• Alimentador de vibrações
• Triturador de maxilas
• Triturador de maxilas fino

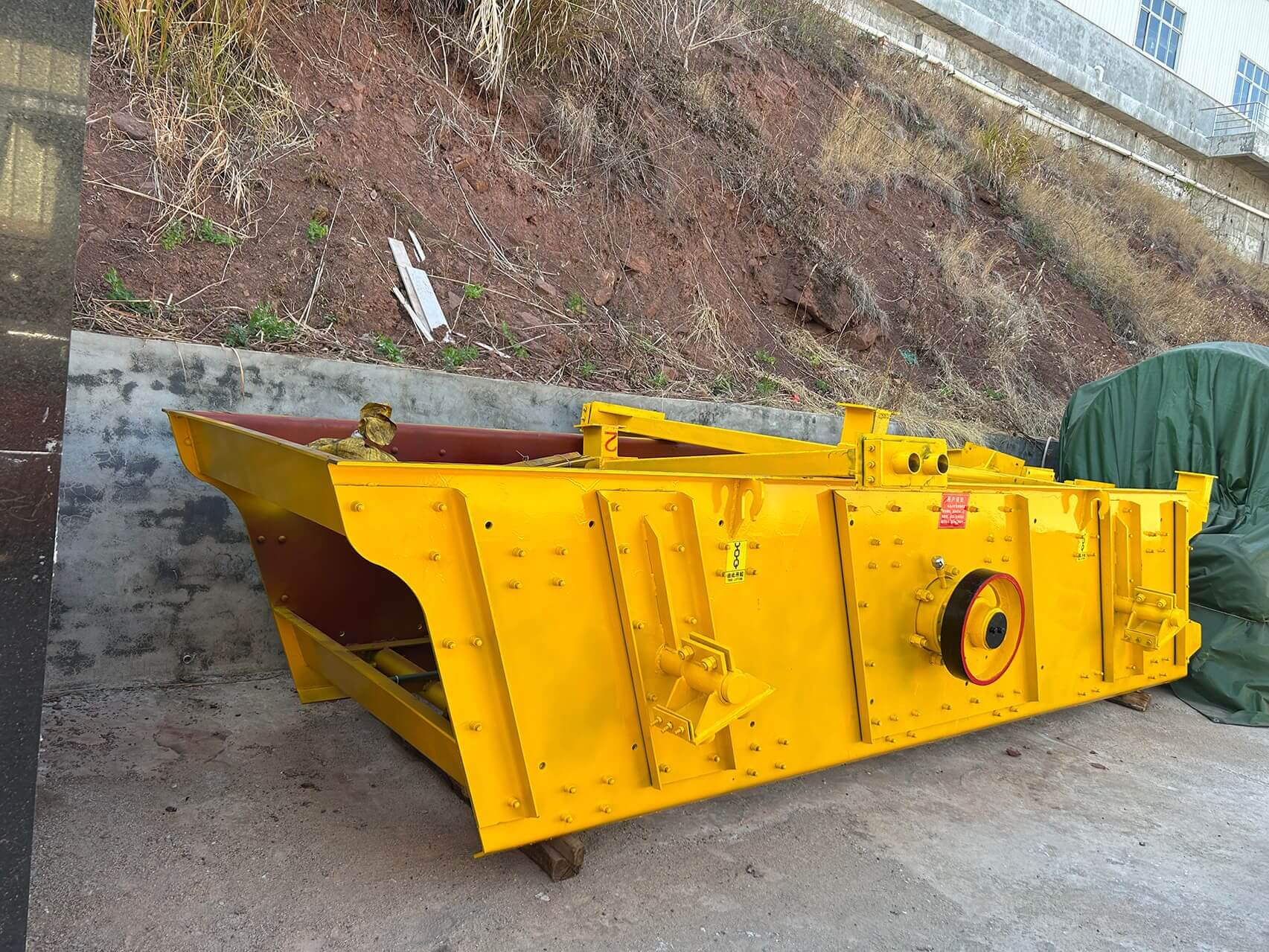

• Peneira vibratória
• Double roller crusher

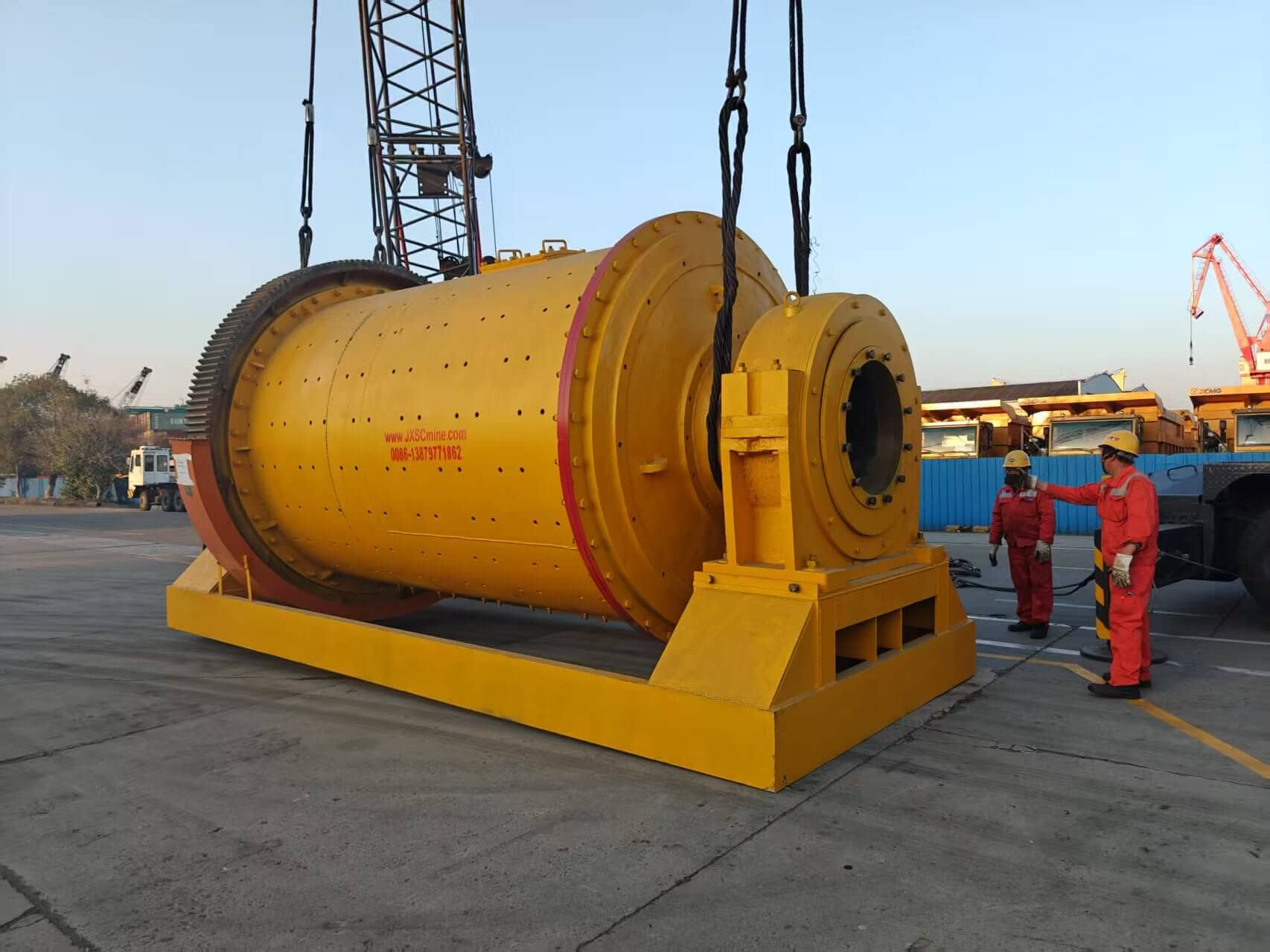

• Grate discharge ball Mill
• Concentrador centrífugo de ouro
• Mesa agitadora
• Caixa de eclusa
• Slurry pump, main water pump & back wash water pump
• Transportador de correia
• Forno de fundição de ouro

Esta configuração é uma 50tph rock gold processing plant, which is configured with a alimentador vibratório for feeding raw ore to the triturador de maxilas evenly.

The output of the first jaw crusher will be sent to a fine jaw crusher for crushing again.

The output from the fine jaw crusher will be sent to a double-deck vibrating screen for sieving them into three different sizes(0-10mm,10-35mm,>35mm).

35mm will be sent back to the fine jaw crusher for crushing again.

0-35mm will be sent to the triturador de rolo duplo for crushing to 0-6mm, and the output from the double roller crusher will be sent to the ecrã vibratório, which forms a closed circuit.

0-10mm materials will be sent to the moinho de bolas for grinding until 30 mesh.

The output 30 mesh slurry will be sent to the concentrador centrífugo by the bomba de polpa to enrich the gold concentrate.

The tailings from the centrifugal concentrator will flow to the caixa de eclusa for recovering the gold again. Gold concentrates from the centrifugal concentrator can be fed to the mesa de agitação for upgrading.

Finally, the gold concentrate from the shaking table and sluice box can be smelted into a gold bar in the smelting furnace.

JXSC é um fabricante profissional de equipamentos de mineração e especialista em soluções de minério de mineração. Tem muitos casos de sucesso, como plantas de ouro, soluções de diamante, etc., Se você precisar de tal serviço, por favor contactar-nos.
