Trituradora de mandíbulas VS Trituradora de impacto

When planning a mining or construction project, selecting the right rock crushing equipment can significantly impact your operational efficiency and bottom line. Among the various options available, jaw crushers and impact crushers stand out as two of the most commonly used solutions – but they serve distinctly different purposes. Understanding their differences will help you make an informed decision that matches your specific production needs.





Jaw Crusher VS Impact Crusher: 7 Key Differences You Should Know



1. Application Differences

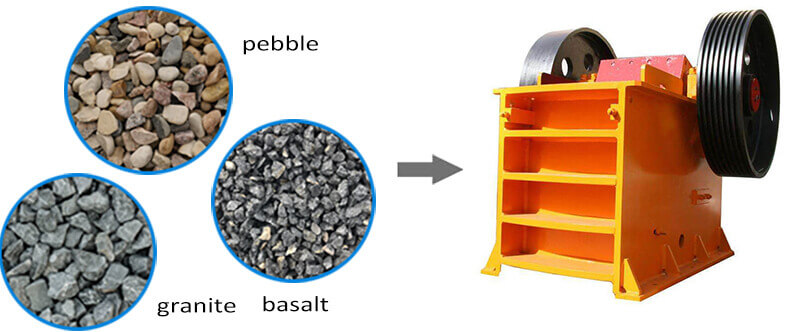

Jaw crushers are mainly used as primary crushers, it can crush hard material, such as granite and basalt.
An impact crusher is usually used as a medium-fine hardness crusher, such as limestone and concrete, and it has good crushing efficiency for some brittle materials. It mainly crushes the small material discharged from the jaw crusher.

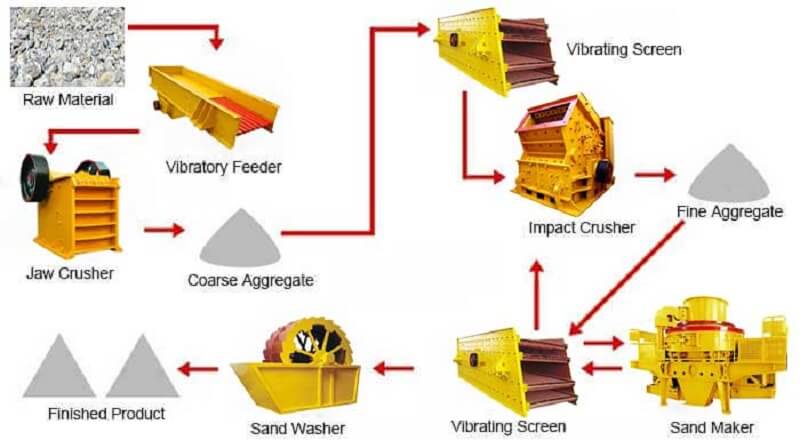

Em geral, as britadeiras de maxilas sªo colocadas antes da britadeira de impacto.



2. Capacity Comparison

A triturador de maxilas can crush various materials with compressive strength below 320MPa, particle size between 125mm and 750mm, and capacity up to 500 TPH. Most jaw crusher manufacturers provide a complete range of primary jaw crushers and secondary crushers.
Triturador de impacto suitable for coarse – medium crushing the various soft and medium hard ores whose particle size does not exceed 500mm, compressive strength less than 50MPa. Output up to 450 TPH. The final discharge size can be adjusted to meet different requirements.

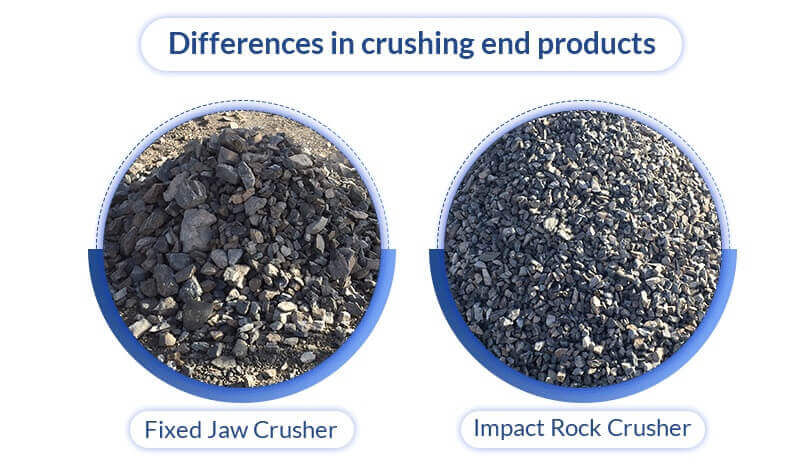

3. Output Characteristics: Granularity and Shape

Jaw crusher crushes the materials by squeezing action; therefore, the finished product has more needle flake, and its particle size is generally 10-350mm.
But an impact crusher uses impact action to reduce the material size; its finished products are mostly cubes with less needle-like material, finer output particles, and better quality.



4. Working Principle

Triturador de maxilas

O motor acciona a correia e a polia para mover a mandíbula para cima e para baixo através de um eixo excêntrico. Quando a mandíbula móvel sobe, o ângulo entre a placa articulada e a mandíbula móvel aumenta, empurrando assim a placa da mandíbula móvel para mais perto da placa da mandíbula fixa. Ao mesmo tempo, os materiais são triturados ou divididos para atingir o objetivo de trituração. Quando a mandíbula móvel desce, o ângulo entre a placa de alternância e a mandíbula móvel torna-se menor. A placa da mandíbula móvel deixa a placa da mandíbula fixa sob a ação da haste de tração e da mola, e o material partido é descarregado da boca inferior da câmara de trituração. Com a rotação contínua do motor, a mandíbula do motor é utilizada para o movimento periódico de trituração e descarga de materiais, realizando uma produção contínua.



Triturador de impacto

Acionado pelo motor, o rotor gira a alta velocidade, e o material e o martelo no rotor impactam e quebram, e então é lançado no dispositivo de contra-ataque para ser quebrado novamente. Este processo é repetido até que o material seja quebrado no tamanho de partícula necessário e descarregado da saída.





5. Selection Considerations

Due to the limitation of its own crushing effect, although the size of the ore material crushed by the jaw crusher is uniform, the overall particle size is relatively large, so for users with higher product quality, when purchasing this equipment, Need to consider adding some additional secondary crushers.

The impact crusher has a large crushing force, and it also has the effect of stone shaping. Therefore, the ore materials processed by it are mostly cubes, and the gradation is reasonable, which can fully meet the current strict crushing stone production requirements.

In brief, in the most crushing plants, these two crushers are often used in close combination.





6. Cost Analysis

Which is better, a jaw crusher or an impact crusher? According to the market sales situation, the overall sales of jaw crushers are more than those of impact crushers, mainly due to their versatility and flexibility. It can not only be used as crushing equipment alone, but also can be combined with other machines in various production lines. It is a cost-effective one among all crushing equipment.
O pre o de uma britadeira de maxilas varia geralmente entre dezenas de milhares e centenas de milhares (RMB chineses). O preço específico pode ser consultado pelo fabricante.



7. Performance Advantages

Triturador de maxilas

Deep crushing cavity, which improves the feeding capacity and output; large crushing ratio, uniform product size; reliable and convenient gasket-type discharge opening adjustment device, big adjustment range, increasing the flexibility of the equipment; simple structure, reliable work, less operating costs, energy saving. A single machine can save energy by 15% ~ 30%; the system can save energy more than double; the adjustment range of the discharge port can meet the requirements of different users; low noise and less dust.

Triturador de impacto

A folga entre a placa de impacto e o martelo pode ser facilmente ajustada, controlando eficazmente o tamanho das partículas de descarga, e a forma das partículas de descarga é boa; a estrutura é compacta, a máquina é rígida, e o rotor tem um grande momento de inércia; o martelo de placa de cromo alto tem alta resistência ao impacto, resistência ao desgaste e grande impacto Manutenção conveniente, económica e fiável; função de trituração completa, alta produtividade, baixo desgaste das peças da máquina, benefícios abrangentes elevados.



Conclusão

Both jaw and impact crushers bring unique advantages to material processing operations. Your ideal choice depends on your material characteristics, production requirements, and quality expectations. While jaw crushers make excellent primary workhorses for hard materials, impact crushers shine in secondary roles, producing superior-shaped aggregates. Many successful operations strategically combine both technologies to maximize efficiency and output quality.

For optimal results, consult with equipment manufacturers to analyze your specific material properties and production goals. The right crushing solution can significantly impact your operational costs, output quality, and ultimately, your project’s profitability.
