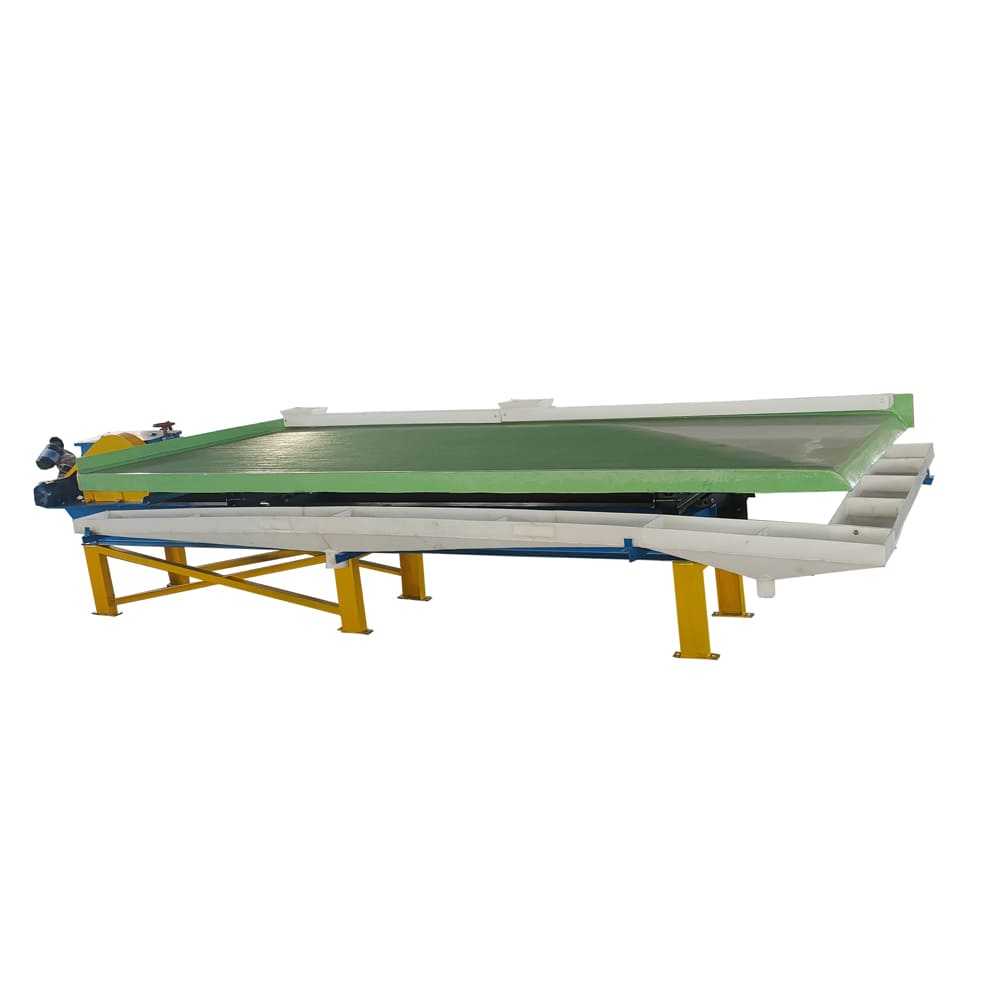

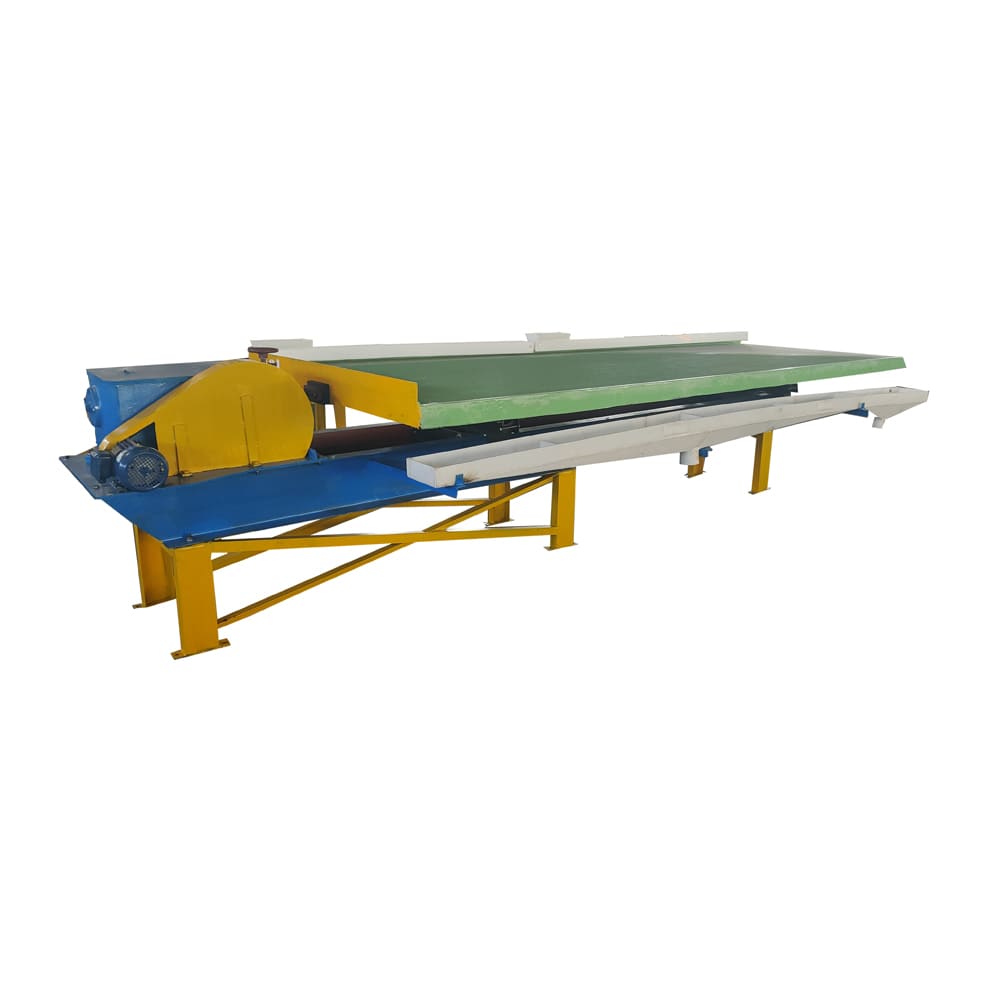

Tables à secousses pour l'or
【Capacité】0-2 T/H
【Densité d'alimentation】10%-30%
【Taille d'alimentation】0-2 mm
【Application】A gold shaker table is a gravity separator that separates gold, tin, tungsten, lead, manganese, tantalum, chrome, and other precious and nonferrous metals.
【Service】Shake table design, mineral separation testing, process flow design, on-site installation.
Chat en ligne sur WhatsApp
Avantages
Les table à secousses pour l'or, also called a table à secousses pour l'or, table à secoussesou gold separation table, is an advanced gravity concentration machine designed to efficiently recover fine and coarse free gold from mineral ores, alluvial deposits, and gravity concentrates.
Through precisely controlled table motion, regulated water flow, and gravity-based separation, this equipment effectively segregates gold and other heavy minerals from lighter gangue materials based on differences in density, particle size, and movement characteristics.
【Types of Gold Shaking Tables】
- Table assise et table suspendue
- Agitateur monocouche et agitateur multicouche
- Grosses particules (2~0,5mm), or fin (0,5~0,2mm)
- Table à secousses RP4, table à secousses 6-s
- Table à secousses industrielle, mini table à secousses pour l'or, table à secousses de laboratoire, table à secousses portable
Table surface materials: Glass-reinforced plastics (glass fiber reinforced polyester resin) and aluminum alloy (laboratory use).
【Key Features & Benefits】
- Adjustable Performance: Customize deck inclination, stroke length, and water flow to optimize separation for varying feed conditions.
- High Recovery Rate: Optimized for fine gold recovery, including particles that other gravity concentrators may miss.
- Versatile Applications: Suitable for gold processing plants, alluvial operations, laboratory testing, and cleaning of gravity concentrates.
- Compatibility with Other Equipment: Can be integrated with jig machines, centrifugal concentrators, sluice boxes, cellules de flottation, and spiral classifiers for enhanced mineral processing.
- Durable & Low Maintenance: Robust design ensures long-term operation with minimal upkeep.
【Gold Shaker Table For Sale】
JXSC provides top-quality shaking tables for gold recovery, including single-deck, double-deck, and four-deck models, plus advanced options like Gemini and suspended shaking tables. Designed for superior mineral separation, our shaking tables feature customizable deck surfaces—rectangular riffle for coarse sand, sawtooth for fine sandet triangular for slime materials—ensuring high recovery rates across different particle sizes. With adjustable stroke length and speed, they ensure precise mineral separation while remaining easy to operate and maintain. These durable, cost-effective tables deliver high efficiency, separating gold concentrate from tailings in one pass, making them ideal for both small-scale and industrial operations. Portable and low-investment, they provide a reliable, long-lasting solution for gold recovery.
Structure du produit

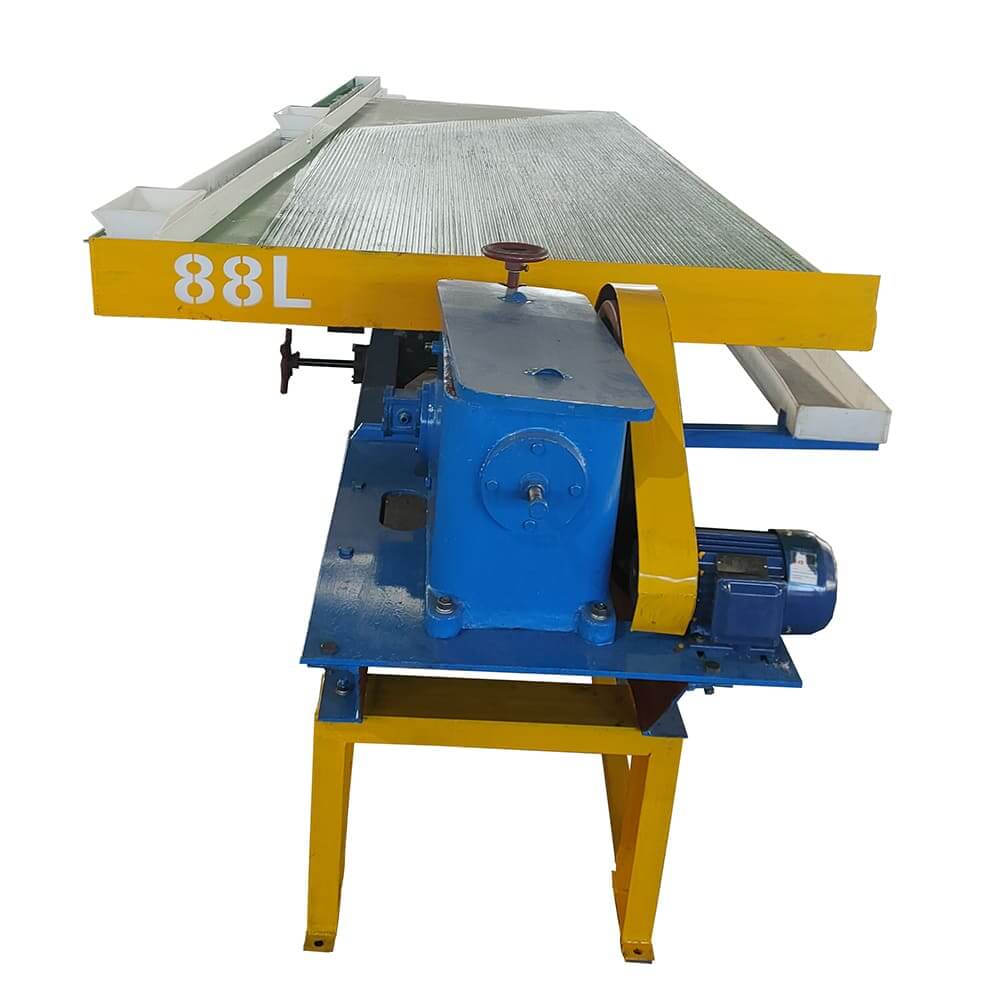

【Shaker Table Structure】The gold shaking table is mainly composed of a shaking table deck, drive mechanism, support frame, feed box, water distribution system, and concentrate/tailings discharge area.
- Table Deck: A slightly inclined, ribbed surface (often fiberglass or wood) covered with riffles or grooves to trap heavy minerals.
- Drive Mechanism: A motor-driven eccentric cam or vibrator that creates the reciprocating motion (back-and-forth shaking).
- Feed & Water Distribution System: Delivers slurry (crushed ore + water) onto the deck for separation.
- Frame & Adjustment System: A rigid steel framework supporting the entire assembly, equipped with manual or motorized tilt mechanisms to adjust lateral inclination for controlling slurry flow dynamics and separation efficiency.
【Shaking Table Working Principle】Shaking table mineral separation is an inclined table, the combined action of the symmetrical reciprocating motion of a mechanical slab and the flow of water on a thin inclined plane, causes loose layering and zoning of ore particles on the table surface, thereby causing the mineral separation process to be carried out according to different densities.
Paramètres techniques
| Type de terrasse | Unité | Cours de sable | Sable fin | Pont de la bave | Trois types de ponts sont disponibles | |||
| Zone de traitement | m2 | 7.6 | 7.6 | 7.6 | 4.08 | 1.95 | 0.5 | |
| Taille du pont | Longueur | mm | 4450 | 4450 | 4450 | 3000 | 2100 | 1100 |
| Largeur de l'extrémité de la transmission | mm | 1855 | 1855 | 1855 | 1320 | 1050 | 500 | |
| Largeur de l'extrémité du concentré | mm | 1546 | 1546 | 1546 | 1100 | 850 | 430 | |
| Taille maximale d'alimentation | mm | 2 | 0.5 | 0.15 | 0.1-2 | 0.074-2 | 0.074-2 | |
| Capacité de traitement | T/H | 1.5-2 | 0.8-1.5 | 0.5-0.8 | 0.4-1.5 | 0.3-0.8 | 0.05-0.2 | |
| Densité d'alimentation | % | 25-30 | 20-25 | 15-25 | 10-30 | |||
| Accident vasculaire cérébral | mm | 16-22 | 11-16 | 8-16 | 6-30 | 12-28 | 9-17 | |
| Fréquence | f | 45-48 | 18-53 | 50-57 | 210-320 | 250-450 | 280-460 | |
| Eau ajoutée | T/D, T/H | 80-150 T/D | 30-60 T/D | 10-17 T/D | 0,3-1,5 T/H | 0,2-1 T/H | 0,1-0,5 T/H | |
| Pente transversale du tablier | ° | 2° 30-4° 30 | 1° 30-3° 30 | 1° -2° | 0 -10° | 0 -8° | 0 -10° | |
| Pente longitudinale du tablier | ° | 1.4 | 1.4 | 0.92 | —— | —— | —— | |
| Section transversale Forme du pont | Rectangulaire | Dents de scie | Triangle | Disponible rectangulaire, dent de scie, triangle | ||||
| Puissance du moteur | KW | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | |
【Gold Shaker Table Manufacturer】
JXSC is a leading gold shaking table manufacturer, supplying highly efficient gravity separation equipment for placer gold processing plants worldwide. Our next-generation shaker tables deliver exceptional fine gold recovery performance, making them a top choice in Australia, South Africa, Ghana, and Congo. Compared to traditional methods like ball mills and trommel scrubbers, JXSC gold shaking tables offer a compact size, lower cost, and superior mineral separation efficiency. Designed to match the quality of Gemini tables, MSI mining equipment, and Wilfley tables, our shakers come at a competitive price without compromising durability. Contact us today for a mineral processing test and get the best shaking table price for your gold recovery operations!
