100TPH Stone Crushing Plant in Trinidad

JXSC has provided a complete set of processing plant machinery and all accessories for a Trinidad customer’s stone crushing plant. The client has an engineering team to set up this plant, so there is no requirement for our engineer’s site service. We offer the detailed layout design with base construction drawings accordingly. This stone crushing plant is very suitable for crushing hard stones, such as river stone, granite, basalt, andesite, quartz, and so on. This plant is a very popular design in many countries; many quarry owners prefer to use it.

1. Required processing capacity for the plant: 100 TPH
2. Maximum feeding size: 500 mm
3. Ore type: Rock stone
4. Output size: 0-25 mm

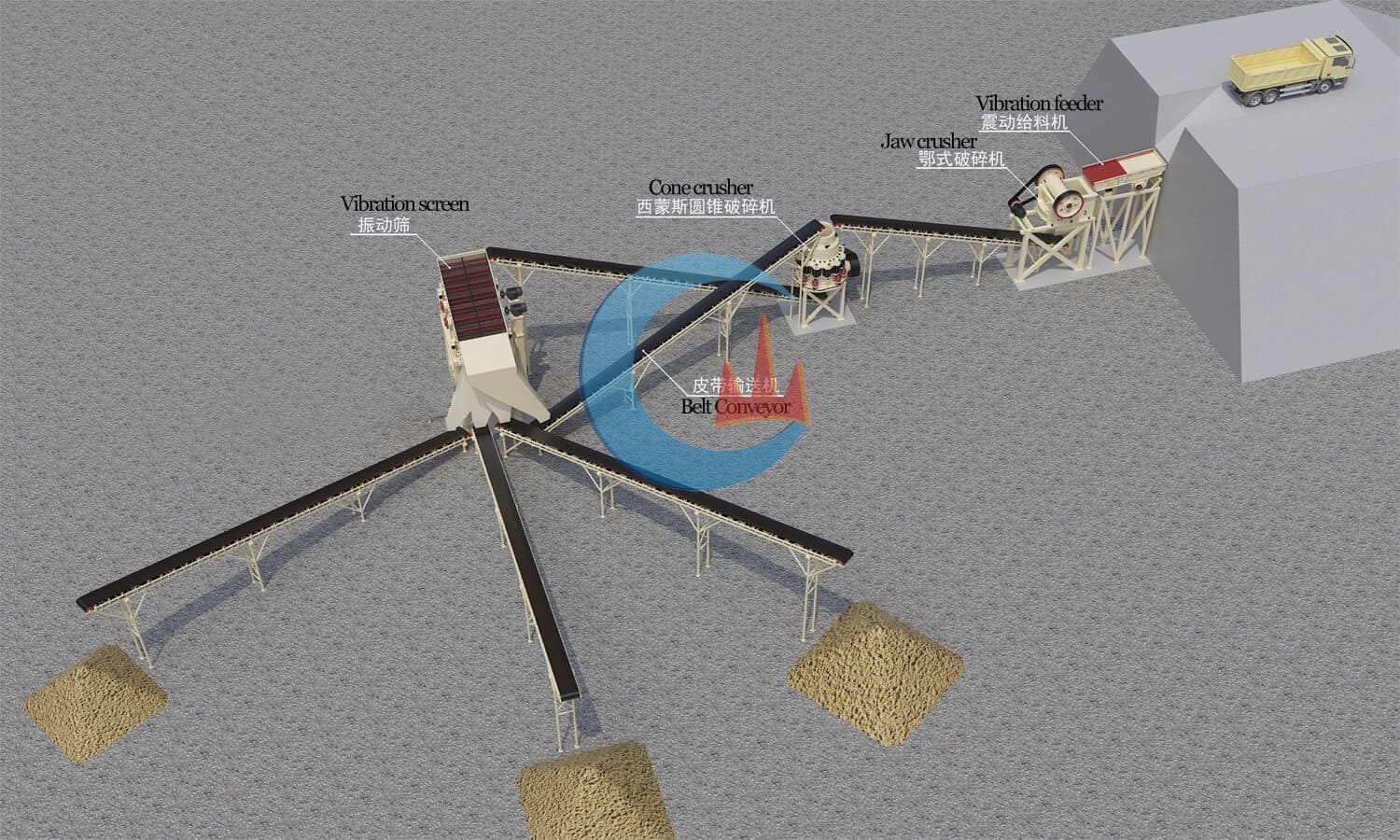

1. L'alimentation

The truck dumps material into a alimentateur vibrant; the vibrating feeder, equipped with screen bars, filters out large stones and waste, while qualified stones are fed into a jaw crusher.

2. Primary Crushing

Les concasseur à mâchoires performs primary crushing of the stones, and the crushed material is conveyed to a cone crusher via a belt conveyor.

3. Secondary Crushing

Les concasseur à cône performs secondary crushing of the material, and the crushed material is conveyed to a vibrating screen.

4. Le filtrage

Les écran vibrant screens the material; unqualified material is returned to the cone crusher for further crushing, while qualified material is transported to a stockpile.

This plant can crush the final product to the size as per the customer request. We can adjust the discharging size of the cone crusher and replace the vibrating screen mesh to get different final product sizes. Easy operation and maintenance; we can customize the most suitable solutions according to your quarry stone conditions and final product requirements for the plant.

Customer Questions & Our Answers

Question: Why is the vibrating feeder equipped with a 100 mm grizzly bar?
Réponse : For pre-sieving the 0- 100 mm stones to avoid overloading the jaw crusher.

Question: Why is it necessary to add the iron remover before the cone crusher?
Réponse : To avoid iron metal from getting stuck in the cone of the cone crusher.

Question: Only one finished product is needed; why does the vibrating screen adopt two layers of screen mesh?
Réponse : The upper mesh protects the lower one, improving screening efficiency and extending service life.

Question: What are the advantages of using a jaw crusher as the primary crusher?
Réponse : It accommodates large feed sizes, exhibits high compressive strength and wear resistance, and is ideal for the initial crushing of large raw stones.

Question: Why is a cone crusher selected for secondary crushing?
Réponse : It produces finished products with excellent particle shape, offers high processing capacity, and is suitable for the medium to fine crushing of hard ores.
