Comment traiter efficacement le minerai de coltan ?

Coltan ore, a vital source of tantalum (Ta) and niobium (Nb), is widely used in electronics, aerospace, biomedical engineering, and more. Processing coltan ore into high-purity concentrates requires specialized techniques based on its type (alluvial or hard rock). This article explores the effective methods for coltan ore processing, y compris washing, sieving, gravity separation, and refining, along with equipment recommendations and global case studies from JXSC Machinery’s projects in Africa and beyond.

Wide Application of Tantalum and Niobium

Tantalum and Niobium(Ta-Nb) as new materials can be applied in fields including electronics, precision ceramics and the precision glass industry, electroacoustic and optical devices, cemented carbide, aerospace and electronic energy industry, biomedical engineering, superconducting industry, special steel and other industries.

Dans l'industrie électronique, le métal tantale peut être utilisé pour fabriquer des condensateurs électrolytiques. Il présente de nombreuses caractéristiques exceptionnelles, telles qu'une grande capacité, un faible courant de fuite, une bonne stabilité, une grande fiabilité, une bonne résistance à la pression, une longue durée de vie et un faible volume.

In addition, tantalum is also used in the electronic circuits of national defense, aviation, aerospace, electronic computers, high-grade civil electrical appliances, and various electronic instruments.

In the metallurgical industry, Ta-Nb are mainly used as additives for the production of high-strength alloy steels, improving the properties of various alloys and making superhard tools.

Global Distribution of Coltan Ore

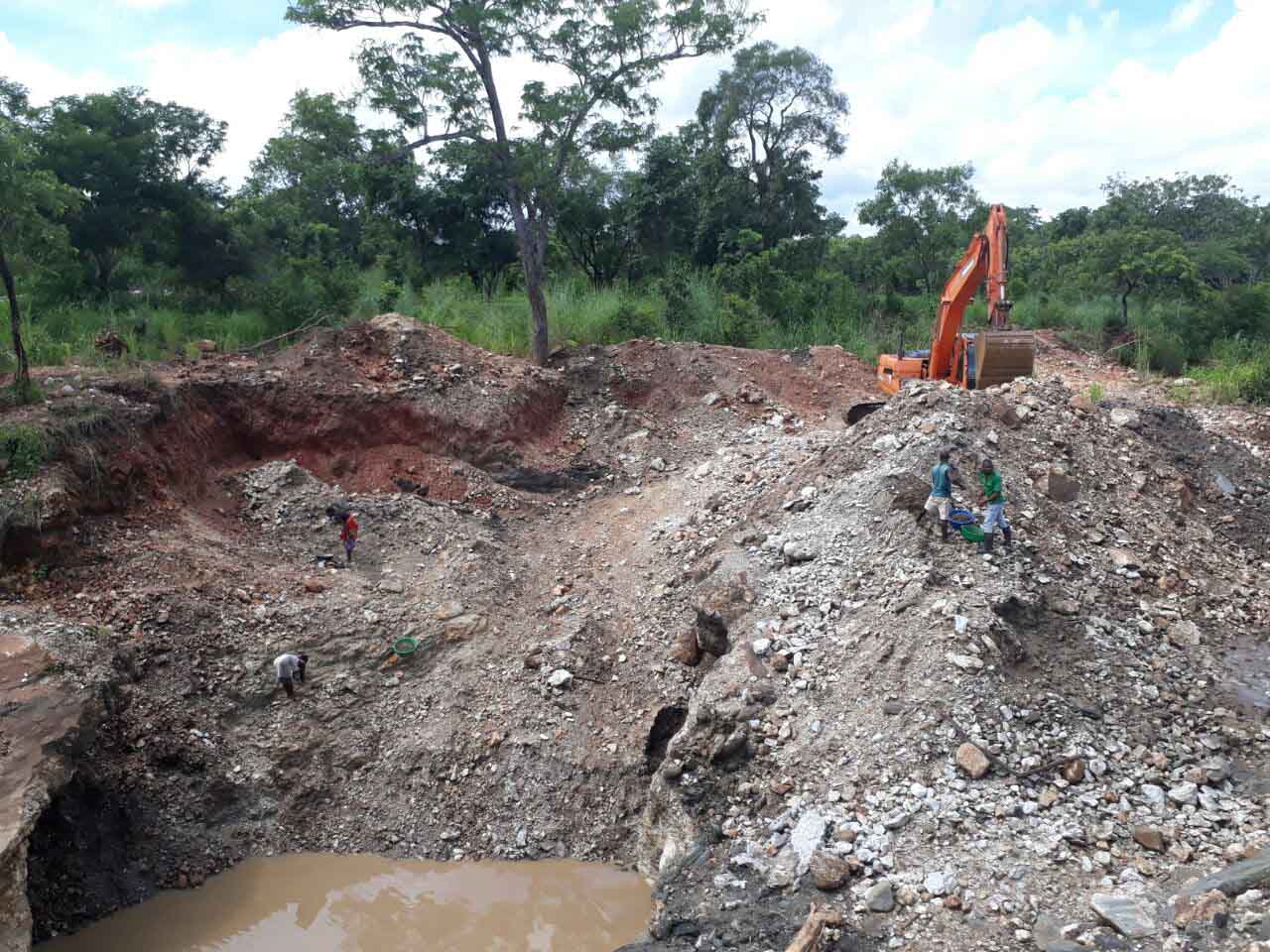

The coltan ore mine sites are widely distributed in China, Brazil, Uganda, Zimbabwe, Nigeria, Venezuela, Congo, Australia, etc.  In different countries and areas, the coltan ore conditions are different.

How to Process the Coltan Ore Mining Plant Effectively?

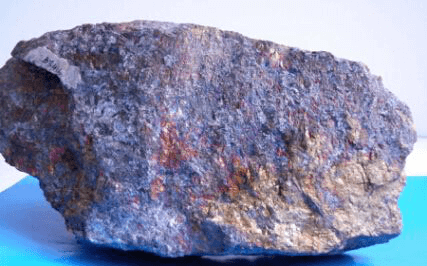

Coltan ore raw material has alluvial type and hard rock type, different type ore will use different processing methods.

JXSC Mine Machinery Company in China has more than 40 years of professional experience in coltan ore mining plants, designs complete sets of process flowcharts, provides a full set of coltan ore processing machines, and send engineer to mine site for equipment installation and commissioning guidance. Have already built many project cases in African countries. Include: Uganda, Nigeria, Congo, Zimbabwe, Brazil, etc.

The processing capacity can be provided as requested.

Below are the flowchart description that the JXSC Engineer recommend for the coltan ore separation plant

Alluvial Coltan Ore Mining Plant Process Flowchart

Fensemencement->lavage->séparation primaire->concentration finale->valorisation

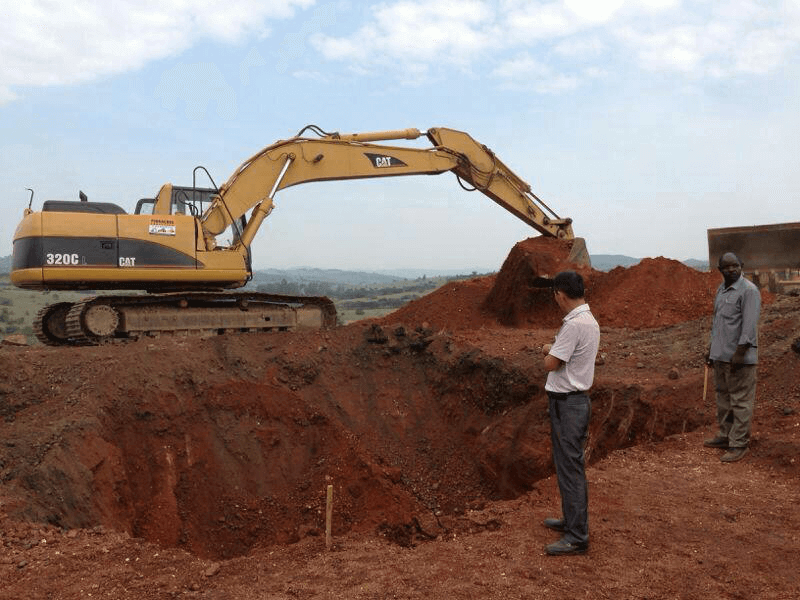

Alimentation : There are various kinds of feeding ways, depending on plant and material conditions. Have choices of vibration feeder, hopper, belt feeder, or wheel loader and excavator feed directly to coltan washing machine. If there are big stone, can make a grizzly bar on the machine d'alimentation or hopper to remove big waste stones.

Lavage : Firstly, need to wash and clean the clay and mud in the raw material; most commonly used are laveur à tambour coltan washing machine, coltan washing crible à trommel ou laveur de bûches.

Coltan washing trommel scrubber is for washing material that has much sticky clay, trommel screen is for wash raw material that without much sticky clay. Different ore conditions will use different washing machines.

Tamisage : After washing, need to sieve out some bigger waste material; the underscreen slurry will go to the next separation machine. This sieving machine can be a trommel screen, a vibration screen, or a high-frequency vibration screen.

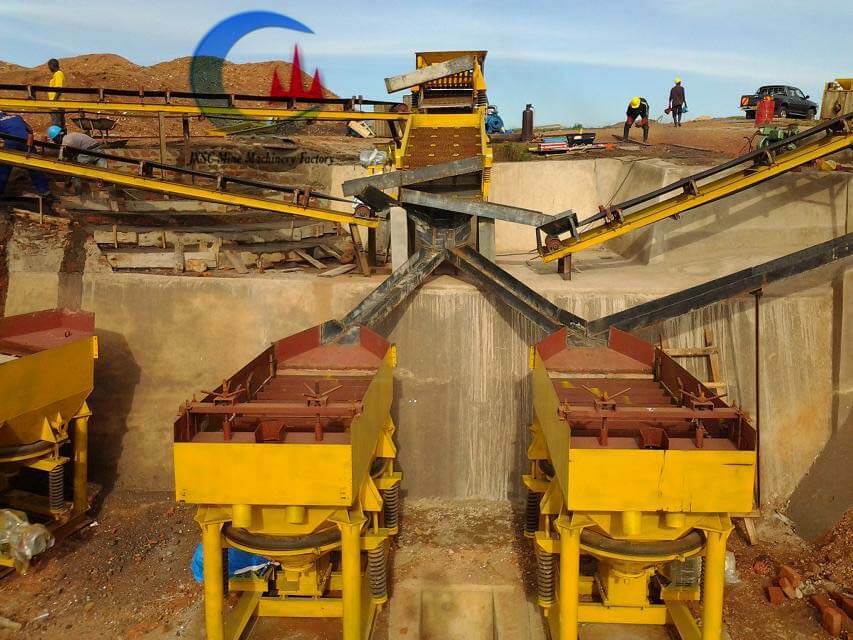

Séparation primaire : This process is for rough coltan separation; most often use a coltan jig separator. The concentrate ore from them will go to the final concentration machine.

Concentration finale : The concentrate ore from the machine à jig will go to a coltan ore concentration shaking table for final concentration, and can get high-grade coltan concentrate ore.

Raffinage : If you need very, very high-grade coltan, you need to use the refining machine to upgrade it. Usually, you can use a high-intensity dry magnetic separator to upgrade it by removing other magnetic minerals and non-magnetic minerals, so you can get much higher-grade coltan.

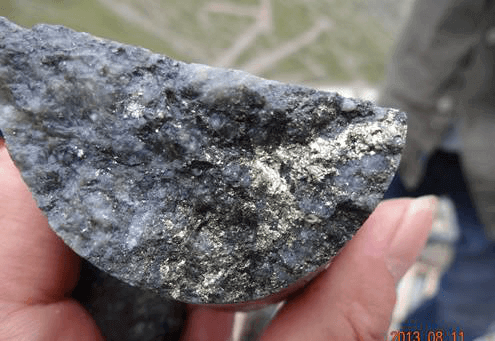

Rock-type Coltan Ore Processing Flowchart

Feeding-> broyage->broyage->primaire séparation -> concentration finale-> valorisation

The feeding, primary separation, final concentration, and upgrading process are almost the same as the above alluvial coltan process.

Below are the crushing and grinding stage descriptions:

Broyage : This process is for crushing the big stone to a smaller size before grinding. The concasseurs de roches have a choice of rough jaw crusher, fine jaw crusher, cone crusher, hammer crusher, roller crusher, depending on the rock feeding size and process capacity to use which kind of crusher.

Broyage : After crushing the coltan stone to a smaller size, it needs to be ground into powder by a ball mill, broyeur humide, or other grinding machine, so the coltan can released out from stone. Then go to the next coltan separation machine and concentration machine.

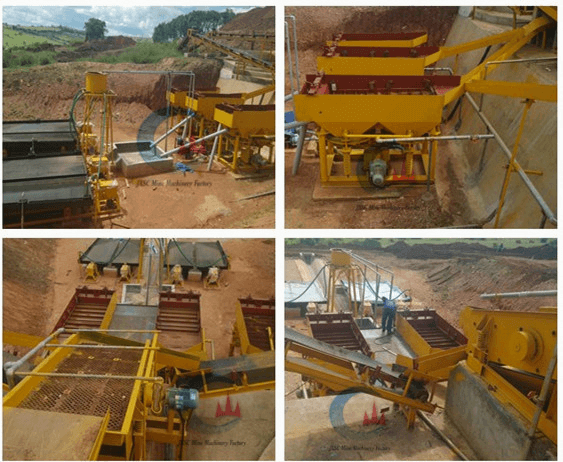

Successful Coltan Processing Case Studies From JXSC

• Usine de traitement du coltan alluvial 100TPH au Nigeria – Efficient separation of coltan from clay-rich ores
• Usine de traitement du coltan 100TPH en Ouganda – Optimized crushing-grinding for high recovery
• Usine de traitement du coltan 100TPH au Nigeria – Integrated washing + magnetic refining

Conclusion

Processing alluvial and hard rock coltan effectively requires proper washing, sieving, gravity separation, and refining techniques. JXSC’s customized solutions, backed by 40+ years of expertise, ensure high recovery rates (up to 95%) and cost-effective production.

Need a customized coltan processing solution? Contact JXSC Machinery for a tailored plant design!
