Chrome Ore Beneficiation Flow Sheet

Chrome ore beneficiation is crucial for producing high-grade chromite concentrates used in stainless steel, chemicals, and refractory industries. This guide covers rock-type chrome ore processing methods, y compris crushing, gravity separation, and magnetic separation, with a capacity range of 2-300 TPH. JXSC Machinery provides customized chrome beneficiation plants with proven jigging, spiral chute, and shaking table techniques for optimal recovery.

Beneficiation Theory of Chrome Ore Mining Plants

After crushing, chrome grains are liberated or dissociated from the gangue, and the mixed ore can be fed to the separation process for the secondary processing stages.

Chromite ore beneficiation machines are allocated according to the specific natures of the chrome ore.

Chrome Ore Beneficiation Equipment

A complete rock chromite processing plant typically includes:

• Crushing & Screening – Jaw crusher → Cone crusher → Vibrating screen
• Broyage – Ball mill (liberates chromite grains from gangue)
• Séparation – Jig machine, shaking table, spiral chute, séparateur magnétique
• Drying & Conveying – Rotary dryer, belt conveyor

Capacité de traitement : 2-300 tons per hour (customizable)

Key Chrome Beneficiation Methods

The main methods for chrome beneficiation are gravity separation and magnetic separation. The chrome beneficiation machines are also mainly gravity separators and magnetic separators. So, in the beneficiation process, the equipment differs from one another because the chrome-concentrating methods vary with different chrome ores. Many methods can be used in chrome ore beneficiation plants. The main chrome ore beneficiation method is gravity separation. The main chrome ore concentrating equipment is the ore washing box (called a jigger), table concentrators, spiral chute, etc. Usually, the chrome ore can be upgraded by jigging machines first, and then the shaking table can be used for secondary upgrading as fine selection to get final high-grade chrome concentrate.

In brief:

1. Gravity Separation (Primary Method)

• Jigging Machine – For coarse particle recovery (high chrome yield)
• Table à secousses – Fine-tuning to achieve high-grade concentrates
• Chute en spirale – Enhances efficiency for medium-fine particles

2. Magnetic Separation (Secondary Method)

• Wet/Dry Magnetic Separator – Removes impurities (Fe, SiO₂)
• Combines with Gravity Separation for ultra-high purity

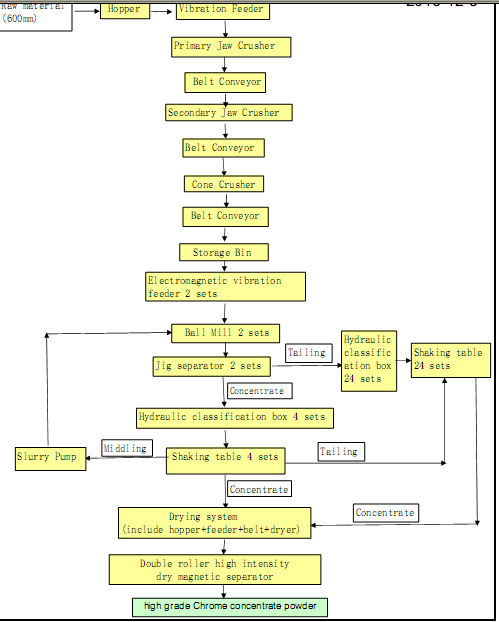

Chrome Ore Beneficiation Process Flow

Le processus spécifique d'enrichissement des minéraux est le suivant :
The raw ore should be crushed by a jaw crusher initially. When it gets the reasonable fineness, it is transported into a vibrating screen through a conveyor and feeder.

The screened ores get the next procedure: milling process in a ball mill, then jigging separation. The milled ore gets into a chrome jig separator for gravity separation.

Chrome ore is beneficiated by crushing — screening — washing — selection or heavy medium separation for block granularity enrichment. A flow sheet of medium separation — jigging — milling — spiral beneficiation –intensity magnetic separation has been adopted widely, and a flow sheet of shaking table–ore washing–dry normal magnetic separation–intensity magnetic separation–floatation separation is used to separate sea chrome sand.

Why Choose JXSC for Chrome Processing?

The beneficiation equipment flow produced by our company can provide you with all-around technical support. According to different customers and different chromite mines, JXSC designs different beneficiation complete processing lines for you.

JXSC mine machinery factory is a professional manufacturer of one-stop solutions provider for various ores, mainly for Gold, Tin, Chromite, Tungsten, Coltan, Diamond, Tantalum-Niobium, Silica Sand, Manganese, Tantalite, Ilmenite, Limonite, Beach Sand, Coal, Monazite, rutile, and other precious metal ores. A mini test can be done for you in our factory, and samples of 20-30 kg can be available from you.

Conclusion

Chrome ore beneficiation relies on gravity separation (jigging + shaking table) and magnetic separation to upgrade chromite content from raw ore. JXSC’s turnkey solutions ensure high recovery (85-95%) and cost-effective processing for different chromite deposits.
