100 TPH Granite Crushing Plant in Trinidad

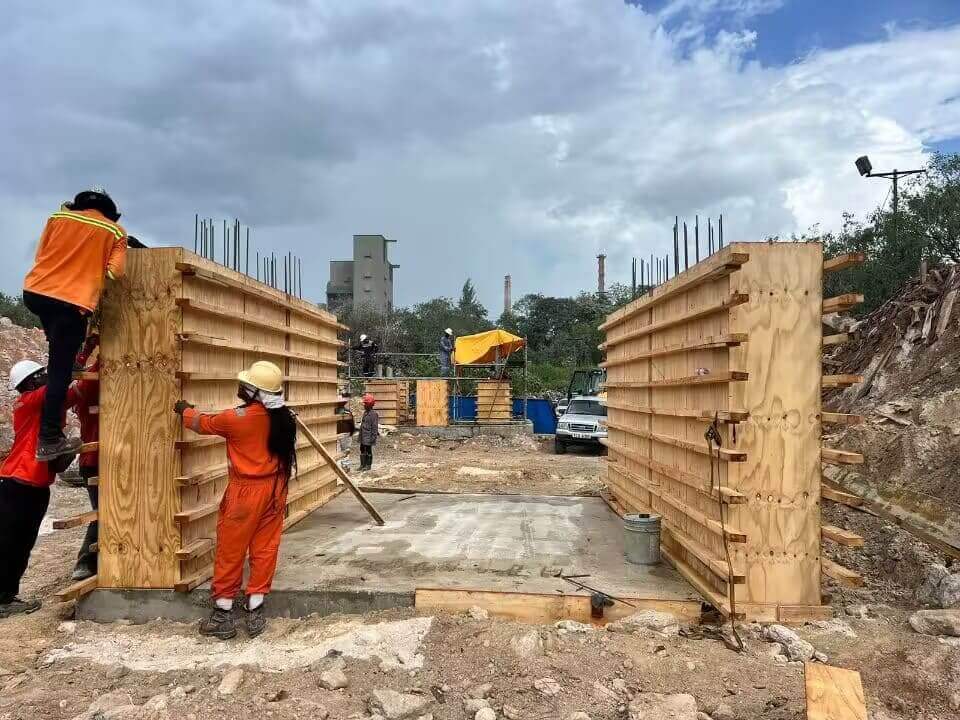

JXSC has designed a complete Flowchart and provides a full set of processing plant machines & all accessories for Trinidad’s granite crushing plant in Trinidad. The client has their engineering team set up this plant, so there is no requirement for our engineering site service. We offer a detailed layout design with base construction drawings accordingly.

1. The processing capacity required is 200TPH.
2. The raw material size is 0-500mm.
3. The final product size: 0-5 mm, 5-10mm, and 10-20mm.

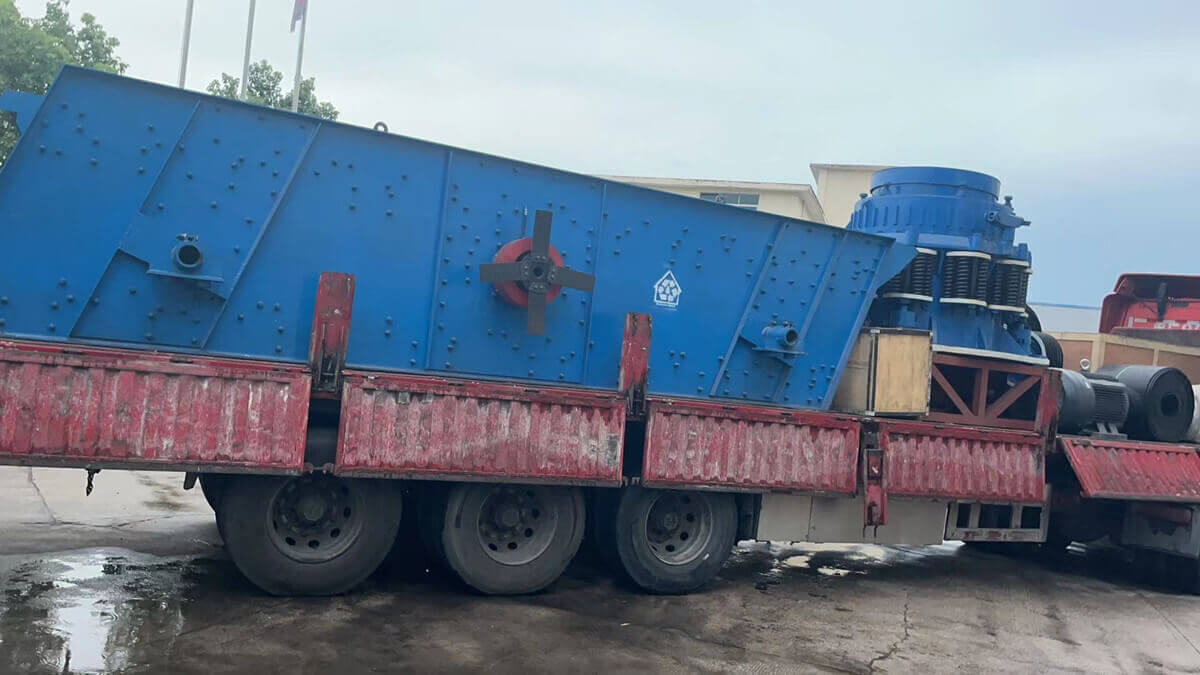

• • Vibrating feeder
  • Jaw crusher
  • Cone crusher
  • Vibrating screen
  • Belt conveyor

1. The raw material will be sent to a feeding hopper. Raw material sizes can be around 0-500mm.

2. The materials go to a vibrating feeder which can work with a 500mm grizzly bar to screen the more than 500mm raw ores.

3. The material less than 500mm will be sent to the jaw crusher to crush to be smaller, around 60-150mm.

4. The materials crushed by the jaw crusher will be sent to a cone crusher crushed to 0-40mm by one belt conveyor. (We generally suggest matching one iron remover above this belt conveyor to remove any iron in the raw material.)

5. Send the material from the jaw crusher to a cone crusher for the secondary crushing.

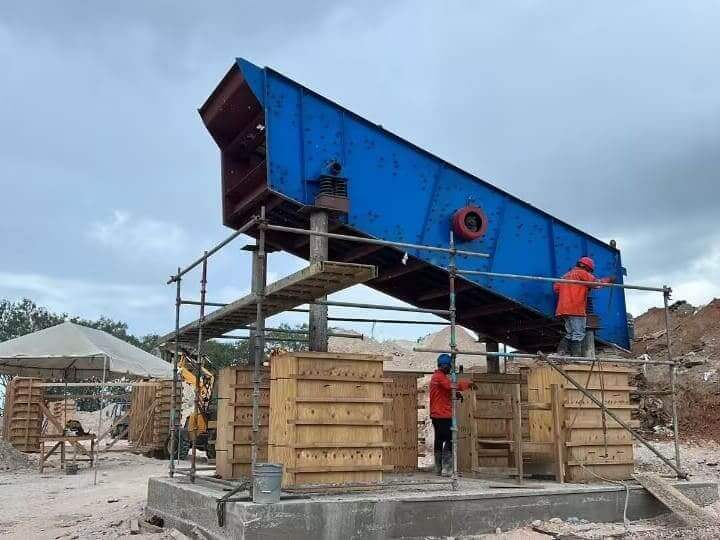

6. The crushed materials from the cone crusher will be sent to a vibrating screen with three layers of screen, the mesh size is 5mm, 10mm, and 20mm.

7. Send more than 20mm of material back to the primary jaw crusher to crush again. A vibrating screen will screen out 3 final products and convey them to different stockpiles.

JXSC is a professional mining equipment manufacturer & mining ore solution expert. It has many successful cases such as gold plants, diamond solutions, etc., If you need such a service please contact us.
