Hydrocyclone
【Capacity】0.1-900 m³ /h
【Processible Material】Gold,chrome,tin,coltan,diamond ,tantalite ,silica sand, etc.
Chat Online on WhatsAppAdvantages
【Description】 Hydrocyclone is used for separating and removing heavy mud and sand of coarse particles and sometimes for slurry dehydration. The Hydrocyclone separator has two types pressure type and gravity type made up of a cylindrical structure or metal pipe. Water is fed through the top of the structure (or metal pipe) by means of pressure or gravity along the tangent line. Coarse and thick particulate matter are thrown to the wall, rotated, and discharged with the concentrated liquid formed under centrifugal force. Small particulate matter is discharged with a secondary upward vortex after rotating to some extent.
Hydrocyclone/ cyclone filter is mainly used for classification, separation, concentration, and desliming in the mineral mining industry. When the hydrocyclone is used as a classifier, it is mainly used to form a grinding and classification system with a mill; when it is used as a deslimer, it can be used for desliming in a gravity concentrator; when it is used as a concentrating and dewatering device, it can be used to concentrate ore dressing tailings and send them to fill underground mining tunnels. The hydrocyclone sand separator has no moving parts, a simple structure, a large capacity per unit volume, a small area, high classification efficiency (up to 80% ~ 90%), fine classification granularity, low cost, and low material consumption.
JXSC, your reliable partner of hydro cyclone manufacturer, hydro cyclone design service is available. If you need other ore particle-size grading and screening machines, click here!
Product Structure

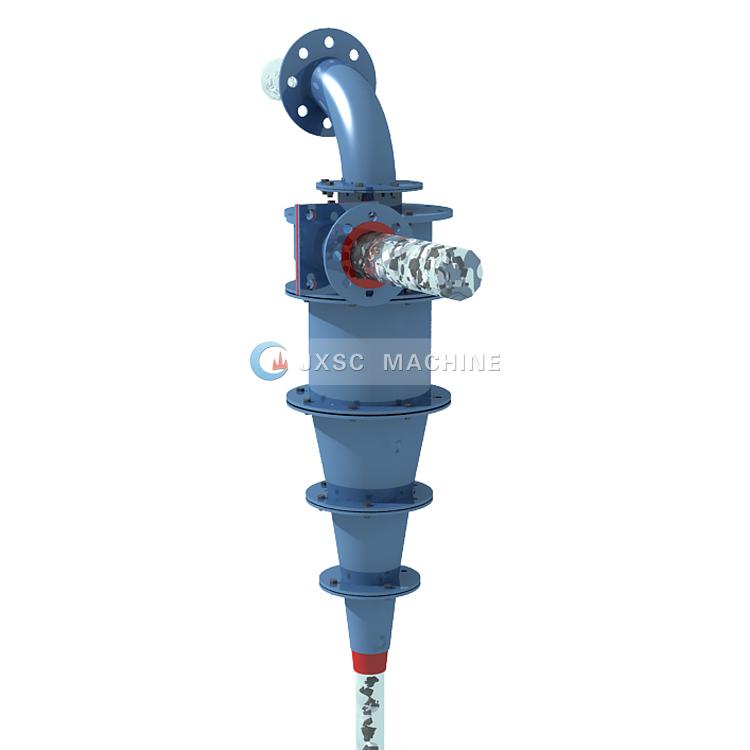

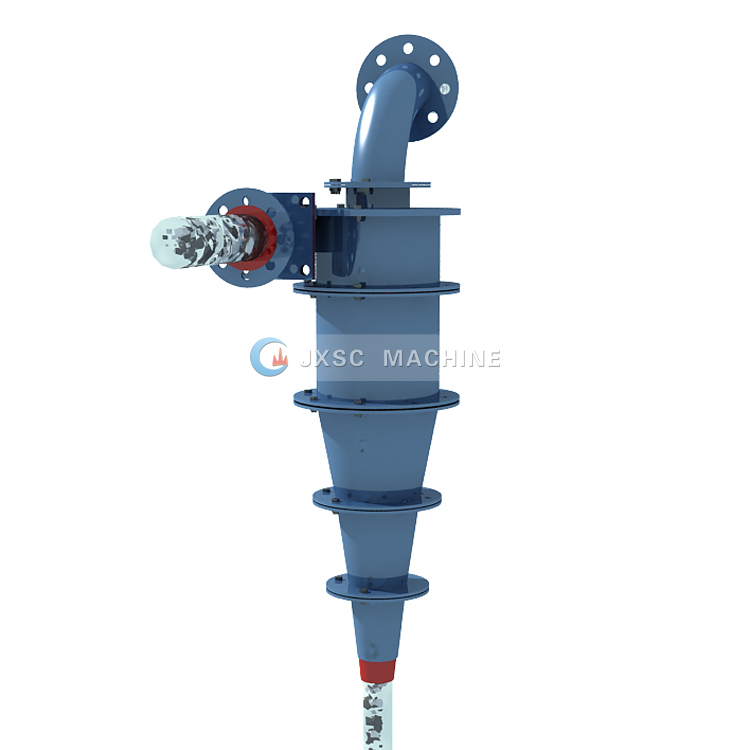

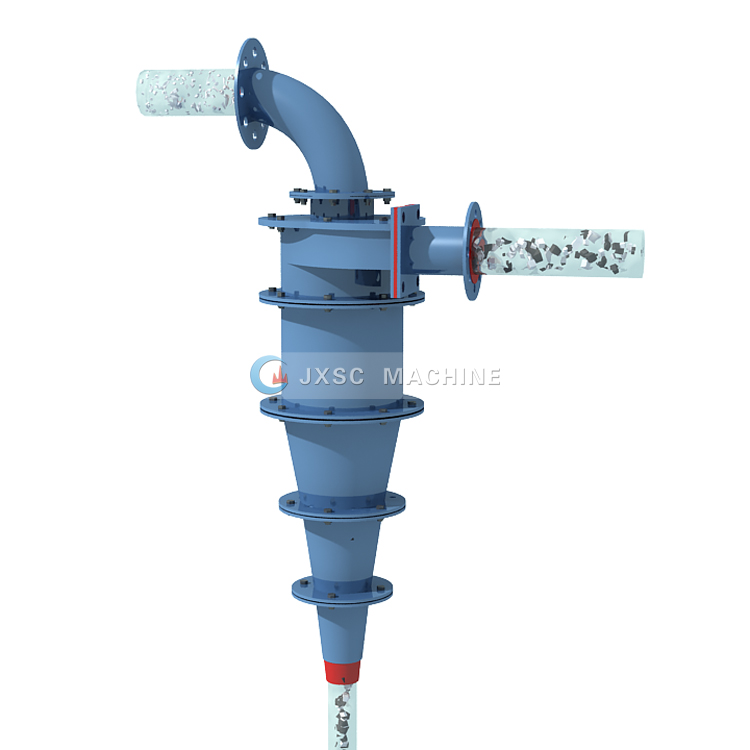

【Hydrocyclone Working Principle】The Hydrocyclone consists of a hollow cylinder at the top and an inverted cone at the bottom, which is connected to the cylinder to form the hydro cyclone. In addition, the hydroclone also has feed pipes, overflow pipes, overflow conduits, and sinks. The hydro cyclone pump (or height difference) rotates the slurry into the cylinder along the Tangent Direction with a certain pressure (generally 0.5 ~ 2.5 kg/cm) and flow rate (about 5 ~ 12 m / s), and then the slurry rotates along the cylinder wall at a very fast speed to create centrifugal force. Under the action of Centrifugal Force and gravity, the coarse and heavy ore particles are thrown out.
The suspension enters the hydraulic cyclone at relatively high speed from the feed tube in a tangential direction and rotates from top to bottom. This motion is commonly referred to as external or descending swirl motion. The solid particles in the external swirl flow are separated from the suspension by Centrifugal Force and move down the wall of the device to discharge from the bottom outlet.
Technical Parameters
Model | Diameter (mm) | Angle of Cone(°) | Diameter of Overflow Outlet (mm) | Diameter of Spigot (mm) | Max Feeding Size (mm) | Inlet Pressure (mpa) | Capacity (m3/h) | Separation Particle Size (um) | Overall Dimension | Unit Weight (kg) | ||
Length (mm) | Width (mm) | Height (mm) | ||||||||||
FX840 | 840 | 20 | 280~380 | 80~220 | 18 | 0.04~0.2 | 500~900 | 74~350 | 1700 | 1500 | 3700 | 1621 |
FX750 | 750 | 45 | 180~290 | 85~175 | 16 | 0.04~0.2 | 400~500 | 74~300 | 1210 | 910 | 2680 | 1400 |
FX710 | 710 | 45 | 175~270 | 80~165 | 16 | 0.03~0.2 | 350~450 | 74~250 | 1255 | 1185 | 1040 | 1250 |
FX660 | 660 | 20 | 165~250 | 80~155 | 16 | 0.03~0.2 | 250~350 | 74~220 | 1140 | 1000 | 2920 | 800 |
FX660 | 660 | 45 | 165~250 | 80~155 | 16 | 0.03~0.2 | 250~350 | 74~220 | 1140 | 1000 | 2000 | 995 |
FX610 | 610 | 20 | 155~230 | 75~140 | 13 | 0.03~0.2 | 200~300 | 74~220 | 875 | 950 | 2560 | 550 |
FX610 | 610 | 45 | 155~230 | 75~140 | 13 | 0.03~0.3 | 200~300 | 74~220 | 875 | 950 | 1810 | 600 |
FX500 | 500 | 20 | 125~185 | 55~115 | 10 | 0.03~0.3 | 140-220 | 74~220 | 850 | 700 | 2050 | 380 |
15 | 74~150 | 850 | 700 | 2380 | 540 | |||||||
45 | 74~150 | 850 | 825 | 1630 | 430 | |||||||
FX350 | 350 | 20 | 80~120 | 30~70 | 6 | 0.04~0.3 | 60~100 | 50~150 | 775 | 620 | 1765 | 208 |
15 | 50~120 | 775 | 620 | 1970 | 210 | |||||||
FX300 | 300 | 20 | 60~115 | 20~50 | 5 | 0.04~0.3 | 45~85 | 50~150 | 498 | 485 | 1415 | 105 |
15 | 40~100 | 498 | 485 | 1642 | 169 | |||||||
FX250 | 250 | 20 | 60~100 | 16~45 | 3 | 0.06~0.35 | 40~60 | 40~100 | 410 | 380 | 1215 | 75 |
15 | 40~100 | 410 | 380 | 1405 | 73 | |||||||
10 | 30~100 | 410 | 380 | 1788 | 85 | |||||||
FX200 | 200 | 20 | 40~65 | 16~32 | 2 | 0.06~0.35 | 25~40 | 40~100 | 365 | 330 | 1030 | 45 |
15 | 30~100 | 410 | 330 | 1083 | 54 | |||||||
10 | 30~100 | 400 | 365 | 1490 | 60 | |||||||
F150 | 150 | 20 | 30~45 | 8~22 | 1.5 | 0.06~0.35 | 11~22 | 30~74 | 310 | 265 | 820 | 29 |
15 | 30~74 | 310 | 265 | 878 | 30 | |||||||
10 | 30~74 | 310 | 265 | 1160 | 35 | |||||||
FX125 | 125 | 17 | 25~40 | 8~18 | 1 | 0.06~0.35 | 8~15 | 20~100 | 260 | 218 | 620 | 10.2 |
8 | 20~74 | 260 | 218 | 870 | 33 | |||||||
FX100 | 100 | 20 | 20~40 | 8~18 | 1 | 0.06~0.35 | 5~15 | 20~100 | 260 | 210 | 525 | 8.6 |
15 | 20~100 | 268 | 215 | 720 | 13 | |||||||
8 | 20~100 | 365 | 150 | 1065 | 23 | |||||||
5 | 20~100 | 365 | 150 | 1505 | 30 | |||||||
FX75 | 75 | 15 | 15~22 | 6~12 | 0.6 | 0.1~0.4 | 2~5 | 20~74 | 240 | 230 | 420 | 2.2 |
5 | 5~40 | 240 | 230 | 778 | 6.5 | |||||||
FX50 | 50 | 15 | 11~16 | 3~8 | 0.3 | 0.1~0.4 | 1~2 | 10~74 | 160 | 137 | 400 | 1.5 |
5 | 160 | 137 | 680 | 5.5 | ||||||||
FX25 | 25 | 5 | 6~10 | 3~7 | 0.2 | 0.1~0.4 | 0.8~1.2 | 4~20 | 130 | 85 | 495 | 1.2 |
FX10 | 10 | 4 | 3~4 | 2~3 | 0.2 | 0.2~0.4 | 0.1~0.2 | 2~10 | 30 | 30 | 195 | 2 |
