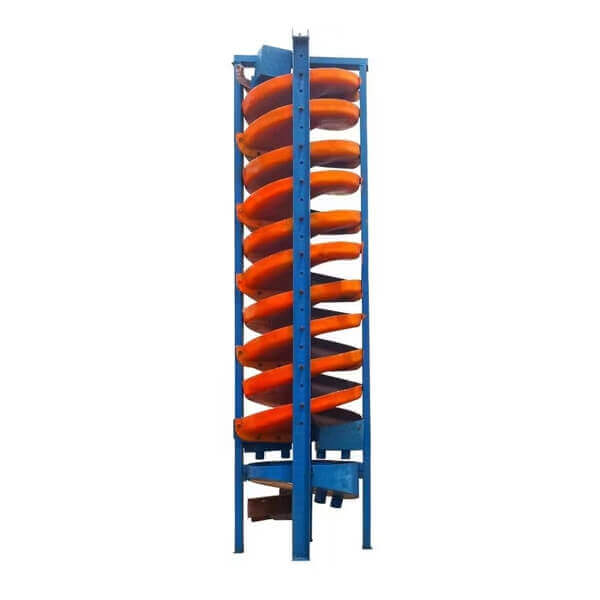

Polyurethane Spiral Chute

Polyurethane Spiral Chute

【Capacity】0.8-4 tph

【Feeding Size】0.02-0.5 mm

【Feeding Density】25% – 55%

【Starts Number】2

Contact Us via WhatsAppChat Online on WhatsApp

Advantages

The polyurethane wear-resistant spiral chute is an ore beneficiation device that combines the features of spiral concentrators, shaking tables, and centrifugal concentrators. This equipment is particularly suitable for sand mining on seashores, riversides, sand flats, and stream channels and is an ideal tool for mining and mineral processing.

Polyurethane spiral chutes are used to enrich fine grains with a particle size of 0.3-0.02 mm, such as iron ore, ilmenite ore, chromite ore, gold, coal, zircon sand, rutile, monazite, phosphorus ethyl, tungsten, sardonyx, tantalum, niobium, and other non-ferrous metals, rare metals, or non-metallic minerals.

Polyurethane Spiral Chute
video

Product Structure

Spiral chutes all consist of the feeder box, cross (tripod), spiral chute, product separator, collector, distributor, etc.,

【Working Principle】
In the beneficiation process, the pulp of the polyurethane spiral chute is subjected to the joint action of inertial centrifugal force and gravity when flowing in the spiral chute. The slurry in the rotary movement generates inertial centrifugal force, prompting light and heavy minerals in the groove surface banding, which are discharged continuously. This sorting principle utilizes the inertial centrifugal force generated in the rotary motion of the slurry, prompting the light and heavy minerals to be separated on the trough surface.

Technical Parameters

Model JXSC-600 JXSC-1200
Outer Diameter 600mm 1200mm
Spiral Pitch 320-430mm 600-630mm
Starts Number 2 2
Feeding Size 0.02-0.3mm 0.03-0.5mm
Feeding Density 25%-50% 25%-55%
Capacity 0.8-1.2tph 2-4tph
Dimension 600*600*2650mm 1200*1200*3500mm
Weight 70 kg 132 kg
