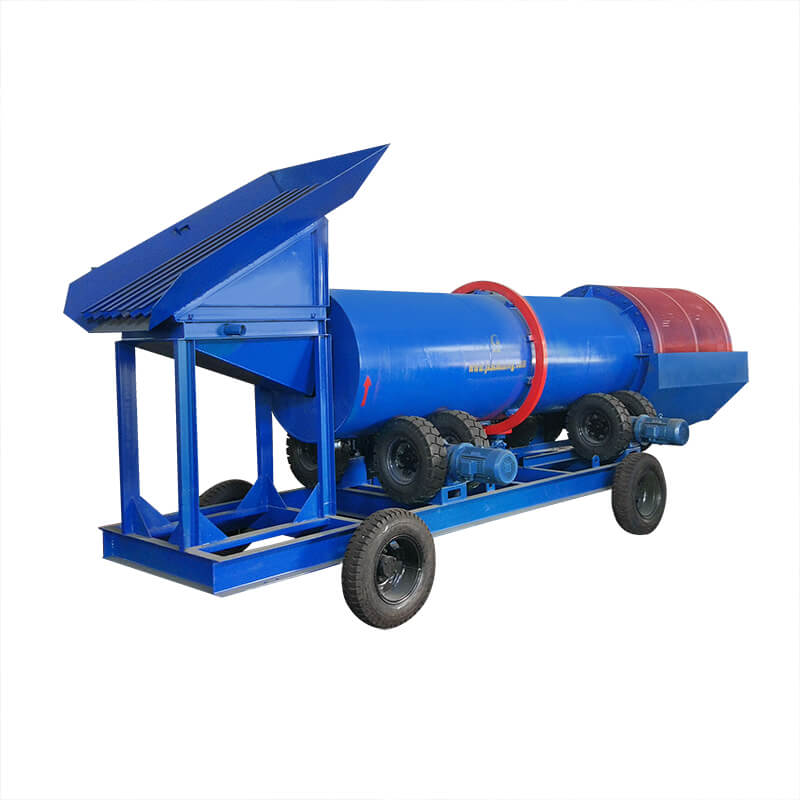

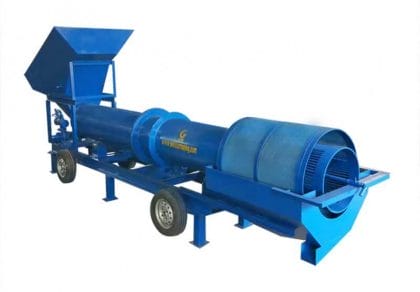

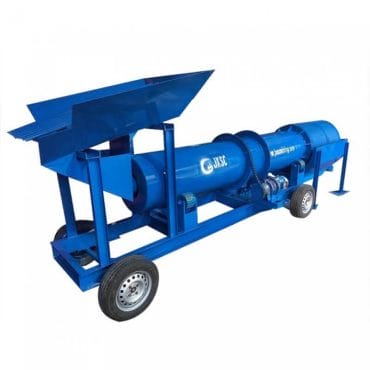

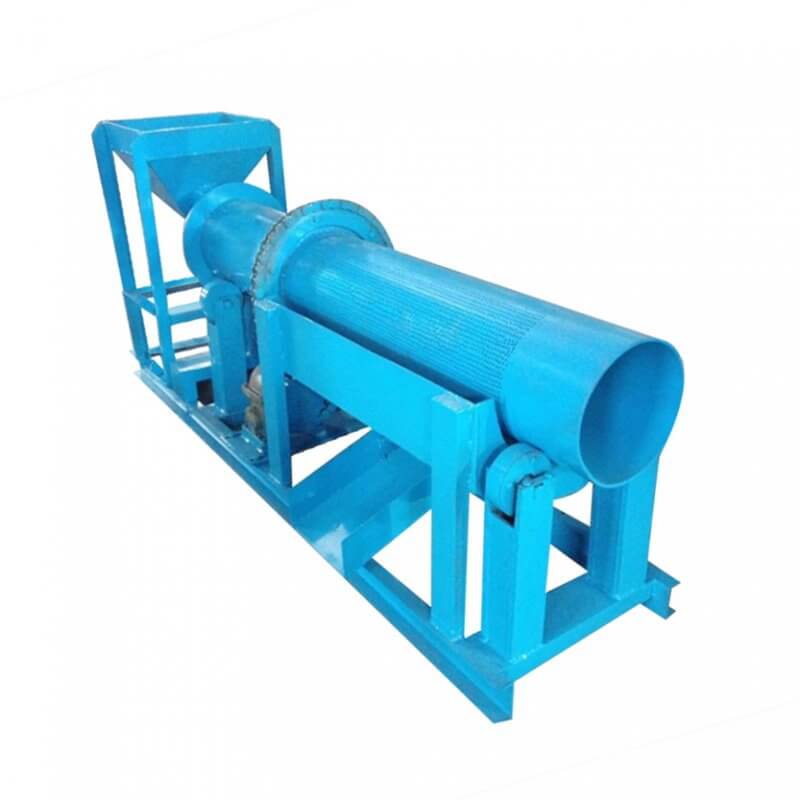

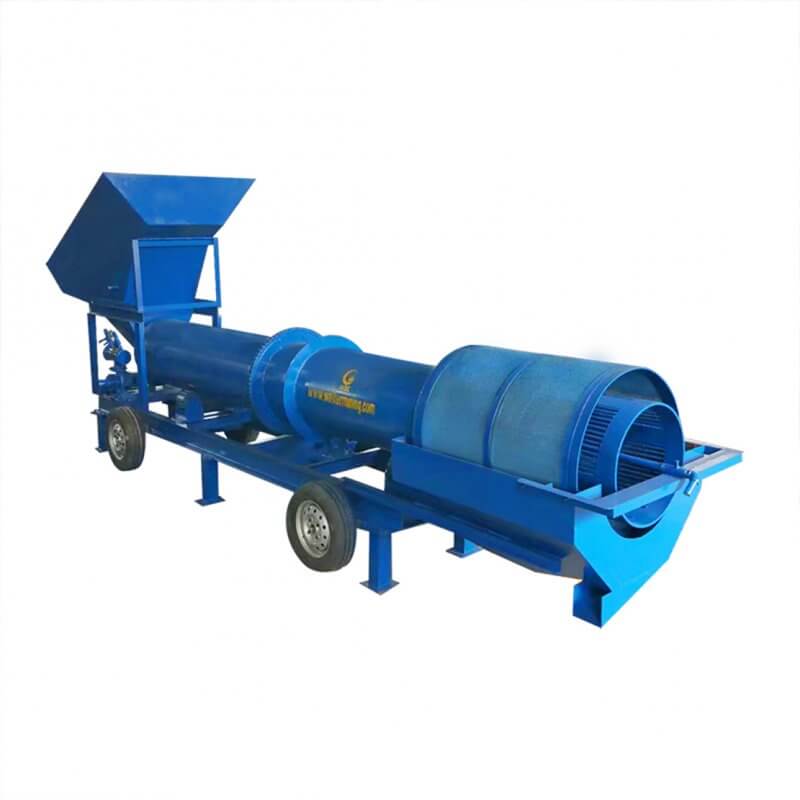

Portable Gold Wash Plant
JXSC portable gold wash plant, customizable & moveable. Equip with the sluice box, gold centrifugal concentrator, shaker table, gold trommel, sand washing machine, vibrating feeders, etc.
We provide complete gold mining equipment includes crusher, sand washing machine, screens, mobile beneficiation, tailings recovery, dehydration, etc.
【Description】The portable gold wash plant integrates ore mining and gold mineral processing operation, includes the excavation system, mineral processing equipment, water supply system, tailings treatment system, power supply, etc.
【Type】The configuration of the mobile gold wash plant varies with the ore nature, processing capacity, site environment, and other factors.
—rock gold deposit, alluvial gold (placer gold) deposit;
—dryland placer gold, river gold (need gold dredger), riverside & beachside gold;
—contains sticky clay, sludge or not;

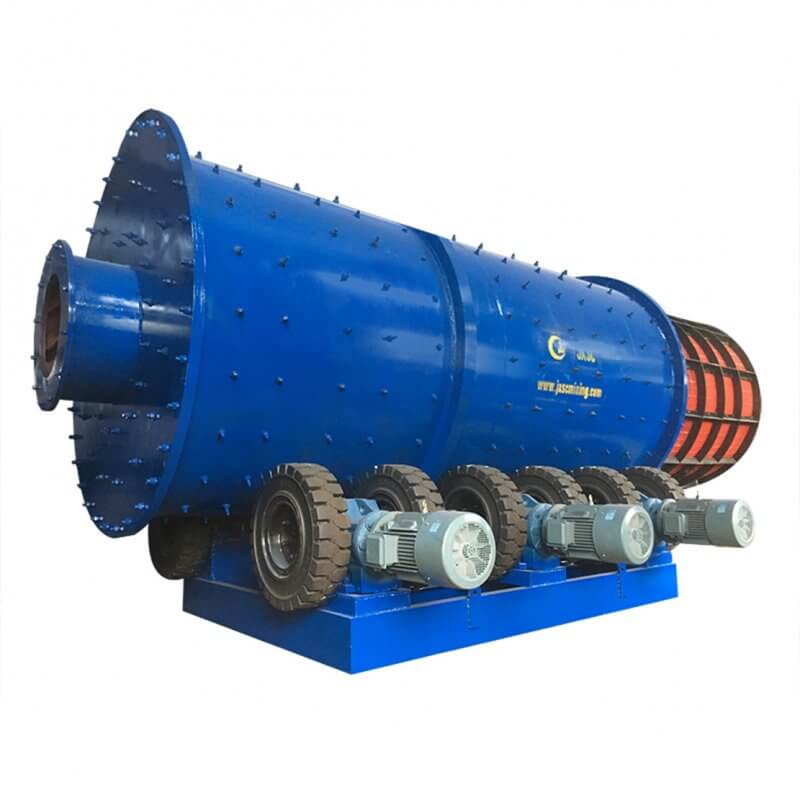

—vibrating screen, trommel scrubber( have washing function ).
Material from the excavator into the feeder hopper, and then use high-pressure water rotating reamer will wash the material into a circular screen, the material removed clay, divided into 2 specifications, large-scale materials cannot be directly removed waste area.
Some people use carpets to fixed gold trough, separate out gold, and then flow into the ore dressing box, from the sand pump to the horizontal automatic gold unloader, concentrate into the concentrate box, waste into the wastewater tank.
【gold mining equipment manufacturer】JXSC have rich experience in gold production, cover rock gold & alluvial gold mining equipment manufacturing, gold processing solution, process chart and layout design. Contact us for the gold wash plant price.

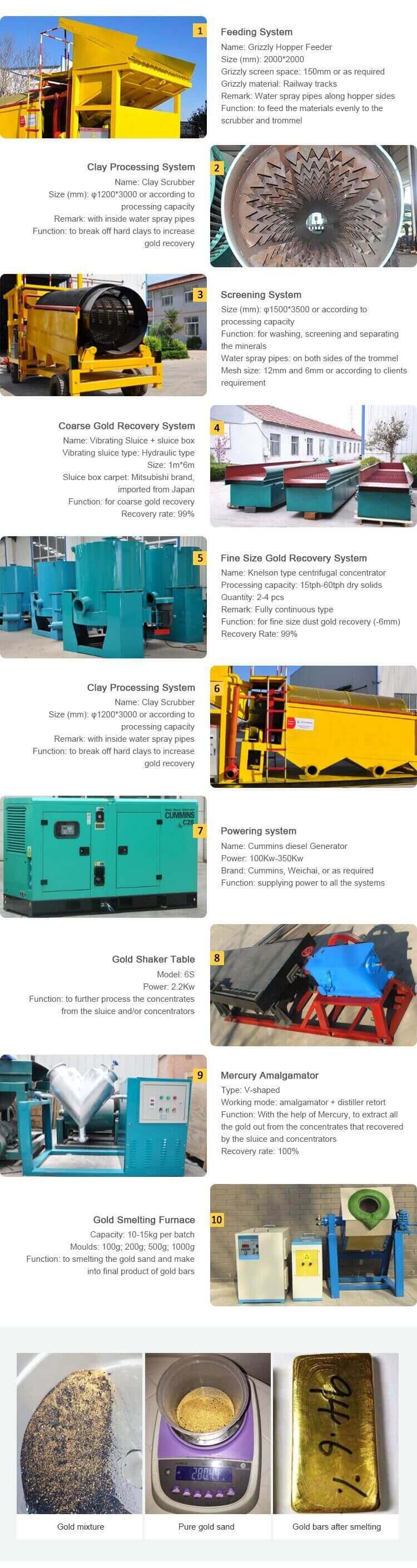

【Working principle】Portable Gold Wash Plant is an integral moving centrifugal concentrator with scientific structure and high efficiency.
1. Feed hopper adopts a high-pressure water recoil system to ensure uniform feed.
2. Screening system. Roller screen chain drive, east can transfer uniform, energy-saving, efficient.
The inner screen is made by the punching process and contains many reamers, which can fully clean and remove mud and greatly improve the screening efficiency. The central water supply + side water supply is adopted in the roller screen water supply system. The central water supply directly flushes the bottom material of the roller screen, and the side water supply is responsible for washing the outer screen.
3. Beneficiation system
Adopt horizontal full-automatic ore discharge centrifuge, computer control.
4. Water Supply System
The utility model is integrated at the bottom of the feeding hopper and is divided into two parts: a water tank and a water separator.
5. Mobile System
Composed of chassis and traction steering two major components, 4 axes 16 tires, 4 mechanical legs support centrifuge, can be turned in situ 180 degrees, easy to move to the workplace.
|Gold washing plant||JXSC-900||40 ton per hour||150-200mm|

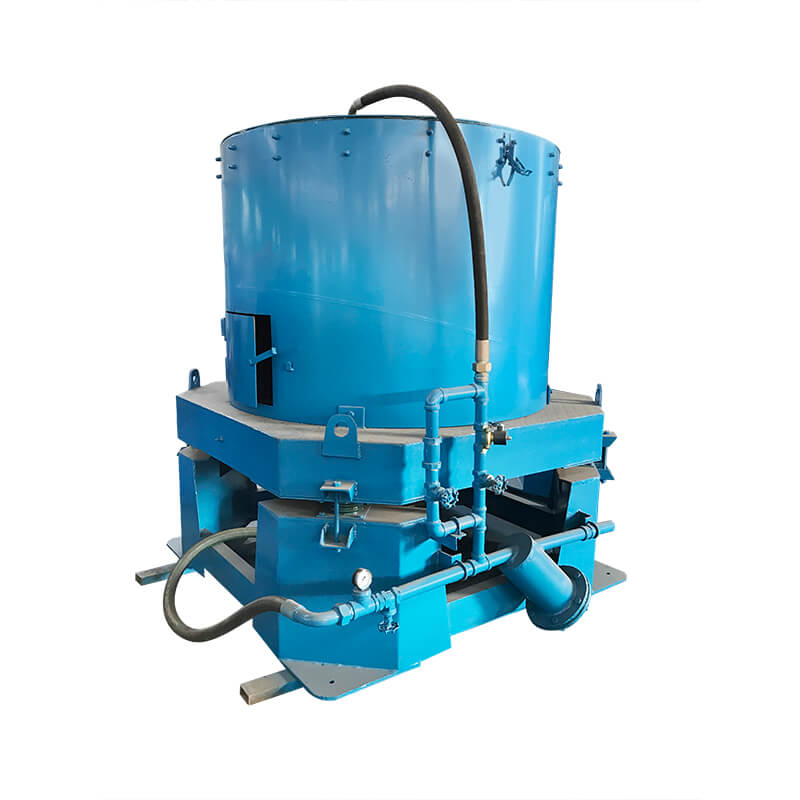

|Gold centrifugal concentration||STLB60||8-12 ton per hour||3mm|
|Sluice box||1*6 m||20 ton per hour||3-15mm|

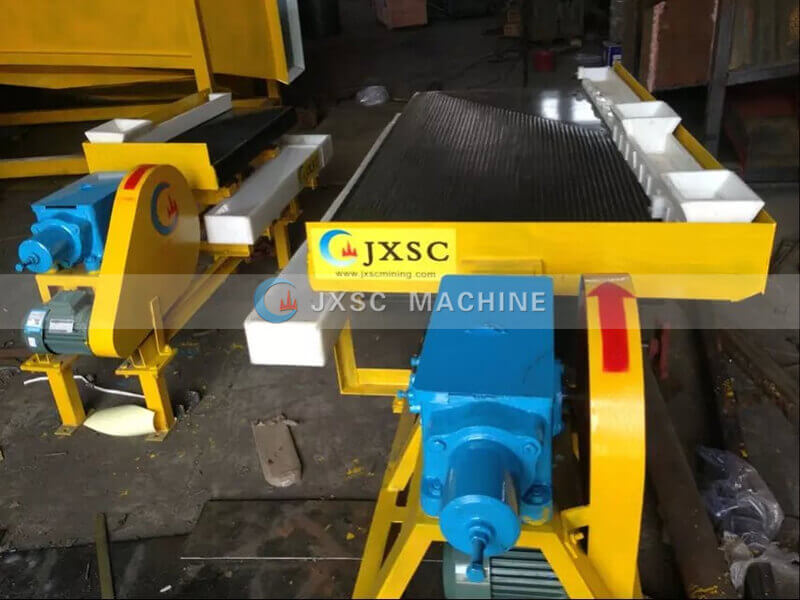

|Shaking table||LY2100||500 kg per hour||2mm|
