Slurry Pump Parts

Home >  Spare Parts > Slurry Pump Parts

slurry pump scheme

Slurry Pumps Spare/Wear Parts

Slurry pumps are designed for the most challenging and abrasive applications and are often used in mineral processing and wash plant environments.

The wet parts of the slurry pump mainly include the impeller, liner, throat bush, auxiliary impeller, inlet pipe, outlet pipe, and shaft sleeves. Because it works under heavy impact with abrasive and corrosive slurries, the impeller, throat bush, liners, frame plate liner insert, and casing are seriously worn and often must be replaced.

The material plays an important role in the long service life of pump parts. We supply high chrome alloys, natural rubber or elastomers, polyurethane, and ceramic material for slurry pump spare parts. And the impeller material is not recommended to use rubber material.

The Slurry Pump Parts We Supply

  • Impellers
  • Volute Liners
  • Throat Bush
  • Frame Plate Liner Insert
  • Cover Plate Liner
  • Frame Plate Liner
  • Bearing Assembly
  • Shaft Sleeves
  • Gland kits
  • Pump casing/covers
  • Back Plate

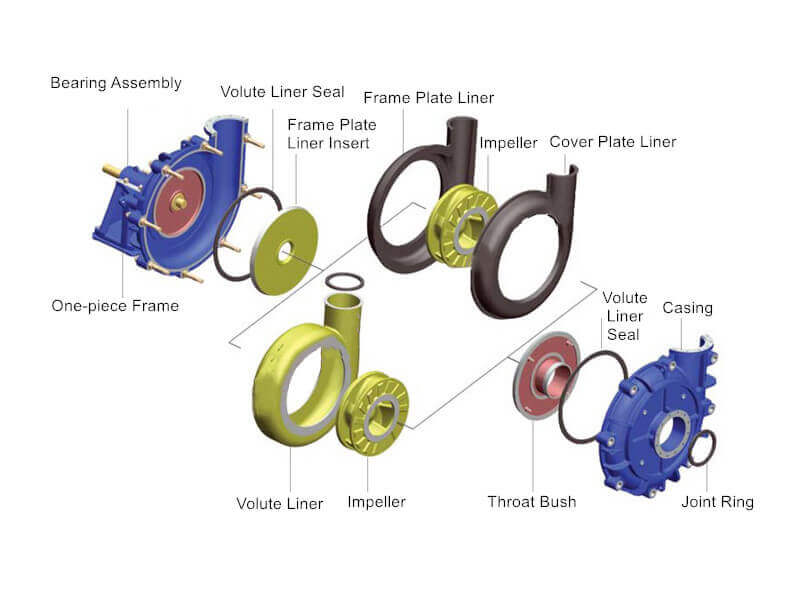

slurry pump structure


slurry pump impellers

Material: Metal, rubber, or polyurethane

The impeller is a rotor, a rotating component of a centrifugal pump. Front and rear shrouds have pump-out vanes that reduce recirculation and seal contamination.

When the slurry pump processes the solid mixture, the most worn parts are the impellers. The impeller is the most important part of a pump. Metal, rubber, and polyurethane meet different working duties.

Frame Plate Liner Insert

Frame Plate Liner Insert

When the slurry pump runs, the frame plate liner insert is in direct contact with the slurry. The primary function of the frame plate liner insert is to cooperate with the sheath to form a semi-closed flow channel so that the slurry can run in this space.

Volute Liners

Volute Liner

Material: High chrome alloy, Rubber, Polyurethane, Ceramic, etc

Volute liner is an important wear part of the slurry pumps. Together with the throat bush and frame plate liner insert, it forms a slurry pump chamber where the slurry would flow through.

The slurry volute liner is a curved funnel increasing the area to the discharge port. As the area of the cross-section increases, the volute reduces the speed of the liquids and increases the pressure of the liquids. The primary purpose of a volute liner is to help balance the hydraulic pressure on the shaft of the slurry pump.

Our volute liners have reasonable structure, long service life, high efficiency, small design load, low energy consumption, stable operation, and convenient installation and maintenance.

Throat Bush

throat bush

Material: Metal, rubber, or polyurethane

The throat bush is one of the most important parts in the wet side of the slurry pumps and can be easily worn by the slurry pump at high speed.

Slurry Pump Parts

slurry pump parts

Pumps Parts OEM Brands

  • WEIR
  • FLSmidth
  • gMAX

Note: We don’t cooperate with these brands. All parts we supply are manufactured and warranted by us and are not manufactured by or purchased from the Original Equipment Manufacturer.

Why Choose Us?

  • Rich Experience, High-quality Products & Excellent Service

    Started in 1985, we have rich experience in industrial manufacturing and service. High recovery ore solution design and advanced equipment production. Not only provide you with high-quality products but also provide excellent services.

  • Famous All Over The World

    In strict accordance with the ISO9001 quality control system, the products are sold worldwide. JXSC has a good reputation in many countries.

  • Advanced Technology Delights Customers

    We optimize and improve based on the original products, and customers have recognized various products in practical applications. Maintain customer satisfaction with product and delivery.

  • Rich Product Library & Customized Products

    We provide a wide range of components and wear parts used in the industry with a rich product library. Supply OEM or customized products to the clients.
