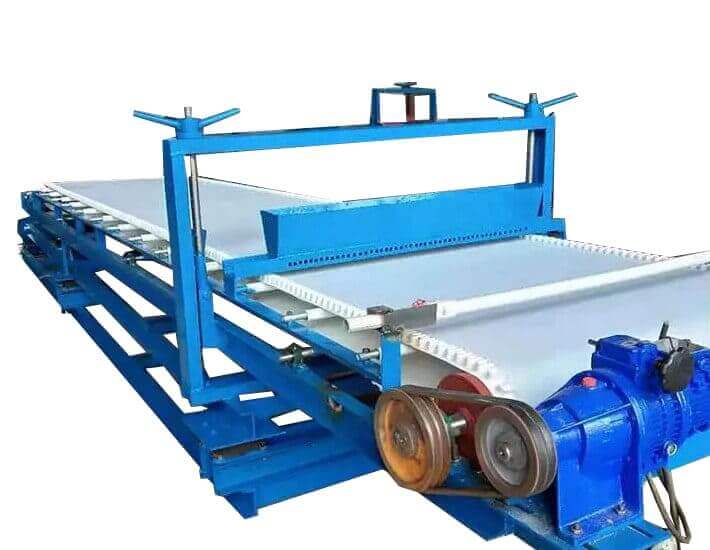

Vibrating Blanket Machine
【Capacity】1.5-2.5 t/h
【Feeding Size】 <0.5 mm
【Feeding Density】 5-25%
【Voltage】380 V
【Output Power】0.37 kw
【Water Consume】0.7-1 t/h
Chat Online on WhatsAppAdvantages
The vibrating blanket machine is commonly known as the Bugou blanket ore dressing machine and tailings blanket recovery machine. It is suitable for various rare metal minerals tungsten, tin, gold, copper, lead, zinc, chromium, titanium, zirconium, rare earth, rutile, monazite, tantalum niobium, garnet, quartz, kaolin, molten salt slag, purification of fire method, hydrometallurgy slag and other products.
The vibrating blanket machine is a new type of gravity mineral processing equipment. Compared with traditional gravity mineral processing equipment (shaking table, spiral chute, jig), it has the advantages of a high ore-rich ratio, high separation efficiency, good supervision in gravity mineral processing, and easy & convenient of adjust.
The vibration blanket machine is a relatively unique mineral processing equipment. It occupies a small area but has a large working area. Therefore, the processing capacity is also large, and the recovery rate is high. It fully plays the role of reducing costs, increasing profits, and saving resources.
The vibrating blanket machine has a significant effect on micro-fine particles. It can separate slime with a particle size of 100 mesh to 800 mesh and can recover about 80% at one time. It has a large processing capacity and a high mineral processing and enrichment ratio, which solves the problem of fine particles’ difficult separation.
Product Structure

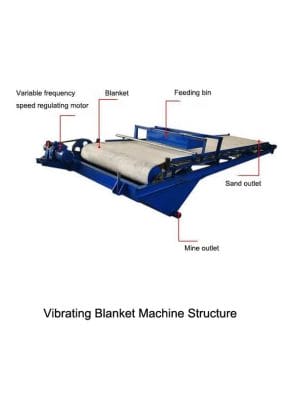

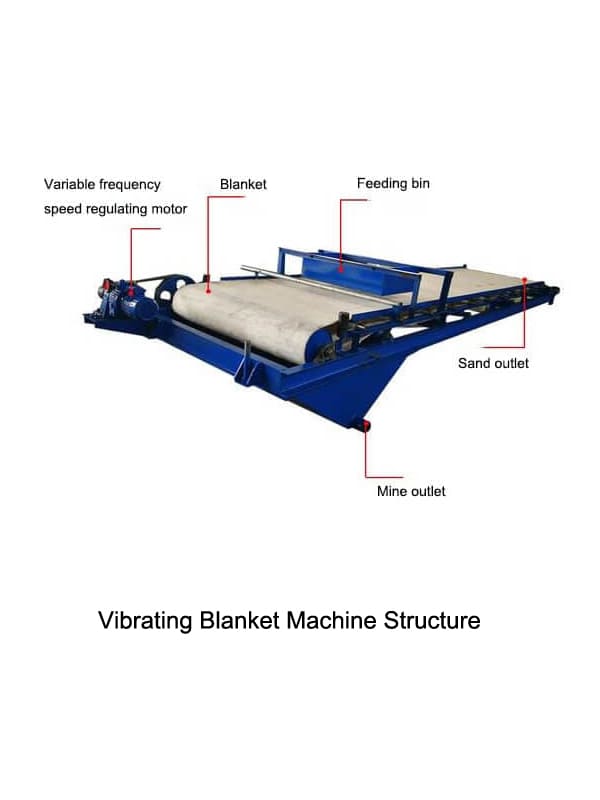

【Vibrating Blanket Machine Structure】The vibrating blanket machine includes a vibrator, a blanket, a bracket, and an adjustment device. The vibrator is used to generate periodic vibrations and is the core component of the vibrating blanket machine. Through the operation of the vibrator, the entire device can vibrate at the set frequency and amplitude. The blanket carries the minerals to be separated, and the vibration of the blanket is used to separate minerals of different densities. The bracket supports the structure of the entire device to ensure the stability and safety of the equipment. The adjustment device adjusts the vibration amplitude and frequency of the equipment as needed to meet different separation requirements.
【Vibrating Blanket Machine Working Principle】On the principle of the traditional belt conveyor, a layer of gold sticking cloth is added, so that the gold sticking cloth rotates continuously for 24 hours, achieving the purpose of replacing the gold sticking cloth every second for 24 hours. When the part with gold flakes on the surface is rotated to the bottom, it is impacted by recoil water to make the gold fall into the treasure bowl. This machine is suitable for the recovery of various metal ores, especially for the recovery of run-off ores.
Technical Parameters
| Dimensions(mm) | 1400*5000*850 |
| Capability (t/h) | 1.5-2.5 |
| Feeding Size (mm) | <0.5 |
| Feeding Density | 5-25% |
| Feeding Hopper | Controlled Hopper |
| Voltage (V) | 380 |
| Output Power (kw) | 0.37 |
| Output Speed (r/min) | 4-40 |
| Slope Adjust | 1-30° |
| Water Consume (t/h) | 0.7-1 |
| Working Surface | Special wear-resistant and easy-to-catch carpet |
| Beneficiation Area(Square) m2 | 4.8 |
