Hammer Crusher

Hammer Crusher

【 Capacity 】: 1-50 TPH

【 Processible Material】:rock gold ore/ rock coltan ore/ rock tin ore/ rock tungsten ore/rock iron ore/ rock manganese ore/ rock chrome ore/ stones/ gravel/ coal/ granite/ marble/ limestone, etc.

【 Application】:Applies to mining, cement, coal, metallurgy, building materials, roads, fire, and other departments chronology medium hardness and brittle materials.

mailEmail: [email protected]


Hammer Crusher features:
1. High crushing ratio, the crushing ratio ranges from 10 to 25 or even higher to 50.
2. The output size can be adjustable by changing different mesh size screen, can be as fine as 1-3mm.
3. Simple structure, light in weight, easy operation and low maintenance cost.
4. High production capacity, low power consumption.
5. The enhancement rotor with finite element analysis technology.

6. The mode of stone hitting effectively reduces the wear load of the hammerhead and grid plate.

7. The military high strength artillery steel spindle is designed with a vacuum duplex which increases the strength by 3-4 times.

Click to find more rock crusher machines information. hammer mill, roll crusher, impact crusher, jaw crusher, cone crusher, etc.

The Hammer crusher is an important stone crusher machine for crushing limestone, coal or other brittle materials in metallurgical, building material, chemical, and hydroelectric industries.
hammer crusher characterized by one-step forming, large crushing ratio, high production capacity, uniform product size, etc.
JXSC, a professional stone crusher machine manufacturer, has more than 30 years of design and manufacture of hammer mill history, science product structure, reliable performance, smooth, low energy consumption. In addition, the hammer crusher price is very competitive, popular both at home and abroad.

Hammer Crusher

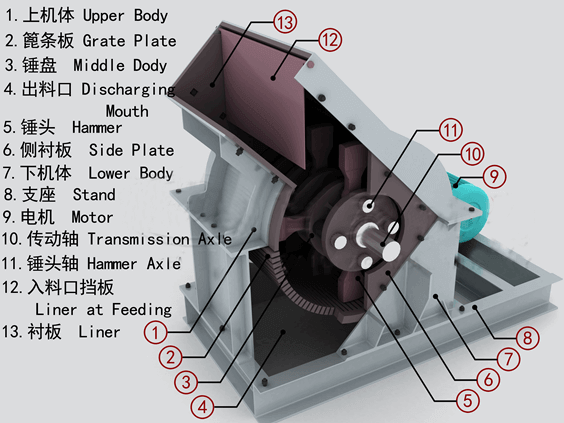

Product Structure

Hammer crusher is widely used for crushing various materials like stone, rock gold, rock coltan, rock tine ore, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, limestone, quartzite, alloys, etc. Highly recommended by leading consultants in rock crushing plant, mining crushing plant, building material crushing plant.

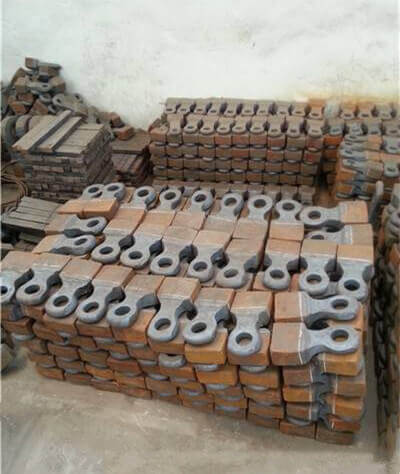

The Hammer is fixed on the spindle frame.
Hammer size and shape is adjustable for different crushing tasks, the material diameter can be crushed into 1-3mm. The max angle of swing of the hammer is up to 120 degrees. A built-in Interior lining will protect chassis from damage, the Interior lining is mounted on the lower half of the cabinet grate.
The material is fed into a hammer crusher, crushed by the impact hammer of high-speed rotation, the crushed ore obtains the kinetic energy of high-speed impact, from the grate on the wall of the casing Hammer, crushed by the impact of the second plate broken, and the collision of Minerals Subject to further fragmentation. After the qualified material is crushed, it is discharged through the grate 4. The bigger the material on the grate 4 is, the more it is hammered, crushed and crushed, and after the clearance is discharged, it reaches the required size. To avoid clogging of the comb fittings, the moisture content of the material is generally required to be less than 10 %.

Technical Parameters

ModelSpeedFeed size(mm)Out-put size (mm)Capacity (t/h)Weight (T)Power (kw)
