Mining Locomotives

Introduction, Application, Features & Types

What Are Mining Locomotives?

Mining electric locomotive is mainly used for long-distance transportation of underground transportation roadway and ground. It is equivalent to the electric locomotive head in railway transportation. It drives the train composed of mine car or man car on the track to complete the transportation of coal, gangue, materials, equipment, and personnel. There are surface locomotives and underground mining locomotives.

JXSC Mine Machinery makes several basic types of locomotives, such as trolley/battery electric locomotives, flameproof mining battery/trolley locomotives, coal mine battery locomotive, diesel locomotives for mining, and so on. They are all can be customized. So if you need something that meets your individual requirements we are able to supply locomotive according to your wishes. Feel free to contact us!



Mining Locomotives Types

The principal types of mine locomotive include diesel, battery, trolley, battery/trolley, and to a very small degree, the flywheel form, together with compressed air powered.

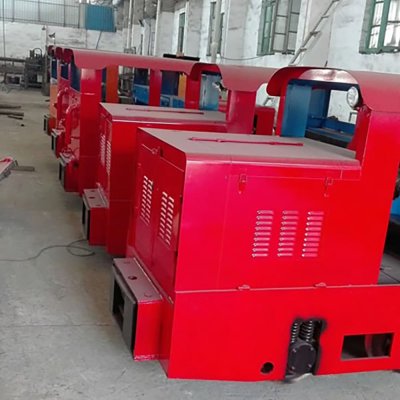

diesel mine locomotive

Mine Locomotives With Diesel Engine

Diesel underground mining locomotives are designed as the prime mover for the horizontal rail track haulage of cargo and personnel in mines while the occurrence of coal dust and methane (CH4) in the ambient air (up to 1.5 %).

trolley mine locomotive

Mine Trolley Locomotives

Mine trolley locomotive is designed for the horizontal rail track haulage in mines, for the moist and dusty environment without explosion hazard of coal dust and natural gas.

battery mine locomotive

Mine Battery Locomotive

Battery electric locomotive is designed for the horizontal rail track haulage in mines, for dusty environments with explosion hazard of coal dust and natural gas, certified according to ATEX. These locomotives can operate in a moist environment at ambient temperature from –10°C to +35°C.

Mining Locomotives for Sale

1. Mine Diesel Locomotives

Diesel Mine locomotives are designed as the prime mover for the horizontal rail track haulage of cargo and personnel in mines while the occurrence of coal dust and methane (CH4) in the ambient air (up to 1.5 %).



Application

The flameproof diesel locomotive is suitable for underground coal mines with gas and coal dust explosion hazards.



Main Features

  • The diesel locomotive is flexible, easy to operate, comfortable to work, low cost, and low labor intensity.
  • It is equipped with an exhaust gas purification device to eliminate pollution and ensure a good working environment.



Structure

The locomotive usually consists of 3 parts: two cabins and the center part(engine room). Both cabins are equipped with operating, control, and safety devices and might be removed during the transport of the locomotive to the underground. To be more specific, the mine locomotive with diesel engine is including diesel engine, body, Clutch, Gearbox, Working brake device, Cooling and purification device, and Circuit system.

Warning
1. The operating system and braking system of the locomotive is not normal and not allowed to drive;
2. The locomotive lights, signal lights, and horns are abnormal and not allowed to drive;
3. The instrument of the locomotive is abnormal, and the oil and water pipelines have seepage and leakage. Do not drive;
4. The diesel exhaust gas treatment box is cleaned every two days;
5. Check the fastening of the connecting bolts of the diesel engine and the gearbox before starting each shift.

CCG3.0/600 Diesel Locamotive

CCG3.0/600 mining diesel locomotive is a small rail-type tractor powered by a diesel engine, which is suitable for mining areas with rail transportation, especially mining areas with a lack of electricity and few spots. It has the characteristics of flexibility, low use cost, convenient maintenance, and so on.

diesel mine locomotive

Parameters of Diesel Locomotives

ModelCCG 3.0/600J (B)CCG 5.0/600J (B)CCG8.0/600J
Matched Power ModelZS1115FBYH1125SFBYH4108DFB(A)
Dimension (L*W*H) mm2400*920(1000)*16003020*1000(1098)*16003700*1100*1600
Weight(kg) 300050008000
Greatest Traction

Force KN

4.57.512
Pulling Tonnage (T)152235
Gauge (mm)600(made to order)
Wheelbase (mm)706(712)880(860)980
Greatest Speed (km/h)15+117+120+2
Diesel Engine Power (kw)/

Rotating Speed (r/min)

11/220014.7/220052/2400
Smallest Railway Orbit (m)567
Greatest Braking Force N5000800012800
Traction Height (mm)270 320320 430320 430
Braking Distance (m)40
Height Above Ground (mm)80125125
Braking Modefoot and machine controlAir and hand wheel control
Exhaust QualityCO≤0.1% NOX≤0.08%

2. Trolley Electric Locomotive

Mine trolley locomotive is designed for the horizontal rail track haulage in mines, for the moist and dusty environment without explosion hazard of coal dust and natural gas.



Application

Transportation traction on the narrow rail for the field of coal, metallurgical industry, mining, forest, railway, road tunnel construction and etc.



Main Features

  • Have good sticking and big traction.
  • Reliable AC electrical motor, with a wide range of speed regulation.
  • Less cost for maintenance, can avoid ring fire and burnt compared to DC driving.



Structure

The trolley electric locomotives are driven by two asynchronous electric motors with independent cooling and with speed regulation by frequency converter that guarantees both steady drive and braking. Braking is organized by two independent braking systems for both axles, electrodynamic brake – by electromotors and mechanical double-circuit brake, directly on the running wheel. The locomotive has one lockable cabin with a view and steering in both directions.

Parameter of Trolley Locomotive

TypeCJY3/6GBCJY7/6GB
Adhesive Weight(T)37
DC Voltage(V)250250
Current(A)6350.5×2
Traction(kN/h)5.7415.09
Max. Traction(kN)7.3617.2
Speed(km/h)7.511
Structure Speed(km/h)1525
Power(kW)6.5×218X2
Track Gauge(mm)600, 762, 900600
Wheelbase (mm)7301100
Min. Turning Radius57
Wheel rolling circle diameter mm Φ 390 Φ 680
 Hook height mm320, 210320, 210
Pantograph height mm1800-22001800-2200
Braking distance M1010
Transmission modechain transmissionchain transmission
ControllerResistance or IGBTResistance or IGBT
Brake ModeMechanical Brake, oil pumpMechanical Brake, oil pump
Dimensions(L*W*H)(mm)2950x1010x15804470x1050x1500



3. Battery Electric Locomotive

Battery electric locomotive is a kind of track traction equipment powered by batteries, which is generally used in mines. There are two types of battery electric locomotives, explosion-proof type(flameproof mining battery locomotive) and ordinary type mining battery locomotive. The flame proof mining battery locomotive is mainly used in coal mines. There are also many options in terms of speed regulation and braking methods. Speed control methods include resistance speed control, chopping speed control, and frequency conversion speed control. Braking methods include pure mechanical braking, hydraulic braking, and compressed air braking. In addition, electric braking can also be selected as an auxiliary braking method.

Application

They are designed for the horizontal rail track haulage in mines, for dusty environments with explosion hazards of coal dust and natural gas. And it can operate in a moist environment at ambient temperature from –10°C to +35°C.



Main Features

  • Reasonable structure & reliable explosion-proof performance
  • High efficiency and energy saving
  • Large starting torque and stable operation
  • Multiple protection devices are adopted with less maintenance
  • With electric braking function, the locomotive performance is more safe and reliable and is deeply welcomed by users.



Structure

The battery-electric locomotives are driven by two asynchronous electric motors with independent cooling and with speed regulation by frequency converter that guarantees both steady drive and braking. Braking is organized by two independent braking systems for both axles, electrodynamic brake – by electromotors and mechanical double-circuit brake- directly on running wheels. Locomotives have lockable cabins with view and steering in both directions.

Parameters 0f Battery Electric Locomotives

ModelCTY2.5/6,7,9GCTY5/6,7,9GCTY8/6,7,9G(B)CTY(L)12/6, 7, 9GCTY15/6,7,9G(B)CTY18/6,7,9G(B)
Self Weight2.5 tons5t812 tons15t18t
Track Gauge600, 762 or 900mm60,762 or 900mm600,762,900600, 762 or 900mm600,762900mm600,762900mm
Traction2.55kN7.06kN11.1812.8316.48kN18.47kN29.4kN
Max Speed4.54km/h12.26kN19.6229.43kN36.18kN44.15kN
Max. Traction6.13kN7km/h6.27.88.7km/h9.6km/h9.8km/h
Power Supply DeviceVoltage48V90V110,132140,144192V256V208V
Capacity308 or 330Ah385Ah440560Ah620Ah730Ah
Power3.5kw*17.5 kW*211×215×222kW*130Kw x 245Kw x 2
SizeLength2330mm2850mm44,704,4905100mm5200mm5100mm
Width914,1076 or 1212mm920,1082/1220mm1,062,119,012,121,3501050, 1212 or 1350mm1500mm1500mm
Height1550mm1550mm16001600mm1920mm1900mm
Wheelbase650mm850mm110011501220mm1400mm2100mm
Wheel DiameterΦ460mmΦ520mmΦ680Φ600,Φ680Φ680mmΦ680mmΦ600mm
Min. Turning Radius5m6m710m15m20m
ControllerResistance or Pulsing speed regulationResistance or Chopped waveResistance,IGBT or Frequency conversionResistance, IGBT or AC ConverterResistance, IGBT or AC ConverterFrequency conversion or chopper speed regulation
Brake ModeMechanicalMechanism or hydraulic pressureMechanicalMechanical and Pneumatic BrakeMechanical and Pneumatic BrakeMechanical, electrical, air brake



Underground Mining Locomotives

trolley mine locomotive
diesel mine locomotive
diesel mine locomotive
battery mine locomotive
battery mine locomotive
trolley mine locomotive
