Gold Sluice Box

Gold Sluice Box

Feeding Size】<20mm
Capacity】0-25 T/H
Minerals】 Main in alluvial gold, tin
Application】Open cast mining, seashore, riverbank, gold dredger, etc
Type】Fixed gold sluice, portable sluice box, pulsating sluice box

Contact Us via WhatsAppChat Online on WhatsApp

Advantages

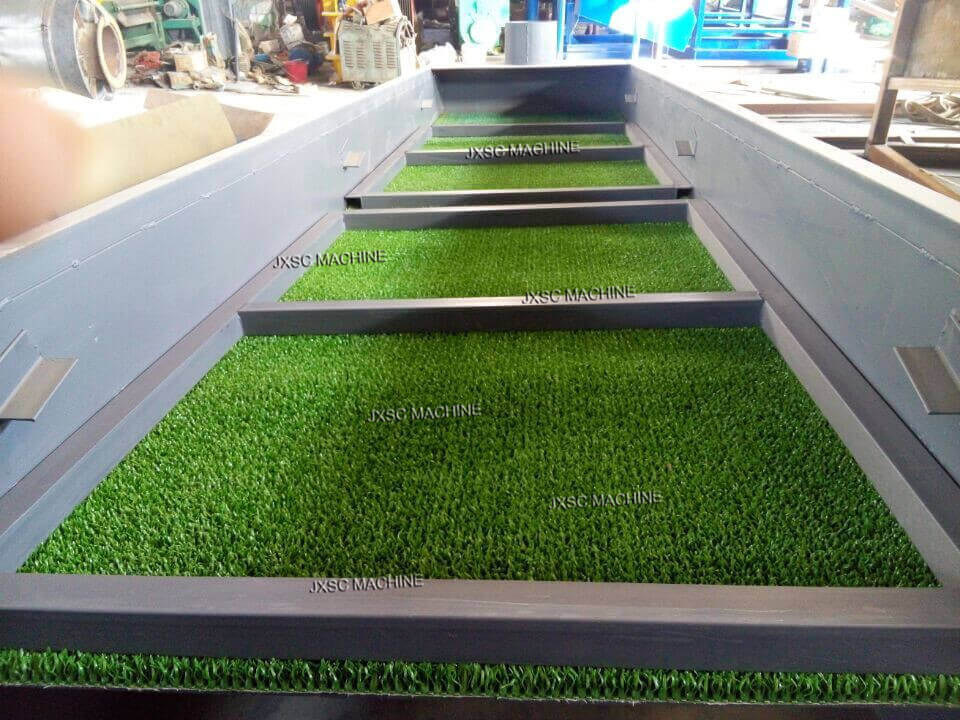

DescriptionGold sluice box with mat is a kind of mineral gravity separation equipment, mainly used in the alluvial gold wash plant, gold dredger, and open-pit gold mining, definitely an important gold panning equipment. High recovery rate, mature technology, wide application, economical and environmental protection.
Types of sluice box】stationary sluice box, portable sluice box, vibrating gold sluice;
According to the capacity, divided into large scale sluice and small sluice box. The former is used in the open-pit mining plant, ore granularity is 50-100mm; the mini gold sluice box on gold dredger, mobile gold mining plants, and the granularity is less than 20mm.

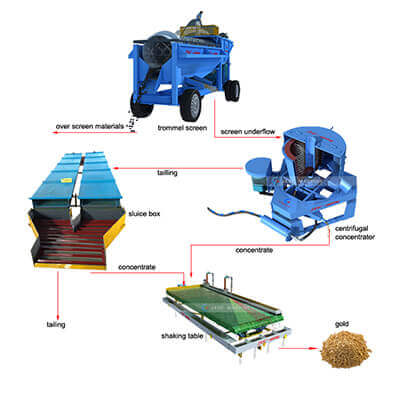

Related equipment】before sluice box: gold centrifugal concentrator; After sluice box: gold shaker table.

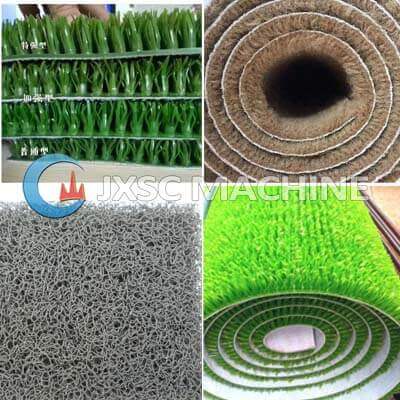

Sluice mat material】PE, rubber ( natural rubber and recycled material), plastic, etc.
Small sluice box】Portable, assemble in 30 minutes. Pumps with gasoline engines to pumping placer sand from streams and river, suits for shallow water area placer gold washing process.
Serives】(1) sluice box length and width custom made (2) different gold carpet materials and shapes (3) equip metal sluice cap and lock keep gold safe.

Gold Sluice Box
video

Product Structure

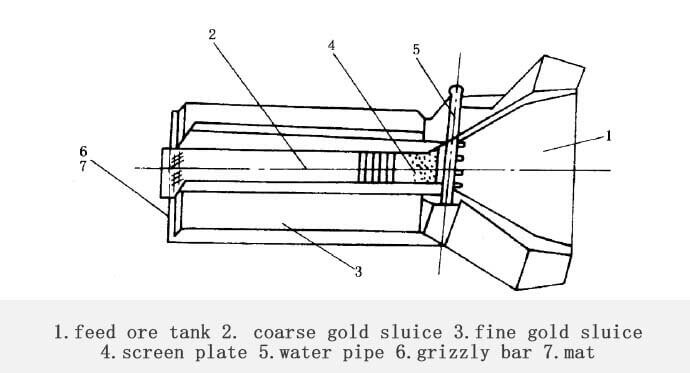

Main parts】Grizzly bar, sluice, mat, frame, water pipe, etc.
Working principle of gold sluice box】Placer gold mining refers to separating gold from alluvial gold deposits. Under the combined action of water flow force, gravity (or centrifugal force) and friction between ore particles and trough bottom, ore particles with different specific gravity are loosely stratified and separated. Heavy density settles in the bottom of the trough into concentrate, the small density proportion flows out, that is tailings.
Factors affects sluice box
1. Height difference 2. Water flow velocity 3. Slurry ratio 4. Slope angle
Sluice box price】Sluice box always works with trommel scrubber, gold centrifugal concentrator, shaker table, and so on gold mining equipment. Contact us, 12hrs quotation about a single machine or complete gold wash plant.
How to select gold mining equipment?
On the Gold mining ship
1. Water depth 2. Sand layer thickness 3. Stone size and proportion 4. Capacity 5. Other local geographical conditions.
Gold mining in dryland
1. Processing capacity 2. Stone size and proportion 3. Water source distance, clean or not 4. Contain slime or not.

Technical Parameters

Gold Sluice Box

ModelLength (mm)Width (mm)Capacity (t/h)
JXSC-4000X10004000100010-15
JXSC-6000X10006000100020-25

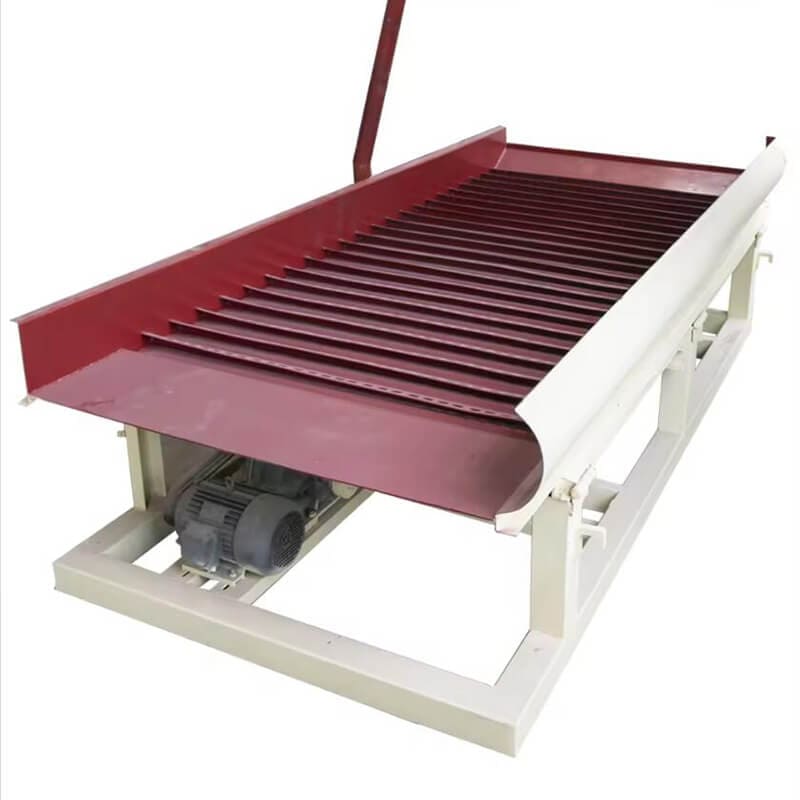

Vibrating Sluice Box

ModelSize (m)Feed ConcentrationCapacity (m3/h)Water (m3/h)Max Feeding Size (mm)Frequency T/MPower (kW)
JXSC15-401.5×4.00.330602028-303.0
JXSC12-331.2×3.30.320402028-302.2



Advantages of gold sluice box
1. Low price, no electric power needed, lightweight, easy installation.
2. Adjustable combined with grizzly feeder, hopper, trommel scrubber, vibrating screen, centrifugal concentrator;
3. Install the gold carpet/mat to catch the fine and coarse gold.

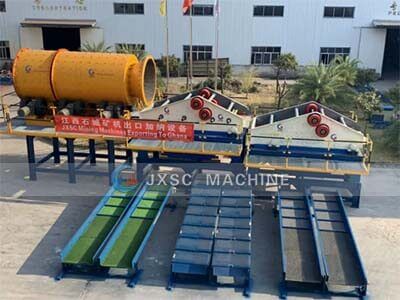

Sluice box manufacturer】 JXSC has supplied sluice boxes and other mineral processing equipment since 1985, our machines have been exported to more than 30 countries. Welcome to visit the JXSC factory.
