Sand Washing Machine

Sand Washing Machine

【Capacity】 1-400 TPH
【Types】Wheel type and spiral type sand washing machine
【Procesible Material】 Ore, natural sand and gravel, manufactured sand, etc.
【Application】 Metallurgy, ore washing plant, quarry, stone crusher plant, building materials, road construction, concrete washing, and other sand and gravel plants.
【Service】 Design and build sand washing plant, working site visiting.

Contact Us via WhatsAppChat Online on WhatsApp

Advantages

JXSC supplies two types of sand washing machines (wheel and spiral type), popularly used in mining and quarrying sites. The sand washing machines have the function of washing, classifying, removing impurities, and draining, with good effect on aggregate, sand & gravel, and ores. They usually work with sand-making machines, vibrating screens, and dewatering screens, to prepare clean ore or gravel for further processing.

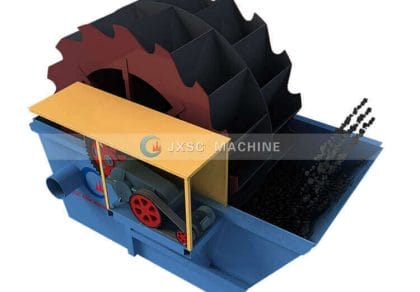

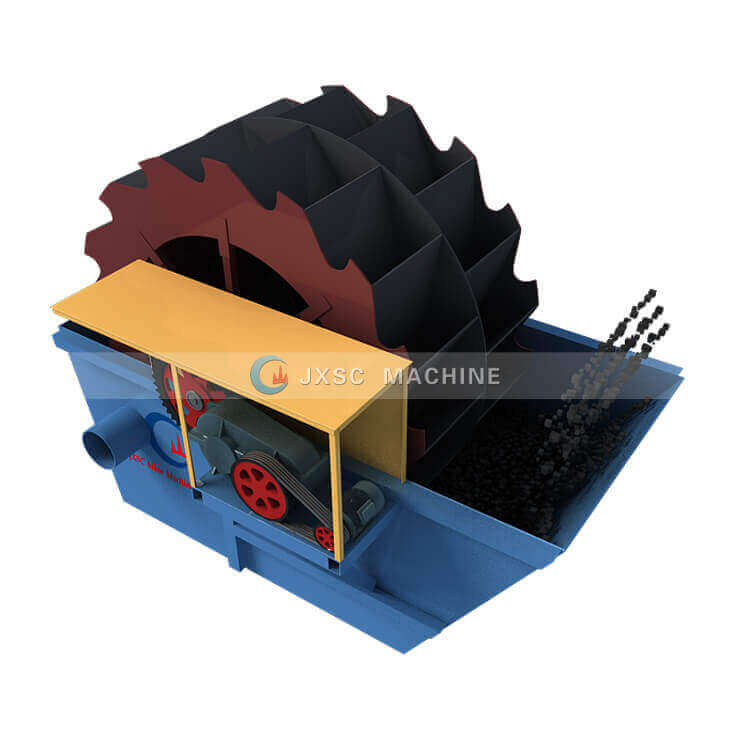

The wheel sand washing machines are divided into single, double, and three bucket-type sand washing machines. Wheel bucket sand washing machines are used for washing, selecting, and dehydrating construction sand and gravel. It is necessary equipment for water-washed sand-making used with the sand-making machine. It can wash away trace amounts of stone powder and impurities from the mixed sand produced by the sand-making machine, thereby improving the quality of the sand. The machine has high cleanliness, reasonable structure, large processing capacity, low power consumption, and low sand loss.

The spiral sand washing machine is called the spiral sand washer or screw sand washer. Due to the different number of spirals inside the spiral sand washing machine, it can be divided into single spiral sand washing machine and double spiral sand washing machine. There is only one spiral inside the single spiral sand washing equipment and double spiral sand washing machine. There are two spirals inside the device.

【Advantages of Sand Washer】

  • Reasonable structure
  • Convenient maintenance
  • Processing capacity
  • Small power consumption
  • Good cleaning effect

【Sand Washing Plants】JXSC Sand Washing Plants process the crushed stone & sand from the raw state to the product by a series of processes, typically including feed preparation, attrition, scrub, screening, deslime, washing, classifying, dewatering, etc. The washed sand specifications vary depending on the application, and the output requirements. The sand washing process combines a variety of equipment including attrition cells, a ball mill, rotary scrubber, vibrating screens, centrifugal slurry pumps, cyclones, separators, deslimer, dewatering screens, etc.

JXSC sand washing machine manufacturer has always provided sand washing equipment for mines, quarries, and concrete batching plants. Contact us to discuss customizable sand washing plant design and sand plant costs. Related products: sand-making machine, bucket wheel sand washer, log washer, sand screw washer.

【Sand Washing Machine Price】Factory price! The sand washing machine price is efficient and economical, relatively low price. Factory direct sale, perfect after-sales service, on-site installation.

Sand Washing Machine
video

Product Structure

Rotary Sand Washer Structure】Main part includes feeding, bucket wheel, reducer, motor, washing tank, screen, discharging.
Sand Washing Machine Working Principle】The motor drives the impeller to rotate slowly, and the sand and stones roll under the motion of the impeller and grind to each other to remove the impurities covering the surface of the sand. The flush water carries away the impurities, and the washed sand and stones are discharged continuously.
Sand Washing Machine Manufacturer】 JXSC provides different sand screening and washing machines according to different sand washing process practical conditions, including industrial washing plant, small sand washing machine, mobile sand washing plant, support sand washing machine design, washing efficiency test.
Sand Washing Method】1. Sand-making machine, rod mill to reduce natural material size 2. Primary classification by screw screen 3. Attrition scrubber 4. Secondary classification by spiral washing equipment or wheel bucket washer.

Technical Parameters

Wheel Type Sand Washing Machine Parameter

Model Dia of The Wheel Bucket (mm) Speed of Rotation (r/min) Maximum Feeding Size (mm) Capacity (t/h) Motor Power(kW) Overall Dimensions (mm) Weight(KG)
XS22-2 2200 2.5 ≤10 15-30 4 3180*1955*2350 2260
XS26-2 2600 2.5 ≤10 20-50 5.5 3515*2070*2672 2500
XS28-3 2800 1.2 ≤10 50-80 11 3964*3014*2895 3200
XS28-4 2800 1.17 ≤10 60-100 15 3964*2137*2895 3880
XS30-4 3000 1.2 ≤10 120-200 15 4169*3456*3055 4350
XS32-3 3200 1 ≤10 100-160 15 4340*2760*3349 3950
XS32-4 3200 1.17 ≤10 150-250 18.5 4346*2198*3345 4885
XS36-4 3600 1 ≤10 200-350 37 4580*3218*3600 7500



Spiral Type Sand Washing Machine Parameter

Model Screw Diameter (mm) Screw Number Feeding Size (mm) Capacity (t/h) Water Consumption (m³/h) Power (kw) Overall Dimensions (mm)
XL-750 750 1 <10 20-40 9-60 7.5 7000*950*1330
2XL-750 750 2 <10 50-70 18-120 2*7.5 7000*1750*1330
XL-1000 1000 1 <10 50-80 10-70 11 8070*1200*1638
2XL-1000 1000 2 <10 100-150 20-140 2*11 8070*2250*1638
XL-1200 1200 1 <20 100-120 20-140 18.5 9070*1430*1900
2XL-1200 1200 2 <20 150-180 40-280 2*18.5 9070*2700*1900
XL-1500 1500 1 <20 150-200 60-300 22 10800*1720*1900
2XL-1500 1500 2 <20 200-300 120-450 2*22 10800*3300*1900
XL-2000 2000 1 <20 250-320 160-460 37 11000*2200*2100
XL-2400 2400 1 <20 320-400 200-620 45 12500*2700*2200



【How to Select The Right Sand Washing Machine】The sand washer type names may vary by application and structure. Contact our engineer for quick selection help, if you are confused about what is XS type, XL type, fine sand washer, coarse sand washer, sand screw washer, spiral sand washer, bucket sand washing plant, and which one suits for washing silica sand, river sand, beach sand, aggregate, granite, etc.

【Sand Making & Washing】JXSC VSI sand-making machine and sand washing machine have a good effect on gravel, cement, pebble, quartz, and aggregate processing plants. Customizable fixed, semi-portable, and portable sand washing systems, replace the natural sand with artificial making sand.
