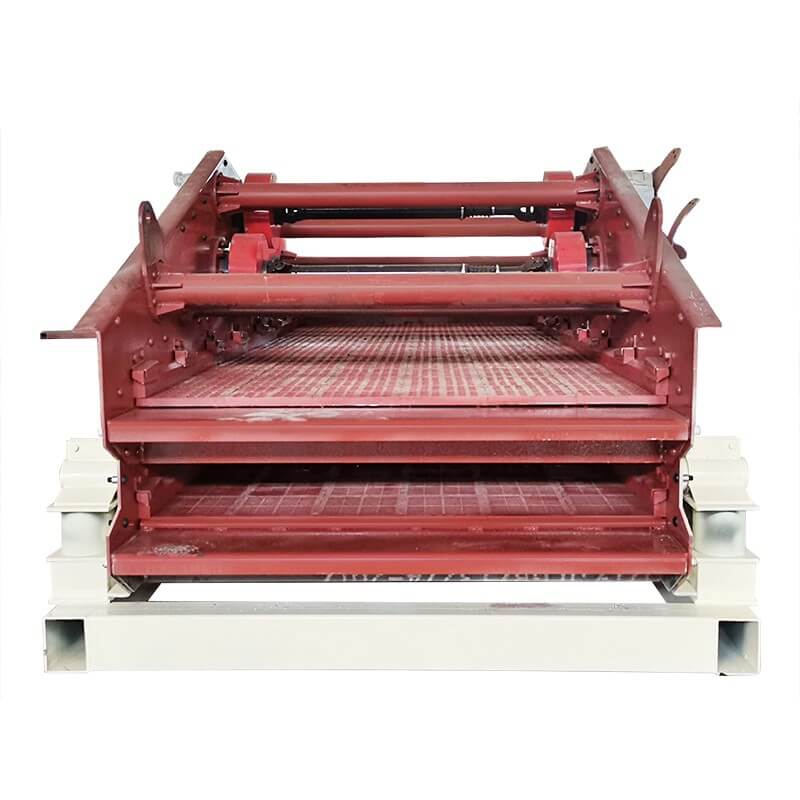

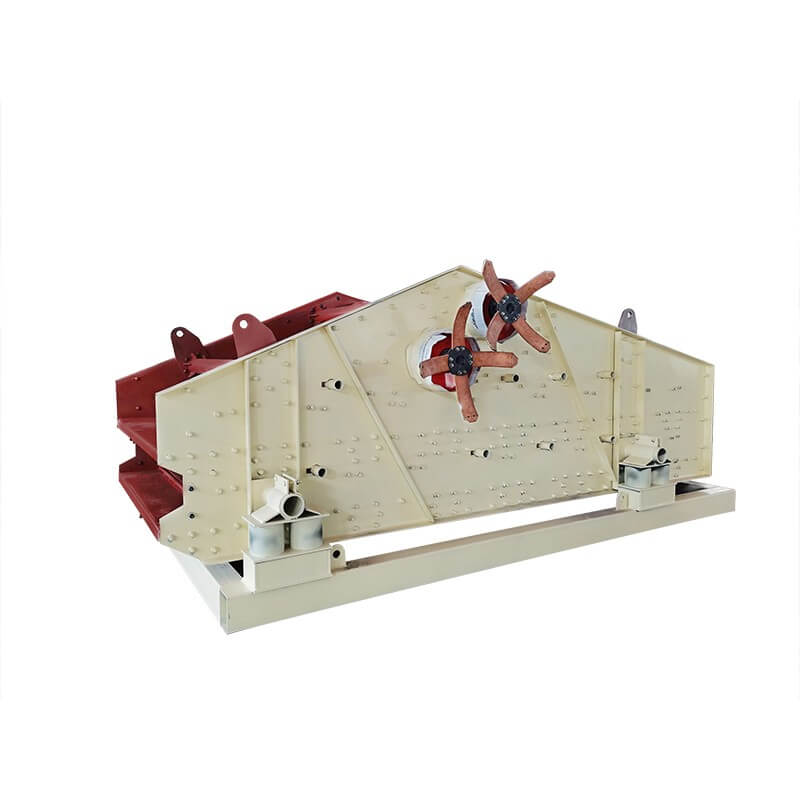

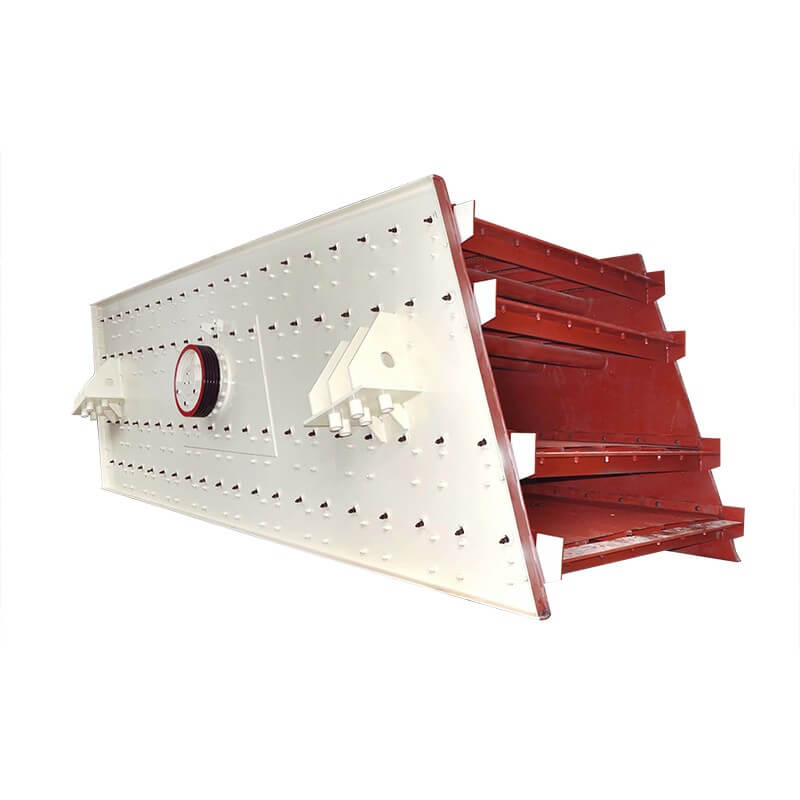

Vibrating Screen

Vibrating Screen

【Capacity】10-800 T/H

【Motor Power】11-74 kW

【Layer】1-4 Available

Contact Us via WhatsAppChat Online on WhatsApp

Advantages

The vibrating screen is a kind of mine classification machine for ore, mine, sand, gravel, coal, slurry, etc. which consists of a screen and a vibrator. Generally below 50 mesh for the coarse screen, and 80 mesh for the fine screen. The vibrator is an eccentric wheel that rotates under the motor’s drive, making the sieve frame vibrate. Because of the vibration of the sieve frame, the thicker solid particles are left on the sieve surface when they flow to the sieve surface and are discharged from one end along the sloping surface. The finer solid particles and the mud liquid flow through the sieve hole to the mud pond together.

Types of Vibrating Screens
The vibrating sieve can be divided into mining vibrating screen, light fine vibrating screen, experimental vibrating screen, also can be divided into linear vibrating screen, circular vibrating screen, high frequency vibrating screen, double deck vibrating screen, single deck vibrating screen, and so on.
The vibratory screen is widely used in coal and other industries, used as a material classification, mineral washing, dehydration, and screening machine. It is widely used in mining, coal, smelting, building materials, refractory, light, and chemical industries for its high production efficiency, good classification effect, and convenient maintenance.
You may be interested in other mineral grading equipment.
JXSC, with over 30 years of vibrating screen manufacturing, provides custom vibrating screen design services.

Vibrating Screen
video

Product Structure

Vibrating Screen Machine Working Principle

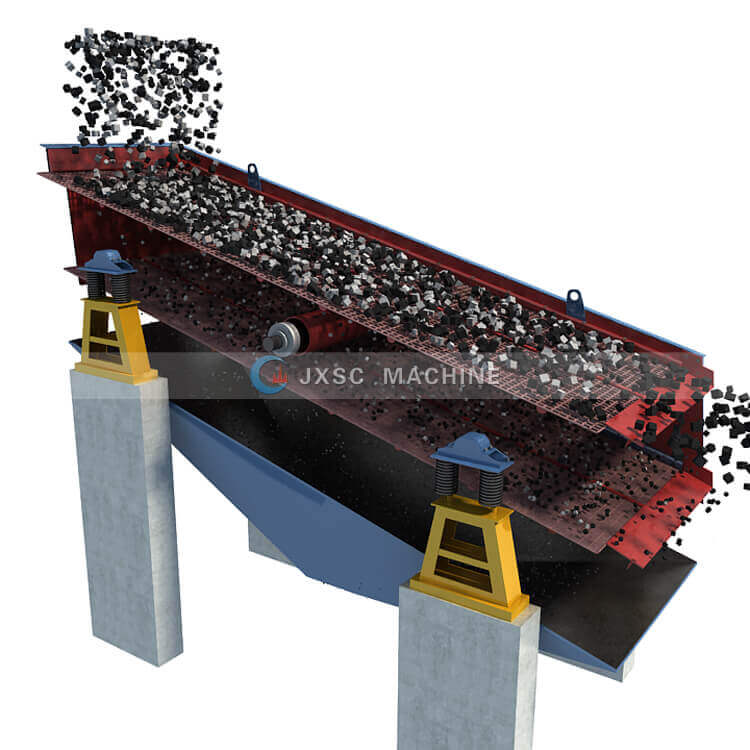

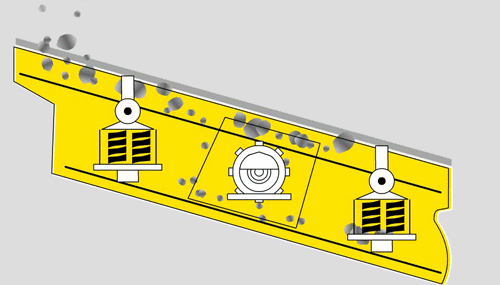

Vibrating screen uses electric exciter as a vibrating source, the material will be thrown around the screen, at the same time doing forward sports, in order to achieve the screening purpose. Material from the feeder evenly enters into the machine's feeding inlet, with multilayer sieves to produce various products and unqualified products on the screen or under the screen, then discharging from the outlet respectively. It can be used in the automatic production line.
In the working process, the dynamic performance of the vibrating screen directly affects the screening efficiency and service life. The vibrating screen uses the vibration excited by the vibrating motor as the vibration source so that the material is thrown up on the screen Mesh and moves forward in a straight line Through the multi-layer screen to produce a number of the screen on the screen, screen under the material, respectively from their respective export discharge.

Technical Parameters

ModelScreen Size (mm)LayersScreen Mesh (mm)Max Feed Size (mm)Capacity (t/h)Power (kw)Vibrating Frequency (r/min)Double Swing (mm)
2YD12373700*120023-8010010-8011750-9505-9
3YD1237311
2YD15484800*1500230-20015
3YD1548315
2YD18484800*1800250-25018.5
3YD1848318.5
2YD18606000*1800260-30022
3YD1860322
4YD1860430
2YD21606000*2100280-40022700-900
3YD2160330
4YD2160430
2YD24606000*240025-80100-50030
3YD2460337
4YD2460437
2YD24707000*2400230
3YD2470337
4YD24704200-60045
2YD30707000*30002300-80030*2
3YD3070337*2
