Gyratory cone crusher

Cone Crusher Wear / Spare Parts

Cone crushers are widely used in metallurgy, mining, cement, the chemical industry, ceramics, highway construction, water conservancy projects, gravel, sand making, etc. It is suitable for crushing ores and rocks with medium and above medium hardness.

The cone crusher has the characteristics of a large crushing ratio, high efficiency, low energy consumption, and uniform particle size. It is usually used for secondary, tertiary, and quaternary material reduction.

The common wearing parts of cone crusher mainly include bowl liners(concaves), mantles,  feed cones, main frame liners and seat liners, protection cones, arm guards, lock nuts, distribution plates, etc.,

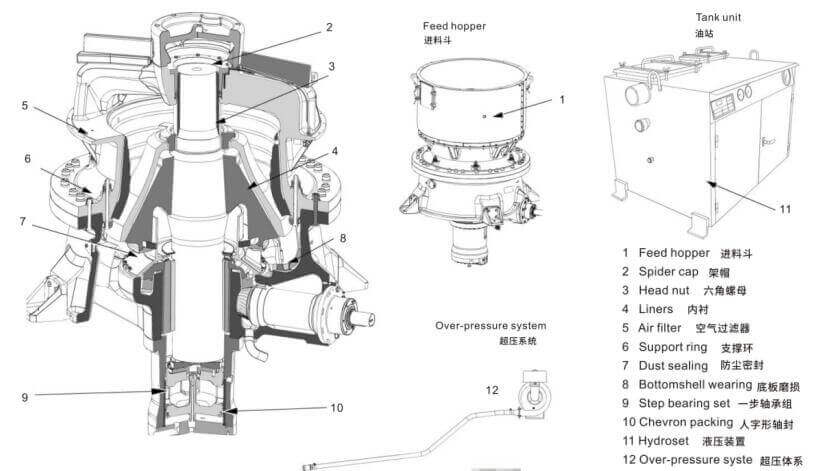

Single-cylinder hydraulic cone crusher

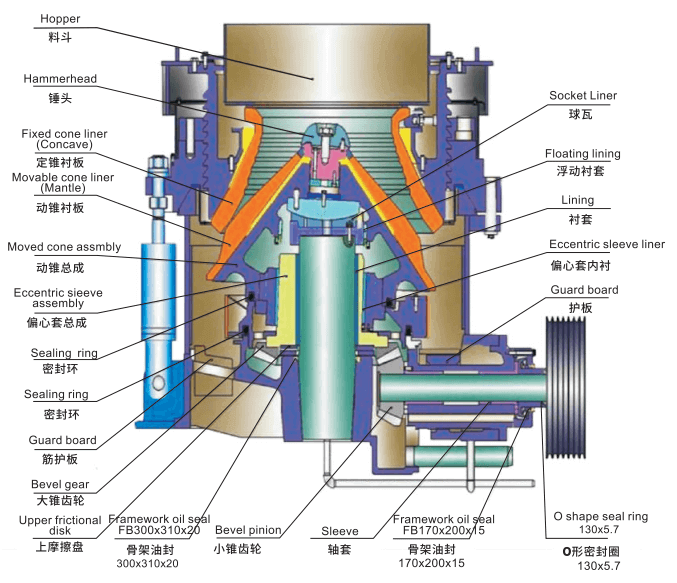

Multi-cylinder hydraulic cone crusher

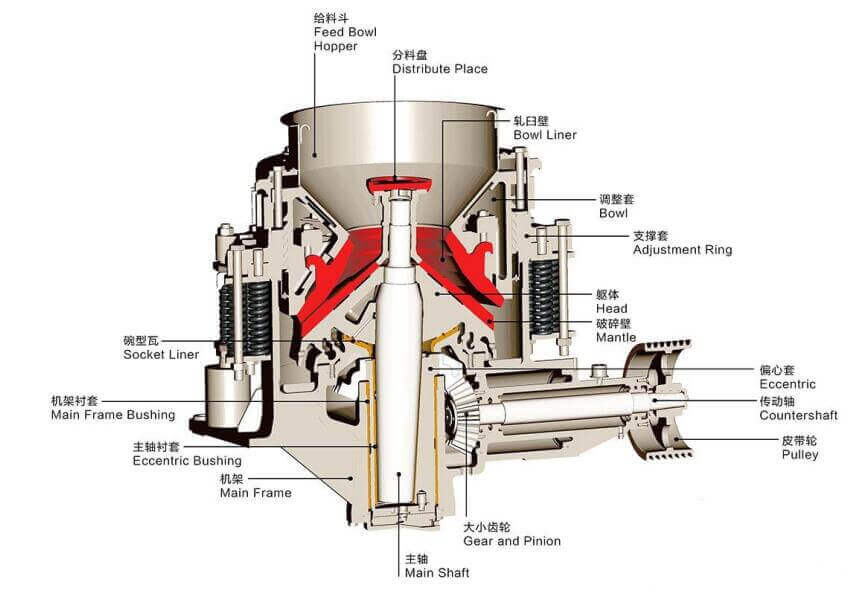

Compound Cone Crusher
cone crusher mantel and bowl liner
cone crusher mantel and bowl liner

Mantle & Bowl Liners

The cone crushers reduce the size of rocks by compressing the material between the mantle and bowl liner.

The mantel, also known as the moving cone, covers the cone head to protect it from wear.

The bowl liner is also called a cone crusher concave. The sacrificial wear liner sets inside the upper frame to protect the cone crusher’s upper accessories.

The mantel and concave, one is moving, and one is stable, which plays the role of crushing the quarry. So the mantel and concave are the important parts of the cone crusher operation and the most severe part of the loss. The mantle and concaves can protect from daily wear by replaceable manganese liners.

cone crusher bushings & liners

Bushings & Liners

Bushings & Liners are an indispensable part of cone crushers. They are usually used to protect eccentric shafts, sockets, and countershafts from wear caused by high-speed rotation. Cone crusher bushings and liners are generally made of bronze and alloy steel, and they often need to be filled with lubricant on the surface or inner wall during use.

Improper installation or use of poor-quality cone crusher bushings & liners will significantly shorten the service life of the key parts due to the large amount of heat generated during operation. Therefore, choosing high-quality cone crusher bushings & liners is the best way to extend the machine’s life and reduce maintenance costs.

cone crusehr main frame
cone crusehr main frame

Main Frame

The cone crusher frame, also known as the crusher base, is the supporting part of the entire crusher equipment. It is composed of an upper frame body and a lower frame.

Our Cone Crusher Replacement Parts

  • Mantles
  • Concaves/Bowl Liners
  • Bowl
  • Feed Cones
  • Main Frame Liners
  • Main Frame Seat Liners
  • Protection Cones
  • Arm Guards



  • Main Frame
  • Main Shaft
  • Adjustment Ring
  • Clamping Ring
  • Dust Shell
  • Counter Shaft
  • Counter Shaft Box
  • Counter Shaft Box Guard
  • Countershaft Bushing
  • Pinion
  • Oil Flinger
  • Eccentric
  • Eccentric Bushing
  • Gear
  • Thrust Bearing
  • Counterweight



  • Counterweight Liner
  • Socket
  • Socket Liner
  • Head
  • Head Ball
  • Head Ball Bushing
  • Thrust Bearing
  • Locating Bar

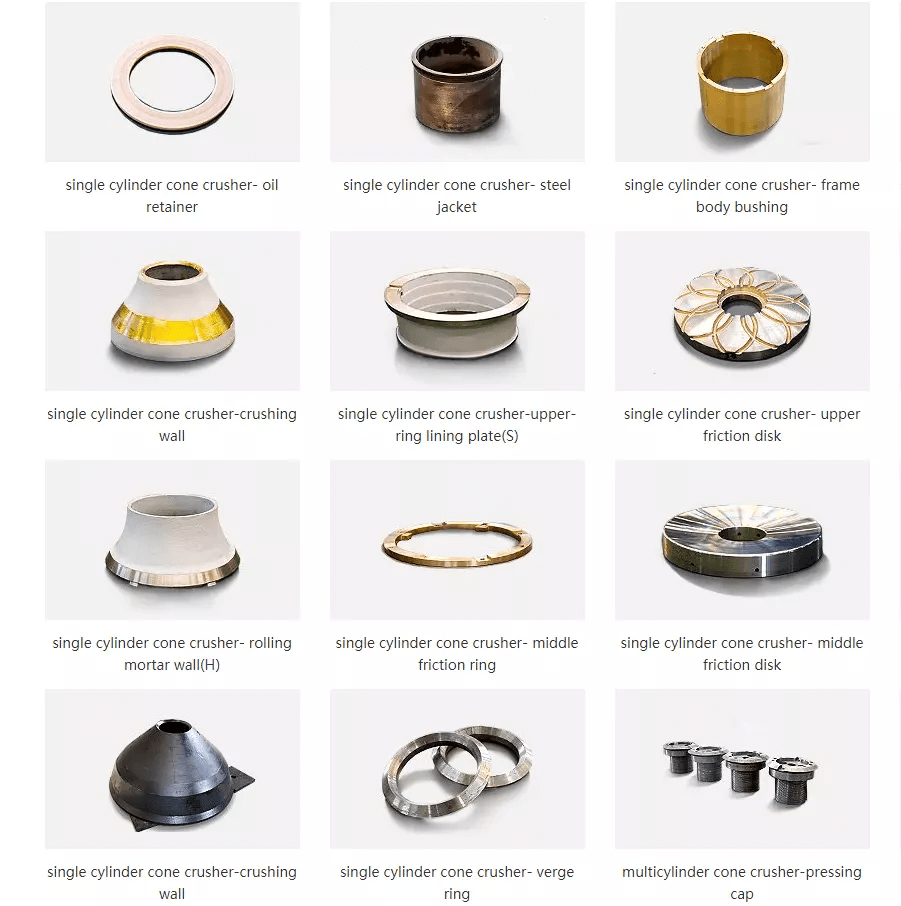

cone crusher parts

Cone Crusher Parts OEM Brands

  • METSO
  • Sandvik
  • TEREX

Note: We don’t cooperate with these brands. All parts we supply are manufactured and warranted by us and are not manufactured by or purchased from the Original Equipment Manufacturer.

BrandSeriesModel
METSONordberg Symons2′, 3′, 4′, 4(1/4)’, 4800, 5(1/2)’, 5100, 7′
METSONordberg Omnicone1144, 1352, 1560, 937
METSONordberg HP SeriesHP100, HP200, HP3, HP300, HP4, HP400, HP5, HP500, HP6, HP900
METSONordberg GP SeriesGp100, GP100S, GP220, GP200S, GP330, GP300S, GP550, GP500S, GP7
METSONordberg MP SeriesMP800, MP1000, MP1250, MP2500
METSOMetso MX SeriesMX3, MX4
METSOLokotrack LT SeriesLT200HPS, LT200HP, LT300HP, LT300GP, LT220D, LT330D
TEREXPowerscreen1000 Maxtrak, 1000SR, 1150 Maxtrak, 1300 Maxtrak, 1500 Maxtrak
TEREXFinlayC-1554, C-1550, C-1550P, C-1545, C-1545P, C-1540, C-1540P,  C-1540RS
TEREXCedarapidsTC1000, TC1150, TC1300, TG120, TG220, TG320, TG420, TG820, TG1020, TGS120, TGS220, TGS320, TGS420, MVP380X, MVP450X, MVP550X
SANDVIKCH SeriesCH420, CH430, CH440, CH660, CH830i, CH840i, CH860i, CH865i, CH870i, CH890i, CH895i
SANDVIKCS SeriesCS420, CS430, CS440, CS660, CS840i
SANDVIKQH SeriesQH441,  QH332, QS332, UH640, US440E, US440i, UH440i, UH440E

Why Choose Us?

  • Rich Experience, High-quality Products & Excellent Service

    Started in 1985, we have rich experience in industrial manufacturing and service. High recovery ore solution design and advanced equipment production. Not only provide you with high-quality products but also provide excellent services.

  • Famous All Over The World

    In strict accordance with the ISO9001 quality control system, the products are sold worldwide. JXSC has a good reputation in many countries.

  • Advanced Technology Delights Customers

    We optimize and improve based on the original products, and customers have recognized various products in practical applications. Maintain customer satisfaction with product and delivery.

  • Rich Product Library & Customized Products

    We provide a wide range of components and wear parts used in the industry with a rich product library. Supply OEM or customized products to the clients.

sets of JXSC product patent
Angola 200TPH Diamond Washing Plant
Saint Vincent-mobile crusher-Richard

Wear And Spare Parts for Sale

Crusher Parts

  • Cone Crusher Parts: Bowl liners, concaves, mantles, feed cones, main frame liners, seat liners, distribution plates, lock nuts, and so on.
  • Jaw Crusher Parts:  Movable and fixed jaw plate, side plate, eccentric shaft, toggle plate, bearing, and support seat.
  • Impact Crusher Parts: Blow bars, impact plates, breaker plates, side liners, rotor.

Grinding Mill PartsHead linings, shell linings, discharge parts, trunnion linings, grinding media(ball mill balls), etc.,

Slurry Pumps Parts: Impeller, throat bush, liners, frame plate liner insert, casing, etc.,

Hydrocyclone PartsHydrocyclone liners

Other Parts & OEM Parts: Conveyor Belts and other OEM parts.
