200TPH Iron Rock Ore Processing Plant

200TPH Iron Rock Ore Processing Plant

Release time:11 March 2022

Iron Ore
Iron ore is an important raw material for iron and steel production enterprises. Natural ore (iron ore) gradually selects iron through crushing, grinding, magnetic separation, flotation, gravity separation, and other procedures. Iron ore is a mineral aggregate that contains iron elements or iron compounds and can be economically utilized.

Iron Rock Ore Process

200T/H Iron Rock Ore Processing Plant



Iron Rock Ore Processing Plant Equipment

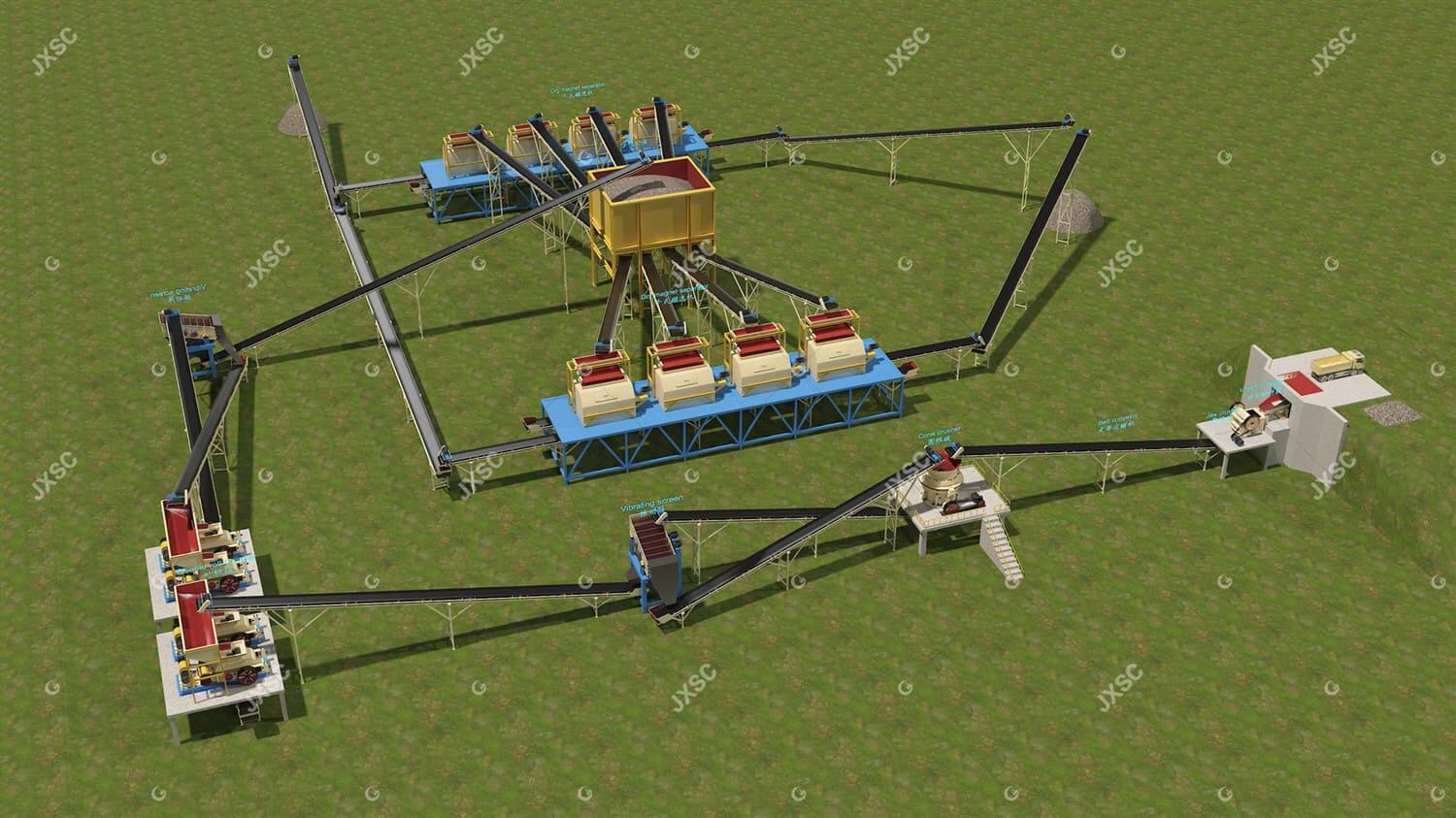

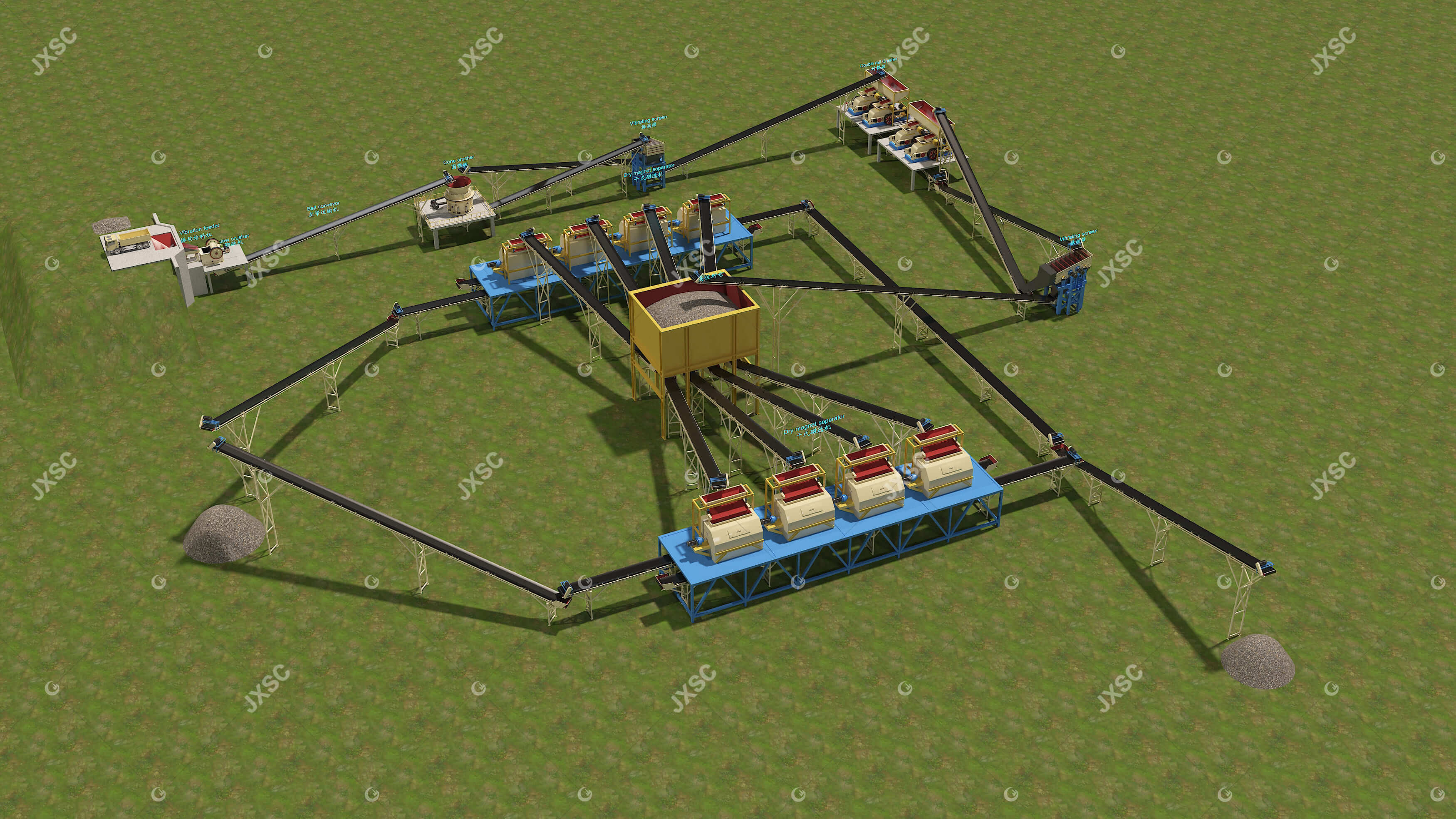

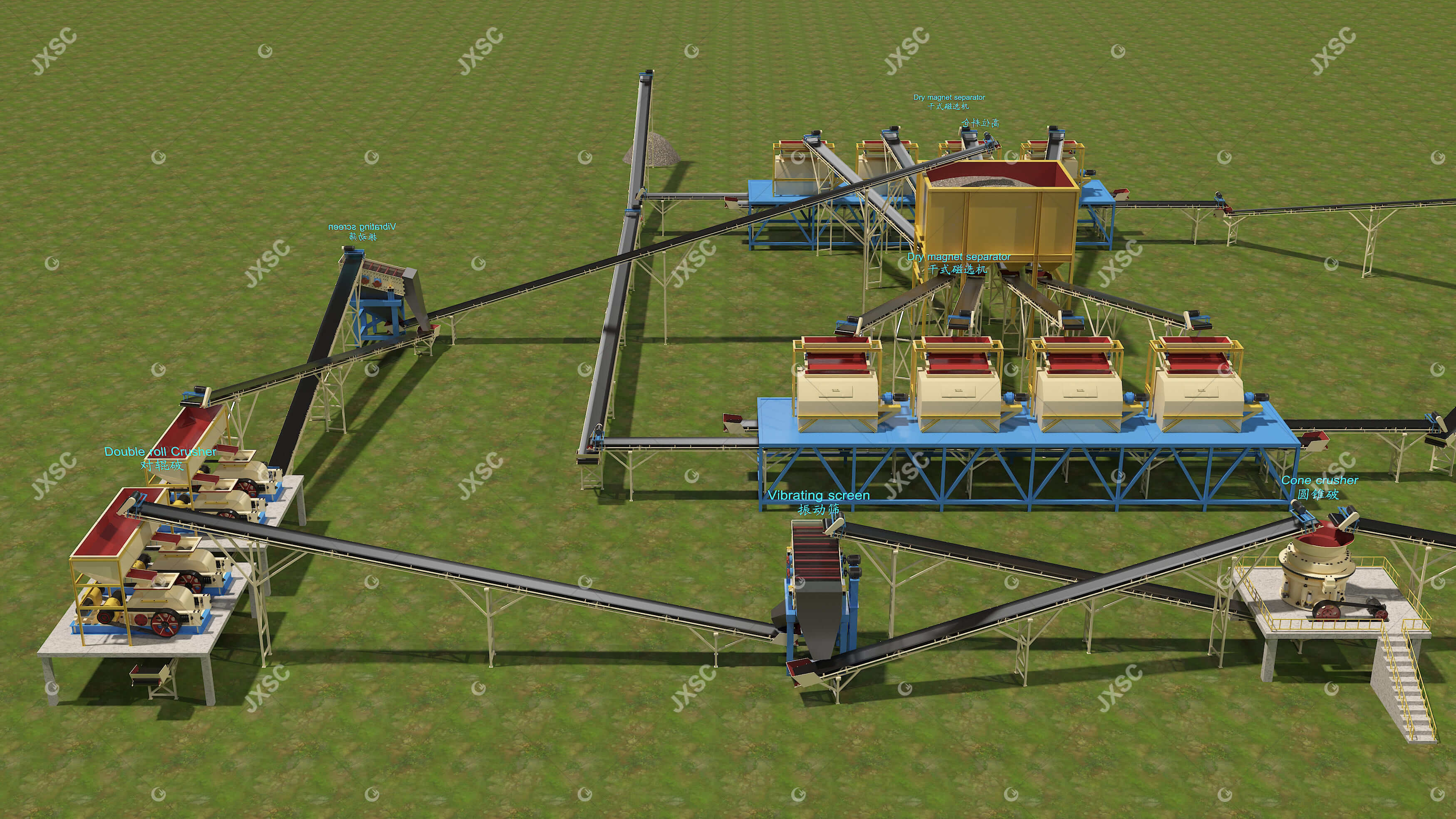

Iron Rock Ore Processing Layout

iron rock ore processing plant
iron rock ore processing plant
iron rock ore processing plant

This is a 200t/h iron rock ore processing plant, the raw ore information as below

  • Iron rock ore, magnetite Fe3O4
  • Rock needs to be crushed to 6mm for releasing inside the iron
  • Processing capacity: 200tph
  • Require for dry process

Flowchart explanation

  1. The dump truck feeds raw ore to the hopper, then to vibrating feeder.
  2. Vibrating feeder evenly feeds jaw crusher. jaw crusher crush big rock to medium size 50-100mm
  3. Jaw crusher output is sent to cone crusher via belt conveyor.
  4. Cone crusher crush rock to 30mm.
  5. Cone crusher output is sent to 1st vibrating screen via belt conveyor. the vibrating screen is set 1 layer screen with 30mm mesh size.
  6. Over screen +30mm is back to cone crusher for re-crushing via belt conveyor.
  7. Under screen -30mm are sent to double roll crusher via belt conveyor. double roll crusher crush ore to 6mm.
  8. Double roll crusher output is sent to 2nd vibrating screen. this vibrating screen is set 1 layer screen with 6mm mesh size.
  9. Over screen +6mm is back to double roll crusher for reprocessing.
  10. Under screen -6mm are sent to transit fine ore bin.
  11. Use 8 belt conveyors from the fine ore bin to feed 8 dry magnetic separators. magnetic separator concentrating iron.
  12. Iron concentrate and tailing are sent to the stockpile by belt conveyors.
