60TPH Mobile Alluvial Gold Wash Plant In Ghana

60TPH Mobile Alluvial Gold Wash Plant In Ghana

Release time:19 August 2019

Mineral Processing Cases study: 60TPH Mobile Alluvial Gold Wash Plant In Ghana. How processing plant configurated and what equipments were used? Read more…

Introduction of mobile alluvial gold wash plant

Material: alluvial gold with sticky clay
Capacity: 60TPH
Country: Ghana
Feeding size: 4mm

Customers requirements: the gold grade needs reach 80% above

Ghana 60TPH alluvial gold with sticky clay washing plant layout

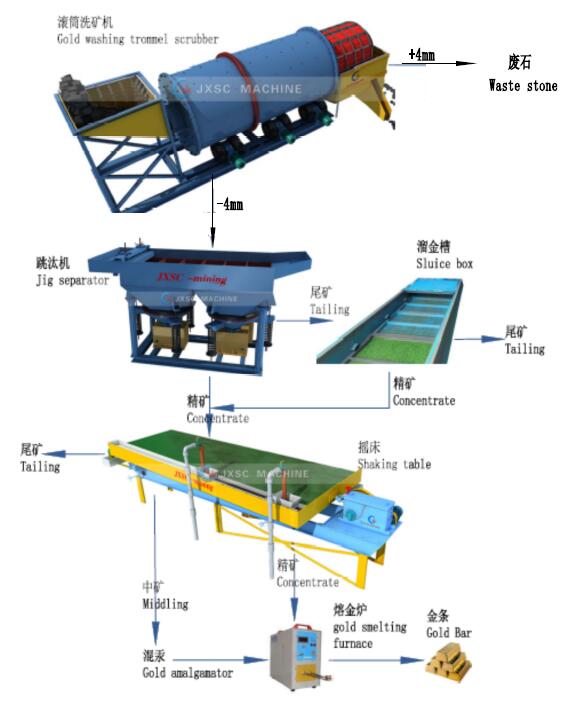

Ghana 60TPH alluvial gold with sticky clay washing plant design

Related machines

Product NameModel No.Detail Descriptions Quantity(Set)
Mobile Gold Washing Trommel ScrubberJXSC-1200with hopper and With Grizzly bar,gap 75mm
1. Process capacity: 60TPH
2. Input size: 75mm
3. Drum size: 1.2m dia,scrubber length 4 m , screen length 2m
4. Rubber tyre driving
5. With Reducer
6. Position wheels under drum
7. Rubber lined plates inside drum
8. With complete set base
9. With 2 layers PU screen, 10mm & 4mm mesh size
10. Power: 15 KW
1
Mobile jig separator machineJT4-21. Processing capacity:15TPH
2. Maximum Feeding size: 4mm
3. Mobile type with wheels
4. Power: 7.5 KW
1
Mobile Small shaking table2100*1050mm1.deck size: 2100*1050mm
2.capacity: 0.4-0.8t/h
3. full set include: desk, channel frame, motor, PP material feeding chute and dischargeing chute,transmission box
4. Mobile type with rubber wheels
6. Electric motor:380V/50HZ/3phase
1
Sluice box6m*1m*0.3m1.Processing capacity: 20T/H
2.Carpet: for fine gold type
3.Size: 6m*1m*0.3m (L*W*H)
4. withiut cover
5. stationary type
1
Slurry pump6/4 inch1. Flow: 180M3/H
2. Model: 6/4 inch
3. Send slurry From Trommel scrubber to centrifugal
4. Power: 22KW
1
Big Water Pump6/6 inch1. Head: 5-15 m , Flow: 180M3/H
2. Model: 6/6 inch
3. Provide water for trommel scrubber & shaking table
4.Power: 22KW
1
Back Wash Water Pump4/4 inch1. Head: 5-15 m , flow:100M3/H
2. Model: IS80-4/4 inch
3. Provide back wash water for jig separator
4. Power:7.5 kw
1
Belt ConveyorDT75-6501.Belt Width: 650mm
2.Belt Length: 15 m
3. Power: 7.5 KW
1
Gold smelting furnace15A1. Smelting capacity:1-2kg/time
2. Smelting time: < 5min
3.Voltage: 220V
4. Power: 4KW
1
Diesel Generator120KW1. Output power: 120 KW
2. Famous brand: Commins
1
