150TPH Iron Ore Processing Plant in Malaysia

150TPH Iron Ore Processing Plant in Malaysia

Published Date:20 August 2019

Mineral Processing Cases study: 150TPH Iron Ore Processing Plant in Malaysia. How processing plant configurated and what equipments were used? Read more…

Iron Ore Mine Description

Material: hard rock type iron ore
Capacity: 150TPH
Country: Malaysia
Feeding size: 0-400mm
Raw mineral description:
1. Weak magnetic iron
2. Contains slime
3. Need crushing – washing – magnetic separation flow

Customers requirements:
1. Particle size of finished products requires 0-10mm
2. Concentrate grade of iron > 62%

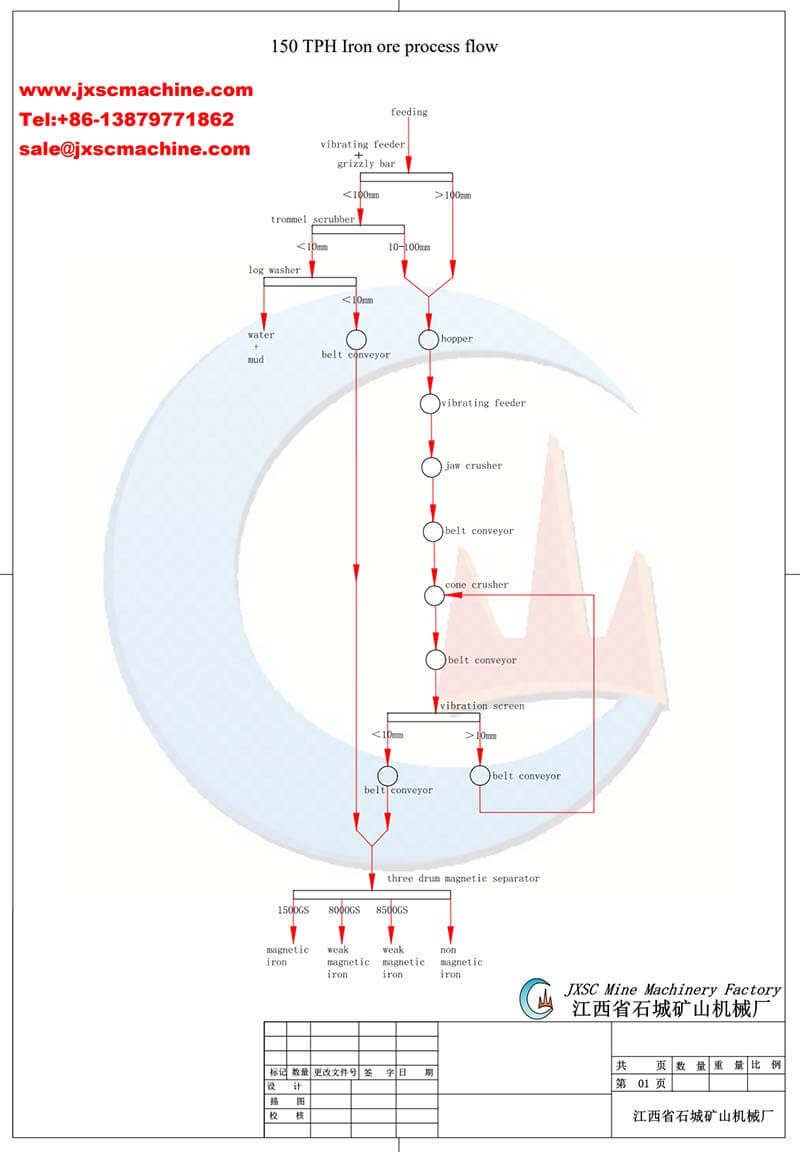

Iron Ore Processing Plant Layout

150tph iorn ore process flow jxsc

Related machines

Equipment nameModelQty (set)
Bin15m^31
Vibrating feeder380*96, 11kw2
Trommel scrubber1500*4000+2000, 22kw2
Spiral scrubber1200*6000, 11kw2
Jaw crusher600*900, 75kw1
Vibrating screen1530, 7.5kw2
Cone crusherMPH1400, 220kw1
Belt conveyor650*18m, 7.5kw6
Three disc magnetic separator500*1000 (2000Gs, 8500Gs, 9000Gs)6

Iron mining equipment for sale

JXSC has been focusing on mining equipment manufacturing since 1985.
Products: rock crushers, gravity separator, electrostatic separator, flotation machine, washing equipment, ore feeder, screen & sieve, etc.
Application: metallurgical, mineral processing, sand making, aggregate processing, etc. Contact us for quotation

Notes:
1. Services (installation, test run, training) : the supplier can provide basic drawings and schematic drawings of equipment installation. The
domestic technicians will be provided for free to guide installation and debugging, and the buyer will provide technicians with room and board.
The buyer shall prepare necessary auxiliary materials for installation.
2. Quality guarantee: the equipment is guaranteed for one year. In the warranty period, due to the quality of the product manufacturing,
manufacturers free warranty (except wearing parts).
