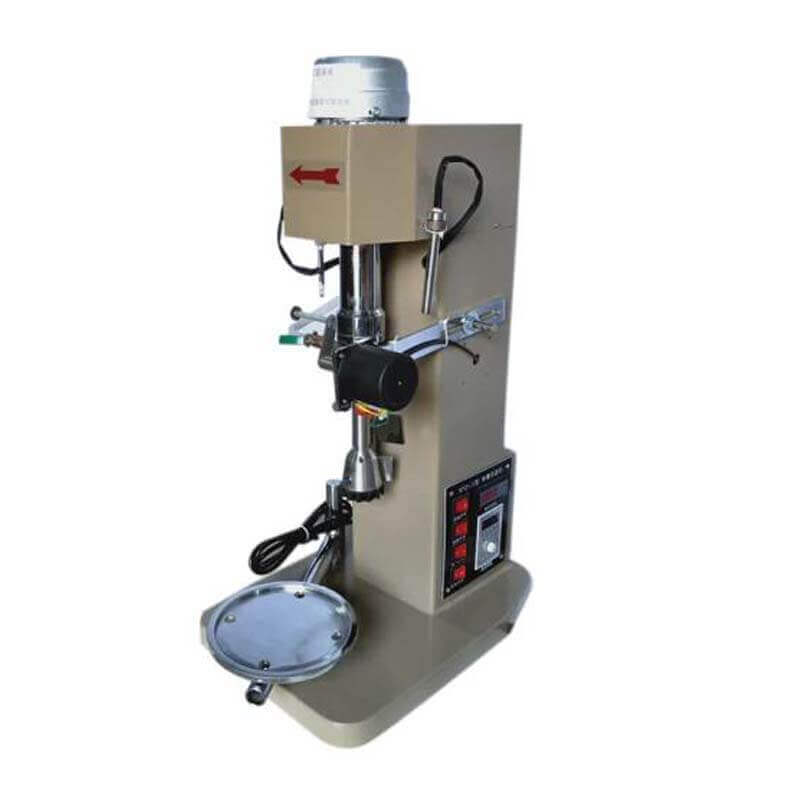

XFD Ⅳ Single Flotation Cell

XFD Ⅳ Single Flotation Cell

Impeller Speed】 0-2800 r/min

Feeding size】 <0.2 mm

Motor Power 120 W

Application】Geology, metallurgy, construction, chemistry, and coal industry.

Contact Us via WhatsAppChat Online on WhatsApp

Advantages

XFD Ⅳ is the upgraded model of XFD Ⅲ. It retains all the advantages of XFD Ⅲ and adds a scraper with step-less speed regulation.

XFD  Single Flotation Cell Feature】

  • Converter technology,step-less speed adjustment of the impeller, and LCD digital display;
  • Easy and accurate adjustment, reliable operation;
  • Liquid level and air filling volume adjustable, with speed digital display device and water make-up device.
  • Equipped with a micro-computer controlled heater, which is available for real-time adjustment and temperature display. Ore liquid can be kept at optimal temperature levels according to requirements.
XFD Ⅳ Single Flotation Cell
video

Product Structure

【Structure】
The XFD Ⅳ flotation machine is composed of a frame part, main shaft drive part, lock part, scraper part, flotation cell, outside air inflation device, electric controller, etc.,

【Working Principle】
The single-cell flotation machine (mine-use single-cell flotation machine) is driven by the triangular transmission of the motor to rotate the impeller, which generates centrifugal action to form a negative pressure. Mineralized foam, so that minerals adhere to the foam, float to the surface of the slurry and then form mineralized foam. Adjust the height of the ram to control the liquid level so that the scraper scrapes off the valuable foam.

Technical Parameters

Model Cell Vol.(L) Impeller Diameter(mm) Impeller Speed(r/min) Scraper Speed(r/min) Feed Size(mm) Temperature Adjustment (℃) Motor Power(W) Diamensions L*W*H(mm) Weight(kg)
XFDⅣ-0.5 0.5 Ø45 0-2800 stepless 0-30(stepless regulation)) <0.2  optional 120 620*300*825 30
XFDⅣ-0.75 0.75 Ø45
XFDⅣ -1 1 Ø55
XFDⅣ-1.5 1.5 Ø60
XFDⅣ-3 3 Ø70
