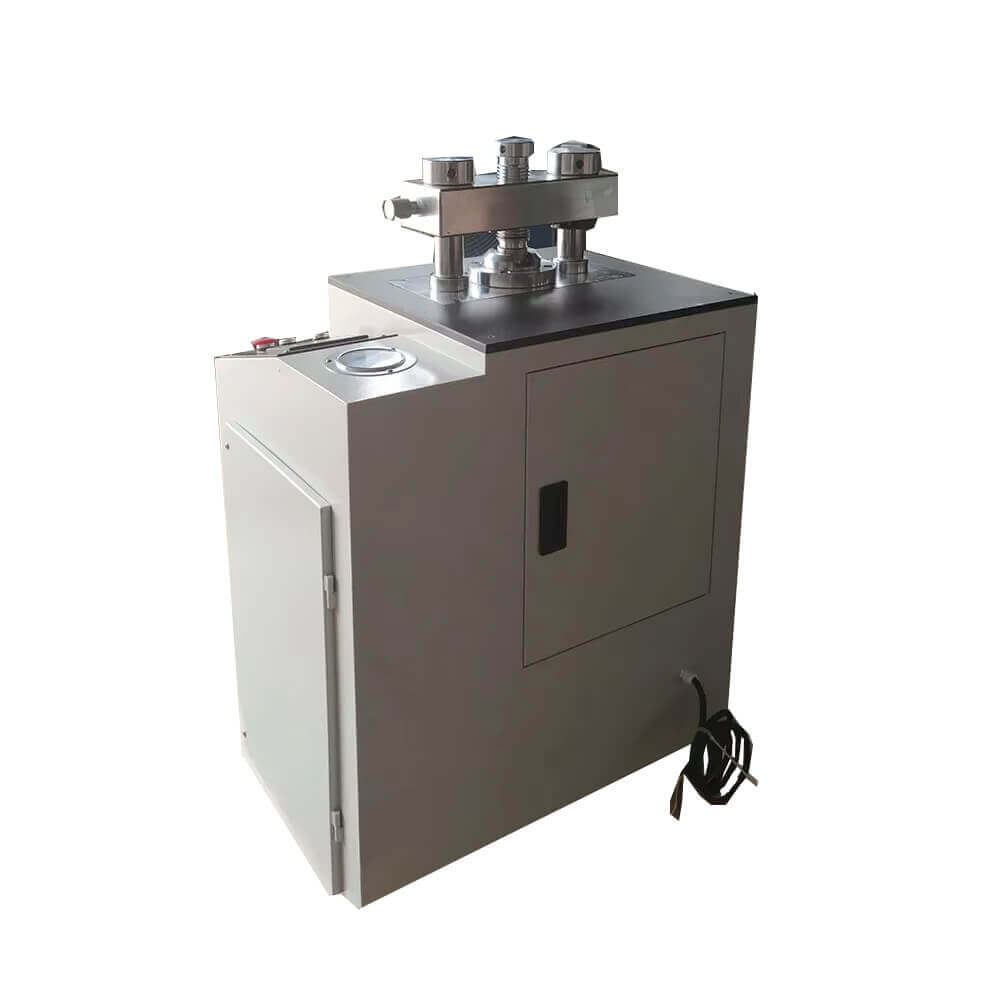

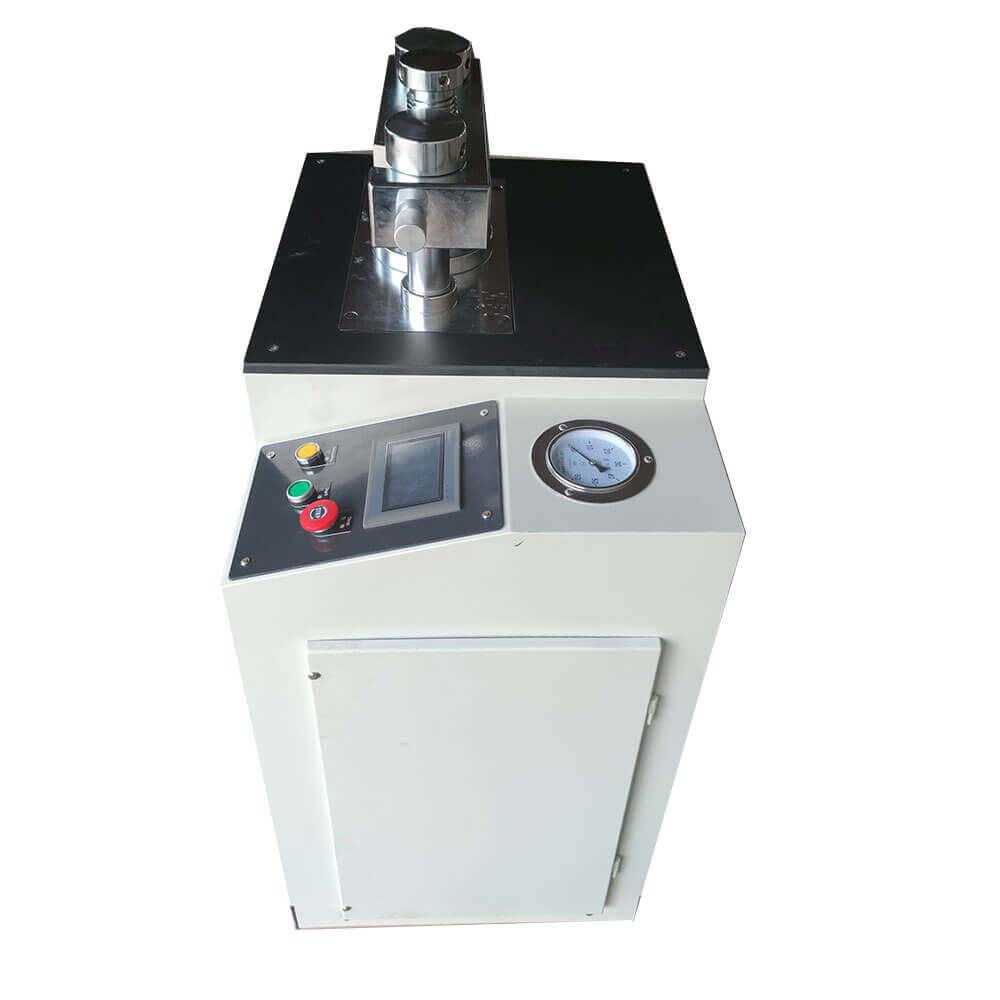

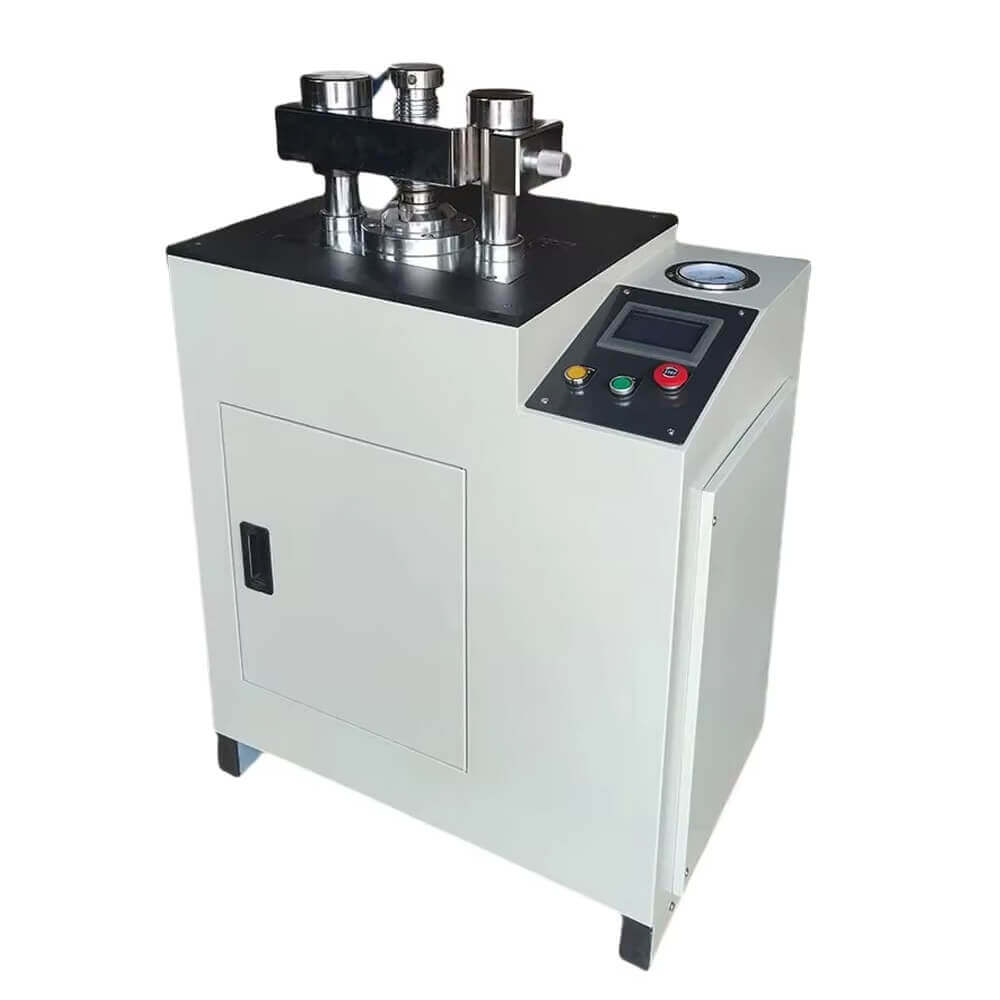

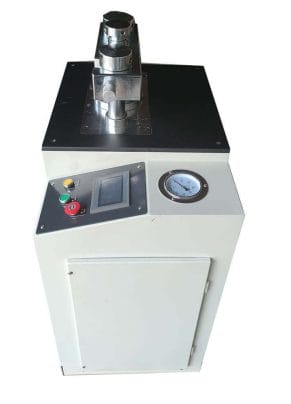

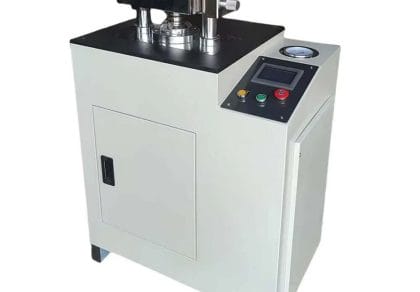

Laboratory XRF Hydraulic Pellet Press Machine
【Pressure】 40t, 60t
【Voltage】 AC380V
【Service Environment】 1-40℃
【ApplicatIon】Mainly used for the preparation of solid samples on the fluorescence spectrometer and the compaction of various small powders
Chat Online on WhatsApp
Advantages
The hydraulic pellet press machine is a specialized piece of equipment used in laboratories, widely used in powder metallurgy, cement, catalysis, silicon hydrochloric acid, batteries, ceramics, and other fields for component analysis. The primary function of this lab XRF press machine is to prepare solid samples for the fluorescence spectrometer and compact various small powders.
Key Features and Functions
- Various sample compression modes:boric acid, plastic ring, steel ring, aluminum cup, and low-pressure polyethylene, etc.
- Easy to operate: LCD touch screen display operation, PLC program control, pressure gauge display setting, adjustable pressure holding time.
- Automatic:One-key operation, automatic sample pressing and demoulding; automatic reset after the test, the pressing effect is good.
- Hydraulic control system:Can be used continuously and efficiently for a long time.
Product Structure
The laboratory XRF hydraulic pellet press machine mainly consists of the hydraulic system, pressing chamber, control panel, pressure relief valve, and sample chamber.
The working principle of a Lab XRF Hydraulic Pellet Press Machine involves the preparation of powdered samples for X-ray fluorescence analysis by compressing them into a dense, uniform pellet. To begin, the user places the sample powder into a mold or die within the pressing chamber. Once the sample is loaded, the machine activates a hydraulic system that generates high pressure through a hydraulic pump, causing a piston to move down and apply force on the powder. This compression binds the particles together, creating a solid pellet. After the pressing cycle is complete, the piston retracts, and the die may automatically open to release the pellet, allowing for easy removal. This process ensures that the resultant pellets are homogeneous and consistently compact, which is crucial for obtaining accurate and reproducible results during XRF analysis.
Technical Parameters
| Equipment pressure | A5-40T | A5-60T |
| Maximum pressure | 40T | 60T |
| Hold pressure time | 0-999S(Adjustable) | 0-999S(Adjustable) |
| Maximum stroke | 100(mm) | 100(mm) |
| Column opening | 220(mm) | 220(mm) |
| Dimension | 580*550*1100mm | 580*550*1100mm |
| Weight | About 265kg | About 285kg |
| Voltage | AC380V±5%,50Hz | AC380V±5%,50Hz |
| Power | Plastic Ring 40*34mm | |
| Mould type | 38*32/32*28/29.2*24/25.2*20/19.2*14mm | |
| Other maximum pressure | 30T/40T/60T/80T/100T/120T/200T | |
| Service environment | 1-40℃ | |
Successful Cases
