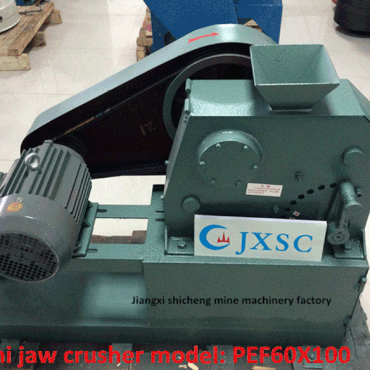

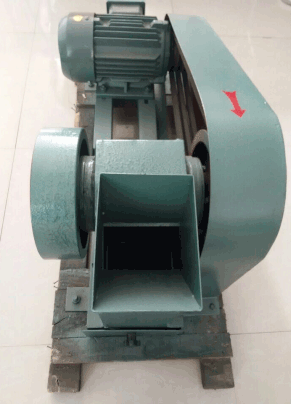

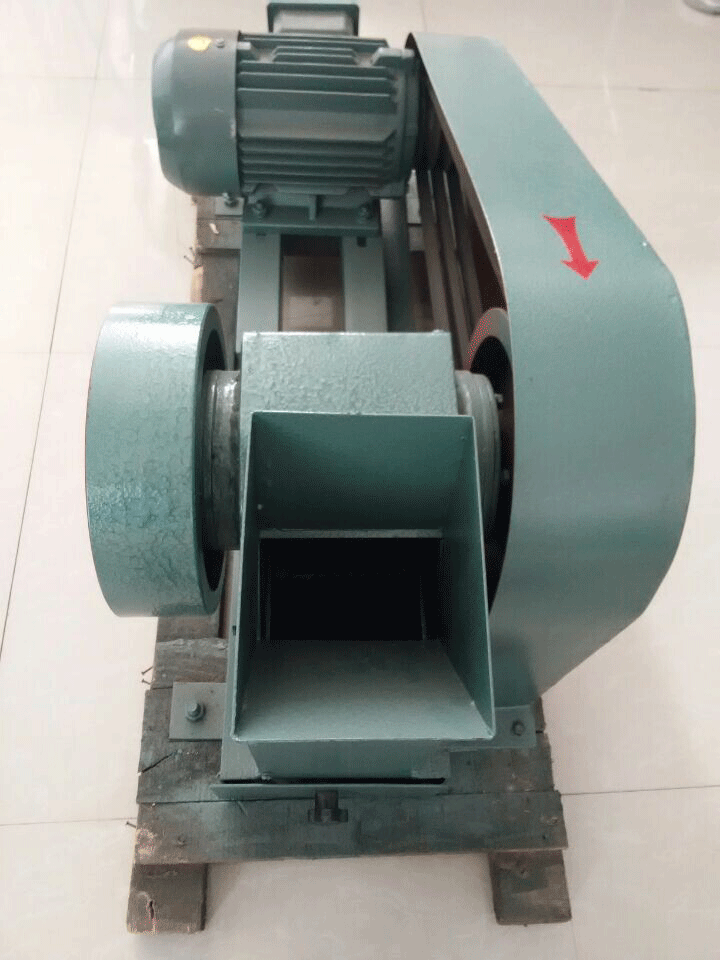

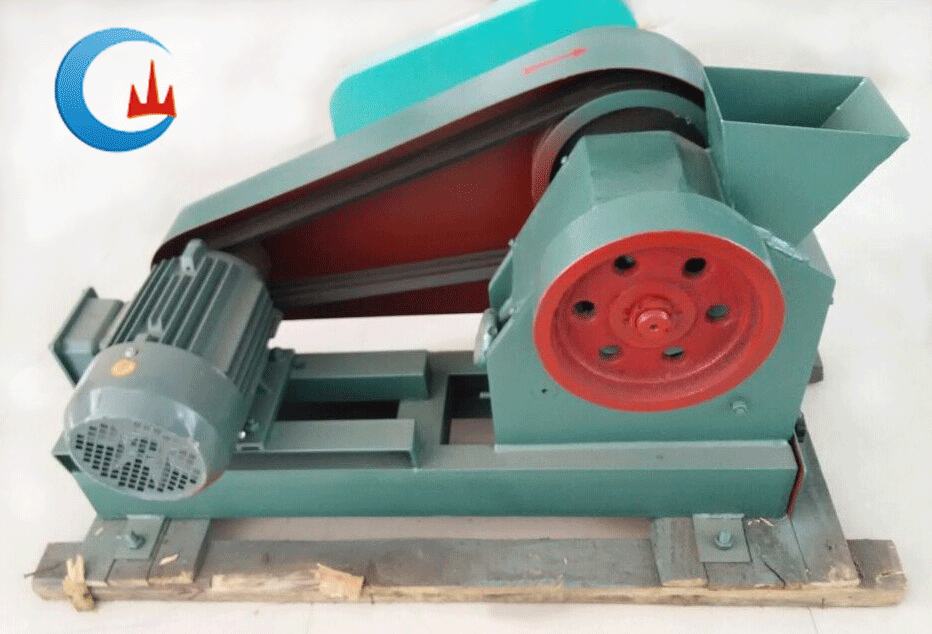

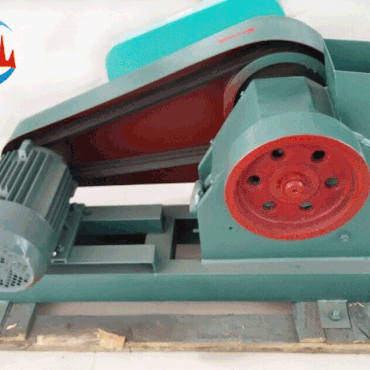

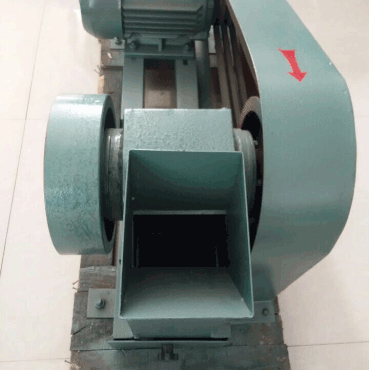

Small Jaw Crusher

Small Jaw Crusher

【Capacity】40-550 kg/h
【Feed size】below 60mm
【Discharge size】0.1-15mm
【Material and Application】Small jaw crushers are mainly used for laboratory, crush ore, coal, gangue, coke, asphalt, etc.

Contact Us via WhatsAppChat Online on WhatsApp

Advantages

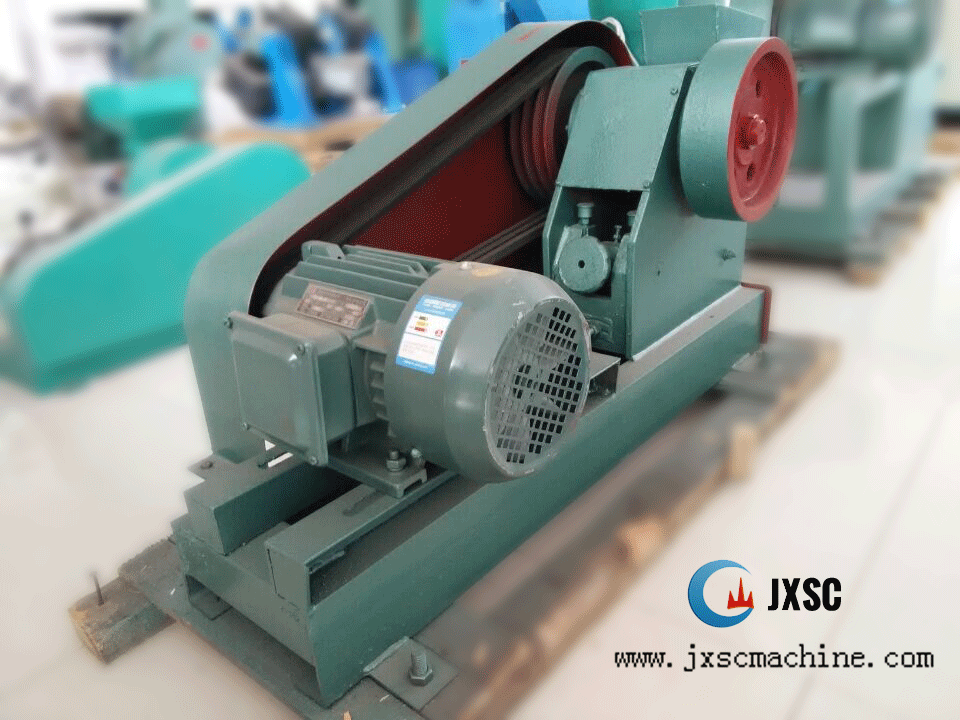

Laboratory use small jaw crusher
Laboratory small jaw crushers are capable of micro-grinding, secondary crushing and fine crushing, mainly used for laboratory testing and small scale crushing plant, cover school research, mining, metallurgy, building material industry.
Advantages
JXSC new generation of crushing machine
Open type fixed plate, easy cleaning and avoiding ore blockage.
Adjustable crushing size meets different specific particle size requirements.
It is equipped with white iron, high manganese steel or wear-resistant alloy for crushing materials of different hardness.
Easy operation and maintenance, no dust leakage.
Mini machine body, flexible and portable.
Laboratory mining equipment
JXSC supply lab pulverizer for sample preparation, lab crushers, lab ball mill, grinding mill machine for size reduction.
lab flotation machine, lab vacuum filter, lab magnetic separator, laboratory shaking table, lab spiral chute, lab centrifugal machine, lab sieve shaker, rotary kiln, and many other small testing equipment.

Small Jaw Crusher
video

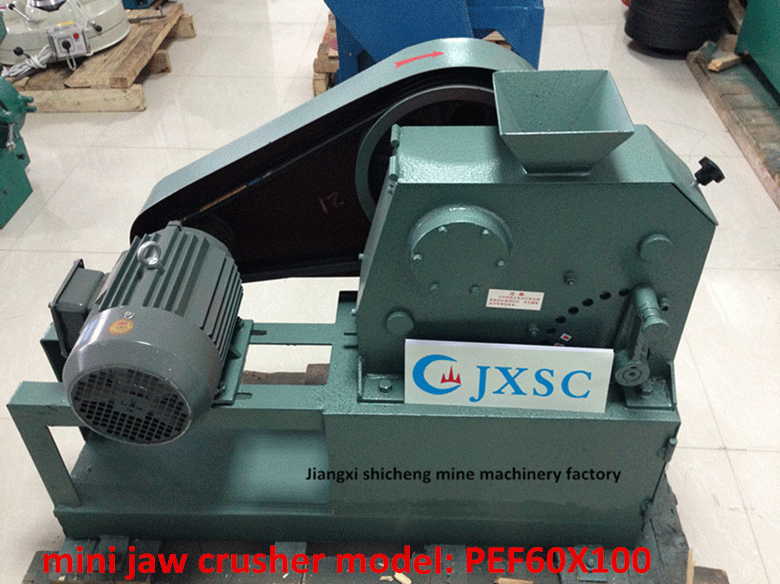

Product Structure

Lab jaw crusher parts】Body, eccentric shaft, movable jaw, fixed jaw, belt pulley, motor, feed hopper, etc.

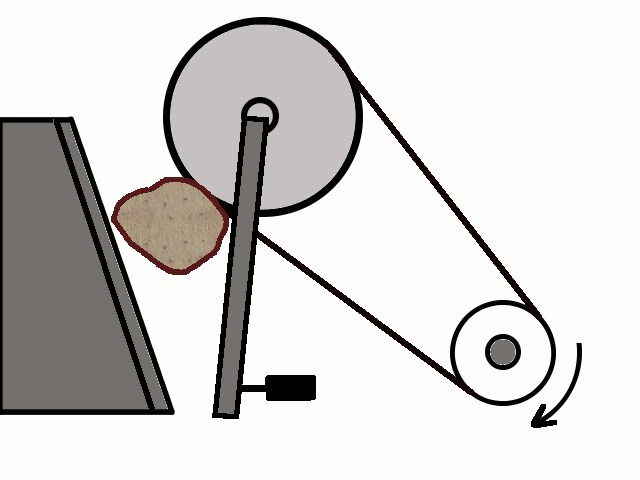

Working principle
The Electric Motor drives the belt and the pulley through the eccentric shaft to move the movable jaw up and down. When the movable jaw rises, the angle between the elbow plate and the movable jaw increases, thus pushing the jaw plate toward the fixed jaw plate The angle between the toggle plate and the movable jaw becomes smaller when the movable jaw goes down, and the movable jaw plate leaves the fixed jaw plate under the action of the pull rod and the spring. With the continuous rotation of the motor, the movable jaw of the crusher is used for periodic crushing and discharging of materials, thus realizing mass production.

JXSC rock crusher manufacturer provides types of jaw crushers, include single toggle jaw crusher, double toggle jaw crusher, mobile jaw crusher for industry use and lab use. Besides, jaw crusher design is available, different jaw crusher sizes for tasks.
click to know industry uses large scale jaw crusher machine.

Technical Parameters

Model Inlet size (mm) Max feeding(mm) Output size
Adjustable range (mm)
Capacity (kg/h) Rotating Speed(r/min) Motor Power(kw) Weight(kg) Dimension (mm)

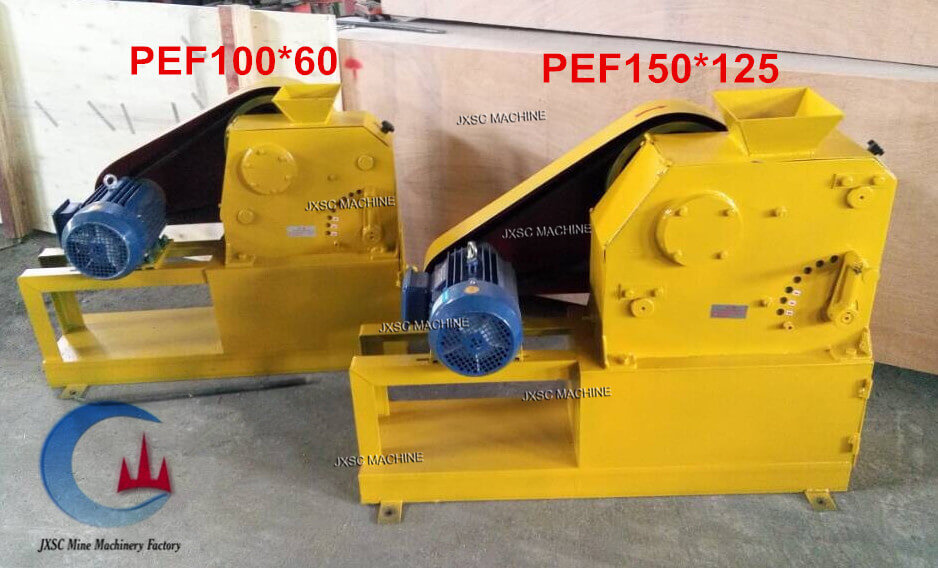

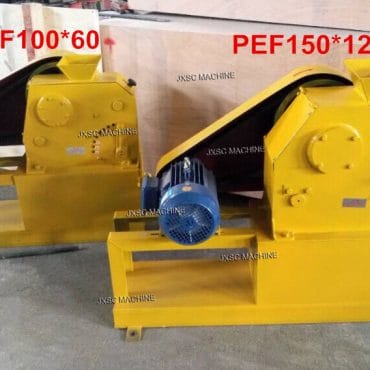

PE100*60 100*60 ≦50 0-3 40-200 650 1.5 85 950*400*550
PEF100*60 100*60 ≦50 0.1-15.1 45-550 600 2.2 260 1050*410*765
PEF100*100 100*100 ≦80 3-25 200-1800 500 3 320 1050*410*860
PEF125*100 125*100 ≦80 5-25 200-1800 500 3 320 1050*410*860
PEF150*100 150*100 ≦90 6-38 400-3000 500 3 360 1050*410*860
PEF150*125 150*125 ≦100 6-38 400-3000 500 3 360 1050*410*860
