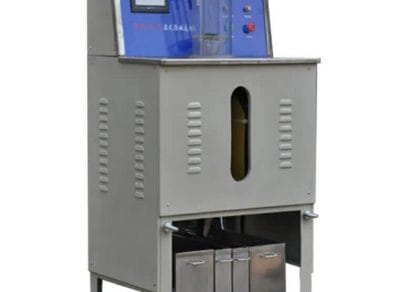

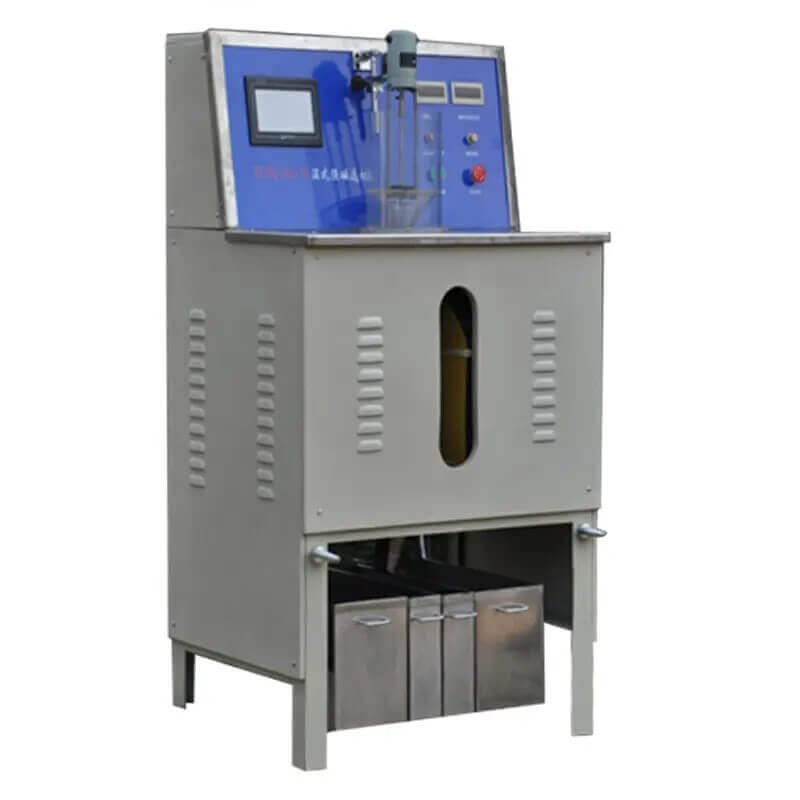

Laboratory Wet High Intensity Magnetic Separator
【Capacity】: 4-5 Kg/hr
【Feeding size】: <1mm
【Application】: Suit for beneficiation of fine-disseminated hematite, martite, limonite, and siderite in mineral processing laboratories, it can also be used for processing some rare metals.
Chat Online on WhatsApp
Advantages
XCSQ Laboratory High-Intensity Magnetic Separator separates fine hematite, false hematite, limonite, siderite, and other rare metal ore processing. Tooth plate is regarded as magnetic media, and magnetic strength and field gradient are highly valued. It’s effective for Low-grade oxide ore. And with good testing for minerals such as manganese, beach sands, wolframite, tin, glass sand, and phosphate mines.
JXSC Lab Wet High-Intensity Magnetic Separator Features
- Large magnetic action area and large processing capacity.
- High magnetic intensity and high gradient.
- Total process automation, and steady recovery performance.
- Environmentally friendly.
- Low water and electricity requirements.
Product Structure
Structure
The laboratory wet high-intensity magnetic separator is composed of a magnetic system, ore feeding, ore receiving, program controller, sorting box, water supply system, frame, and other parts.
Working Principle
Under the control of the PLC Machine, this equipment automatically returns to its original state. That is, the separation hopper stays for 3s during the action process of "tailings," "middling," and "concentrate."
The separation process is as follows: The slurry in the agitation drum enters the separation tank after passing the feeding valve and rectangular mouth.
The non-magnetic ore grains fall into the tailing drum along the gap of the toothed plate under the action of gravity.
The magnetic ore grains are absorbed on the toothed plate under the action of the magnetic field. After the ore is fed, the separation hopper swings above the middling drum.
Technical Parameters
| Item | Data(Unit) | |
| Model | XCSQ50*70 | |
| Separating Chamber Size | 50*70*220(mm) | |
| Magnetic Intensity | Background Field Intensity | 0-10000(Gs) |
| 1.5mm Separation Chamber | 0-23000(Gs) | |
| 2mm Separation Chamber | 0-22000(Gs) | |
| 3mm Separation Chamber | 0-20000(Gs) | |
| Excitation Power | Input | 220V 50HZ |
| Output | 0-118V 1-25A | |
| Cooling Coils | Forced Air Cooling | |
| Maximum Feeding Size | 1mm | |
| Capacity | 4-5 Kg/hr | |
| Power Consumption | <4 kW | |
| Dimension(L*W*H) | 840*550*1415 mm | |
| Weight | 795Kg | |
