Small Roll Crusher

Small Roll Crusher

【 Capacity 】:0.2-9 T/H

【 Processible Materia 】:gold,chrome,tin,coltan,diamond ,tantalite ,silica sand

【 Application】:Small roll crusher applies to mine, cement, coal, metallurgy, building materials, roads, fire, and other departments chronology medium hardness and brittle materials.

Contact Us via WhatsAppChat Online on WhatsApp

Advantages

【Features of the laboratory sealed double roll crusher】:
1. Suitable for grinding high hardness or brittle materials.
2. Continuous finish the crushing and shrinking, to avoid the error by manual operation.
3. After the material shrinks, the sample is representative.
4. Sealed design, without dust pollution, easy to clean, environmental compliance.
5. Just lay it on a flat surface,no need for a firm foundation.
6. Customers can easily adjust the pressure according to the required particle size and feed strength.
7. Good performance, low energy consumption, low operating cost maintenance cost.
8. No humidity requirement for feed.
9. High damping rate, small vibration, less dust, low noise.
Get to know more industry stone crushers and lab use crushers. We supply a variety of stone crushing machines applied to different industries. Coal crusher, gold ore crusher, metal crusher, rock crusher, wood crusher, and so on.
JXSC focuses on the stone crushing machine since 1985,our gold mining equipment exported to more than 30 countries, worth your trust.

Small Roll Crusher
video

Product Structure

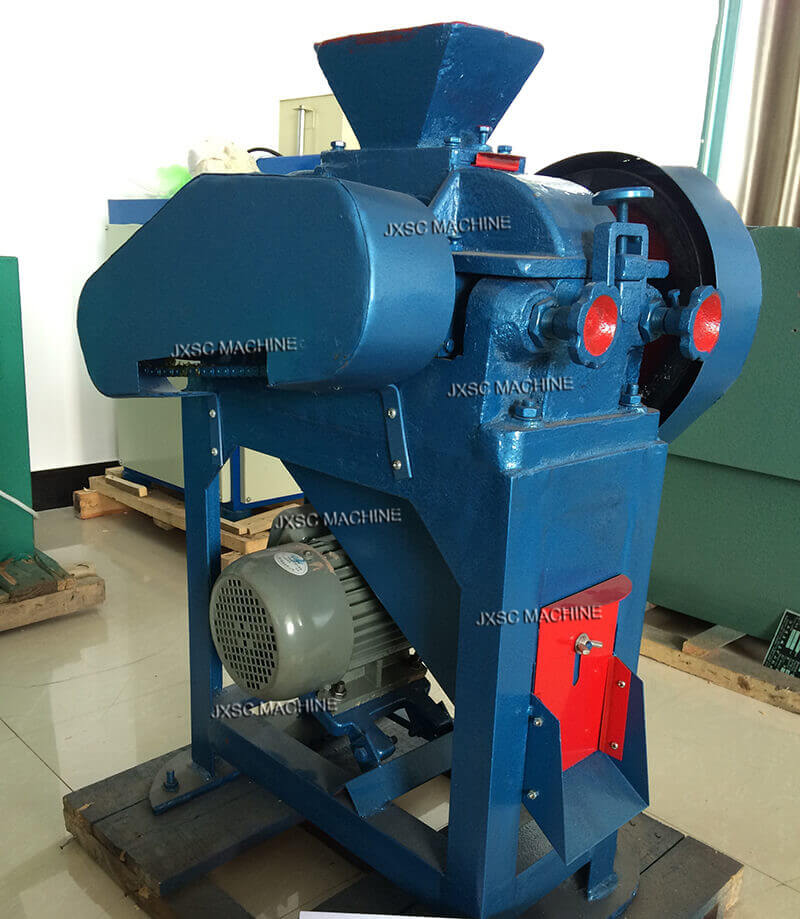

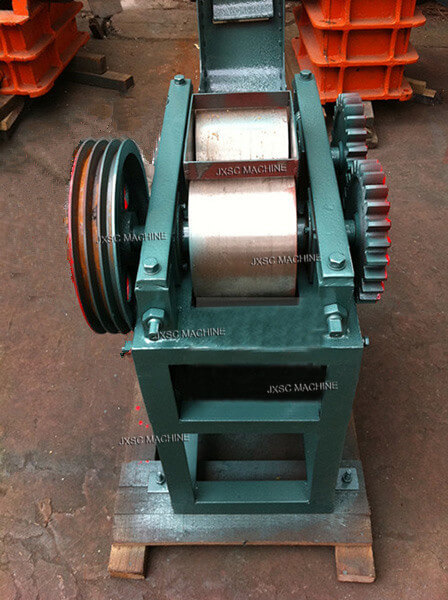

The laboratory roll crusher consists of machine body, rollers, and other components. The spindle drive by V-belt from the motor, the roller operate according been turned trajectory, crushing the materials in the crushing chamber. Mini roller crusher is equipped with an adjustment screw in front and rear. The laboratory double roll crusher left size with a shield to ensure safety, the machine with groove and bearing, the bearing can readily inject oil. Front mounted with hand wheel, sprockets, chain, and rear equipped with springs to easy adjustment, generally please don’t adjust it. In order to avoid failure and safe use the equipment, please attend the parallel when adjusting.

Technical Parameters

Model Roll size(mm) Feeding size(mm) Output size
Adjustable range(mm)
Capacity(kg/h) Motor Power(kw) Roll Rotating (r/min) Dimension(mm) Weight(kg)
200*75 200*75 10 0-4 300 1.5 450 600*460*880 200
200*125 200*125 10 0-4 450 3 400 780*660*574 315
200*150 200*150 10 0-4 600 3 400 780*660*574 350
250*400 250*400 32 0-8 500-1000 11 200 1332*1490*820 1300
