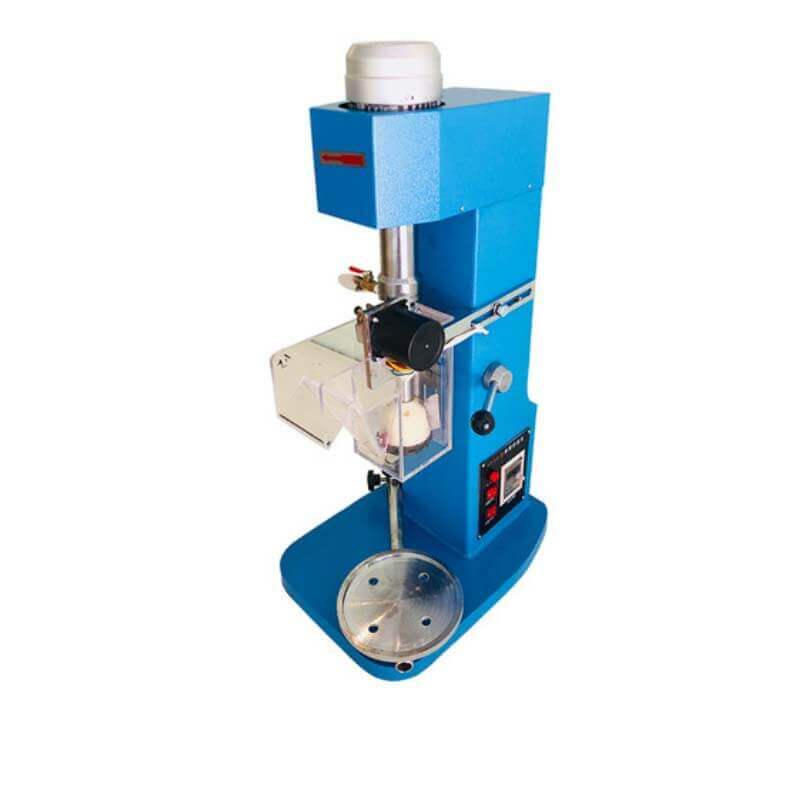

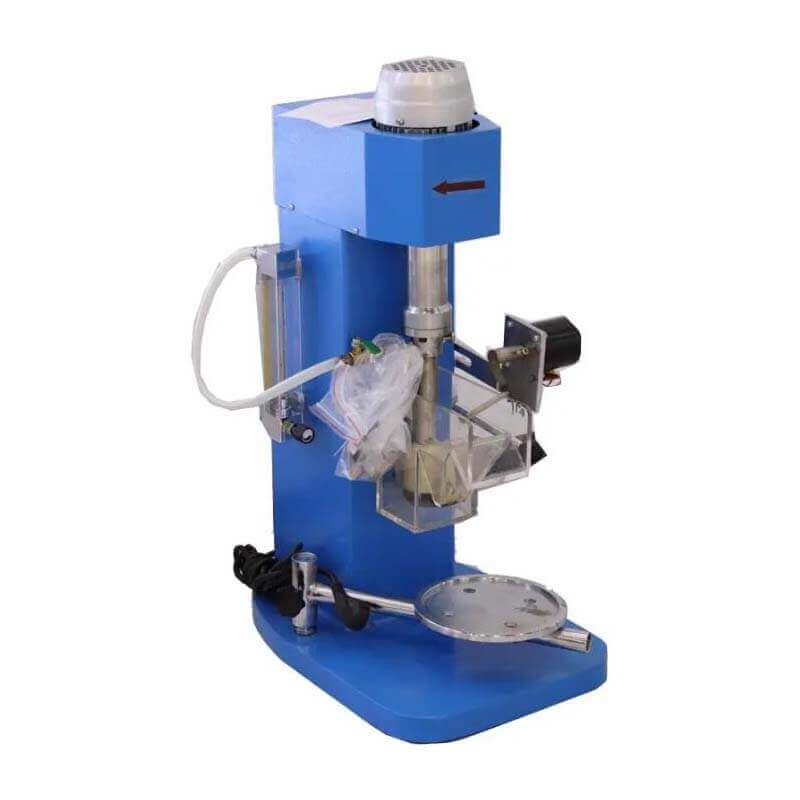

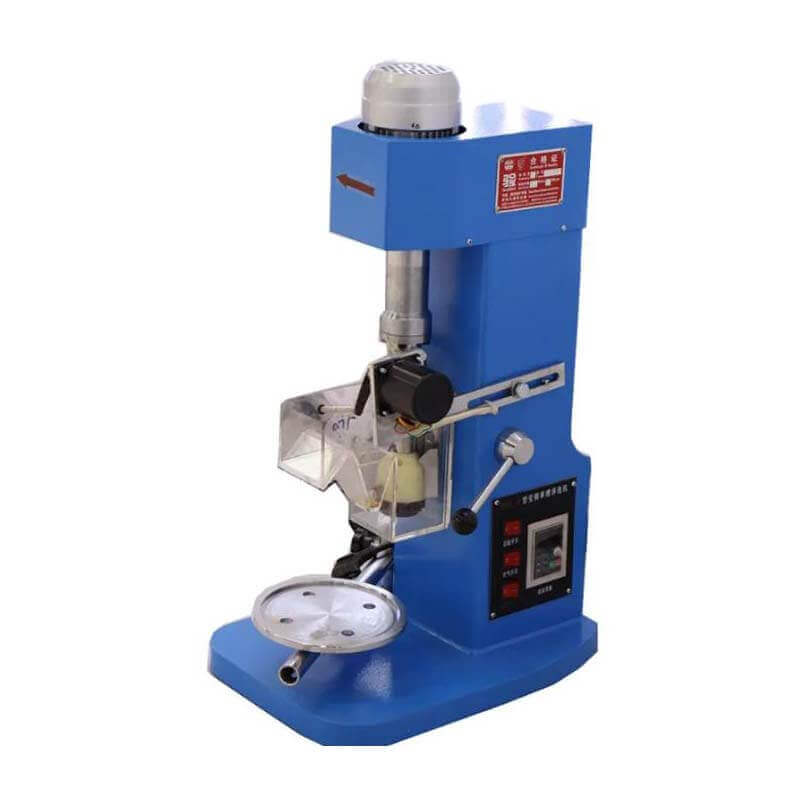

XFDⅡ Single Cell Lab Flotation
【Impeller Speed】0-2800 r/min
【Feeding size】<0.25 mm
【Application】Geology, metallurgy, building materials, chemical, and mining research department laboratory for mixing, scrubbing, separation, & selection of a small number of ore samples.
Chat Online on WhatsAppAdvantages
The new model single flotation cell of XFDⅡ is an updated product of XFDⅠsingle flotation cell, incorporating frequency conversion technology, step-less speed governing of the impeller, digital display with accurate adjustment, and reliable operation.
XFDⅡsingle cell lab flotation machine is an inverter flotation machine. It is used for mixing, scrubbing, separating, and selecting a small number of ore samples. It is a hollow shaft design with a large inflatable, center inflatable, variable speed drove, high flotation speed, and good sorting index are good.
【Features】
- The speed is infinitely adjustable
- Inflatable volume can be adjusted
- Spindle stainless steel material
【Advantages】
- Converter technology, step-less speed adjustment of the impeller, and LCD digital display；
- Easy and accurate adjustment, reliable operation;
- Liquid level and air filling volume adjustable, with speed digital display device and water make-up device.
Product Structure
【Structure】

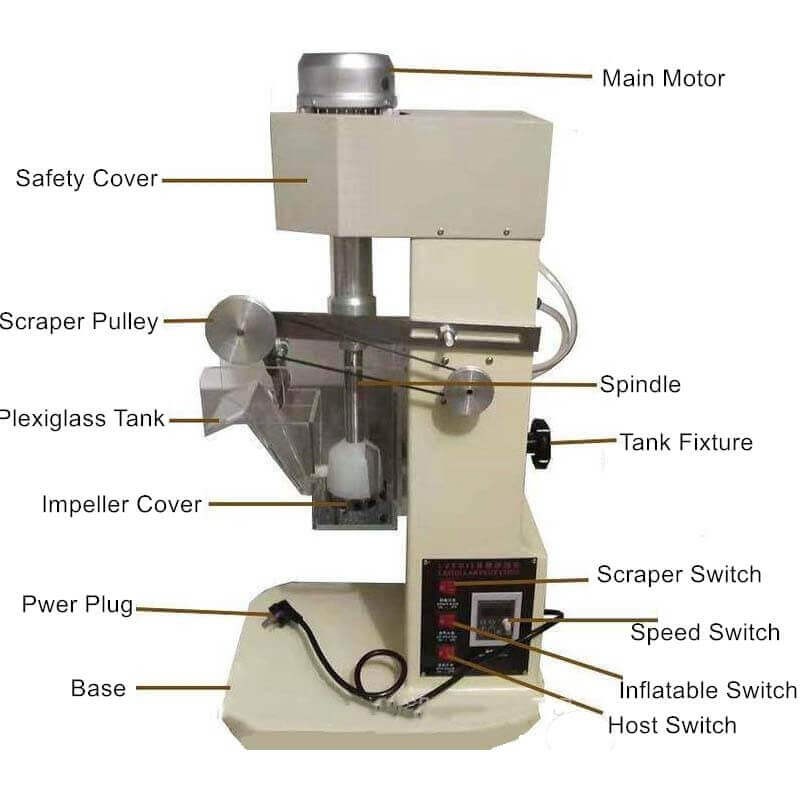

XFDⅡsingle flotation cell is mainly composed of body, main shaft subassembly, scraper subassembly, trough, and glass rotameter.

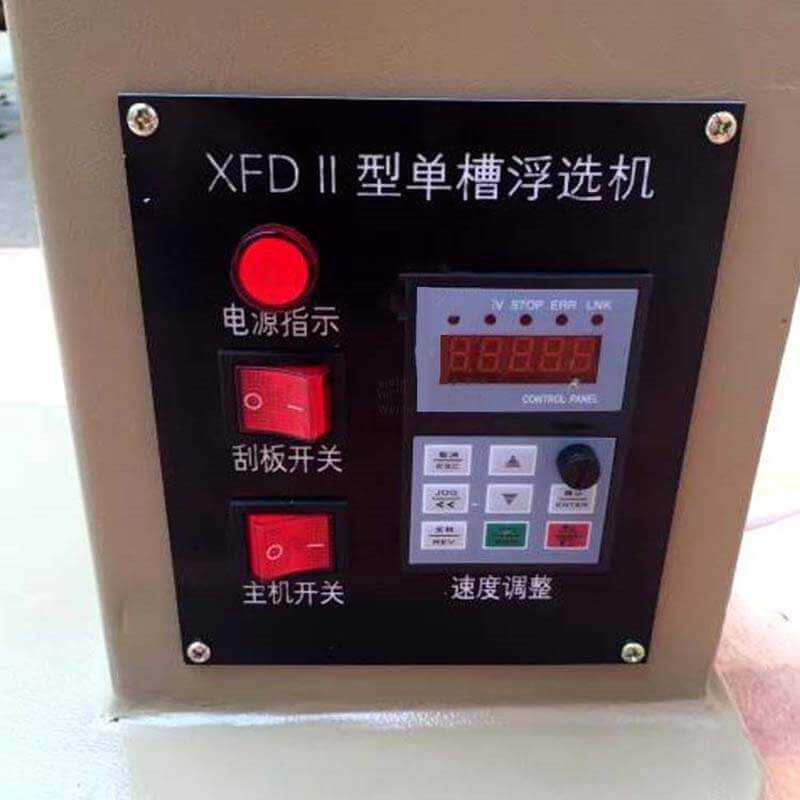

XFD type Ⅱ Single cell flotation machine control section
The spindle frequency step-less control, scraper speed control, and other components.
XFD type Ⅱ Single cell flotation machine supply voltage is AC 220V. For personal safety, the body must be grounded, resistor ≤ 4Ω.
【Working Principle】
The single-cell flotation machine (mine-use single-cell flotation machine) is driven by the triangular transmission of the motor to rotate the impeller, which generates centrifugal action to form a negative pressure. Mineralized foam, so that minerals adhere to the foam, float to the surface of the slurry and then form mineralized foam. Adjust the height of the ram to control the liquid level so that the scraper scrapes off the valuable foam.
Technical Parameters
| Model | Cell Vol.(L) | Impeller Diameter(mm) | Impeller Speed(r/min) | Scraper Speed(r/min) | Feed Size(mm) | Motor Power(W) | Diamensions L*W*H(mm) | Weight(kg) |
| XFDⅡ-0.5 | 0.5 | Ø45 | 0-2800 stepless | 15/30 | <0.25 | 120 | 420*320*750 | 30 |
| XFDⅡ-0.75 | 0.75 | Ø45 | 30 | |||||
| XFDⅡ-1 | 1 | Ø55 | 440*320*840 | 35 | ||||
| XFDⅡ-1.5 | 1.5 | Ø60 | 40 | |||||
| XFDⅡ-3 | 3 | Ø70 | 440*320*890 | 50 | ||||
| XFDⅡ-8 | 8 | Ø80 | 730*450*900 | 80 |
