Slag Sorting Equipment And Processing

Slag is a valuable by-product generated during metallurgical and industrial processes, including iron and steelmaking and the production of non-ferrous metals such as aluminum, copper, lead, and zinc. Although slag has traditionally been treated as industrial waste, it often contains recoverable metals and useful mineral components. Slag sorting equipment and modern slag processing technologies can separate these valuable materials, improve resource recovery, reduce waste, and support more sustainable industrial production.

A typical slag sorting and processing process includes cooling and crushing, screening, magnetic separation, gravity separation, and, when necessary, additional separation technologies. The specific process and equipment configuration depend on the type, composition, particle size, and target products of the slag.

This article explains the composition and comprehensive utilization of slag, as well as the main steps of slag processing.



Composition of Slag

The composition of slag depends on factors such as the type of furnace that produces it and the production process. Slag consists mainly of oxides (e.g., silica, alumina, calcium oxide, magnesium oxide) with small amounts of sulfides and metals. Among these, iron oxides have a high content, which can reach more than 30% of the total mass of the slag. Slag may also contain small amounts of metallic and non-metallic elements, including calcium, magnesium, aluminum, potassium, sodium, and sulfur. In the metallurgical process, slag removes harmful impurities in molten steel, such as sulfur, phosphorus, and gases, through physicochemical reactions, and plays a refining role. According to the different metallurgical processes, slag can be divided into smelting slag and refining slag. In addition, slag can also be divided into alkaline slag, acidic slag, and neutral slag according to its nature.





The Comprehensive Utilization of Slag

Comprehensive utilization of slag is an important means to achieve a circular economy. In addition to the utilization of metal and non-metal components mentioned above, slag can also be used in the following areas:

• Used as fertilizer: Slag contains trace elements and minerals. After appropriate treatment, slag can be used as organic fertilizer to promote plant growth.
• Land backfill: After slag is harmlessly treated, it can be used as land backfill material, increasing land value.
• Production of environmentally friendly building materials: Slag can be mixed with other materials to produce environmentally friendly building materials, such as slag bricks, slag concrete, and so on.



Slag Sorting

The treatment and recycling of slag are important links in industrial production. Slag sorting equipment is the key equipment in this process, and its efficient and accurate sorting ability is of great significance in improving resource utilization and reducing environmental pollution. The process steps of slag sorting equipment include raw material preparation and pretreatment, equipment startup and commissioning, slag sorting process, equipment maintenance and repair, and environmental protection and safety measures. Below, we will introduce the steps for slag sorting equipment in detail.

1. Raw Material Preparation and Pretreatment

After the slag is collected from the production line, it is transported to the separating area through special conveying equipment. Before formal separation, the slag needs to be pre-treated, including cooling, crushing, screening, and other steps to ensure that the slag’s particle size meets the separating equipment’s requirements. This link helps to improve separation efficiency and reduce equipment wear.

Cooling

Hot slag must be cooled to a suitable temperature before it enters downstream processing equipment. Cooling methods depend on the slag type and plant design.

Crushing

Crushing reduces large slag lumps to a more manageable particle size and helps liberate metallic particles from the surrounding mineral matrix.

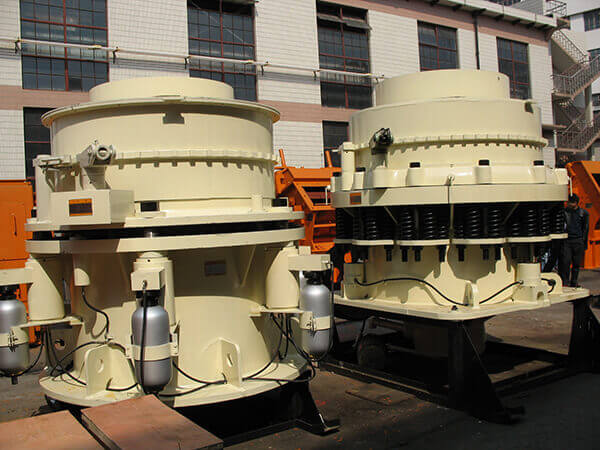

Jaw crushers, cone crushers, impact crushers, and other crushing equipment may be selected according to the material characteristics and required particle size.





Screening

Screening separates slag into different particle-size fractions. This improves the efficiency of subsequent sorting equipment because different particle sizes may require different separation conditions.



2. Equipment Startup and Commissioning

After confirming that the slag is ready, start the slag sorting equipment. Before starting the equipment, perform the necessary debugging work, including checking whether the equipment components are intact, adjusting the sorting parameters, and so on. After the debugging is completed, the equipment enters the standby state, waiting for the input of slag.

3. Slag Sorting Process

Feeding

The pre-treated slag is uniformly fed into the separating equipment through the feeder. To ensure the separation effect, the feeding speed should be adjusted according to the equipment’s processing capacity.

Separation

After the slag enters the sorting equipment, it will be subjected to a variety of forces (such as gravity, magnetism, airflow, etc.) inside the equipment, so as to realize the effective separation of different components. In the process of separation, the equipment will automatically adjust the sorting conditions according to the preset parameters and the characteristics of the slag, in order to achieve the popular separating effect.

(1) Physical separation

Magnetic separation and gravity separation are used to separate metal and non-metal components by utilizing the responsiveness of metal to the magnetic field and the difference in material density. Magnetic separation can separate iron, nickel, and other magnetic metals, while re-election separates heavy and light components according to the density difference.

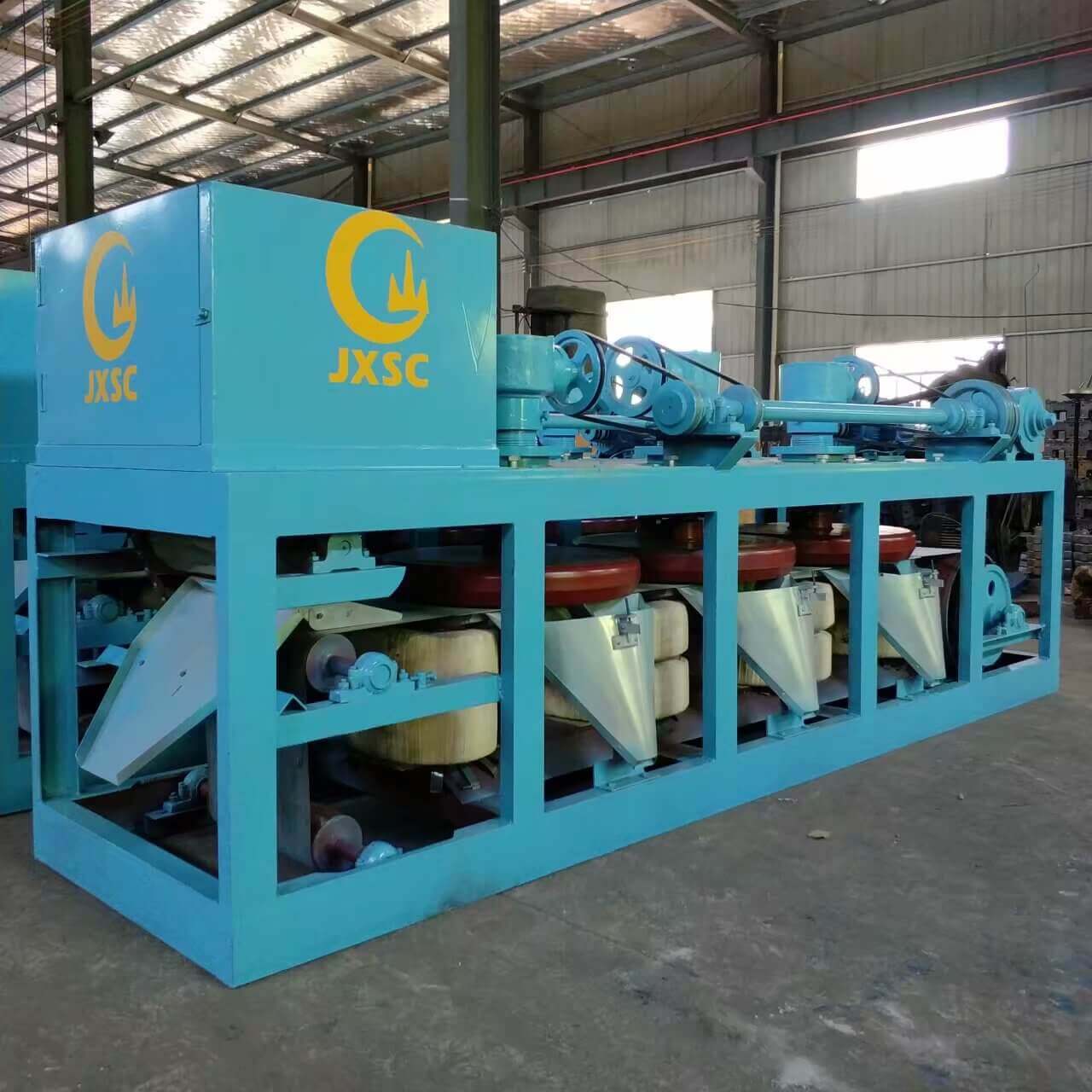

Magnetic Separation

Magnetic separation is one of the most widely used methods in slag processing, particularly when recovering iron-bearing or other magnetic metallic materials.

After crushing and screening, the slag passes through a magnetic separator. Magnetic particles are attracted to the magnetic field while non-magnetic materials continue through the separation system.

Depending on the material, magnetic separation may be used to recover:

• Metallic iron
• Iron-bearing particles
• Other magnetic materials

Magnetic separators can be configured at different stages of a processing line to improve metal recovery.

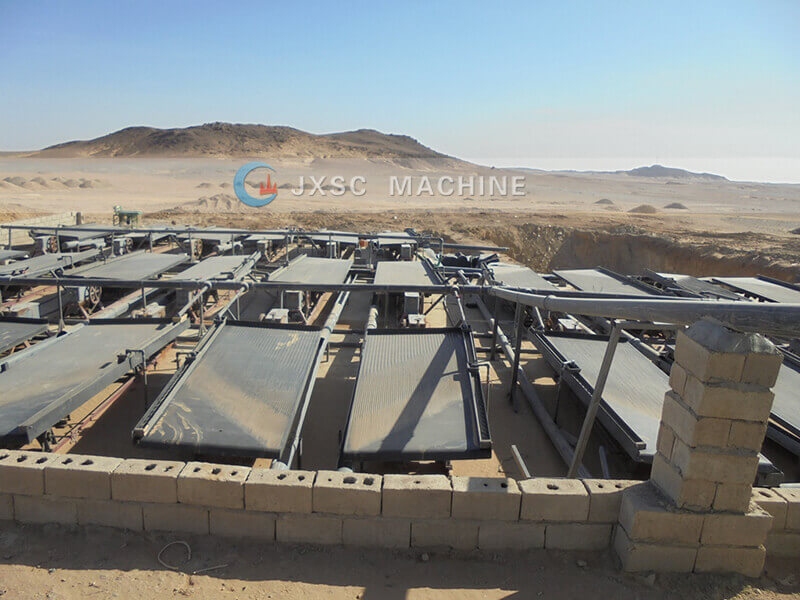

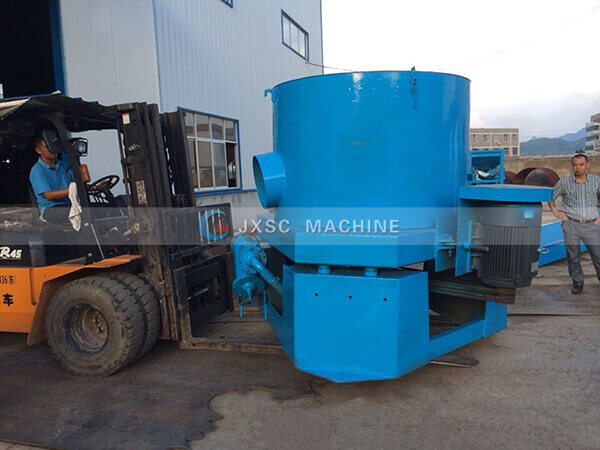

Gravity Separation

When the target materials have significant differences in density, gravity separation can be used to further separate heavy and light fractions.

For example, after magnetic separation removes magnetic materials, gravity-based equipment may help concentrate heavier metallic particles from lighter mineral materials.

The appropriate gravity separation equipment depends on the particle size and density characteristics of the feed material.







(2) Chemical separation

For the components that can not be completely separated by physical methods, chemical methods can be used, using chemical reagents to react with specific components to generate soluble or insoluble substances, thus realizing the separation.

Collection and Classification

After separation is completed, slags of different compositions will be collected separately. Usually, the equipment will be equipped with multiple outlets so that different types of slag can be discharged separately. The collected slag can be further treated or recycled according to its nature.



Treatment of materials after separation

• Treatment of metal components: After separation, the metal components can be refined or smelted to extract valuable metals such as iron, copper, zinc, etc., which can be used to produce various metal products.
• Processing of non-metallic components: Non-metallic components such as silicate, alumina, etc., can be used as building materials or filler raw materials for the manufacture of bricks and tiles, cement, ceramics, and other products.



4. Equipment Maintenance

In the long-term use of slag sorting equipment, it is inevitable that there will be wear and tear or failure. Regular maintenance and repair of equipment is crucial. This includes checking the wear and tear of various parts of the equipment, replacing damaged parts, and cleaning up the dust inside the equipment. Through effective maintenance and repair, the service life of the equipment can be extended, and the sorting efficiency can be improved.



5. Environmental Protection and Safety Measures

In the process of sorting slag, attention should be paid to environmental protection and safety. Equipment should be equipped with effective dust removal devices to reduce dust pollution; operators should comply with safety regulations and wear the necessary protective equipment to ensure personal safety.



Conclusion: Advancing Sustainable Industry Through Slag Recycling

Slag sorting equipment and modern processing technologies play a pivotal role in transforming industrial by-products into valuable resources. By effectively separating metallic and non-metallic components, these systems not only enhance resource recovery but also contribute to environmental sustainability by reducing landfill waste. The integration of physical and chemical separation methods ensures high efficiency, while advancements in cooling, crushing, and screening further optimize the process.

The recycled materials—metals for industrial reuse, mineral components for construction, and even nutrient-rich slag for agriculture—underscore the economic and ecological potential of slag utilization. Moving forward, continued innovation in sorting technologies and stricter adherence to safety and environmental protocols will further solidify slag recycling as a cornerstone of the circular economy.

By investing in these solutions, industries can achieve cleaner production, lower costs, and a reduced ecological footprint, paving the way for a more sustainable industrial future.
