Mobile Crusher Machine

JXSC provides mobile/portable crusher machines for Stone, Rock, Cobble, Granite, Basalt, Iron Ore, Limestone, Quartz,  etc.,
1

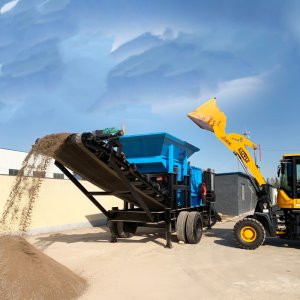

hammer station

Mobile Crusher Plants

JXSC is a brand mobile crusher manufacturer in China. It helps setting mobile crusher stations for your different plants.  It supplies mobile crusher machines such as jaw crusher, impact crusher, hammer crusher, cone crusher and portable VSI sand making machine. All mobile crushers are customized and best sale. Small mini mobile crusher is especially popular!


Feeding size:
<800mm
Capacity: 20-300T/H
Applications: Widely used in mineral processing, coal, building materials, chemical industry, refractory, metallurgy, cement, glass, ceramics, power and other industries.



Type

Mobile crushers are mainly divided into tire-type mobile crushing stations and crawler-type mobile crushing stations according to the walking mode. According to the user’s production requirements, diversified unit configurations can be carried out. The main matching hosts are: jaw crusher, Impact Crusher, cone crusher, heavy hammer crusher and sand making machine.



Small Mobile/Portable Crushing Machine

Small mobile crusher is a kind of efficient and convenient ore crushing processing equipment, which can be processed from ore in the process of processing and production, and can also be moved in the process of use, making it more convenient. Small mobile crusher has the characteristics of reasonable matching of crushing equipment at all levels, smooth discharge of the whole line, convenient operation, reliable operation, high efficiency and energy saving. In particular, it has good mobility, can be extended with raw materials or construction sites, and can be combined to meet the needs of different materials.

Mobile crushing station is flexible and convenient, and has strong mobility, which can save a lot of infrastructure and relocation costs. It can break the material on site and move with the advance of the raw material mining surface, which greatly reduces the transportation cost of the materials. Based on the original technology, the optimized combination has launched a new mobile crushing and screening equipment, which can fully adapt to the various situations of mobile crushing screening, and create more business opportunities and lower production costs for customers.

mobile crusehr working principle

In the operation process of the integrated small mobile crusher, the material is evenly transported to the crusher through the feeder. When the material enters into the action area of the plate hammer, it will be broken by the high-speed impact of the plate hammer, and then it will be thrown to the impact device installed above the rotor to be broken again, and then it will rebound from the impact pad to the action area of the plate hammer to be broken again.

This process is repeated until the material is crushed to the required size and discharged from the lower part of the machine. By adjusting the gap between the reaction frame and the rotor frame, the particle size and shape of the material can be changed. The spring device is used behind the induction plate of the machine. When the uncracked materials enter the crushing chamber, the front and rear reaction frames move backward, and the uncracked materials are discharged from the machine.

  • Great Value
    The mobile crushing station is flexible, convenient and has good mobility, which eliminates the tedious foundation construction when crushing and saves a lot of capital construction and relocation costs. It is especially suitable for places with narrow crushing site. Due to its small size, the transportation costs are greatly reduced.



  • Wide Applicability
    According to the different types of raw materials, scale and requirements of finished products, a variety of combinations are carried out to meet different needs. It can climb the slope to meet the crushing requirements of mines, hydropower stations, coal mines and other projects.



  • Green Environmental Protection
    Installation of atomizing spray equipment at inlet and outlet to control dust at source; Dust removal equipment: multi effect new dust removal equipment auxiliary.



  • Strong Independence
    The mobile crushing station is an independent unit, which can complete its different responsibilities. It integrates the receiving, crushing, conveying and other process equipment. Through the optimization of the process flow, it has the crushing performance of rock crushing, aggregate production and open-pit mining. Through the combination of different types of machines, it can form a powerful crushing operation line to complete the multi demand processing operation.
+ Product Info.


Feeding size:
<800mm
Capacity: 20-300T/H
Applications: Widely used in mineral processing, coal, building materials, chemical industry, refractory, metallurgy, cement, glass, ceramics, power and other industries.



Type

Mobile crushers are mainly divided into tire-type mobile crushing stations and crawler-type mobile crushing stations according to the walking mode. According to the user’s production requirements, diversified unit configurations can be carried out. The main matching hosts are: jaw crusher, Impact Crusher, cone crusher, heavy hammer crusher and sand making machine.



Small Mobile/Portable Crushing Machine

Small mobile crusher is a kind of efficient and convenient ore crushing processing equipment, which can be processed from ore in the process of processing and production, and can also be moved in the process of use, making it more convenient. Small mobile crusher has the characteristics of reasonable matching of crushing equipment at all levels, smooth discharge of the whole line, convenient operation, reliable operation, high efficiency and energy saving. In particular, it has good mobility, can be extended with raw materials or construction sites, and can be combined to meet the needs of different materials.

+ Working Principle

Mobile crushing station is flexible and convenient, and has strong mobility, which can save a lot of infrastructure and relocation costs. It can break the material on site and move with the advance of the raw material mining surface, which greatly reduces the transportation cost of the materials. Based on the original technology, the optimized combination has launched a new mobile crushing and screening equipment, which can fully adapt to the various situations of mobile crushing screening, and create more business opportunities and lower production costs for customers.

mobile crusehr working principle

In the operation process of the integrated small mobile crusher, the material is evenly transported to the crusher through the feeder. When the material enters into the action area of the plate hammer, it will be broken by the high-speed impact of the plate hammer, and then it will be thrown to the impact device installed above the rotor to be broken again, and then it will rebound from the impact pad to the action area of the plate hammer to be broken again.

This process is repeated until the material is crushed to the required size and discharged from the lower part of the machine. By adjusting the gap between the reaction frame and the rotor frame, the particle size and shape of the material can be changed. The spring device is used behind the induction plate of the machine. When the uncracked materials enter the crushing chamber, the front and rear reaction frames move backward, and the uncracked materials are discharged from the machine.

+ Features/Advantages
  • Great Value
    The mobile crushing station is flexible, convenient and has good mobility, which eliminates the tedious foundation construction when crushing and saves a lot of capital construction and relocation costs. It is especially suitable for places with narrow crushing site. Due to its small size, the transportation costs are greatly reduced.



  • Wide Applicability
    According to the different types of raw materials, scale and requirements of finished products, a variety of combinations are carried out to meet different needs. It can climb the slope to meet the crushing requirements of mines, hydropower stations, coal mines and other projects.



  • Green Environmental Protection
    Installation of atomizing spray equipment at inlet and outlet to control dust at source; Dust removal equipment: multi effect new dust removal equipment auxiliary.



  • Strong Independence
    The mobile crushing station is an independent unit, which can complete its different responsibilities. It integrates the receiving, crushing, conveying and other process equipment. Through the optimization of the process flow, it has the crushing performance of rock crushing, aggregate production and open-pit mining. Through the combination of different types of machines, it can form a powerful crushing operation line to complete the multi demand processing operation.

Inquiry Now

mobile crusher station

Mobile Crusher For Sale

Mobile crusher can also be called mobile crushing station, mobile crushing machine, mobile crusher plant, etc. Its main characteristics are that it can be mobile operation, walk freely, transfer more convenient, ensure the safety of equipment production at the same time, work more reliable.

A complete mobile broken production line, classic with mobile jaw crusher + mobile impact crusher, double machine collocation, realize the rough crushing, fine crushing operation of stone, construction waste, etc. It only takes a few days to build the whole production line without piling, which is nearly a month faster than the fixed crushing production line.

All of The Crusher Stations Can Be Customized

mobile jaw crusher

Mobile Jaw Crusher Station

Feeder + Jaw Crusher + Belt Conveyor



Application: Aggregate plant, mining, coal mining, etc.
Applicable Materials: Dolomite, limestone, coal mine construction waste and other medium hardness materials.

Performance Advantages:

  1. Low noise and less dust.
  2. The crushing ratio is large and the product size is uniform.
  3. The overall design is beautiful, the structure is compact, the maintenance is simple, the work is reliable, and the operation cost is low.
  4. The lubrication system is safe and reliable, the parts are easy to replace, and the equipment maintenance is simple.
  5. The crushing cavity is deep and there is no dead zone, which improves the feeding capacity and output.

Mobile Jaw Crusher Technical Parameters

ModelPE-400*600PE-500*750PE-600*900PE-750*1060
Main Motor and Diesel Power (optional)30KW-645KW-675KW-6110KW-6
Vibrating Feeder Motor3KW3KW11KW15KW
Conveyor Belt Motor4KW4KW5.5KW7.5KW
Capacity20-40T30-80T80-200T120-300T
Maximum Feed SizeWithin 40cmWithin 50cm60cm75cm
Belt Size6000*600mm6500*600mm8000*800mm90000*1000mm
Overall Dimensions8000*1000*2300mm9000*1200*2400mm12000*3000*3100mm12000*3060*3900mm



Mobile Crushing Sand Machine

Feeder + Box Crusher + Belt Conveyor



Performance Characteristics

  1. In the production process, the stone can form a protective bottom layer, and the fuselage is not worn and durable.
  2. A small number of easily worn parts are made of extra hard wear-resistant materials, which are small in volume and light in weight, and easy to replace and match.
  3. The size of the feed is large, the crushing ratio is large, and the discharge is uniform. High yield, granular products account for more than 90%, in line with a variety of customer requirements.
  4. The box crusher has adjustable hammer shaft and long service life.
  5. The grid size is adjustable, the product size is controllable, and the particle shape is good.
  6. The case of box crusher can be turned over, which is more convenient for maintenance. Square shank bolt, impact and wear resistance.
  7. The process is simplified, the output is high and the performance is stable.
  8. The hammer head, castor plate and impact plate made of high wear-resistant materials have longer service life.
  9. Low power, low energy consumption, simple maintenance and few vulnerable parts.
mobile sand making machine

Mobile Crusher Sand Making Machine

Auxiliary Power

Scheme 1Scheme 2: Diesel Power


Main power motor of crusher: 75KW

Feeder motor:7.5kw

Discharge motor: 5.5kw





Power: 155 kw

Auxiliary motor of sorting screen: vibration motor 15kw

Main belt motor: 5.5kw

Finished product conveyor: 8m*600mm (4.0kw) 5 sets

crusher sand models

Auxiliary Power

Scheme 1Scheme 2: 6126 Diesel Power


Main power motor of crusher: 110KW

Feeder motor: 7.5kw

Discharge motor: 5.5kw



Auxiliary motor of sorting screen: vibration motor 15kw

Main belt motor: 5.5kw

Finished product conveyor: 8m*600mm (4.0kw) 5 sets

Auxiliary Power



Production capacity per hour(T / h): 100-130 tons

Total weight tons (T): 16 tons

Equipment dimension length x width x height (m): 10x3x3.5

Dimension of main box mm: 3830x1855x600

Maximum feed size mm: ≤ 550 motor power kw: 160

Diesel engine model: 615

Auxiliary Power

Scheme 1Scheme 2: 618 Diesel Power


Main power motor of crusher: 200KW

Feeder motor: 7.5kw

Discharge motor: 5.5kw



Auxiliary motor of sorting screen: vibration motor 15kw

Main belt motor: 5.5kw

Finished product conveyor: 8m*600mm (4.0kw) 5 sets

Auxiliary Power

Scheme 1Scheme 2:


Main power motor of crusher: 260KW

Feeder motor: 15kw

Discharge motor: 7.5kw



Large 500 diesel generator set is adopted

Input bandwidth 12000mm

Required size of raw materials: ≤ 100

Mobile Sand Making Machine Technical Parameters

ModelCapacity(T/H)Dimensions(L*W*G)(M)Bin SizeMaximum Feed SizeMotor PowerDiesel Engine Model
HD8050-60 T10x3x3.23620X1640X550≤350756108
HD10070-90 T10×3.3×3.43830X1800X600≤4001106110
HD150100-120 T10x3x3.53830X1855X600≤550160615
HD200150-180T11x3x3.53830X1995X600≤600200618
HD250200-250T13.6×3.0x4.34350X1995X600≤800260Diesel engine set
HD300280-300T14×3.5×4.54350X2200X600≤800315Diesel engine set
Note

1. Aperture of sand making sieve plate: 5mm, 8mm, 10mm, 12mm, 15mm;

2. The aperture of stone sieve plate: 30mm. 40mm, 50mm, 60mm. 80mm;

3. The hammer head is made of high strength steel or high chromium alloy;

4. All kinds of stone can be broken to make sand when the pressure is less than 250 MPa;

5. The mobile crusher can be powered by either power supply or diesel engine or diesel generator set;

6. If screening is needed, the crushing and sand making machines with different capacities can match the screening machines with different specifications.



mobile impact crusehr
impact crusher models

Mobile High Efficiency Impact Crusher Station

Feeder + Impact Crusher + Belt Conveyor



The sand production rate is more than 90%. It is suitable for crushing more than 200 kinds of minerals such as granite, basalt, limestone, river pebble, quartzite, iron ore, cement clinker and so on.

Performance Characteristics

  1. It is especially suitable for crushing medium hard and extra hard materials, with sand making and shaping function.
  2. The operation performance is stable and reliable, the discharging particle size can be less than 5mm, the particle shape is uniform, the production capacity is large, and the service life of hammer head is long.
  3. The matching power is small, and the three-stage crushing is changed into two-stage crushing. The process is simplified, the structure is simple, and the maintenance is convenient.
  4. The moisture content is about 8%.
  5. The working noise is lower than 75 dB, the dust pollution is less, and the environmental protection operation is as follows.
  6. The size of the feed port is different for different types of equipment.

Mobile Impact Crusher Technical Parameters



ModelCapacity(T/H)Inlet Size L*W (MM)Feed Size(MM)Discharge Particle Size(MM)Equipped Power(KW)Diesel Engine Power(KW)
GZ8050-60 T600X250≤180≤560150
GZ10070-80 T800X330≤180≤590260
GZ15090-100 T1000X350≤195≤5132285
GZ200100-120T1200X450≤200≤5160330
GZ250130-150T1200X600≤250≤5220400
GZ300150-180T1600X600≤300≤5315Diesel Engine Set
Note1. The mobile high-efficiency impact crusher can be powered by either power supply or diesel engine or dual power.

2. The adjustable width range of discharge seam is 5-20 mm; Finished sand can be controlled within 3mm.

3. The frequency conversion electric cabinet is used to adjust the number of revolutions and control the particle size of the discharging material.



Mobile Hammer Crusher Station

Feeder + Hammer Crusehr + Belt Convery



Advantage:

  • It can be formed at one time without the need for a secondary crushing and shaping process. It is only suitable for crushing limestone and medium-hardness stones with a compressive strength of less than 200MPa.
  • Large inlet, good shape of the finished product , The production process is sealed and environmentally friendly, spraying and dustproof, and the production efficiency is improved by 60%.
mobile hammer crusher

Mobile Hammer Crusher Technical Parameters

Motor Power

(Level 4)

60-75KW75-90K90-132K90-160K160-200K160-220K132K-4132K-4
Diesel Engine

(Optional)

R6105ZG6108611361561266186113/190KW6113/190KW
Maximum Feed Size≦350mm≦400mm≦400mm≦500mm≦600mm≦600mm≦800mm≦600mm
Vibrating Motor4KW-64KW-67.5KW-67.5KW-611KW-611KW-67.5KW-67.5KW-6
Transportation With Motor4KW-44KW-47.5KW-47.5KW-47.5KW-411KW-47.5KW-47.5KW-4
Transmission Bandwidth60cm80cm100cm100cm120cm140cm100cm100cm
Dimensions(m)7.5*2*2.810.5*2.4*3.212.5*3*3.212.5*3*3.216.5*3*3.219.5*3*3.212.5*3*3.212.5*3*3.2
Hammer Head (sand making)7.5kg10kg20kg20kg30kg50kg Plate Hammer



Why Choose Our Mobile Crusher Machine?

1. Key Features

mobile crusher

Six Highlights



1. Wear resistance and long service life

2. Mobile convenient and efficient

3. Closed crushing is more environmentally friendly

4. Stable operation and less time consuming

5. Independent crushing is more reliable

6. Simple structure and easy maintenance

2. Core Advantages

box crusher

Details are Perfect

Fighter in Crusher



1. Air flow self circulation vortex chamber, dust removal equipment and noise eliminator are added to eliminate dust pollution with high efficiency and environmental protection.

2. The spindle is made of 40grmn alloy, the hammer head is made of mn53 alloy, and the screen and liner are made of mn13gr2 alloy. The service life is much better than that of similar products.

3. The covered fuselage can effectively reduce the production noise, and the fuselage is more solid. Most industries are made of single working components, and the working noise is large.

Excellent Material

Precision Manufacturing

New Design

Efficient Crushing

Work Scene

Packing

mobile crusher shipping

Contact Us

3. Mateiral Advantages

crusher material

4. Industry Advantages

JXSC Manufacture VS Common VSI Sand Making Machine
 JXSC ManufactureCommon VSI Crusher
Equipment QualityThe core material is mn53, 40grmn, 50gr vanadium and Q345 steel plates with good wear resistance. Hardness, strength industry leading.Ordinary manganese steel plate is used, with average hardness and strength.
Appearance DesignWrapped shape, one-time molding process, solid and durable, sound insulation and noise reduction.Most of the industries are made up of single working components, which makes a lot of noise.
Production ProcessAdopting numerical control automatic production equipment and plasma hydrogen arc welding process, the product has high precision and stronger fuselage.Most of them are manual welding operation, with high precision and large error.
Production CapacityAll products are mechanized and flow process, can be mass produced, master the core technology, and can accept personalized customization.Small workshop production. It is difficult to achieve large-scale production, mass production, product quality assurance.

Application Case of Mobile Crusher

mobile crusher video
mobile crusher video
mobile crusher video
