20TPH Ferrochrome Slag Recovery Plant in South Africa

20TPH Ferrochrome Slag Recovery Plant in South Africa

Published Date:10 November 2021

Mineral Processing Cases study: 20TPH Ferrochrome Slag Recovery Plant in South Africa. How processing plant configurated and what equipments were used? Read more…

Introduction of Ferrochrome Slag Recovery Plant

Raw Material: Ferrochrome Slag
Capacity: 20TPH
Country: South Africa
Feed size: <50mm

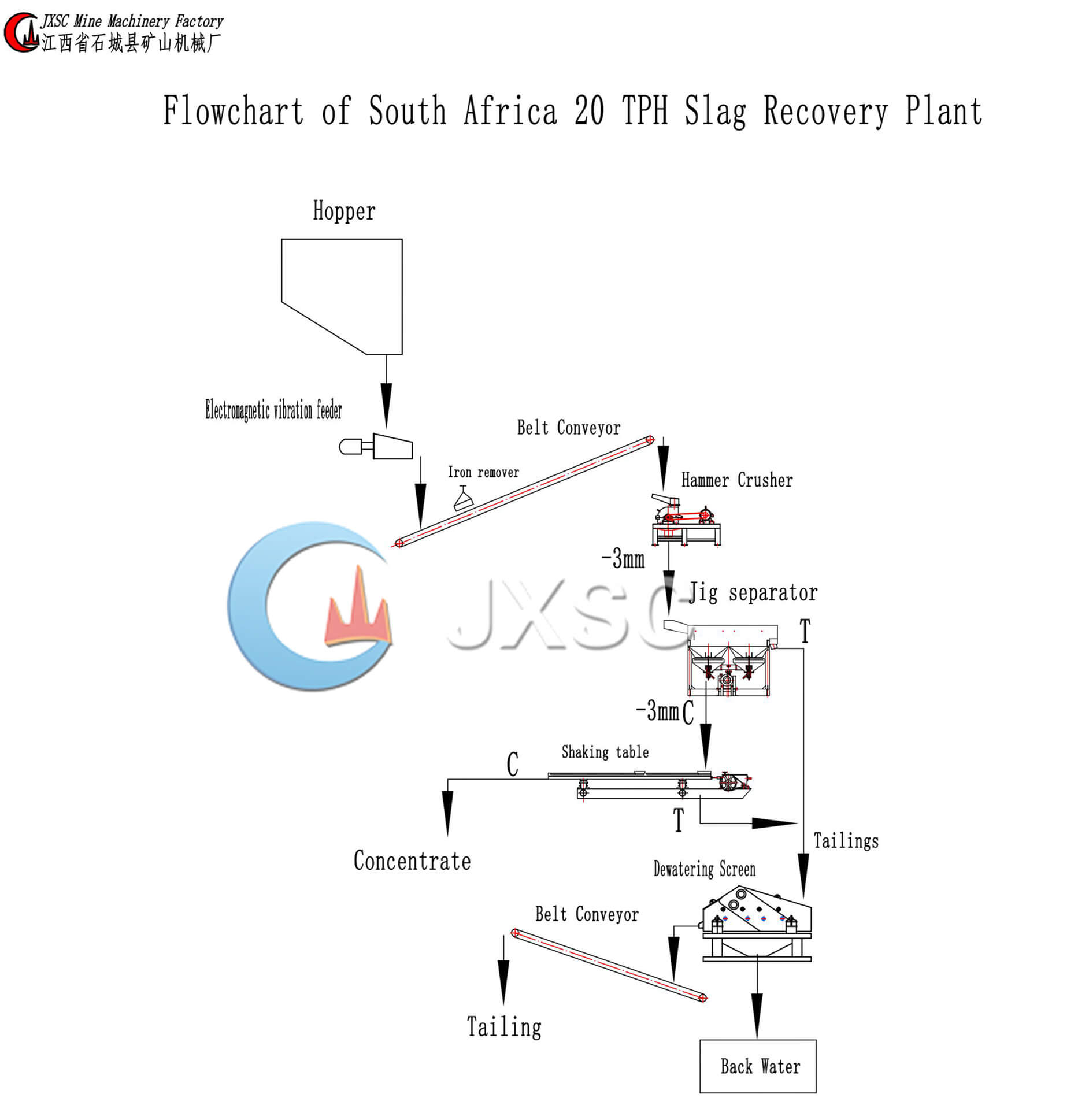

20TPH Ferrochrome Slag Recovery Plant Flowchart

Equipment Used in The Recovery of Ferrochrome Slag



  1. Hopper
  2. Electromagnetic Vibrating Feeder
  3. Hammer Crusher
  4. Belt Conveyor
  5. Shaking Tables
  6. Jig Separator
  7. Dewatering Screen

Flowchart Description



This processing plant is for the slag to recovery the Ferrochrome.

The process is as below:

  • The wheel loader or excavator feeds the raw slag to the hopper.
  • There is an Electromagnetic vibration feeder under the hopper, which can feed the material to the belt conveyor more evenly.
  • The client requires iron removal equipment to remove the big Fe slag first.
  • The material will be fed into hammer crusher by belt conveyor, using hammer crusher for crushing the big slag into fine particles 3mm. The output size can be adjusted based on your requirement.
  • The output from the hammer crusher goes to the jig separator for catching concentrates first.
  • The under-screen from the jig separator goes to the shaking table for separation again, to improve the grade.
  • The tailings from the jig separator and shaking table will go to the dewatering screen for dewatering water.

The required processing capacity for this flowsheet is 20 tons per hour input feeding capacity. while any capacity is ok. Different mine situations and different requirements, the solution will be different.
