About Fura Gems Inc.
Fura Gems Inc. is a gemstone mining and marketing company which is engaged in the mining, exploration and acquisition of gemstone licences. Fura’s headquarters are located in Toronto, Canada and its administrative headquarters are located in the Gold Tower, Dubai. Fura is listed on the TSX Venture Exchange under the ticker symbol“FURA”. Fura is engaged in the exploration of resource properties in Colombia and owns a 76% interest in the Coscuez emerald mine in Boyacá, Colombia. Fura is involved in the exploration and mining of sapphires in Australia through its 100% interests in two mining permits (EPM 25973 and EPM 25978) and three mining licences (ML 70419, ML 70447 and ML 70451), and rubies in Mozambique through its 80% effective interest in four ruby licences (4392L, 3868L, 3869L and 6811L) and its 100% interest in ruby licence 5572L.

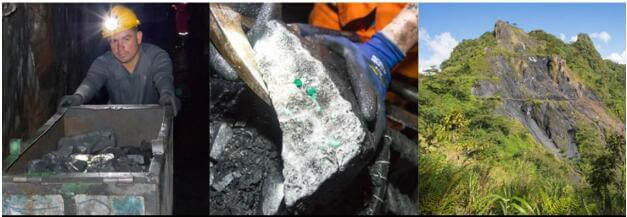

Mining emeralds in Colombia
Fura Gems is the first public company with a project in the world-famous Colombian Green Emerald Belt in the Boyaca region of the country. In Colombia, Fura owns a 76% stake in the historic Coscuez emerald mine, which has been producing for over 400 years and has yielded some of the most expensive precious stones in history. The presence of very high value stones is what attracted Fura to the region, as the company is set to be the first miner to apply modern underground mechanised mining techniques to the extraction of Colombian green emeralds.
Coscuez Emeralds

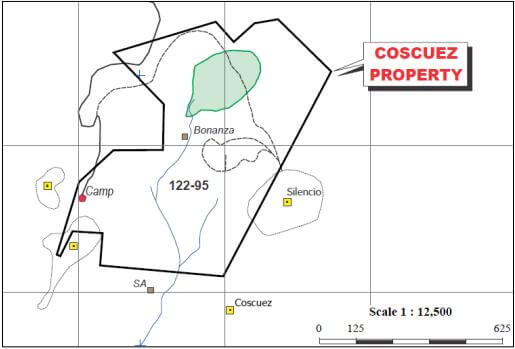

Coscuez Emerald Mine (license 122-95M) is currently the most advanced asset within the Fura portfolio. The asset, 76%-owned by Fura, is located in a world-famous emerald corridor, the largest emerald producing region globally. The Coscuez emerald mine has produced some very renowned pieces such as the 1,759 carat Guinness Emerald.
Location and infrastructure

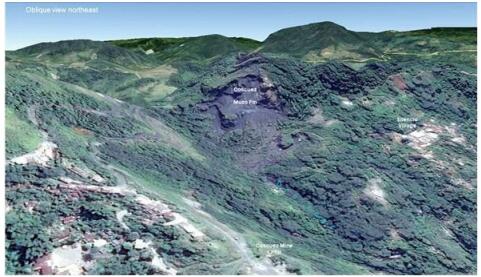

Coscuez is a fully permitted underground mine, located in the San Pablo de Borbur Municipality of the Boyacá District of Colombia, 245km north from the capital city (Bogota). The area around the project is composed of river valleys flanked by low to medium-sized mountains. Typical elevations do not exceed 2,000m above sea-level. The project is accessed via a paved road from Bogotá to Muzo stretching for 182km, with the remainder of the journey via a combination of dirt and paved roads. The entire journey from Bogota takes around 6 hours by a 4×4 car. Several villages occur within the immediate vicinity of the Project, where inhabitants have a history of small-scale artisanal mining at Coscuez. These villages already supply a
significant proportion of the workers for Coscuez and the surrounding mines, suggesting that the local areas should be sufficient for most future mining operations.
The Coscuez Mine is served by the electricity network of Boyacá which supplies energy to the mine. The Boyacá network supplies electricity to a substation where it is distributed from underground substations to satisfy mine lighting, hoist operations, ventilation, mine camps, and other activities.
The Coscuez Emerald Mine (122-95M)
The Coscuez Mine is historically one of the world’s most significant emerald mines, having been in operation for over 400 years and has produced some of Colombia’s finest emeralds. On 30th October 2017, FURA has agreed to purchase 76% of the issued and outstanding shares of Esmeracol S.A. which owns 100% interest in the 122-95M (The Coscuez Emerald Mine).The 122-95M covers an area of 46 hectares and includes exclusive rights for the exploration, construction and mining of emerald deposits granted by the Government of the Republic of Colombia.
Geology
Emeralds occur at Coscuez within calcite veins and breccia units that cut Early Cretaceous carbonaceous black shales of the Muzo Formation, the same host rock as the Muzo Mine and other emerald occurrences in the region. Thrust faults, strike-slip faults and associated folds provide the structural setting for the emerald hosting calcite veins and breccias. The Coscuez Mine occurs on a southwest plunging anticline, where northnortheast strike slip motion of the relatively easily deformed black carbonaceous shales has resulted in stacked thrust fault slices, and complex folds.
Mineralisation
Calcite veins and calcite cemented breccias host the emeralds within the carbonaceous shales of the Muzo Formation. The emerald hosting calcite veins are associated with structures formed during sediment accumulation and later deformation. The black carbonaceous shales of the emerald hosting Muzo Formation are relatively easily deformed, compared to the surrounding country rocks, which likely focusses faults, folds, late-stage veins and brecciation within the Muzo Formation. These structures can provide the open space for growing emeralds of significant size Emerald mineralization
is restricted to the carbonaceous shales of the Muzo Formation throughout the western emerald belt of the Eastern Cordillera in Colombia. Within the Muzo Formation, emerald mineralization is restricted to late-stage calcite veins and breccias. Distribution of these calcite veins and breccias is apparently structurally controlled. Emeralds occur within calcite veins and breccia units that cut Early Cretaceous carbonaceous black shales. The black shales (carbonaceous claystones) reportedly belong to the Muzo Formation, the same host rock as the Muzo Mine and other occurrences in the region.
Current Operations
The current operation at 122-95M, has reached the orebody through a significant number of horizontal accesses of different dimensions, which total more than 40 km of measured tunnels. Within the orebody, vertical shafts have been developed to delineate the extraction blocks for the operation, complemented by established and controlled watering and ventilation system.
Fura, as a short-term plan, will immediately focus on improving the mine’s infrastructure, developing safe and effective operations, including the construction of a 1/7 gradient, positive and negative ramp system, complemented by horizontal tunnel construction to optimise access to the orebody, which will allow modernising the extractive process and converting the mine into a safer operation. Fura believes that it will ramp up the emeralds production with all the plans coming together.
Contemporaneously with the finalisation of medium and long-term plan, Fura will also work for the necessary approvals for the technical plans such as design of the new decline, entrance of the tunnel, washing plant, waste dump design and other necessary areas.
Data Collected and further Test Needed / being Planned
1. Chemical Analysis: At the mine a lot of exploration work has been completed and we have XRF and ICP-MS geochemical data has been compiled.
2. Moisture Analysis: Although we have some sample Moisture analysis, we need to have a detailed understanding of the moisture content and heating weight losses for the dried feed to the Optical Sorting machine. This is critical for a porous rock like carbonaceous shale, which is the host rock for the emeralds. An analysis protocol like Coal/Coke needs to be followed.
3. Granulometric Analysis: Apart from that is some data has already been collected for the size analysis separately for the mud tank – 2 mm tailing and some small sample analysis for the feed at the ore stockpile. The results for these two data have been attached with this document. Some visual estimate data is also generated but needs to be validated with more data. As understand more data needs to be generated and we will work on this
and send you to have some sample size analysis done for a 50 kg sample size at the laboratory.
4. We understand the brecciated and sheared carbonaceous shale would have low resistant to abrasion and would generate a lot of fines. This operation test is very important especially considering the ore when moved within the bin, vibratory feeder and drying section before being fed to the optical sorting machine. So, Los Angeles test or some similar abrasion for testing aggregate toughness and abrasion characteristics.
Summary for Emerald Recovery In La Paz Wash Plant
Objectives To wash and remove the Emerald from the ore in a more effective, optimised and scientific way.
1. Feed Material Feed Muzo formation mostly Carbonaceous Shale containing Emerald
2. Plant Capacity Needed Up to 80tph Feed Capacity minimum with provision to increase this to 100 tph
3. Approximate Site Requirement 35.5m x 8m (Excludes stockpile areas and feeding area)
4. Approximate Water 150m3 – 190m3 per hour. 80% of this water can be recycled via settling ponds, meaning that the top up water requirement will be
30-40m³/hr.
5. Power Requirement 139 kW (Subject to final machine configuration and review)
6. Present location: LaPaz
7. Currently Feed / product sizes
| Sl no | Size | Description |
| 1 | -2 mm | It is like the Tailing Undersize (US) Reject at Trommel Screen. It is mostly clay material and is partially in suspension in the water flow to the sedimentation at the Mud tank. |
| 2 | +2mm to -10mm | This size fraction goes to the 1st belt at the picking area, after picking up of the emerald manually, the reject material is going to the tailings. |
| 3 | +10mm to -25m m | This size fraction goes to the 2nd belt at the picking area, after picking up of the emerald manually, the reject material is going to the tailings. |
| 4 | +25mm to -60mm | This size fraction goes to the 3rd belt at the picking area, after picking up of the emerald manually, the reject material is going to the tailings. |
| 5 | +60 mm | Tailing Oversize (OS) Reject at Feed Grizzly |
| 6 | +100 mm | This is the ROM material planned from the Mine face. |
8. OS Reject at Stockpile
The big size rocks (>60mm to <100mm) are stored in the top of stockpile and has a quantity generated so far of around 648 ton. The rate of generation of this Tailing Oversize (OS) Reject at Feed Grizzly is approx. 7-9 ton/day. Some rocks blocks are difficult to break and needs manual breaking or rock breaker. We normally set up a team for manual breaking the rocks (+60-100mm) and will look for rock breaker attachment for bigger (+60-100mm) rocks.
Rough Material Size Distribution (Visual Estimate)
In order to have an idea of material size distribution to be considered in the plan and process design, we have tried some visual estimates of the feed information about the fraction analysis.
Current Processing Stages for Emerald Recovery In La Paz Wash Plant
The mine was operating in a semi mechanised operation and the ore is mined and hauled in pushcart haulage system to move the from the mine face to the ore stockpile. The ore was then manually processed with removing the undersize and checking for the emeralds within the rock on a table after washing it with pressurized water. Since we have taken over the operation the mining has been converted from semimechanised to mechanised operations with for introduction of small tractors/ trucks for haulage.

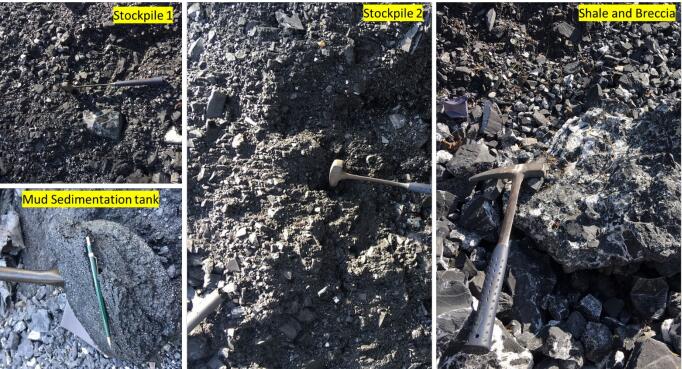

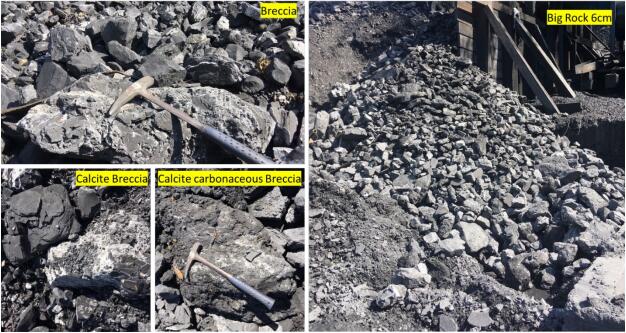

Please refer to the pictures in the next page for the ore at the stockpile.

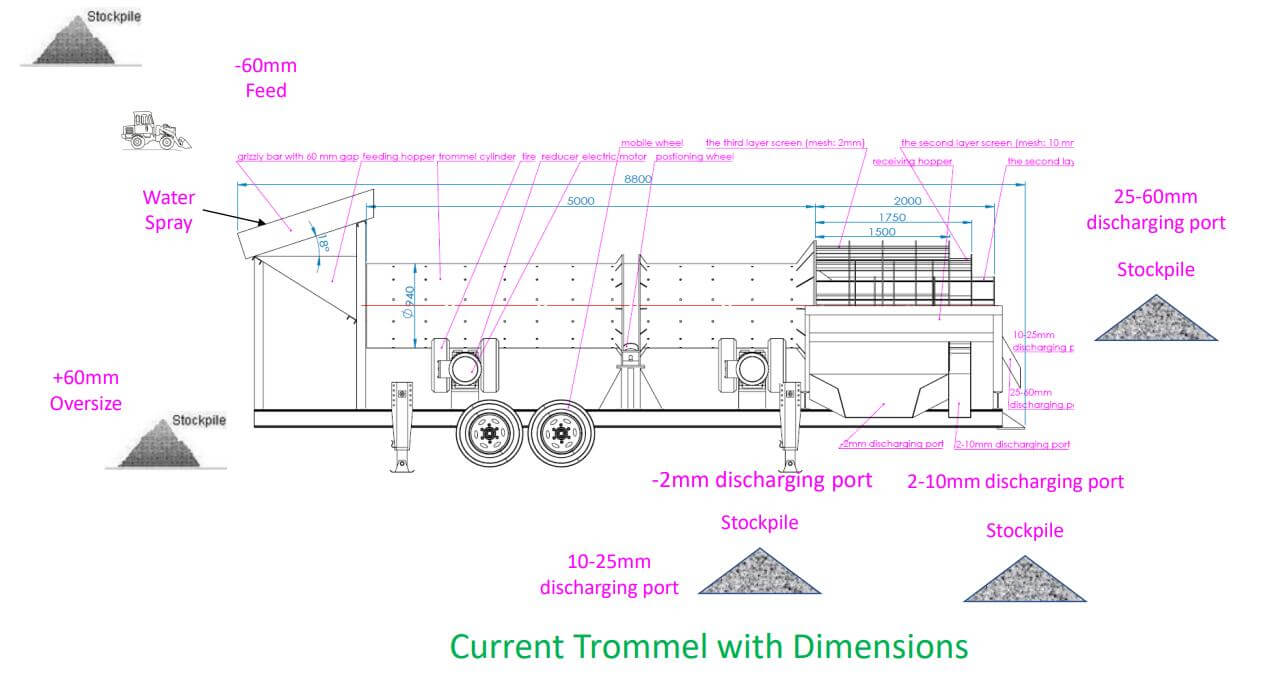

We have also introduced a trommel and three conveyor belt for operations and improve the emerald recovery system. Drawing below for the existing system and the dimensions for the trommel and details in the drawing. The current capacity of the plant is 10 to 12 tons per hour with top size feed of 60 mm.
Please refer to the pictures in the next page for the ore processing and picking of emerald at the plant. As we progress from the work sampling the operations to the large-scale mining operations the volume of the ore is going to be significantly increased at the peak of the production the monthly processing capacity is going to be 15,000 tph (tons per hour) with top size feed of 100mm. That roughly translates to 100 tons per hour.

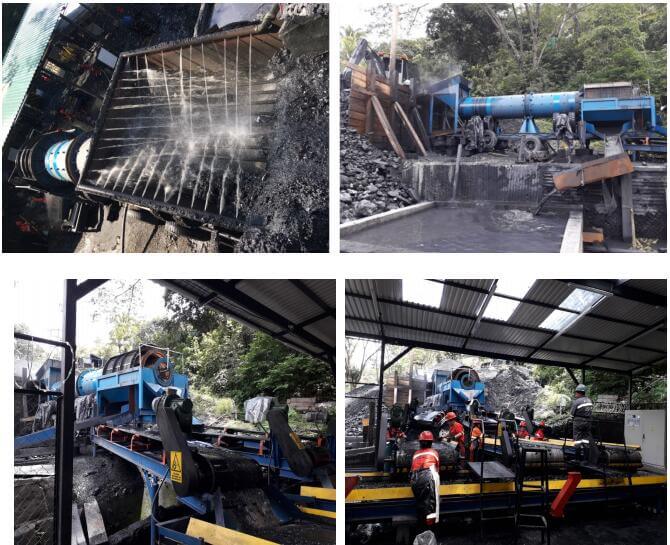

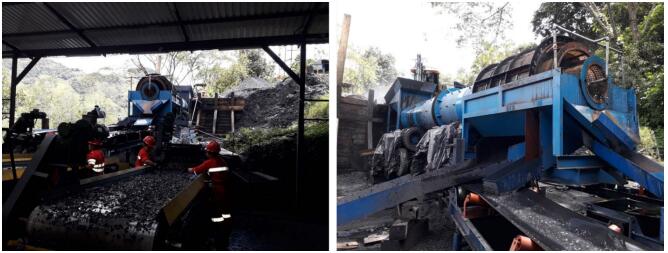

Washing Plant Actual field photos

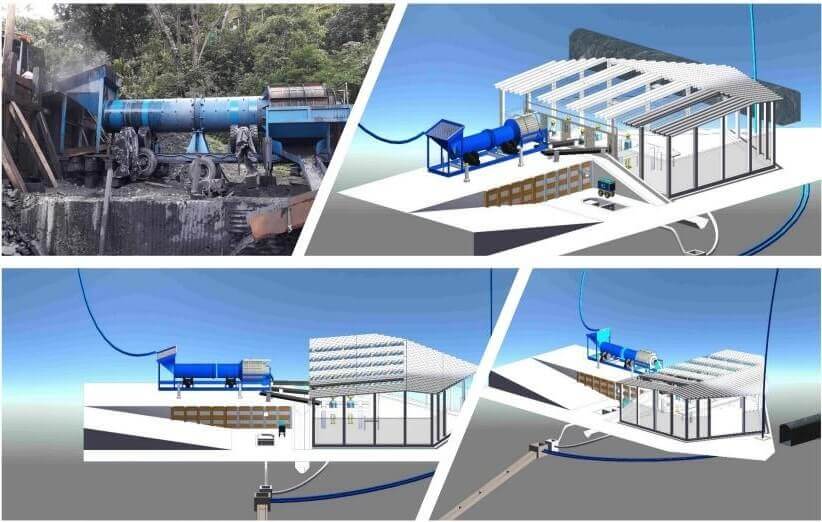

Washing Plant current isometric views and field photos

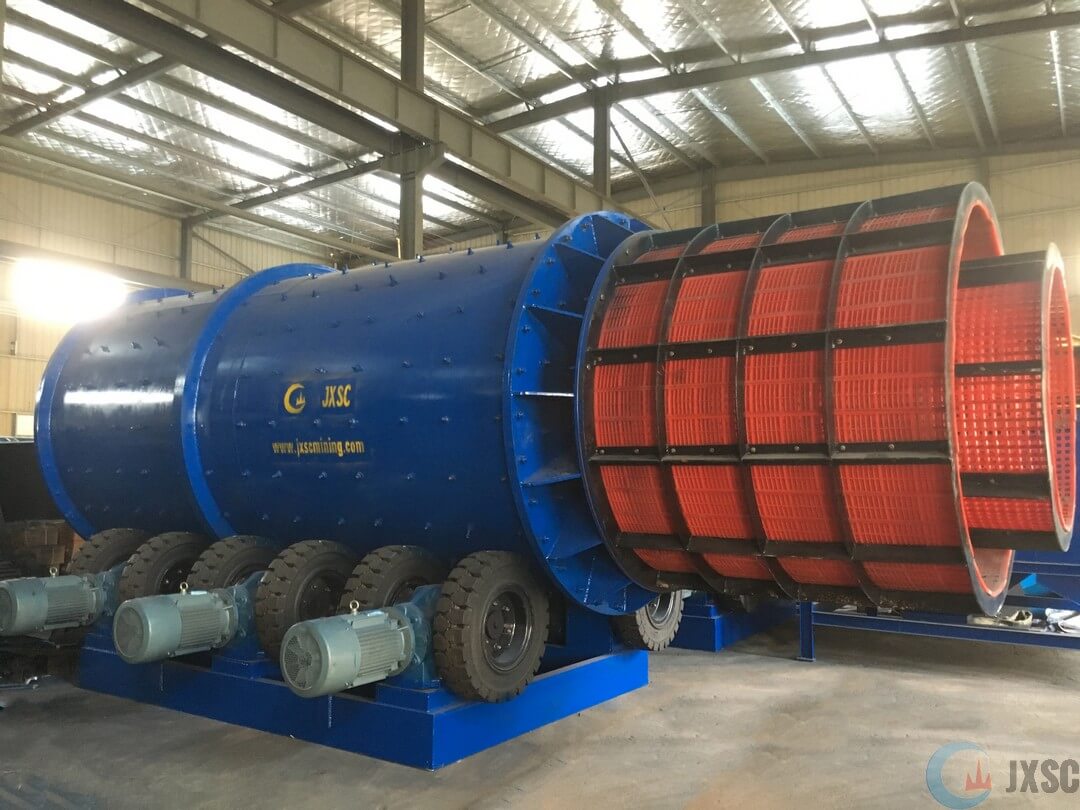

Recommended gemstone ore washing machine: trommel scrubber
Trommel scrubber washing machine is widely used in the gold washing plant, diamond washing plant. It also known as rotary screen ore washer, or cylinder screen washer, can effectively wash and sieve ore material which contains sticky clay, mud, prevents clogging..
Click to know the product details: Trommel scrubber

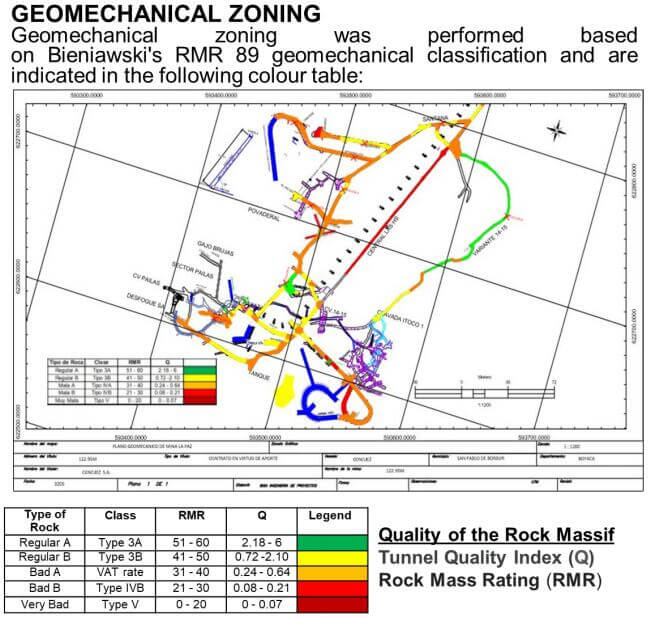

Geomechanical and Rock Strength Studies Summary
According to geomechanical zoning and rock mechanics tests, the following parameters of the rock massif were considered for analysis by the Hoek and Brown fault criterion.
UCS: 45 / Mpa GSI Geological Resistance Index (GSI) : 40 / Mi: 7 / Ei: 9300 Mpa
From the mapping carried out and the laboratory tests it was verified that the rock types in greater percentage according to the Bieniawski RMR geomechanical classification is IIIB and VAT.

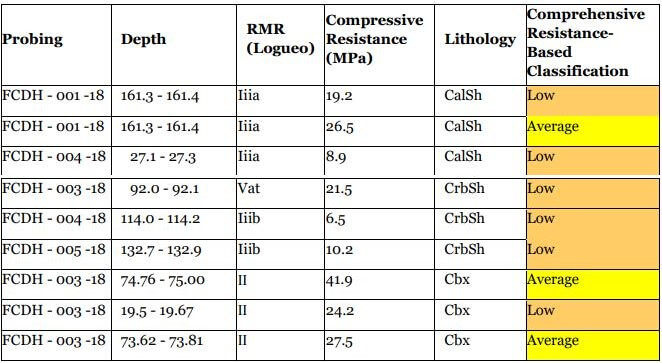

Rock Strength tests Details
Unconfined Compressive Strength (UCS)

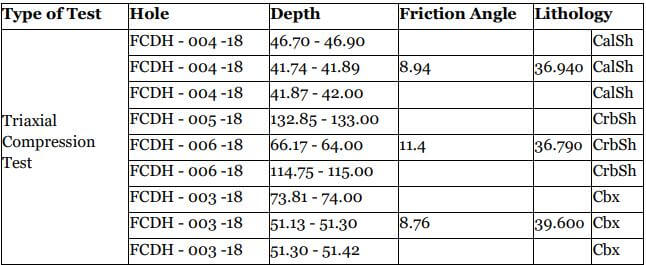

Triaxial Compression Test

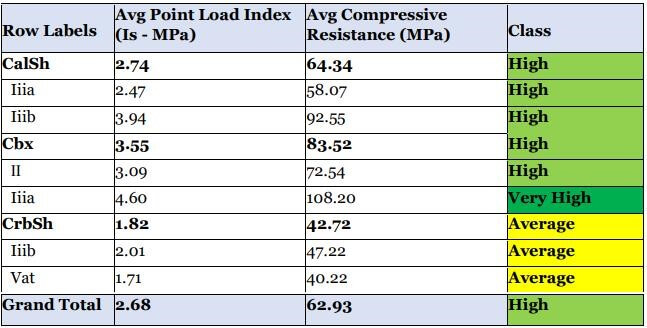

Avg Point Load Index (Is – MPa) and Avg Compressive Resistance (MPa)
Rock Strength Tests Summary Maps

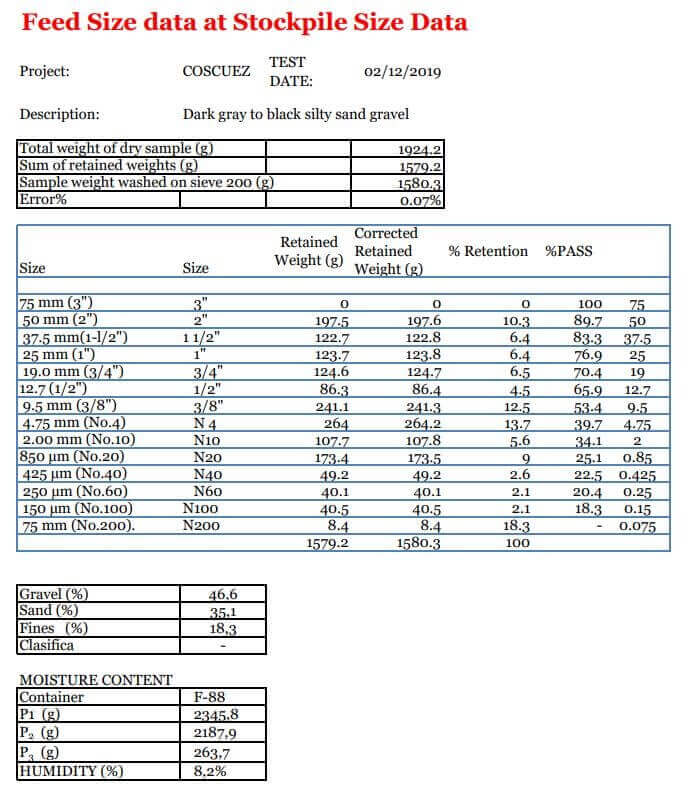

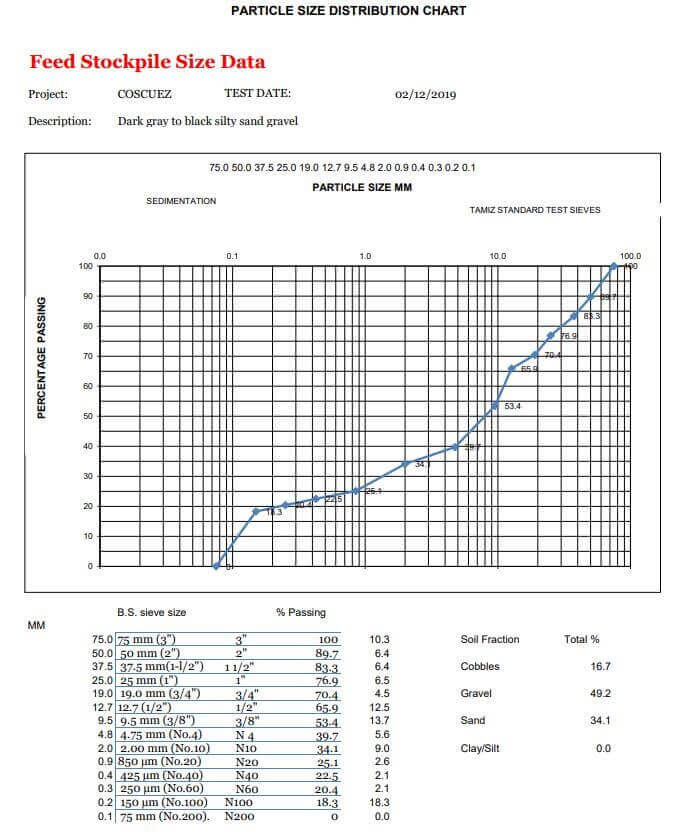

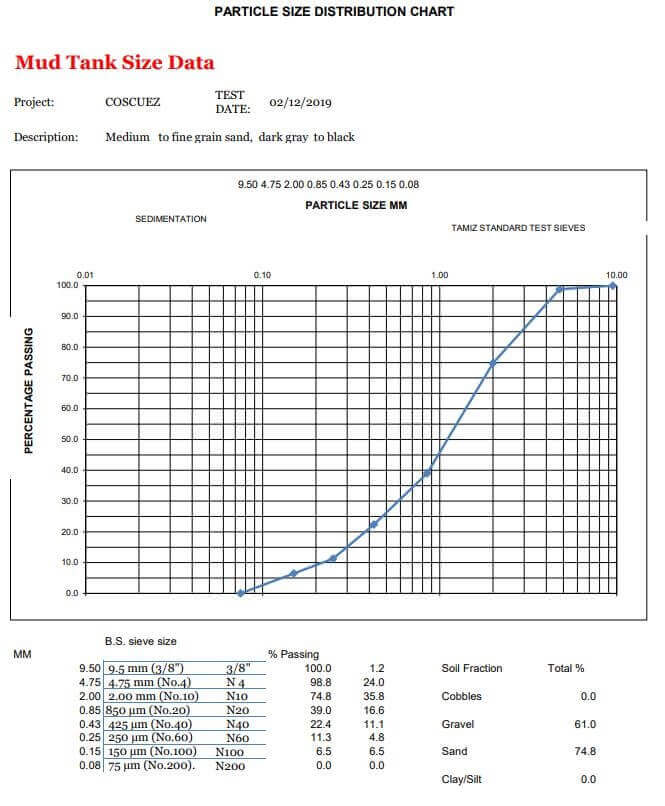

Please refer to the Granulometric analysis (ASSAY REPORT TEST TO DETERMINE THE GRANULOMETRY BY SCREENING NTC 1522-99) for Stock pile and mud tank at
the end.
The ideas for the two options are presented below:

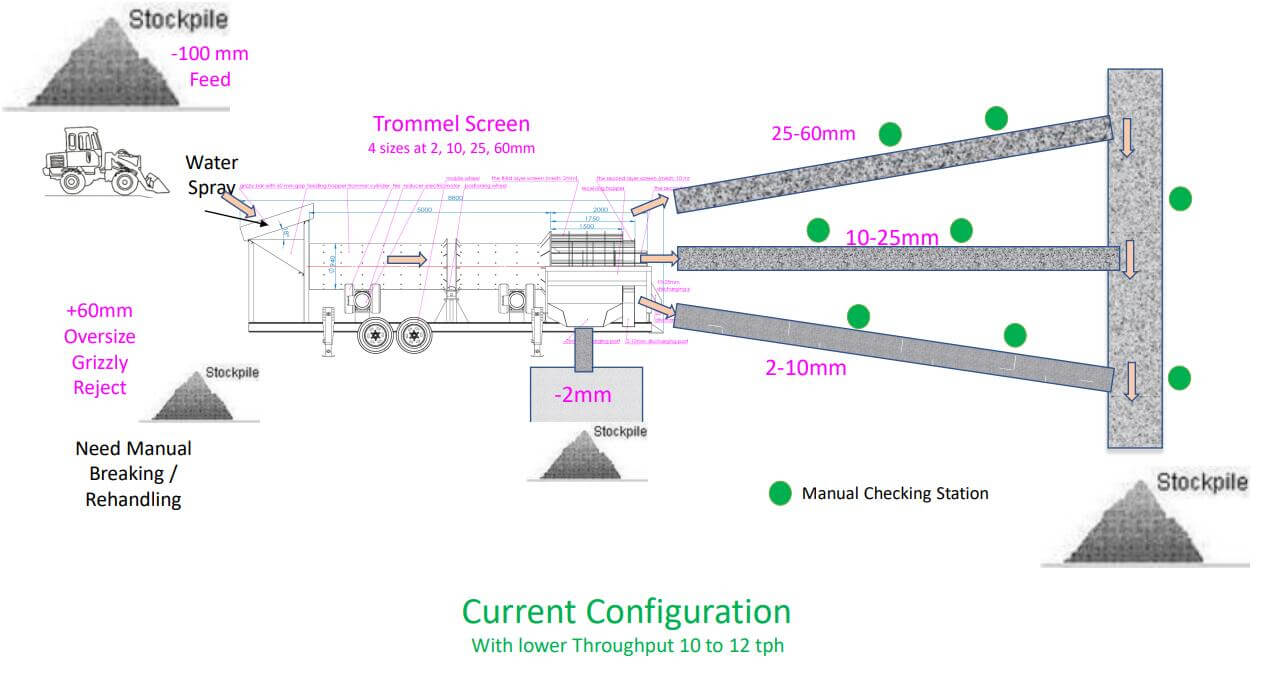

1. Current Configuration: With lower Throughput 10 to 12 tph

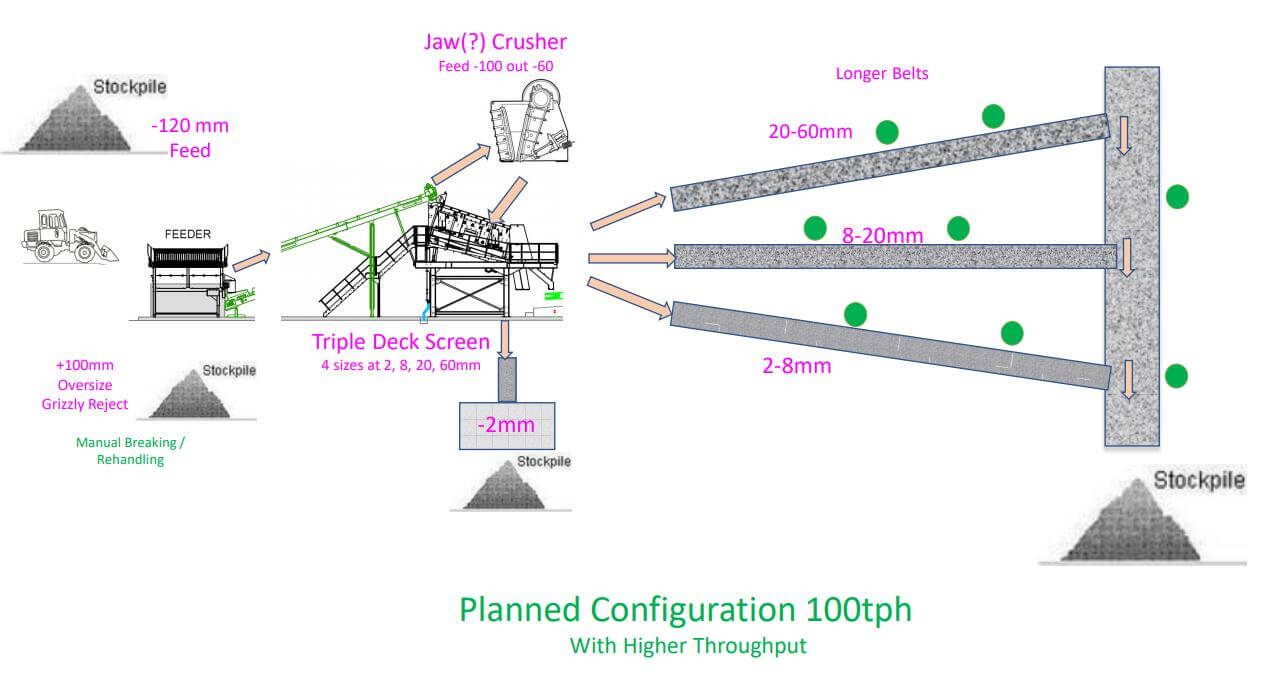

2. Planned Configuration 100tph: With Higher Throughput

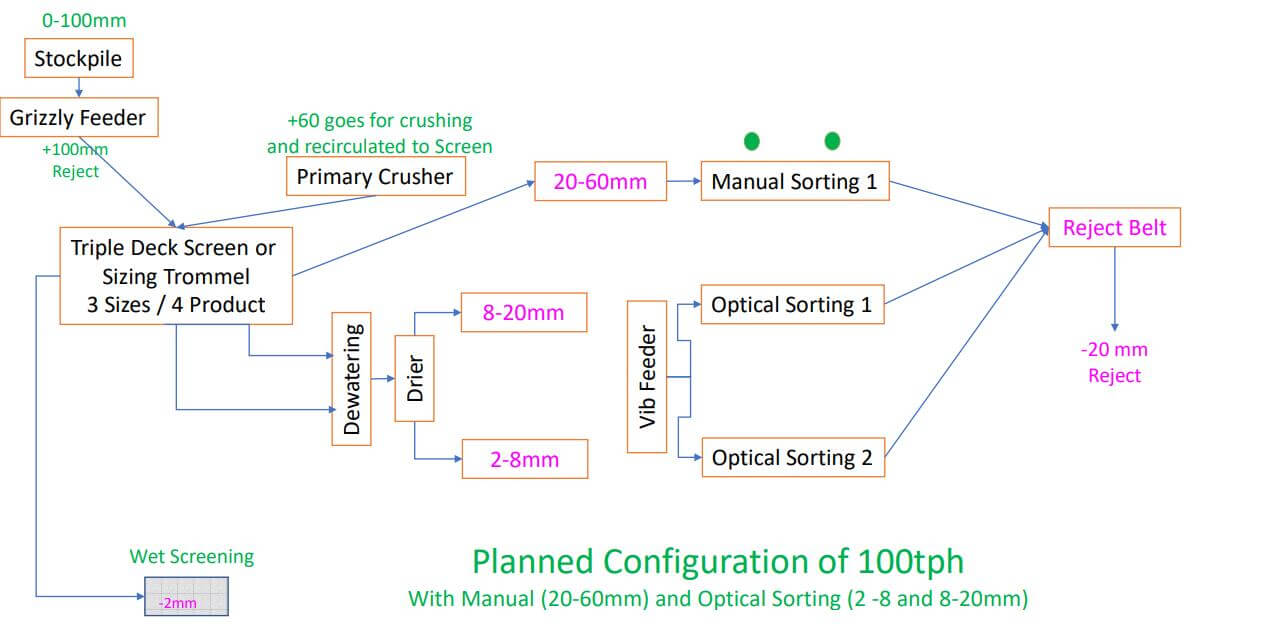

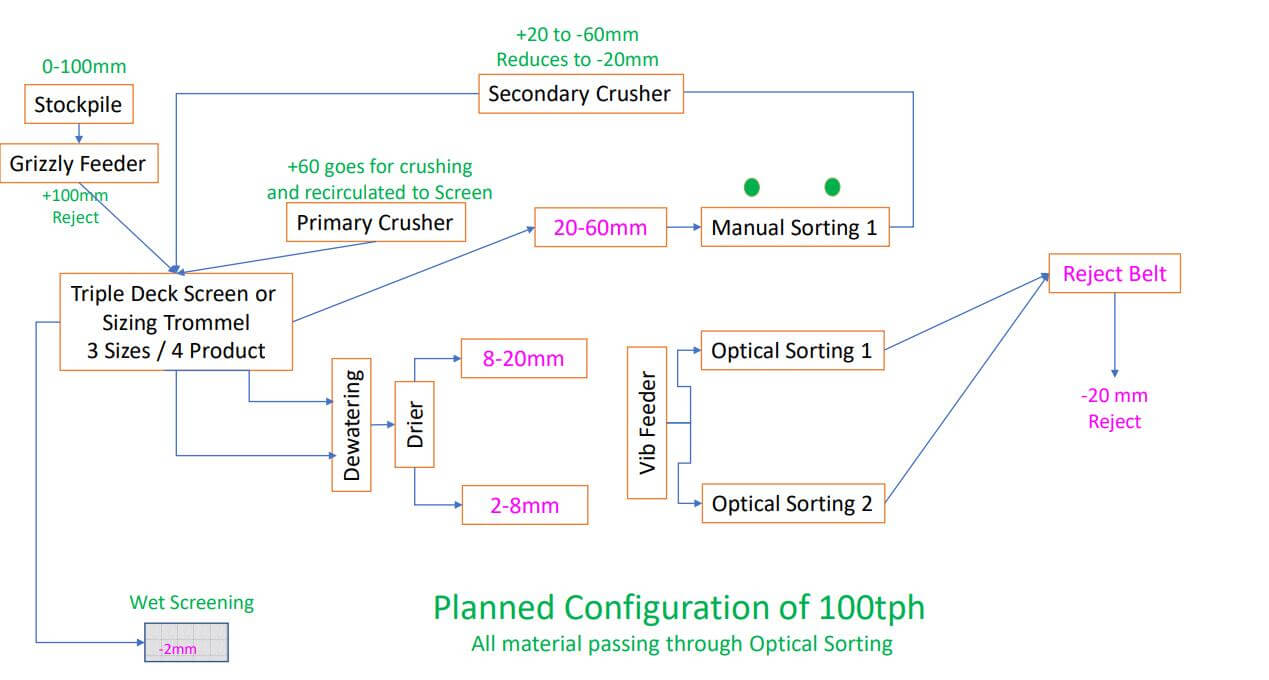

3. Planned Configuration of 100tph: With Optical Sorting
The same has been depicted in the three diagrams in next three pages.
About JXSC
We provided the whole gemstone washing plant for South Africa, Colombia, Cambodia, etc. This plant is also suits for diamond washing, gold washing.
Kindly contact us for gemstone ore processing equipment, layout flow design.
