Crawler Type Crushing and Screening Plant Selection

Published time:14 May 2020

JXSC has rich technology research and development, manufacturing capabilities and operating experience of crawler type crushing and screening plant, and can provide global customers with a complete equipment combination program in a variety of application conditions, and provide customers with a wealth of after-market security services and value-added service solutions. Products are widely used in: quarries, mines, roads and bridges and urban construction waste recycling and other fields.

In summary

Crawler impact crusher——Once crushing for soft rock

Crawler jaw crusher——primary crushing treatment of hard rock

Crawler cone crusher——the secondary forming crushing of hard rock

Crawler screening station (heavy duty)——pre-screening of raw materials

Crawler screening station (light type)——screening of mixed finished materials

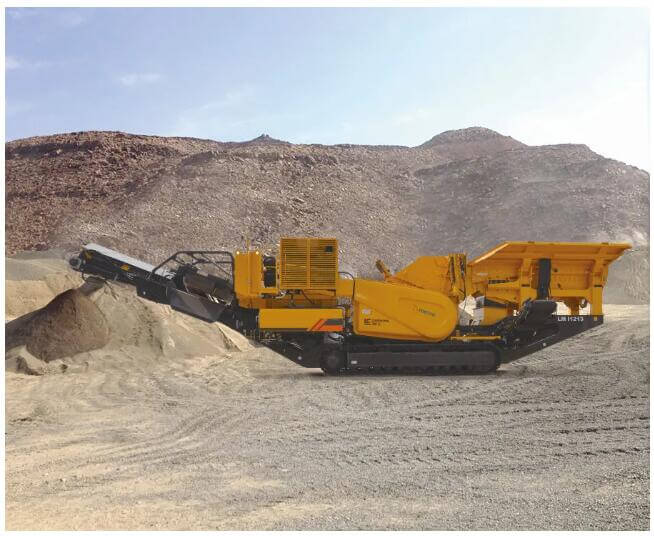

Crawler Impact Crusher

LM I1213

Crawler impact crusher combines mobile flexibility and high-yield application characteristics. Equipped with leading Metso impact crusher and high-quality plate hammer to achieve powerful crushing performance. The design of the mechanical direct drive crusher is equipped with auxiliary starting and braking devices to reduce operating costs while improving reliability and creating value for customers to the greatest extent.

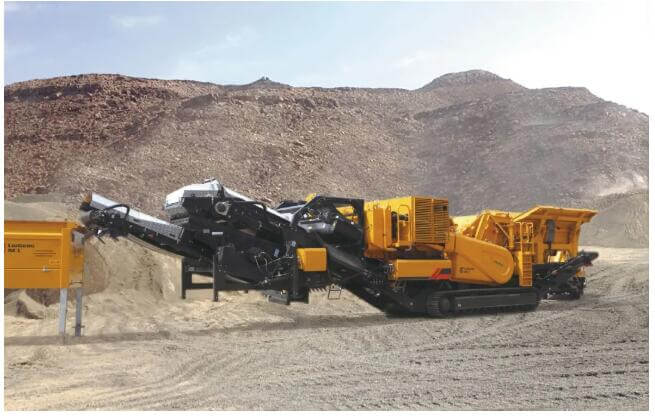

crawler impact crusher

LM 1213S

The LM I1213S has the characteristics of high output, flexibility and energy saving. It is equipped with a high-performance single-layer vibrating screen and a radial return belt, making the 1213S easy to apply to closed or open circuits. LMI1213S can be crushed without a screen, and it can complete the connection and separation with the vibrating screen in just a few minutes. It can be transported as a whole. The LMI1213 crawler impact crusher is suitable for coarse and medium breakage in aggregate production, quarrying and material recovery applications.

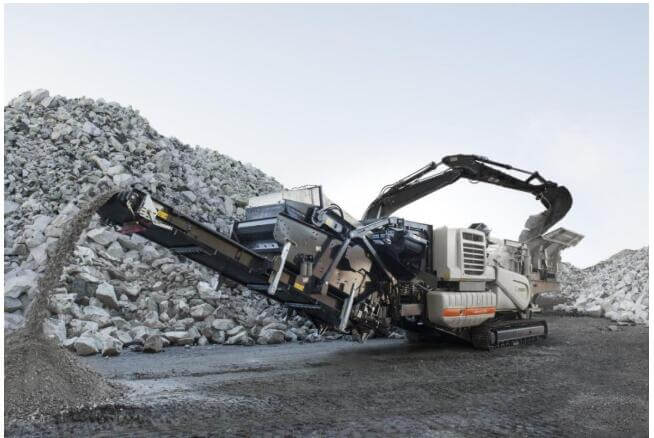

crawler impact crusher

LT1213

LT1213 is a fully equipped counterattack mobile crushing station, which combines maneuverability, high productivity and adaptability. Caterpillar C13 engine provides crushing power, and high-quality hammers achieve powerful crushing performance. LT1213 is suitable for primary crushing or medium crushing applications. The extremely high crushing ratio and excellent cubic shape of the finished product meet the requirements of the needle and flake content of the asphalt and concrete product specifications. It is suitable for industries such as quarrying and gravel, cement, concrete and asphalt recycling and slag recycling.

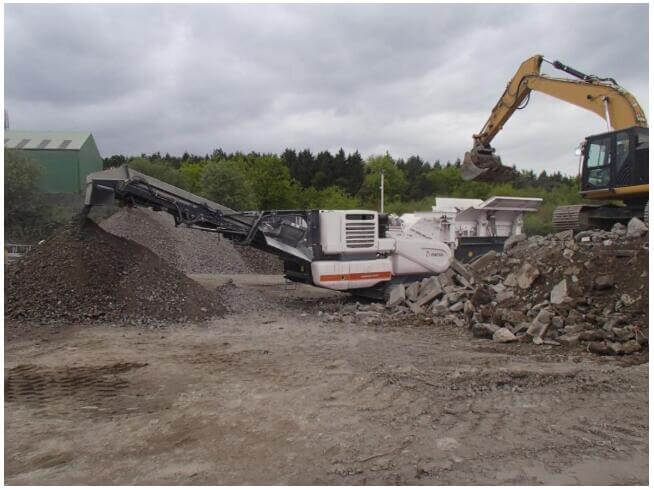

crawler impact crusher

LT1213S

LT1213S is a fully equipped counter-attack mobile crushing station. The new dual-inclination vibrating screen and radial recirculating belt conveyor can improve the on-board screening capacity, and make the LT1213S suitable for closed-circuit and open-circuit crushing operations. It only takes a few minutes to complete the connection with the screening device. The standard advanced gearbox is the characteristic of LT1213. Metso gearbox is the most efficient crusher drive system on the market, equipped with auxiliary starting and braking devices. The best hydraulic circuit, as well as independent cooling fan and idle machine function, can reduce fuel consumption by 20% and improve the power of the crusher.

crawler impact crusher

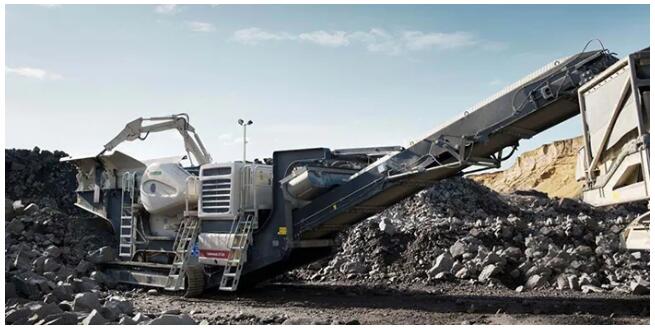

Crawler Jaw Crusher

LT96WM ™

LT96WM ™ is the solution to the most difficult transportation conditions, and can be transported by air, elevated ropeway or low flat trailer. LT96 is Metso’s most compact mobile jaw crusher with excellent performance, especially in recycling and contract crushing applications. Standard IC700 ™ automatic control system can ensure the best crushing effect. One-click start and stop features, as well as different access levels, are particularly suitable for rental businesses.

LT106

The LT106 jaw crusher is equipped with Nordberg® C106 ™ jaw crusher, which excels in the harshest operating environments. Many new features of this model, such as radial side tape machine, high inertia flywheel and IC700 ™ automatic control system with ultrasonic level sensor, making it the most productive and cost-effective model in the 40-ton specification. The CAT®C9.3 ™ engine and hydraulic drive unit ensure trouble-free operation and eccentric rotation. Optional such as vibrating screen unit and extended main-belt machine, etc., to further improve the adaptability of the crushing station.

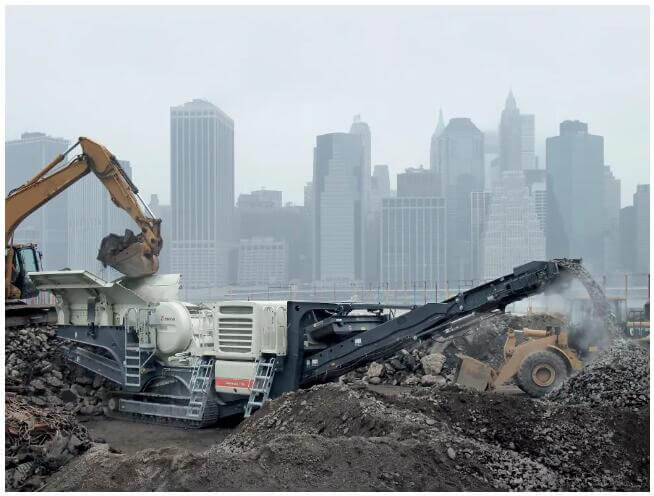

crawler jaw crusher

LT120

LT120 jaw crusher is equipped with Nordberg® C120 ™ jaw crusher with wide feed opening, which can ensure good production capacity even under the worst operating conditions and can change the direction of rotation when the crushing chamber is blocked The new CAT® C13 ™ engine provides the best power for high inertia flywheels. LT120 is safe to operate and maintain. The jaw lining bolts can be easily installed and removed, and the flywheel synthetic material shield can be opened safely and conveniently. The crushing station is equipped with a smooth access channel and a suitable operating platform to ensure the safety of daily operations.

crawler jaw crusher

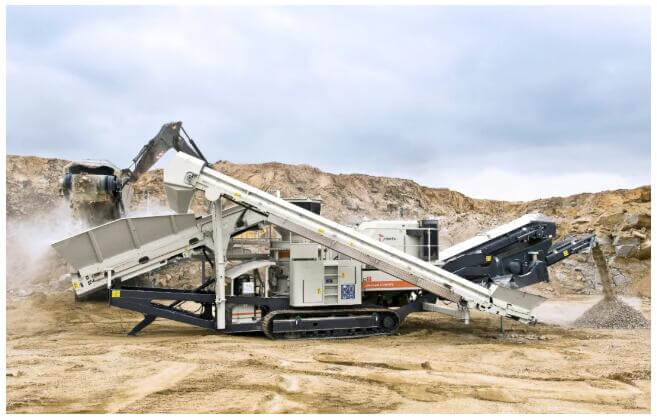

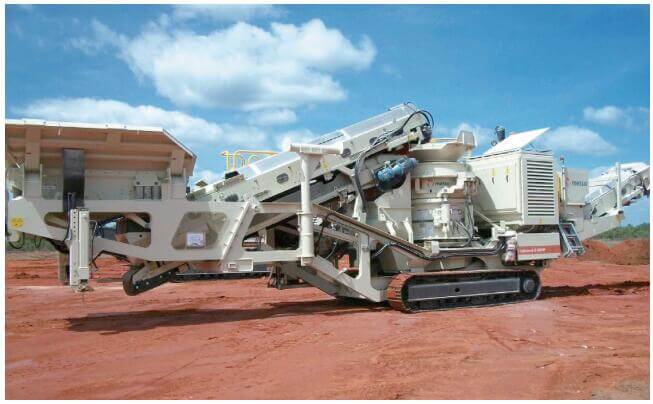

Crawler Cone Crusher

LT200HP

The LT200HP cone crushing station is designed for the crushing of medium and fine aggregates in multi-stage crushing applications, such as railway ballast, asphalt and concrete. The crushing station is made with Nordberg® HP200 ™, one of the best-selling cone crusher models on the market. Nordberg HP200 cone crusher has high production capacity, good reliability and low cost of wearing parts. The crusher is directly driven by the transfer case, so it can save 15% of fuel than hydraulically driven crusher. The easy-to-operate Metso IC ™ process control system ensures stable and continuous feed to the crusher, as well as fully automatic crushing process control, one-click start-up and advanced fault diagnosis.

crawler cone crusher

LT200HP

The LT200HP cone crushing station is designed for the crushing of medium and fine aggregates in multi-stage crushing applications, such as railway ballast, asphalt and concrete. The crushing station is made with Nordberg® HP200 ™, one of the best-selling cone crusher models on the market. Nordberg HP200 cone crusher has high production capacity, good reliability and low cost of wearing parts. The crusher is directly driven by the transfer case, so it can save 15% of fuel than hydraulically driven crusher. The easy-to-operate Metso IC ™ process control system ensures stable and continuous feed to the crusher, as well as fully automatic crushing process control, one-click start-up and advanced fault diagnosis.

crawler cone crusher

LT300HP

The LT300HP ™ Cone Crushing Station is equipped with the Nordberg® HP300M ™ Cone Crusher that has been proven in practice. It is the most effective and reliable medium and fine crushing station on the market, and can be transported on the site as a whole. The LT300HP has a solid structure and is suitable for the hardest rock crushing conditions. The crushing chamber type of HP300 can be selected according to the specific application, so as to achieve a high-yield, advantageous final product and low cost of wearing parts. The best power transmission system makes the LT300HP extremely cost-effective.

crawler cone crusher

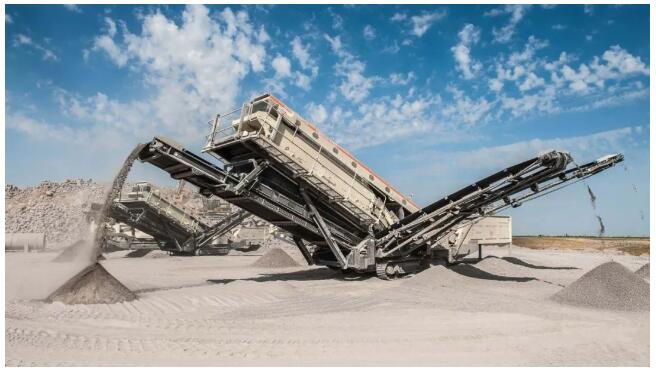

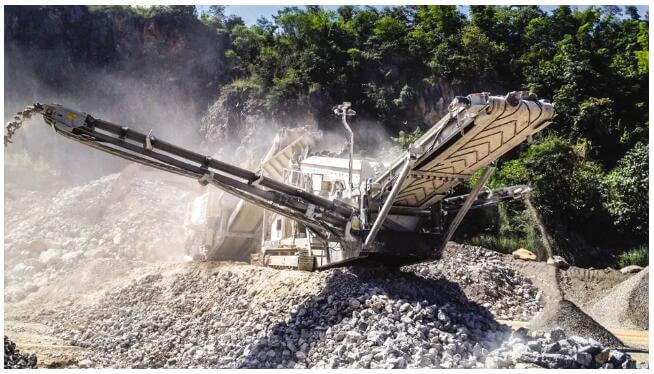

Crawler Screening Machine

LM S48

The LM S48 mobile screening station has three layers of large screens and can produce up to four specifications of final products. Load-based feeding system and adjustable sifting angle to achieve efficient screening. The convenient tensioning screen at both ends can adapt its fastest speed to different applications. The hydraulic folding conveyor makes the transportation process of the whole machine more convenient and fast. High-quality components and design ensure trouble-free production. It is suitable for a variety of independent and multi-stage crushing and screening processes.

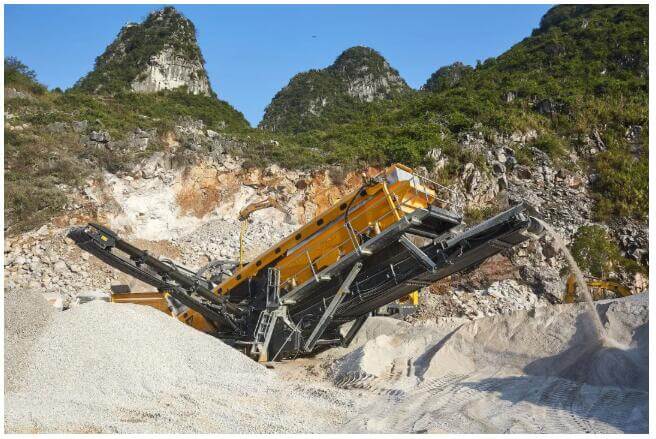

crawler screening

ST4.8

The ST4.8 mobile screening station is equipped with an efficient three-layer screen, which can achieve high yield and precise fine screen. Large-scale, three-layer and double-bearing screens, excellent screening capacity; advanced automatic control, optimal production capacity; large-capacity hopper, low feeding height. The new engine, with the aid of an optimized hydraulic system, can achieve the best fuel efficiency and at the same time easy maintenance.

crawler screening

ST2.8

The ST2.8 mobile screening station multi-purpose equipment is most suitable for the desilting application when the surface is peeled off. It can also be used as an aggregate screen in multi-segment applications, and all uses in between. The power comes from the Cat C4.4 engine, the button-type process control, and the operation is simple. The movement of each part of the equipment is hydraulic, safe and fast. The new engine can save fuel and facilitate maintenance.

crawler screening
