QM Cylinder Ball Mill

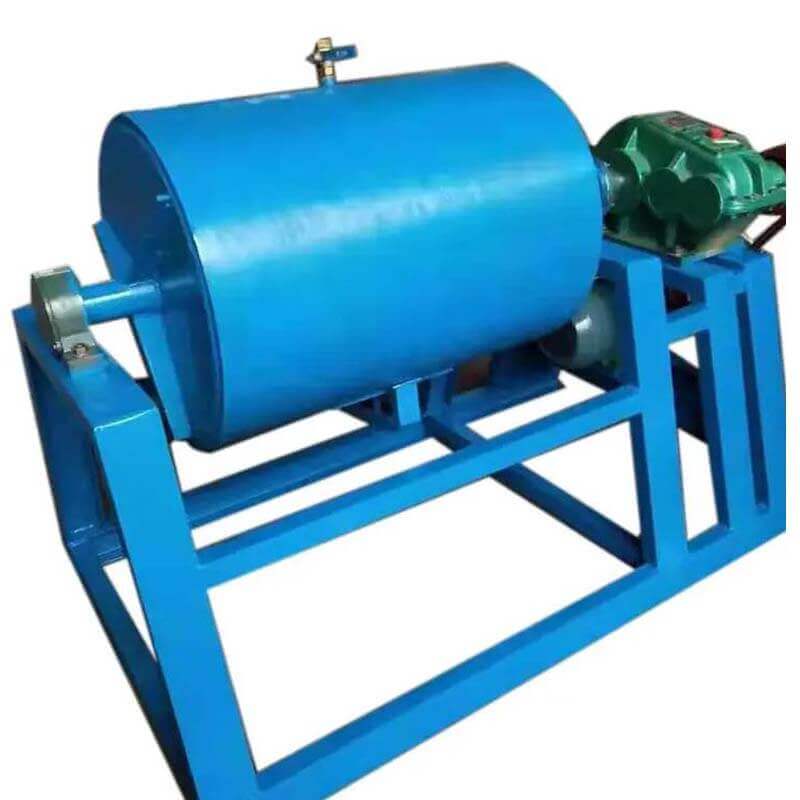

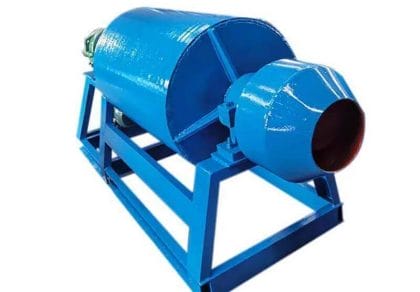

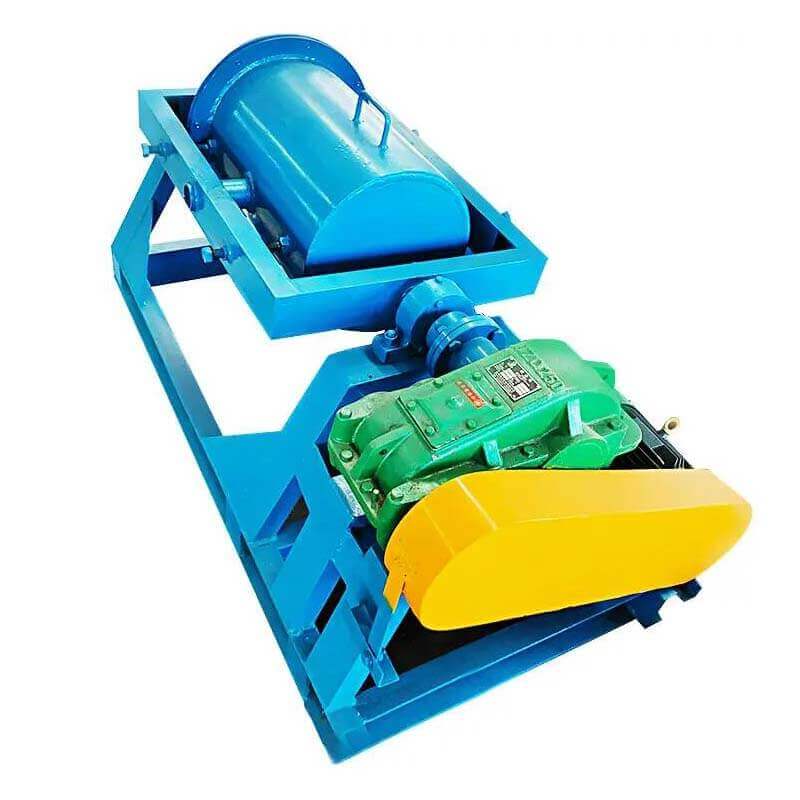

QM Cylinder Ball Mill

【Capacity】 45-350 KG/H

Feeding Size<20mm

【Discharge Size】0.074mm~0.8mm

【Power】 3kw

ApplicationBuilding materials (especially cement, ceramics, refractory industry), metallurgy, coal, chemical and other semi-industrial laboratories, or other industrial grinding materials.

Contact Us via WhatsAppChat Online on WhatsApp

Advantages

Cylinder Ball Mill is the common crushing equipment used in the crushing plant. Ball mill suits dry or wet grinding materials in mineral processing, cement, glass ceramics, and other fields.
The transmission of the straight-cylinder concentrator adopts a large double-row center-adjusting roller bearing instead of the sliding bearing, the friction is greatly reduced, and energy-saving is 20-30%. By adopting a wave-type liner, the contact surface of the ball ore is increased, the grinding effect is strengthened, and the energy consumption is reduced by raising the ore. Small ball mill with a diameter below 2.1 meters (excluding 2.1 meters) adopts an integral frame for civil construction and installation of equipment. The oil mist lubrication device ensures reliable lubrication of large and small gears.
The laboratory ball mill has advanced performance, reasonable structure, high sample preparation efficiency, and good sealing performance. It is suitable for crushing and processing all metal and non-metal ore raw materials. Industrial ball mills are applied in the geological, mining, metallurgical, coal, building materials, and electric power sectors.
JXSC provides both industrial uses mining equipment and laboratory small equipment, such as crushers and grinders: ball mills, jaw crushers, hammer crushers, roller crushers, impact crushers, cone crushers, and wet pan mills.

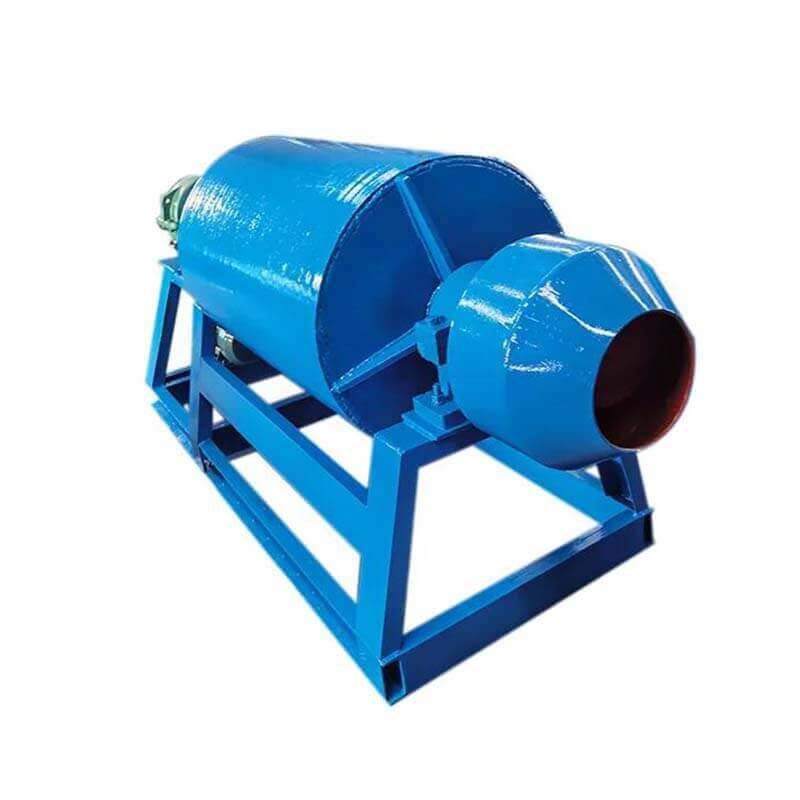

QM Cylinder Ball Mill
video

Product Structure

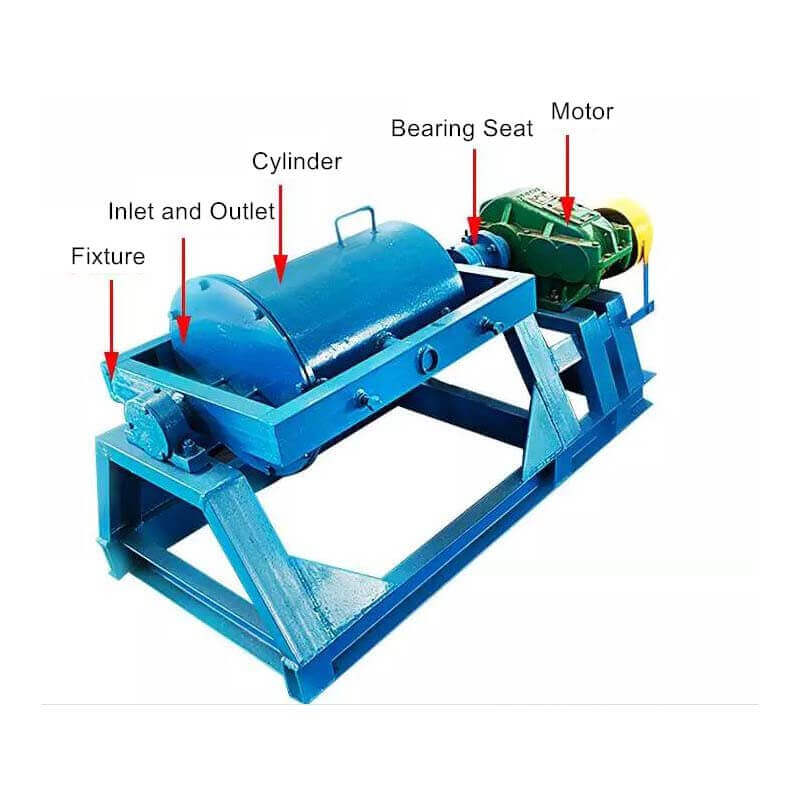

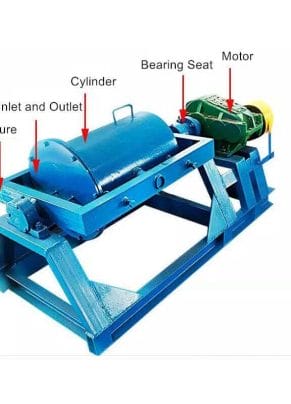

【Structure】main parts of the ball mill include the feeding part, main bearing, rotating part, driving part (big and small gear device), air clutch, main motor, slow driving device, jacking device, lubrication system, and electric control system.
The laboratory mill can be used in dry and wet grinding, with frequency conversion technology, a wide speed range, convenience for grinding, mixing, and even sampling, no foundation treatment, low noise, and no dust pollution The work is clean and convenient, the grinding and sealing performance is good.
【Working Principle】Grinding mill machine is supported by the rolling bearing, and the material is fed into the feeding end of the cylinder through the transmission mechanism, and the material is crushed because of the dropping impact and self-grinding of the steel ball and the ore itself. Due to the continuous feeding of materials, the pressure makes the materials in the barrel move from the feeding end to the discharging end, and the slurry rises above the lower edge of the hollow shaft at the discharging end and overflows. The hollow shaft is equipped with anti-spiral Blades, which can return the overflow steel ball and the coarse ore block to the mill.

Technical Parameters

ModelMQ480*600MQ460*600MQ420*600MQ300*500
Volume(L)1101009265
Speed( r/min)43485662
Feed Size(mm)2-252-20
Maximum Feeding Amount (kg/time)60504030
Capacity(kg/h)45-3505-20040-15030-100
Discharge  Size(mesh)200
Balls(kg)1801388653
Motor(kw)2.21.51.11.1
Over Size(mm)1650*900*10501600*850*10001490*790*9001180*780*760
