Small Shaking Table
【Capacity】： 0.2-1 t/h
【Feed size】 0.3–0.074mm
【Application】 Small shaking table is used for gravity separation in the laboratory for ore selectivity research, experiment and small-scale gold plant beneficiation.
【Processible Material】：fine grain ore and coal, rare metals, ferrous metals, non-ferrous metals, precious metals, etc.
Chat Online on WhatsApp
Advantages

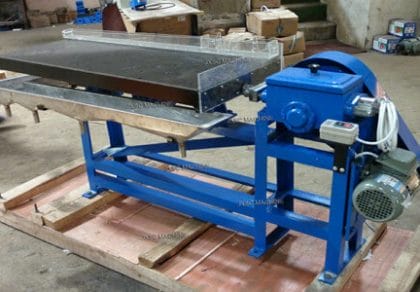

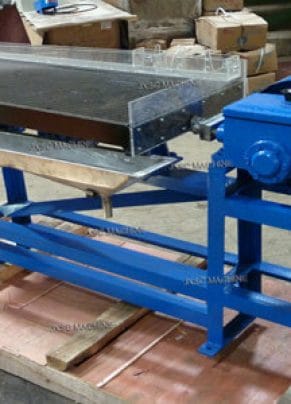

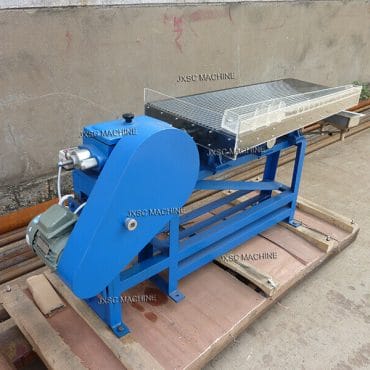

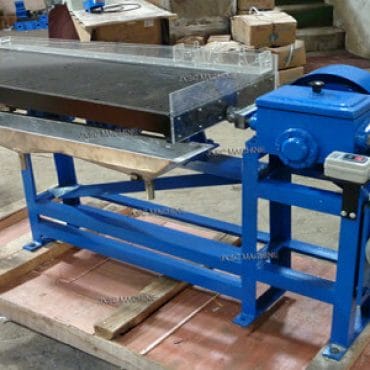

【Small Mining Shaking Table】also known as mini shaker table, portable shaking table, is a mining laboratory equipment, which is smaller than the industry uses gold shaker table, suitable for school research, metallurgical testing and the small-scale concentrator which limited by the site.
【Models】deck material have glass fiber reinforced plastics (FRP) and alloy.
Table surface groove have 46, 60, 80, 90, 110, 120 strips for coarse, fine, slime gold beneficiation requirements. Support for custom shaker table design.
【Application】 Gold vibration shaker table can effective separate 0.02-2mm coarse ore; slime grade tungsten, tin, ancestor, iron, manganese, chromium, chin, secret, lead, gold and other colored, black, rare metal minerals; 0.02-4mm pyrite; coal dust and slime.
【Warranty】One year warranty, quality assurance, competitive price
The vibration shaker table can be used not only as an independent mineral processing equipment but also combine with other mineral processing equipment such as jig, spiral separator, gold centrifugal concentrator.
The shaking table is one of the main gravity separation equipment, shaking tables is widely used in the separation of tungsten, tin, tantalum, niobium, gold and other rare and precious metals. Industrial shaker table can be used for coarse sand (2-0.5 mm), fine sand (0.5-0.074 mm) and slime (- 0.074). A small shaker table can also be used to separate iron, manganese ore and coal. When tungsten and tin ores are treated, the effective recovery size range of the slime table is 2-0.22 mm.
Product Structure
【Main parts】The main parts of the mini gold shaker table are the head, motor, slope regulator, bed surface, ore trough, water trough, rifled strip, and lubrication system.
【Working Principle of the Small Shaking Table】The ore dressing process of the vibration shaker table is carried out on the inclined bed surface with multiple strips. The ore particles are fed into the ore trough at the upper corner of the bed surface, and the lateral flushing water is supplied by the water trough. Under the action of inertia and friction caused by the asymmetric reciprocating motion of the bed surface, the bed surface is divided into layers according to specific gravity and grain size, and moves longitudinally along the bed surface and laterally along the inclined bed surface. Therefore, the ore particles with different specific gravity and particle size gradually fan down from side a to side b along the respective direction of movement, respectively from the concentrate end and the tailings side of the different areas of discharge, and finally be divided into concentrate, middling and tailings.
Technical Parameters
| Items | Units | LYN（S）-1100×500 | |
| Deck dimension（length*feed side width*concentrate side width） | mm | 1100×500×430 | |
| Stroke | mm | 9-17 | |
| Times of stroke | time/min | 280-460 | |
| Adjustment range of deck slope | ° | 0-10 | |
| Feed size | Slime | mm | 0.074 |
| Sand | mm | 2 | |
| Feed density | % | 10-30 | |
| Capacity | Slime | kg | 20-60 |
| Sand | kg | 40-100 | |
| Water consumption | kg | 2-10 | |
| Motor | Model | L/min | Y801-4 |
| Power | 0.55 | ||
| Speed | kw | 1390 | |
| Triangle belt | r/min | A-1245 | |
| Overall dimension（length*width*height） | mm | 1730×500×800 | |
| Weight | kg | 145 | |
