Graphite Ore and Its Mineral Processing: Analysis and Application

The commercial value of graphite ore is mainly determined by its fixed carbon content, flake size, crystallinity, and impurity level. Among natural graphite resources, large-flake graphite generally has a higher market value because its excellent conductivity, thermal resistance, and structural integrity make it suitable for high-value applications such as lithium-ion battery anodes, refractory materials, and advanced carbon products.

With the rapid development of the new energy industry, demand for high-purity graphite and battery-grade graphite continues to increase. As a result, efficient graphite ore beneficiation and purification technologies have become increasingly important. Among the available beneficiation methods, flotation remains the primary process for recovering natural graphite, while gravity separation, magnetic separation, chemical purification, and electrostatic separation may be incorporated depending on ore characteristics and final product requirements.

This article introduces graphite ore, its quality characteristics, associated minerals, major applications, global distribution, and the main graphite beneficiation methods, with a focus on flotation and combined processing technologies.



Comprehensive Introduction to Graphite Ore

1. Overview

Graphite ore is a mineral resource containing naturally occurring graphite, a crystalline form of carbon. Graphite is characterized by excellent electrical and thermal conductivity, high-temperature resistance, lubricity, chemical stability, and a low Mohs hardness.

Based on crystal structure and morphology, natural graphite is generally divided into two major types:

• Crystalline flake graphite: Graphite occurs as visible flakes with relatively high crystallinity. It is generally more valuable and is widely used in batteries, refractories, lubricants, and advanced carbon materials.
• Amorphous or cryptocrystalline graphite: Graphite crystals are extremely fine, often difficult to liberate and purify. This type is commonly used in lower-value applications, although high-grade material can sometimes be used directly or further processed into high-purity products.

The mineral processing method selected for a graphite ore deposit depends strongly on graphite grade, flake size, liberation characteristics, associated minerals, and the required concentrate quality.



2. Grade (Quality)

The quality of graphite ore is typically measured by its fixed carbon (FC) content, determined through chemical analysis (e.g., high-temperature combustion method).

Industrial Requirements For Graphite Mines
Crystalline graphite	Cutoff grade: 2.5%	Poor ore: 3-5%	Rich ore: ≥5%
amorphous graphite	Cutoff grade: 60%	Poor ore: 65-80%	Rich ore: ≥80%



The industrially recoverable grade of crystalline graphite (flake graphite) is usually ≥2.5%, and high-quality ore can reach 10%~20%. Cryptocrystalline graphite with a grade of less than 65% is generally not mined, and its natural grade is higher at 60%~85%, but due to its fine embedding, it is difficult to purify. Cryptocrystalline graphite with a grade greater than 80% is ground and sold directly. For high-purity graphite requirements (such as battery-negative electrode materials), it needs to be purified to more than 99.9%.

Crystalline graphite (flake-like) can be used after beneficiation.

Concentrate Grade Requirements
Ordinary flakes	Pencil graphite	Electrical carbon graphite
≥89%	89%-98%	70%-99% or more



Graphite processing is not simply about maximizing carbon recovery. A successful beneficiation plant must balance grade, recovery, flake size preservation, impurity removal, and operating cost.



3. Major Mineral Composition & Associated Minerals

The main mineral components of graphite ore include not only graphite itself but also other minerals that coexist with it. These associated minerals will affect the ore dressing process and final application. The following are the main mineral classifications and characteristics commonly found in graphite ores:



Graphite

Chemical formula: C (carbon)

Types
Crystalline graphite (flake graphite): It has a hexagonal flake structure, excellent conductivity, and heat resistance, and is used in high-value-added products (such as battery negative electrodes).
Aphanitic graphite (earthy graphite): The microscopic crystals are extremely small (<1μm), the texture is soft, the purity is high, but the ore dressing is difficult, and it is mostly used directly for casting coatings, etc.

Characteristics

Density: 2.09-2.23 g/cm³

Mohs hardness: 1-2 (extremely soft)

Refractory: Melting point > 3000℃





Main associated minerals

Graphite ore often coexists with the following minerals and needs to be separated by ore dressing:

(1) Silicate minerals

• Quartz (SiO₂): The most common impurity, with high hardness (Mohs 7), needs to be separated by flotation or gravity separation.
• Mica (such as muscovite KAl₂(AlSi₃O₁₀)(OH)₂): Flaky structure, easily mixed with graphite, affecting purity.
• Feldspar (such as potassium feldspar KAlSi₃O₈): Common in weathered deposits.

(2) Iron-containing minerals

• Pyrite (FeS₂): Affects the electrochemical properties of graphite (such as the sulfur content needs to be strictly controlled in battery applications).
• Magnetite (Fe₃O₄): Can be removed by magnetic separation.
• Hematite (Fe₂O₃): Requires acid leaching or reduction roasting.



(3) Other common minerals

• Calcite (CaCO₃): easily soluble in acid, can be removed by chemical purification.
• Kaolin (Al₂Si₂O₅(OH)₄): common in cryptocrystalline graphite, reduces the melting point of the ore.
• Rutile (TiO₂): exists in small amounts, affecting stability in high-temperature applications.

Understanding the mineralogical composition is therefore essential before designing a graphite ore beneficiation plant.



4. Applications

Graphite has a wide range of industrial applications because it combines electrical conductivity, thermal stability, lubricity, and chemical resistance.

• Battery industry(Li-ion anodes): High-purity flake graphite (≥99.95%) is an important raw material for lithium-ion battery anode materials. Battery applications require strict control of carbon purity, particle size, morphology, and impurity levels.
• Refractory materials: Graphite crucibles, magnesia-carbon bricks.
• Lubricants: Graphite powder and expanded graphite are used as solid lubricants because graphite’s layered crystal structure allows the layers to slide easily over one another.
• Nuclear industry: Ultra-high-purity graphite can be used in specialized nuclear applications, including as a neutron moderator in certain reactor designs.

These applications have different requirements for carbon content, flake size, impurity level, and particle size. Consequently, the graphite processing flowsheet should be designed according to the final product specifications rather than applying a single universal process.



5. Global Distribution of Deposits

(1) China (Largest global producer)

• Flake graphite: Heilongjiang (Jixi, Luobei), Shandong (Pingdu), Inner Mongolia (Xinghe).
• Amorphous graphite: Hunan (Chenzhou), Jilin (Panshi).

(2) Other Major Producers

• Brazil: High-quality flake graphite (e.g., Minas Gerais).
• Madagascar: Ultra-high-carbon graphite (>90%).
• India: High-grade amorphous graphite (Tamil Nadu).
• Canada: High-purity graphite (Quebec).
• Russia: Large deposits in Eastern Siberia.



Graphite Ore Beneficiation Methods

The main objective of graphite ore beneficiation is to separate graphite from gangue while maintaining graphite flake size and achieving the required concentrate grade and recovery.

The principal methods include:

• Flotation
• Gravity separation
• Magnetic separation for specific impurities
• Chemical purification
• Electrostatic separation in specialized applications

Among these methods, flotation is the dominant beneficiation method for flake graphite because graphite is naturally hydrophobic and responds well to froth flotation.



1. Flotation (Primary Process)



(1) Applicability

Best suited for: Flaky graphite (high crystallinity, strong hydrophobicity).

Secondary use: Amorphous graphite (requires optimized reagent systems).



(2) Key Advantages

• Efficient separation: Capable of treating low-grade ores (2%~20% fixed carbon), producing concentrates with 90%~99% carbon content.
• Flake protection: Minimizes flake damage through multi-stage grinding + gentle flotation.
• Mature & reliable: Over 90% of graphite processing plants in China adopt flotation.

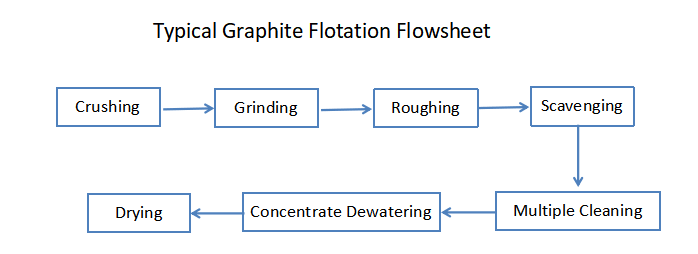

(3) Typical Flow

Roughing: Quickly discard gangue (removing 80%~90% waste).

Multi-stage cleaning (3~5 stages): Gradually enriches carbon content to ≥95%.

Scavenging: Recovers lost graphite particles from tailings.





(4) Key Reagents

Reagent Type	Common Reagents	Function
Collector	Kerosene, diesel, dodecylamine	Enhances graphite hydrophobicity
Frother	MIBC, pine oil	Stabilizes the froth layer
Depressant	Sodium silicate, starch	Inhibits quartz, mica, and other gangue minerals



The actual reagent scheme must be determined through mineralogical analysis and laboratory flotation tests because reagent performance can vary significantly between graphite deposits.



2. Gravity-Flotation Combined Process



(1) Applicable Scenarios

Ore composition: Graphite associated with dense minerals (e.g., pyrite, rutile).

Process role: Gravity separation serves as pre-concentration, reducing flotation feed and costs.



(2) Typical Flow

Gravity pre-concentration (30%~50% waste removal):

• Shaking table: Separates 0.2~2mm coarse graphite while removing heavy minerals.
• Spiral chute:Processes fine fractions (-0.2mm).

Flotation refinement: Conventional flotation for gravity concentrates.



(3) Pros & Cons

Pros: Lowers grinding energy consumption, reduces flotation reagent usage.

Cons: Lower recovery for ultrafine graphite (-0.074mm).



3. Electrostatic Separation (Rarely Used)

(1) Principle

Electrostatic separation exploits differences in electrical conductivity between graphite and non-conductive gangue minerals such as quartz and silicates.

Graphite is electrically conductive, while many common gangue minerals are relatively non-conductive.

(2) Limitations & Niche Applications

Limitations	Applicable Conditions (Narrow)
Low throughput (<5t/h)	Final purification of ultra-high-purity graphite (>99%)
Requires ultra-dry environment (<5% humidity)	Combined with flotation/chemical methods for final refining
High energy consumption, complex maintenance	Special applications (e.g., nuclear-grade graphite)



(3) Practical Use

Lab/small-scale: Purifies high-value graphite (e.g., battery anode materials).

Industrial case: A Canadian plant elevated carbon content from 99% to 99.9% via electrostatic separation.

Electrostatic separation is generally not the mainstream method for conventional graphite beneficiation. It may be considered for specialized final purification or niche high-purity graphite applications after conventional physical and/or chemical processing.



Comparison & Selection Suggestions for Graphite Ore Beneficiation



Method	Capacity	Suitable Ore Type	Carbon Recovery	Cost Efficiency	Adoption Rate in China
Flotation	High (>50t/h)	Flaky/amorphous	85%~95%	★★★★★	>90%
Gravity-Flotation	Medium (20~50t/h)	Graphite with heavy minerals	80%~90%	★★★☆	~5%
Electrostatic Separation	Low (<5t/h)	Ultra-high purity	60%~70%	★★☆	<1%



Selection Criteria

• Flaky graphite: Prioritize flotation (preserves flake structure).
• Amorphous graphite: Direct flotation or simple gravity pre-concentration.
• Complex ore (sulfides/iron): Gravity-flotation hybrid.
• Ultra-high purity (>99.9%): Flotation + chemical purification + electrostatic (final step).



Conclusion

Graphite ore beneficiation is a multi-stage process designed to efficiently recover graphite while controlling flake size, carbon grade, recovery, and impurity content. Among the available technologies, flotation remains the primary beneficiation method, especially for crystalline flake graphite. Gravity separation can serve as a pre-concentration or auxiliary process, while magnetic separation can help remove iron-bearing impurities. For high-purity and battery-grade graphite, physical beneficiation is often followed by chemical purification and other specialized processing technologies.

Ultimately, the most suitable graphite ore processing flowsheet depends on the ore’s mineralogy, graphite grade, flake size, liberation characteristics, associated minerals, and final product specifications. Laboratory beneficiation tests and detailed mineralogical analysis should therefore be conducted before finalizing the process design.

For graphite producers and project developers, selecting the right combination of graphite flotation, gravity separation, magnetic separation, and purification technologies is essential for maximizing graphite recovery, concentrate quality, and overall project economics.
