Illite Processing

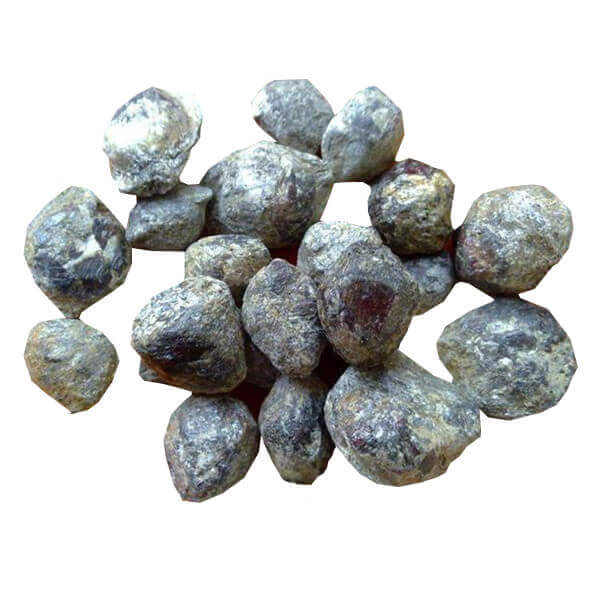

Illite is a type of clay mineral that belongs to the group of mica minerals. It is composed primarily of hydrated aluminum silicate, with some variable amounts of iron, magnesium, calcium, sodium, and potassium. Illite typically forms as a result of the weathering of other minerals, particularly feldspar. It is commonly found in sedimentary rocks, shale, and mudstones.

Illite has several important industrial applications due to its properties, including its ability to absorb water and its plasticity when wet. It is used in the production of ceramics, as a filler in paints and coatings, in drilling muds for oil and gas wells, and cosmetics and pharmaceuticals. Additionally, illite is sometimes used as a soil conditioner in agriculture.

Illite Processing Methods

The processing of illite can be divided into physical and chemical methods.

Physical processing methods mainly include purification, ultrafine grinding, bleaching, and surface modification. Purification is to remove impurities and improve product quality. Ultrafine crushing can make illite particles finer and easier to apply. Bleaching treatment is mainly to increase the whiteness of products to meet the needs of certain specific applications. Surface modification changes the surface properties of illite powder to adapt to different filling or modification needs.

Chemical processing methods involve pressurized acid leaching, solid-liquid separation, evaporation, and crystallization. Through chemical processing, K20 and AI203 in illite can be extracted and used to make chemical products such as potassium fertilizer and aluminum phosphate. In addition, it can be further processed into active silica powder for use in plastic fillers, etc.

Whether it is physical or chemical processing, the key technologies of illite include ore purification, ultra-fine crushing, and surface modification. The mastery and application of these technologies are crucial to improving the quality and application performance of illite products.

During the processing, attention must also be paid to detecting and screening illite content, color, whiteness, etc., to ensure that the quality and performance of the final product meet the requirements. At the same time, for illite containing other impurities, such as pyrite, limonite, etc., corresponding treatment methods, such as flotation, bleaching, etc., are also required to improve the purity and whiteness of the product.

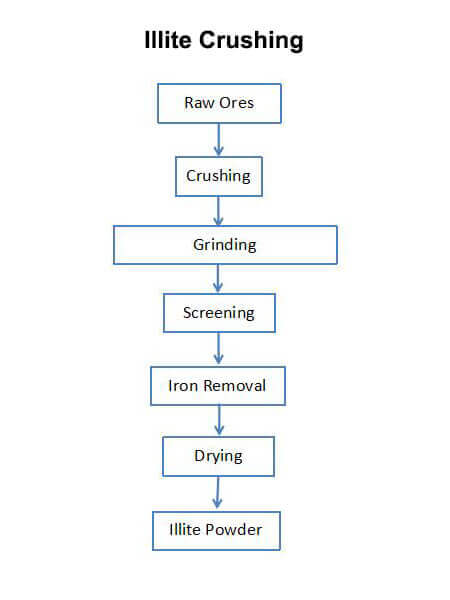

Illite Clay Crushing Process

The crushing process of illite clay includes the following steps:

1. Raw material collection: Excavate illite clay from the mine.
2. Crushing: Crushing the raw materials from the collection network to turn large raw materials into small pieces.
3. Grinding: Put the crushed raw materials into the ball mill, and the small pieces of raw materials will be turned into finer powder through the grinding action of the ball machine.
4. Screening: Classify the powder behind the ball through screening equipment to separate powders of different particle sizes.
5. Iron removal: Use a magnetic separator and other equipment to remove iron impurities in the powder.
6. Drying: Dry the iron-removed powder to reduce its moisture content to a certain range.
7. Packaging: Pack the dried powder for sale or use

Through the above process, relatively pure illite clay products can be obtained. The process flow of different manufacturers may vary, but generally, the above steps are followed.
