How to Separate Emerald?

Emerald is a highly valued green gemstone, a variant of the beryl (green) family, whose green color is derived from trace amounts of the elements chromium and vanadium. Often known for its deep, rich green color and high clarity, the emerald is considered one of the world’s most precious gemstones. Often used in high-end jewelry designs and collections, it has a long history and symbolic meaning, representing hope, rebirth, and wealth. Mining emeralds is a complex process due to the delicate nature of the gemstones and the specific conditions needed to locate and extract them without damage. Following we will introduce emerald deposits and how to separate them.

Emerald Introduction

Emerald is a gemstone with various minerals, beryl, colored green by trace amounts of chromium or sometimes vanadium. Beryl has a hardness of 7.5–8 on the Mohs scale. Most emeralds have many inclusions, so their toughness is classified as generally poor. Emerald is a cyclosilicate.

Color: Green Hardness (Mohs hardness scale): 7.5 – 8 Chemical formula: Be₃Al₂SiO₆ Mohs: 7.5–8 Birefringence: δ = 0.0040–0.0070 Category: Beryl variety

Origin of Emerald Deposits

The origin of emerald deposits is a complex geological process involving a variety of geological environments and conditions. The emerald deposits are mainly classified into hydrothermal veins and pegmatitic.

Metamorphic hydrothermal deposits

This type of deposit is formed in a metamorphic environment, usually adjacent to chromium-bearing strata or ultramafic rock bodies. The green color of the emerald comes from the presence of chromium and vanadium in the surrounding strata. Hydrothermal fluids containing beryllium seep into cracks in the earth’s crust and react with the surrounding chromium-bearing rocks to crystallize emeralds. Typical examples of this type of deposit include the Muzo and Chivor mines in Colombia.

In this type of deposit, geological formations such as fractures and shear zones are very important because they provide conduits for the migration and mineralization of hydrothermal fluids.

Gas-forming hydrothermal deposits

The majority of emerald deposits are of the aerogenic hydrothermal type, which is widespread in most emerald-producing countries, such as India, Zimbabwe, Australia, Pakistan, and Tanzania. In aerogenic-hydrothermal emerald deposits, emeralds are mainly distributed in the form of patch crystals in schistose veins of mica, talc, and chlorite. Acidic magma intrusion into the rock body (surrounding rock is mainly ultramafic), due to the heat and pressure on the contact zone so that the original minerals metamorphism, in the process, the original beryl is decomposed, the composition of the metamorphism gradually transferred to the mica schist and re-crystallized in which, if the surrounding rock happens to contain a small amount of Cr or V elements, emeralds can be formed. The main mineralized rock body is usually vein-like, often in the vicinity of the contact zone between the intrusive body and the surrounding rock, and the mineralization temperature is around 400℃.

Because the specific mineralization environment will not be the same, so leads to emerald formation of a variety of mineral inclusions, but according to the formation of the reason, they all contain certain common mica inclusions.

Pegmatite deposits

Emeralds can also form in environments associated with granitic pegmatites or beryllium-bearing pegmatite veins. Pegmatites are volatile-rich crystalline bodies in which beryllium and other minerals precipitate and crystallize through high-temperature conditions to form emeralds. This type of deposit is less common. The formation temperature of this type of deposit is mainly between 200°C and 600°C. The distribution areas of this type of emerald deposit include the United States, Brazil, Australia, China, etc.

Emerald Mining

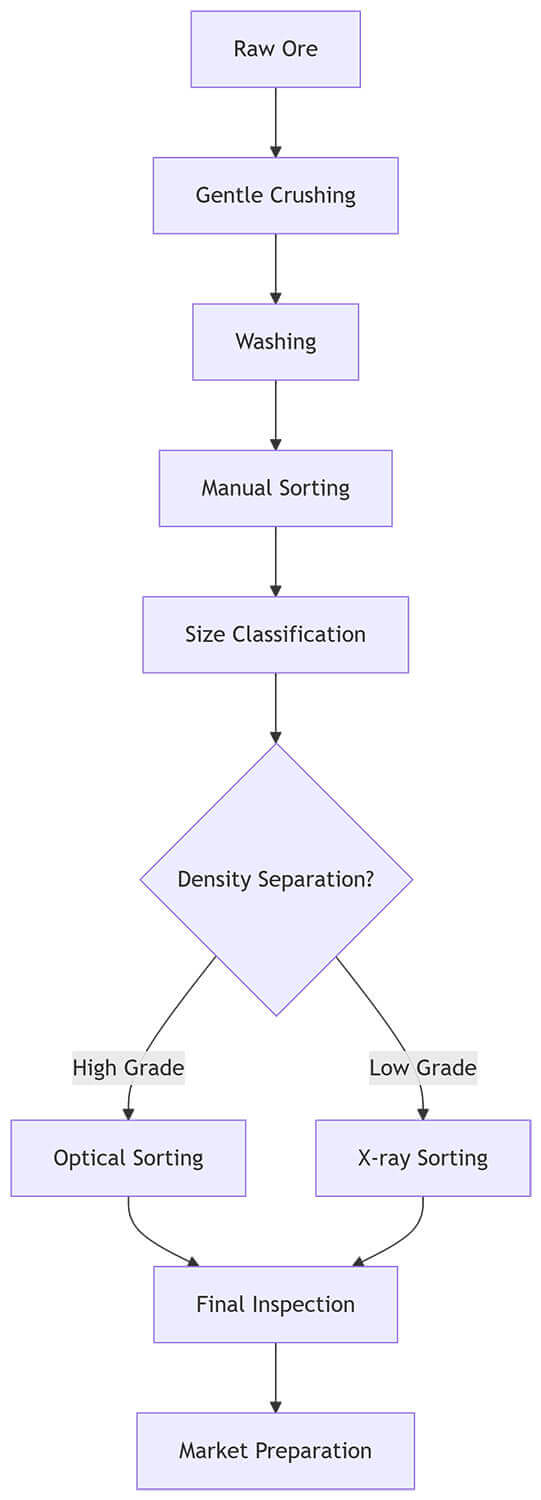

Due to the fragility of emeralds, separating them from their parent rock requires careful handling. The following is an overview of the process for effectively separating emeralds from the ore:

1. Initial crushing and cleaning

Gentle crushing: After removing the ore from the mine, gentle crushing may be performed to break down the rock without damaging the emerald. This step requires careful handling to avoid cracks.

Washing: The crushed ore is washed with water to remove dirt and debris. Cleaning makes it easier to see and recognize the green color of the emerald and separates lighter materials that may be covering or obscuring the stone.

2. Manual Sorting

Visual sorting: Experienced gem sorters then examine the cleaned material by hand. They look for the emerald’s characteristic green color and certain crystal shapes.

Selection of emeralds: Using hand tools such as tweezers or small picks, workers carefully select visible emerald crystals from the cleaned and sorted ore.

3. Sifting and sizing

Sifting: The ore is sometimes sifted or passed through sieves of different mesh sizes. This helps to separate the smaller rock masses from the larger ones, making it easier to find emerald crystals.

Sorting by size: By sorting the ore into different sizes, emeralds can be more easily identified and extracted, as smaller stones may be missed in larger chunks of rock.

4. Gravity separation (if required)

Utilizing density differences: Since emeralds are denser than many parent rocks, gravity separation techniques (e.g., water-based jigging) can sometimes be used to help separate them from lighter minerals.

Hydrodynamic separation: Emeralds can also be separated by using water or air jets to wash away the lighter material. Emeralds are denser and therefore sink to the bottom of the mine.

5. Optical sorting techniques

Infrared or X-ray sorting: Some modern mines use optical sorting technology, where X-rays or infrared light detect specific properties and colors of emeralds, allowing machines to separate them from waste rock. This method is faster and reduces the amount of manual sorting required.

Laser or optical sensors: These sensors scan the material and identify the emeralds by color and structure. The machine then mechanically separates the detected emeralds.

6. Magnetic and chemical separation (rarely used)

Although not common, magnetic separation may be used in certain advanced operations where specific magnetic minerals are present in the parent rock. Chemical separation is rarely used because of the risk of damaging the stone.

7. Final hand examination

After the initial separation of the emerald, a final hand inspection is carried out to ensure quality and to remove any residual mother rock or impurities.

Experienced workers will scrutinize each stone to ensure that it is an emerald and assess its quality.

In short, separating emeralds is a meticulous process that relies on gentle crushing, cleaning, hand sorting, and in some cases using advanced optical techniques to separate the stone from the mother rock. This process ensures minimal damage to the emerald and preserves its natural beauty for further processing and cutting.
