Rock Manganese Mining & Beneficiation

Published time:08 June 2023

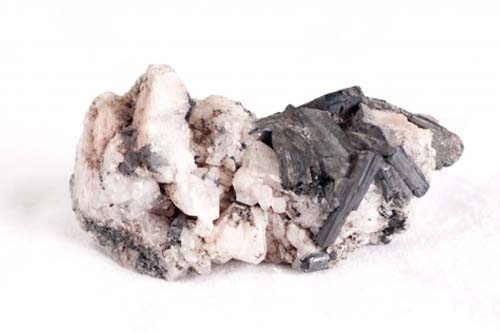

Rock manganese, also known as manganese ore or manganese rock, is a natural mineral that contains high concentrations of manganese. Manganese is a chemical element with the symbol Mn and atomic number 25. It is a hard, brittle, silver-gray metal widely distributed in the Earth’s crust.

The composition of rock manganese can vary, but typically it contains high levels of manganese oxide minerals such as pyrolusite (MnO2), psilomelane, and manganite. Other minerals, such as braunite and rhodochrosite, may also be in smaller quantities. The presence of impurities and other elements can influence the quality and usability of the rock manganese for specific applications. Rock manganese is an important natural resource that provides the necessary manganese for various industrial processes and contributes to producing essential materials like steel.

Rock manganese is primarily mined for its manganese content, which is used in various industries. The most common application of manganese is in the production of steel. It is added to iron to improve its strength, hardness, and resistance to corrosion. Manganese also produces aluminum alloys, batteries, ceramics, and fertilizers.




How to Mining Rock Manganese?

Exploration: Geological surveys and assessments are conducted to identify areas with potential manganese deposits. This involves analyzing geological data, conducting geophysical surveys, and collecting rock samples.

Site Preparation: Once a promising deposit is identified, the site needs to be prepared for mining operations. This includes securing permits, constructing access roads, and setting up infrastructure like camps, offices, and storage facilities.

Clearing and Stripping: Vegetation and topsoil are removed from the mining area to expose the manganese-rich rock beneath. This process is known as clearing and stripping, and it may involve the use of heavy machinery.

Drilling and Blasting: Holes are drilled into the rock using specialized drilling equipment. Explosives are then placed in the holes and detonated to break the rock into manageable fragments. Blasting is typically used in open-pit mining.

Excavation and Loading: Excavators, loaders, or other heavy machinery are used to remove the fragmented rock and load it onto trucks or conveyor belts for transportation to the processing plant. In underground mining, specialized equipment is used to extract the ore from the underground workings.

Crushing and Screening: The manganese ore is crushed into smaller sizes at the manganese processing plant. This facilitates the separation of the ore from the waste materials. Crushing is typically followed by screening to separate the ore into different-size fractions.

Beneficiation: Manganese ore often undergoes beneficiation to remove impurities and increase the manganese content. Beneficiation techniques may include washing, gravity separation, magnetic separation, and flotation. The specific beneficiation process depends on the characteristics of the ore.

Smelting or Refining: The processed manganese ore may undergo further refining or smelting depending on the desired end product. Smelting involves heating the ore and reducing agents to produce manganese alloys or high-purity metallic manganese.

Product Distribution: The final manganese products, such as manganese alloys, metal, or manganese dioxide, are distributed to industries for various applications.

It’s important to note that the specific mining methods and processes can vary depending on the deposit’s characteristics, location, and environmental considerations. Local regulations and safety protocols must also be followed to ensure responsible mining practices.


How to Beneficiate Rock Manganese Ore?

The beneficiation of rock manganese ore involves several techniques to remove impurities and increase the manganese content. The specific beneficiation process may vary depending on the characteristics of the ore and the desired end product. Here are some common methods used in rock manganese ore beneficiation:

Crushing and Screening: The ore is crushed into smaller sizes and screened to separate it into different-size fractions. This helps in reducing the ore size and removing larger impurities.

Gravity Separation: Gravity separation is often used to separate manganese ore from gangue minerals based on the difference in density. Techniques like jigging, shaking tables, and spirals can concentrate the manganese ore by exploiting its higher density than the surrounding gangue materials.

Magnetic Separation: Magnetic separation utilizes the magnetic properties of manganese ore to separate it from non-magnetic impurities. High-intensity magnetic separators commonly remove magnetic minerals or paramagnetic impurities from the ore.

Flotation: Flotation is a technique used to separate minerals based on their different surface properties. In manganese ore beneficiation, flotation can separate manganese minerals from gangue minerals or remove silicate minerals and other impurities. This process is particularly useful when the ore contains complex mineralogy or fine-grained particles.

Leaching: Leaching involves the extraction of manganese from the ore using chemical solutions. Acid or alkali leaching can dissolve manganese minerals selectively, leaving behind impurities.

Roasting and Reduction: Roasting the ore at high temperatures or subjecting it to a reduction process can remove volatile impurities or convert manganese minerals into more desirable forms. This can improve the quality and purity of the final manganese product.

Drying and Sintering: After beneficiation, the manganese ore may undergo drying and sintering processes to improve its physical properties and prepare it for further processing or use.


How We Help You Process Manganese?

As a professional mining equipment manufacturer and solution supplier, we provide some general information on how we can help others process rock manganese. Here are a few ways you can assist in processing rock manganese.

Equipment Supply: Offer a range of specialized equipment and machinery required for rock manganese ore processing. This may include crushers, screens, conveyors, magnetic separators, gravity separators, flotation machines, and other relevant equipment. Provide high-quality equipment that meets industry standards and customer requirements.

Process Design and Optimization: Collaborate with mining companies or ore processing facilities to develop efficient and effective processing flowsheets for rock manganese ore. Use your expertise to optimize the beneficiation process, reduce operational costs, and maximize manganese recovery.

Technical Consultation: Provide technical support and consultation to clients regarding the selection and operation of equipment, process optimization, and troubleshooting. Assist them in understanding the best practices for rock manganese ore processing and help them make informed decisions.

Customized Solutions: Offer tailored solutions based on the specific needs of your clients. Understand their requirements, evaluate the ore characteristics, and propose customized processing solutions that address their unique challenges and maximize the value of their manganese resources.


By offering comprehensive solutions, technical expertise, and reliable equipment, JXSC Machine can help you effectively process rock manganese and maximize operational efficiency and profitability.
